Низкий минимальный объем заказа нулевой переключатель давления нормально закрытый внутреннюю резьбу 3/8in 12V электромагнитный клапан для регулирования
- Категория: Мембранные клапаны >>>
- Поставщик: Dongguan,Chuancheng,Pneumatic,Components,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 12.36 $* | 13.66 $* |
| Aug-15-2025 | 12.37 $* | 13.14 $* |
| Jul-15-2025 | 10.31 $* | 11.13 $* |
| Jun-15-2025 | 12.90 $* | 13.23 $* |
| May-15-2025 | 10.89 $* | 11.51 $* |
| Apr-15-2025 | 11.80 $* | 12.94 $* |
| Mar-15-2025 | 11.79 $* | 12.9 $* |
| Feb-15-2025 | 11.73 $* | 12.61 $* |
| Jan-15-2025 | 11.68 $* | 12.94 $* |
Характеристики
CovnaValve--19-Year Experienced Manufacturer of Solenoid, Motorized, Pneumatic Valves
Our Advantages
1 pc for MOQ 3-7 days for lead time
200+ valves driven by solenoid,pneumatic,motorized or manual
100% fully inspection before shipment month warranty
33+ international certificates including FDA/CE/RoHS/ISO 9001,etc
19-years experience in serving water treatment, HVAC,oil & gas,food & beverage, irrigation,etc
30 highly trained sales staff response instantly to your inquiries
20 professional engineers with technical solutions to design,application & installation problems
OEM Services
1.Material: Brass/stainless steel/Plastic
2.Sealing: NBR(≤80℃), VITON(≤130℃), PTFE(≤180℃), EPDM(≤100℃), PPL(≤250℃)
3.Pressure: 0-250 bar
4.Connection: Thread/flange/triclamp/butt welded
3.Pressure: 0-250 bar
4.Connection: Thread/flange/triclamp/butt welded
5.Protection class: Dust proof/water proof/explosion proof
6.Voltage: DC 12V/24V, AC 24V/110V/220V
7.Operation type: Normally close(NC) / normally open(NO)
8. Structure: Direct acting/pilot-operating;diaphragm/piston
The unexpected advantages of solenoid valve
*0 bar start-up pressure * No leakage
*Fast response time
*Small power consumption
*Low price and low maintenance cost
*Generous purpose for water, air, oil, gas,etc
*Simple operation & easy installation at any location
*Multiple Voltage options including DC/AC
*Higher efficient automatic control in most machines & systems
Product Description

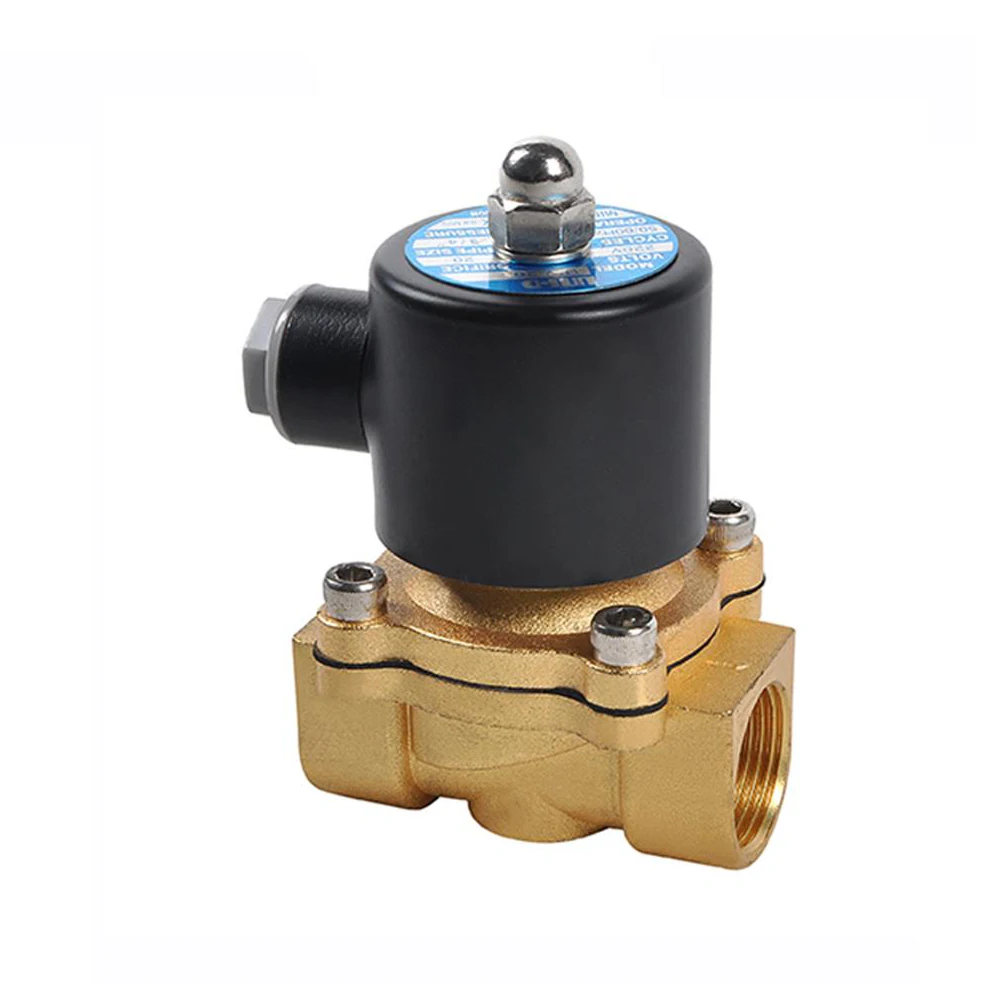

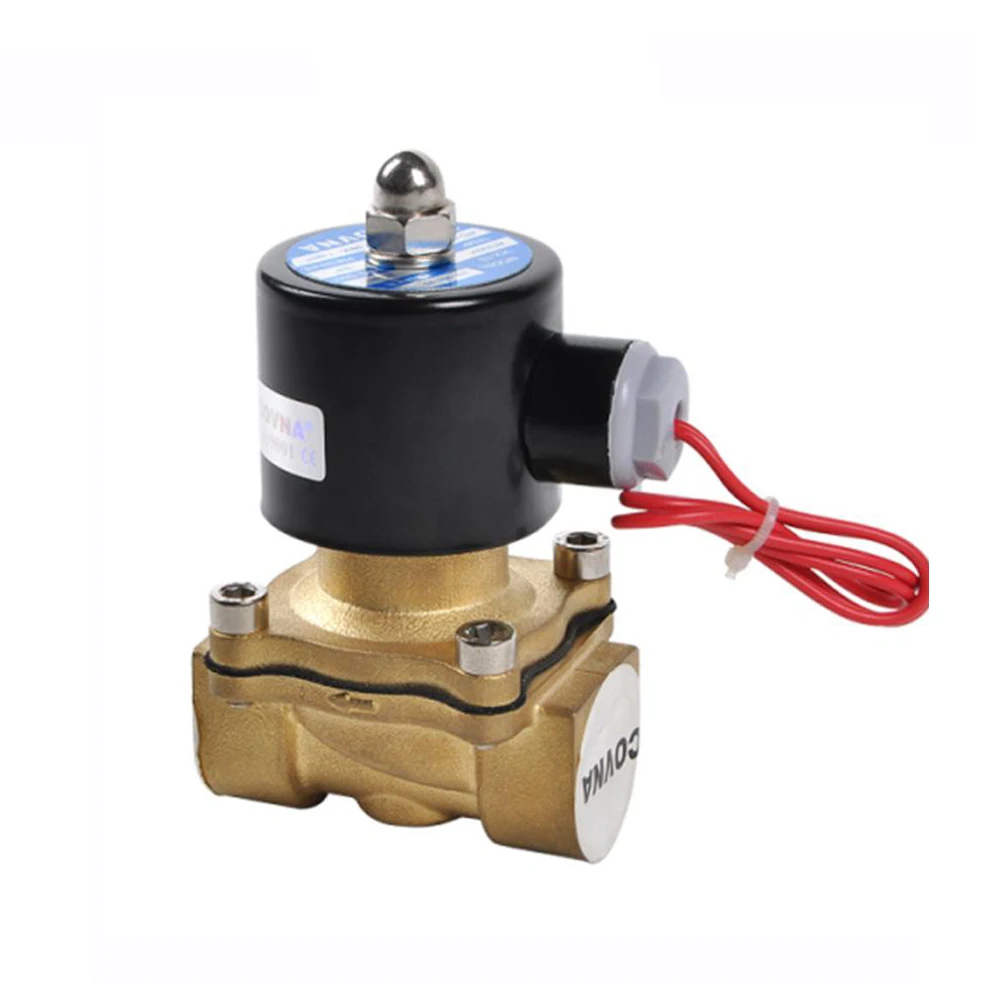

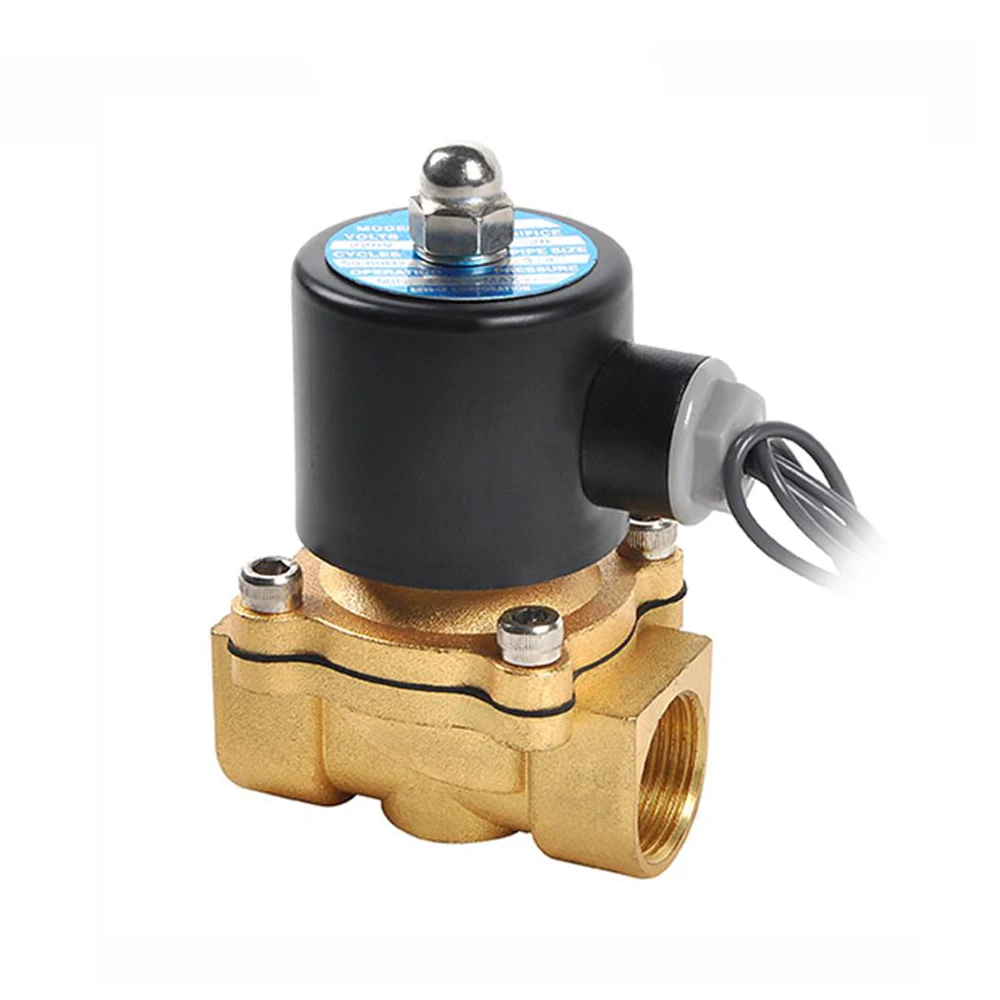

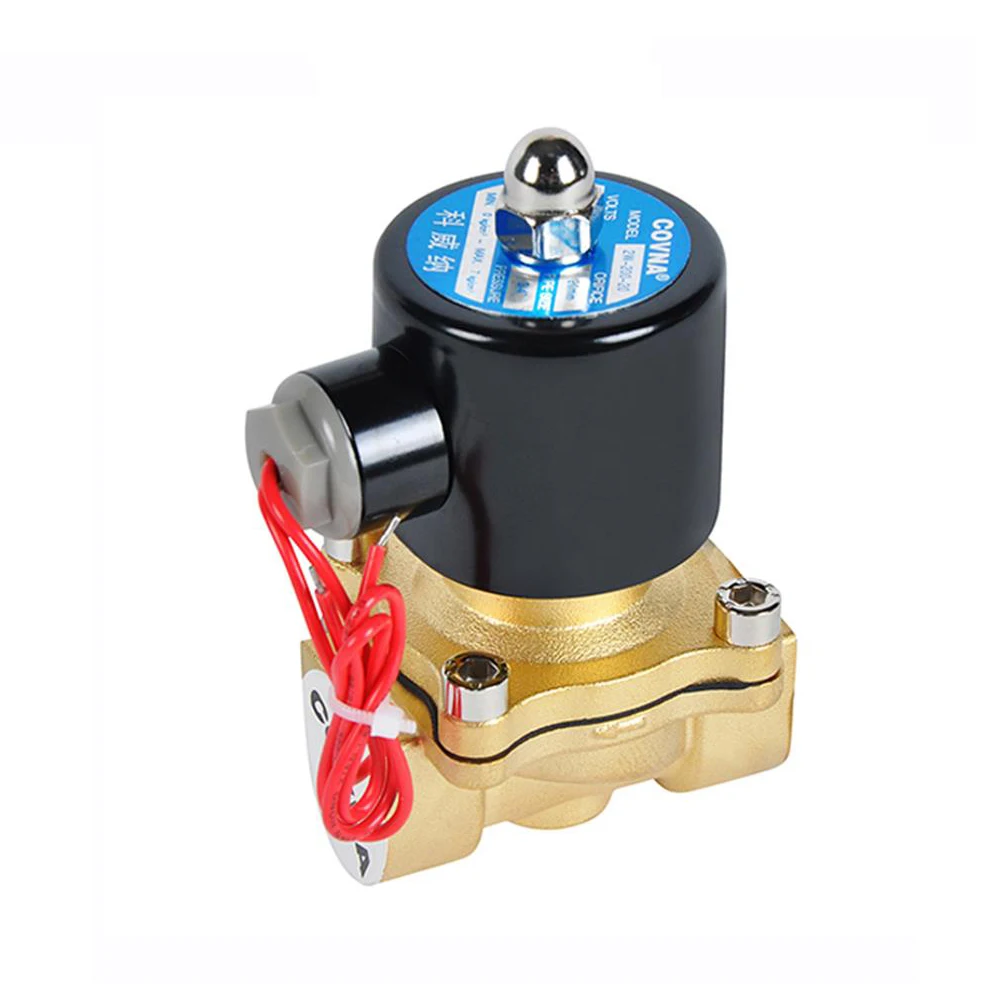

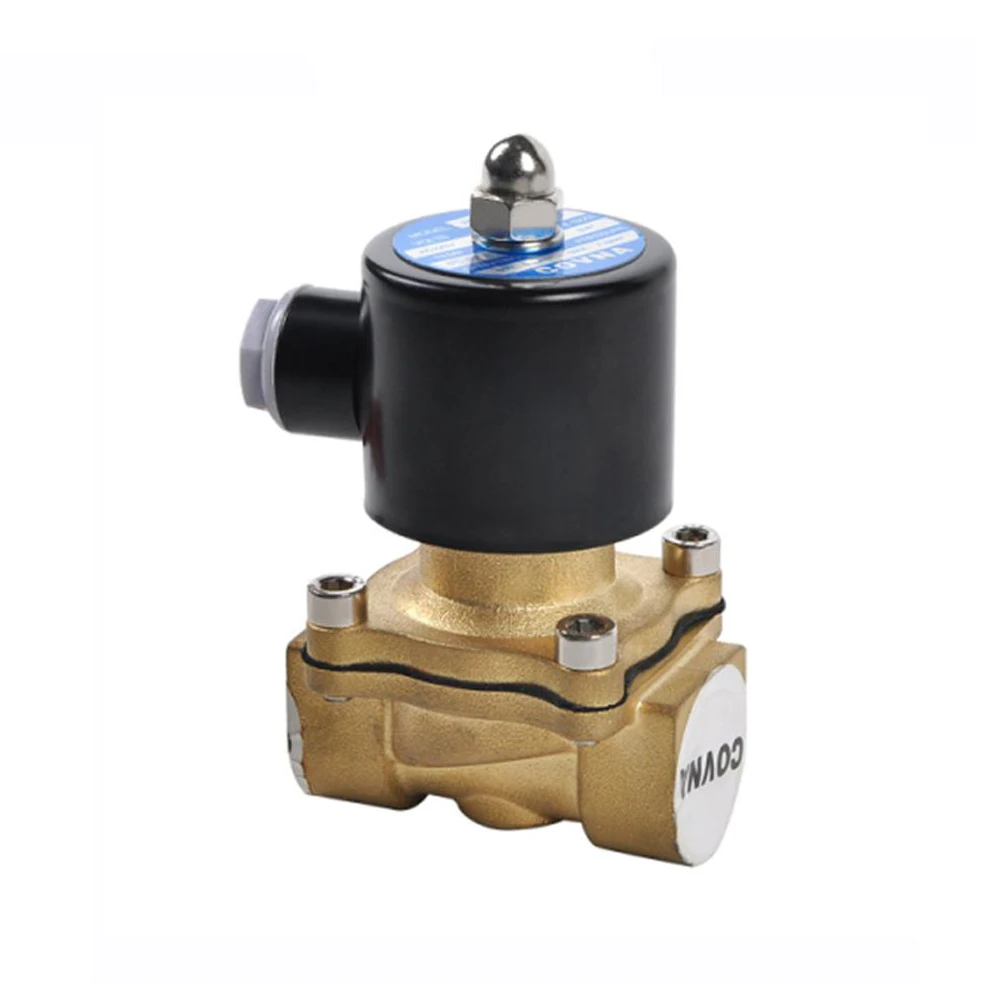

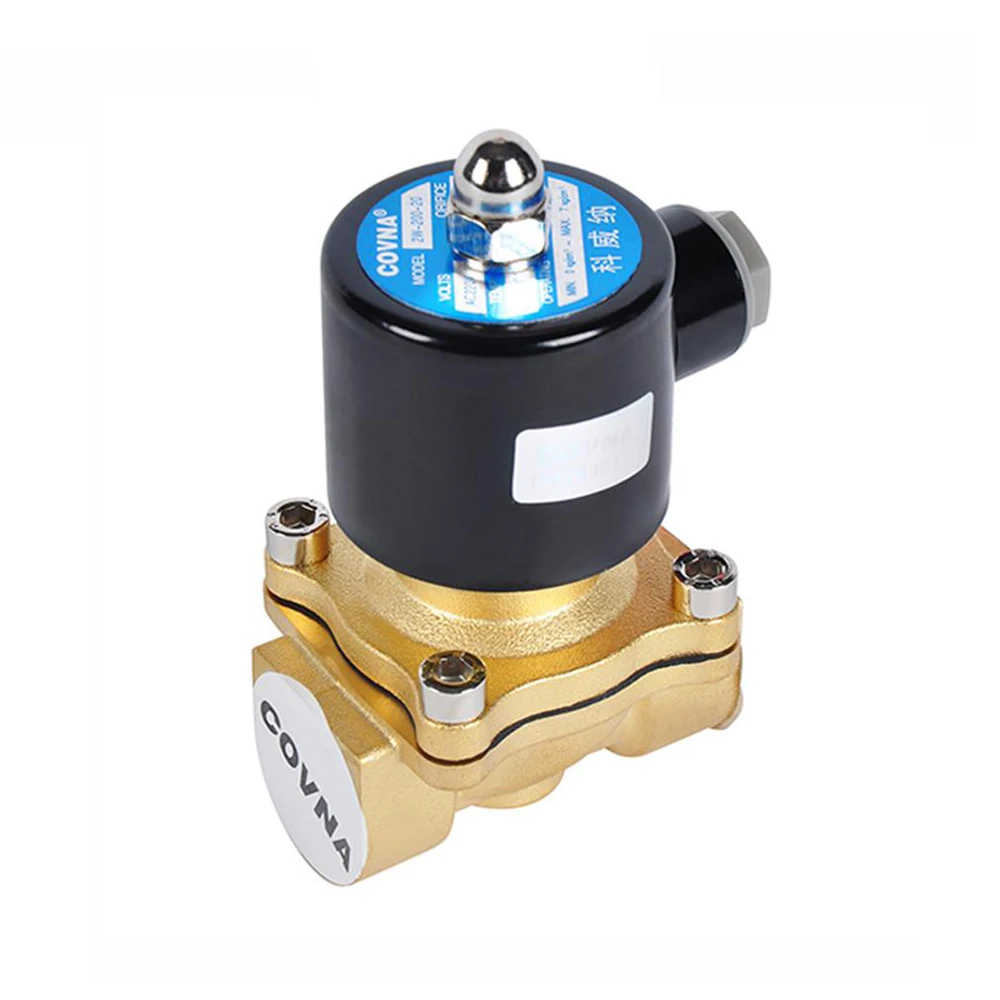

Low MOQ Zero Switch Pressure Normally Closed Female Thread 3/8in 12V Solenoid Valve for Flow Control
Item | Low MOQ Zero Switch Pressure Normally Closed Female Thread 3/8in 12V Solenoid Valve for Flow Control |
Medium | Air, water, steam, oil, etc |
Temperature | NBR: -10~80℃ |
Pressure | 0-1.0MPa |
Port size | 3/8" |
Port Thread | G Female Thread |
Orifice(mm) | 10 |
Voltage | DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
Tolerance | ±10% |
coils | Y32B,40VA(AC),18W(DC),IP65,100%ED |
Material | Body- Brass Seal- NBR Armature Tube- Stainless Steel 304 Plunger- Stainless Steel 430F Stop- SS 403F Springs- SS304 Shading Rings- Stainless Steel 304 |
Follow below instructions and choose the parameters you need. Then send us an inquiry. We will response to you as soonest.
Features & Benefits
Solenoid
for longer service time
*Thicker valve body to prevent malfunction due to valve body deformation
Valve Body
*Made up of finest brass material for longer service time
*Thicker valve body to prevent malfunction due to valve body deformation
* Valve base protected by dust proof cabs and marked with flow direction
Diaphragm
*Imported Sealing Material
*No Leakage in Operation
Project References from Our Customers
Feedbacks From Our Customers
Packing
Each valve will be packed in foam with carton, master carton or wood pallet to keep it safe during shipment.
Ship by air, by sea or by express is available.
About COVNA
Covna Group is one of the top manufacturers of industrial valves in China established in 2000.
Covna valves are designed, engineered and manufactured to be safe, reliable, fit for purpose and compliant with the needs of various industries like pulp and paper, mining, petro-chemical, waste water treatment, oil and gas exploration, power generation, irrigation,HVAC and food service, etc.
Our quality commitment of continuous improvement lowers the cost for competitive pricing and increases the confidence of our customers with professional product solutions and services to meet your most demanding expectations.
Our mission is to become the leading manufacturer of industrial valves with our 19 years of experience in China.
Quality,fast service and technical support after sales are priorities among our working principles.
We carry on to live values of the best service with trust and loyalty.
Covna valves are designed, engineered and manufactured to be safe, reliable, fit for purpose and compliant with the needs of various industries like pulp and paper, mining, petro-chemical, waste water treatment, oil and gas exploration, power generation, irrigation,HVAC and food service, etc.
Our quality commitment of continuous improvement lowers the cost for competitive pricing and increases the confidence of our customers with professional product solutions and services to meet your most demanding expectations.
Our mission is to become the leading manufacturer of industrial valves with our 19 years of experience in China.
Quality,fast service and technical support after sales are priorities among our working principles.
We carry on to live values of the best service with trust and loyalty.
FAQ
Question | Answer |
Can I order some samples? | Yes,we can provide samples to you for testing. |
What is your MOQ? | 1 pcs |
What is the delivery time? | It is about 5-7 days after we received the deposit. |
What is the payment term? | T/T, Western Union, PayPal, Ali Trade Assurance and so on |
Do your company have warranty terms? | Yes, 1 year of warranty term. |
Do you have products in stock? | Yes, most of item we have in stock. |
What certificate do you have? | ISO9001, CE, RoHs, TUV, SGS |
How can I trust you? | We have 19 years experience about valves and we have a professional and reliable quality inspection team. And our products have certificate. |
