Cold light UV laser marking machine for plastics glass marking with 2w 3w 5w

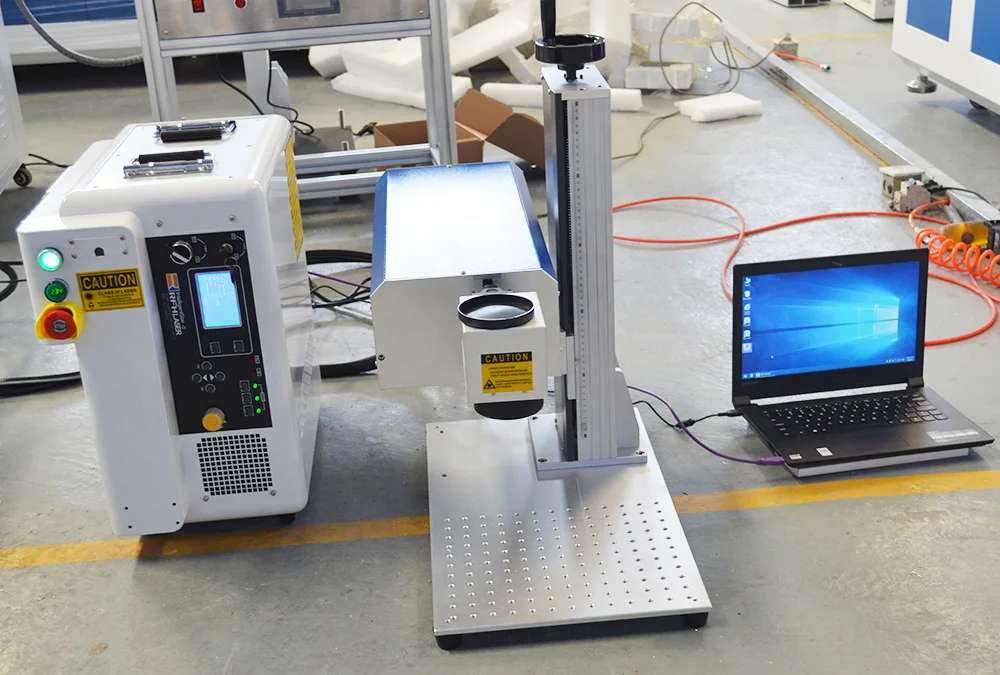

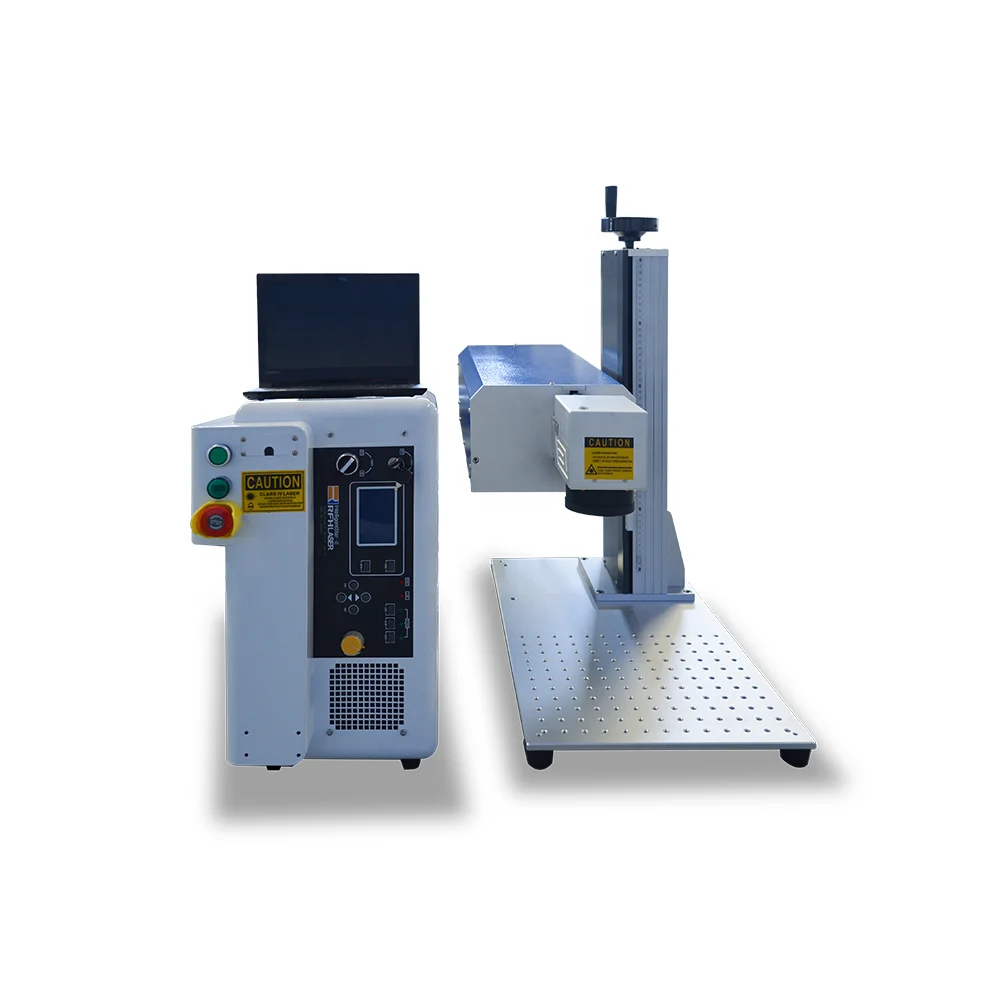

UV laser marking machine

1.High laser beam quality, thin laser spot, ultrafine marking resolution.

2.UV laser at 355nm provide a small-size spot and a large depth of focus, marking by short wavelength laser interrupts molecular chains of materials, can greatly reduce the mechanical deformation and temperature distortion if materials.

3.Galvanometer scanning system id compact and with hith high marking speed.

4.It is a cold light, mainly used for super precision marking and engraving, particularly suitable for food, pharmaceutical packaging material marking, micro porous, high-speed dividing for glass, complex graphics wafer cutting in silicon materials, etc.

5.Simple operation, no consumables, low energy consumption. More precision and clear marking, and irreplaceable advantages in areas with higher requirements in depth, smoothness and fineness, which can fully meet the needs of industrial continuous work.

Applicable Materials

Plastics,, electroplating products, coated products, ABS, LCD screen, ceramics, glass,silicon etc.

Application Industries

Food industry, pharmaceutical industry, cosmetics, wire and cables and high molecular material packaging materials marking.

Hand-operating crank

the foucusing distance should be up-down adjusted by hand-operating crank while marking

Galvo scanner

Ftheta-lens

It's specification of size can be customized, the standard size is 110*110mm, but 200*200mm, 300*300mm,400*400mm can be customized  by your materials size or shape.

Red dot

Laser is invisible, so the red dor can help you to show the target pattern size and laser position

Aluminum table

As the picture shows, the target metal materials to be marked put on the fixed table.

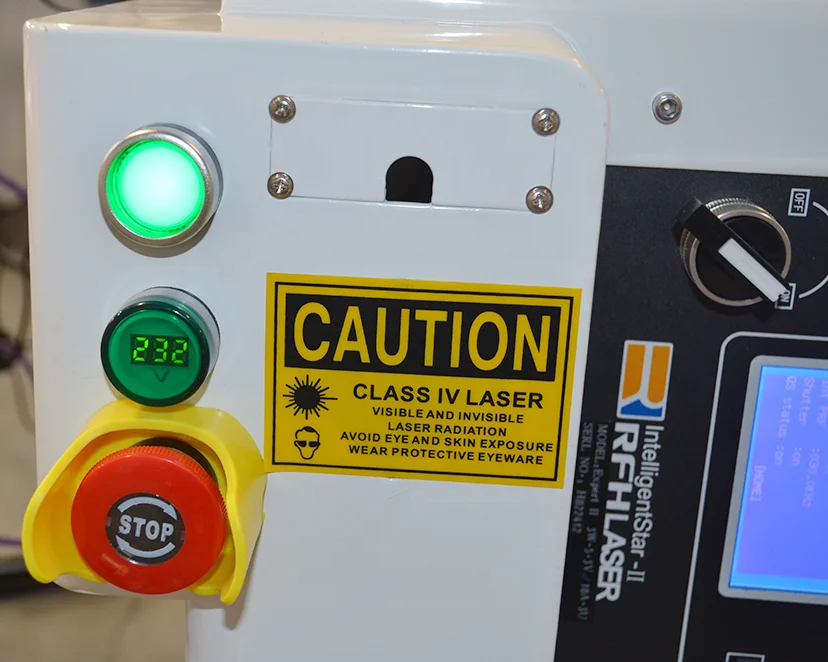

Switch

this part includes laser power, Galvo scanner power, e-stop and a main power supply. the bottom usb interface supports u disk .

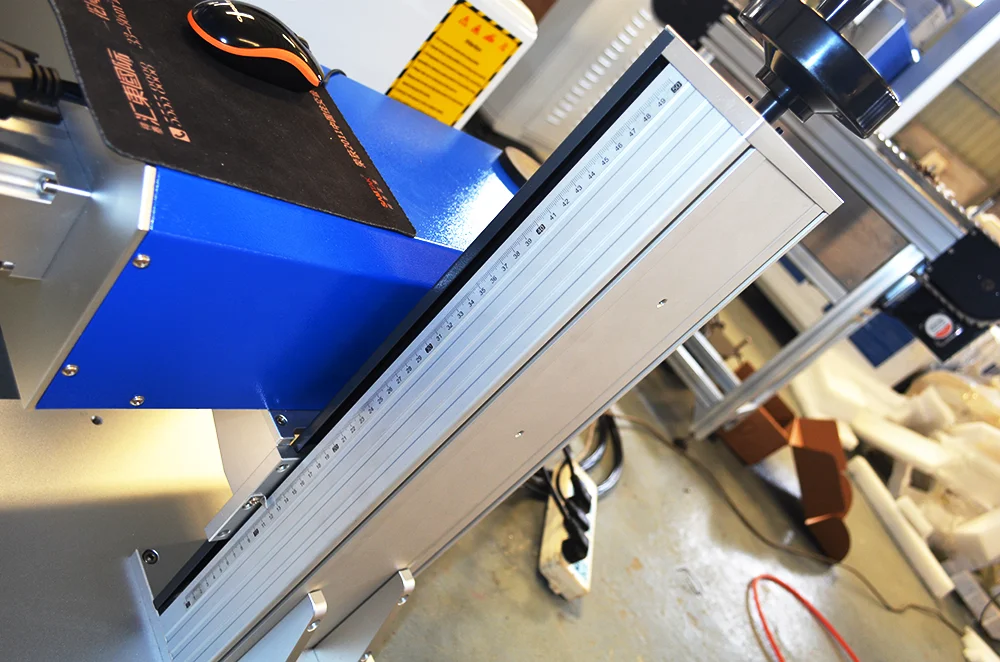

The standard height is 48cm. The bigger the working size is, the higer the lifting pillar is.

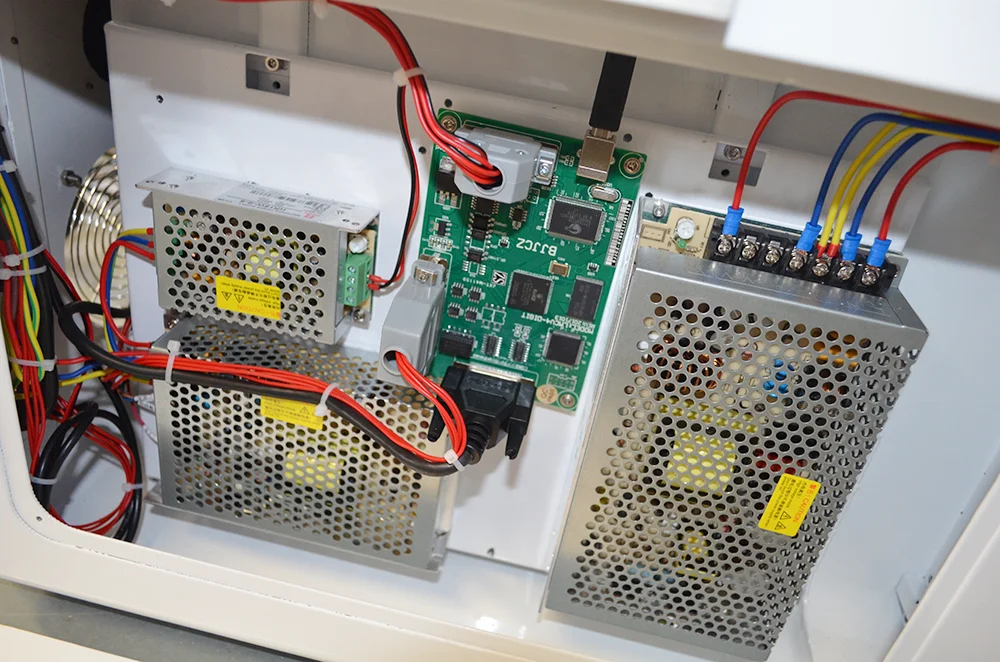

there are three power supply, the biggest one (in term of size) is for fiber laser source(24V), the middle one (15v) is for galvo scanner, and the small one is for JCZ control card. Two fans on the right side is to cool these parts. Fans work with these parts at the same time.

First, the machine will be packed with plastic wrap tightly, and the plastic wrap will be many layers onto the machine, the plastic wrap will stop the mosit air from entering the machine, this is very important during sea transportation, moist air will etch the machine.


Second, we will use the air cushion film to pack the machine, and it can avoid scratching the machine during the transportation.


Third, we will use the plywood case to package the machine for the last step, and we will also put some foam between the plywood case and the machine, the foam can buffer light impact during the transportation. And the bottom of the plywood case has steel beam, it can support the machine well. The plywood case is fumigation-free, it won't take any life to your country

2-YEAR WARRANTY, LIFETIME MAINTENANCE

Two-year warranty for the machine, except for consumables.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.


After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 24/7 on-line receiving your question or requesting.

* Providing solution within 12 hours.

1.Q:Why should we choose you ?

A:If you choose us, you will get top quality,best service,reasonable price and reliable warranty.

2.Q:I'm not familiar with the machine,how to choose?

A:Just tell us materials, thickness and working size, I will recommend the suitable machine.

3.How to operate the machine?

A:We will deliver English manual and video with the machine to you.If you still need our further help,please contact us.

4.Q:Can I get the sample to check quality of machine ?

A:Of course.Please provide your logo or design to us, free samples can be provided for you.

5.Q:Can the machine be customized according my requirements?

A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for us?

A:Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
