Цельная крышка кованая нержавеющая сталь 316L 6000 фунтов на квадратный дюйм Игольчатые клапаны для водопроводной трубы с низким потоком внутренняя прямая резьба мини игольчатый
- Категория: >>>
- Поставщик: Yangzhong,Xinya,Automatic,Control,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.0 $* | 0.68 $* |
| Aug-15-2025 | 0.95 $* | 0.63 $* |
| Jul-15-2025 | 0.10 $* | 0.0 $* |
| Jun-15-2025 | 0.62 $* | 0.71 $* |
| May-15-2025 | 0.36 $* | 0.87 $* |
| Apr-15-2025 | 0.61 $* | 0.19 $* |
| Mar-15-2025 | 0.71 $* | 0.19 $* |
| Feb-15-2025 | 0.68 $* | 0.14 $* |
| Jan-15-2025 | 0.84 $* | 0.92 $* |
Характеристики
Product Description
1.JZT series needle valves are a kind of instrument valves under high pressure. | ||||||||
2.Suitable for install on the instrument panel or without panels. | ||||||||
3.To execute the closing or shutting-off in the fluid system. | ||||||||
4.To control comparatively big flow with its compact structure. | ||||||||
5.Different kinds of stems for selection. | ||||||||
6.There are two kinds of structures for selection: straight way type & angletype. | ||||||||
7. Four types of hand wheels: ball-type, Round-type, bar metal and non-metal. | ||||||||
8.Working Pressure can be up to 6000PSI (413bar). | ||||||||
9.WorkingTemperature can be up to 315℃（600°F）. | ||||||||
Our Services

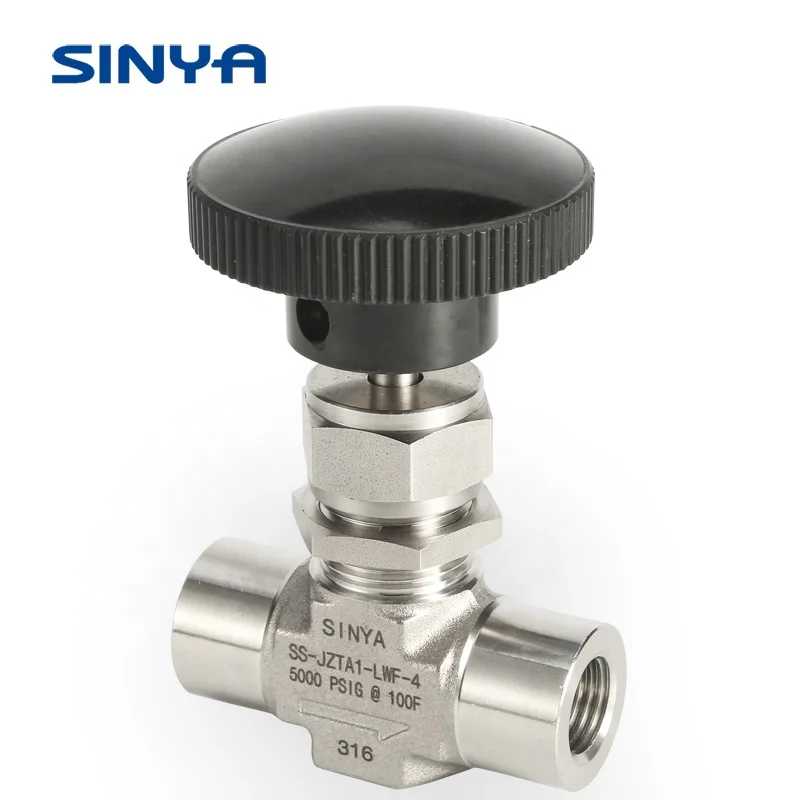

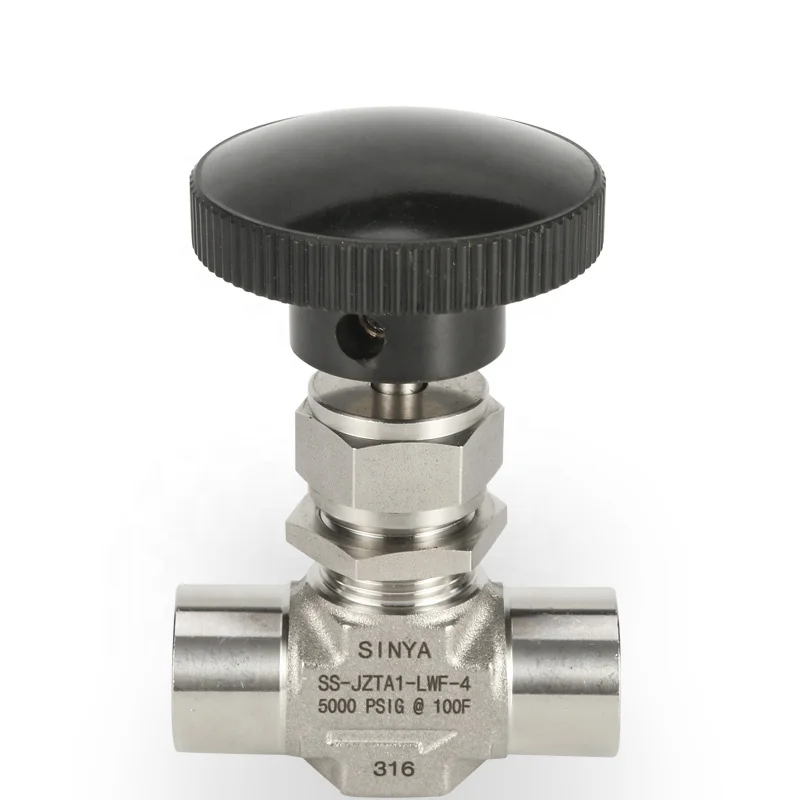

-JZTA1 Female Straight Needle Valve | ||||||||||||
Order information | End Connection | Orifice | Flow | A | ||||||||
(in) | (mm) | Cv | (in) | (mm) | ||||||||
-JZTA1-LWF-2 | NPT1/8 | 0.08 | 2 | 0.09 | 1.88 | 47.8 | ||||||
-JZTA1-LWF-4 | NPT1/4 | 0.25 | 6.4 | 0.73 | 2.12 | 53.8 | ||||||
-JZTA1 -LWF-6 | NPT3/8 | 0.375 | 9.5 | 1.8 | 3 | 76.2 | ||||||
-JZTA1 -LWF-8 | NPT1/2 | 0.375 | 9.5 | 1.8 | 3 | 76.2 | ||||||
Order information | D | H | F | ||||||
(in) | (mm) | (in) | (mm) | (in) | (mm) | ||||
-JZTA1-LWF-2 | 0.47 | 11.9 | 2.28 | 57.9 | 1.00 | 25.4 | |||
-JZTA1-LWF-4 | 0.78 | 19.8 | 2.9 7 | 75.4 | 1.88 | 47.8 | |||
-JZTA1 -LWF-6 | 1.03 | 26.2 | 3.8 8 | 98.6 | 3 | 76.2 | |||
-JZTA1 -LWF-8 | 1.03 | 26.2 | 3.8 8 | 98.6 | 3 | 76.2 | |||
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||||
1.Custom design, CAD drawing | ||||||||
2.P&ID | ||||||||
3.Component selection | ||||||||
4.Bill of material | ||||||||
5.Professional services such as bending and welding | ||||||||
6.Testing to guarantee the system | ||||||||
7.Professional packaging and delivery | ||||||||

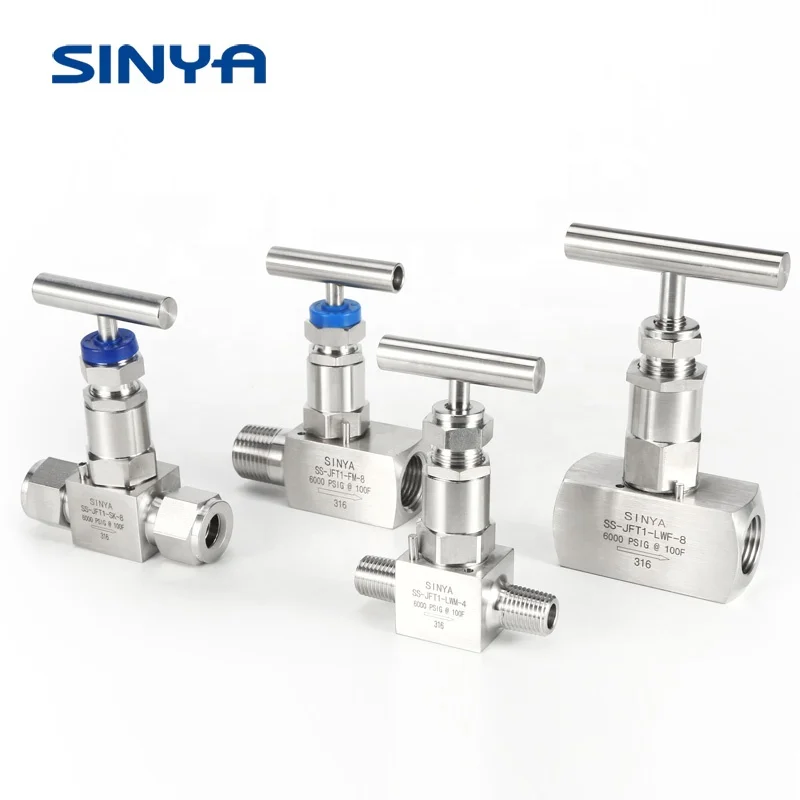

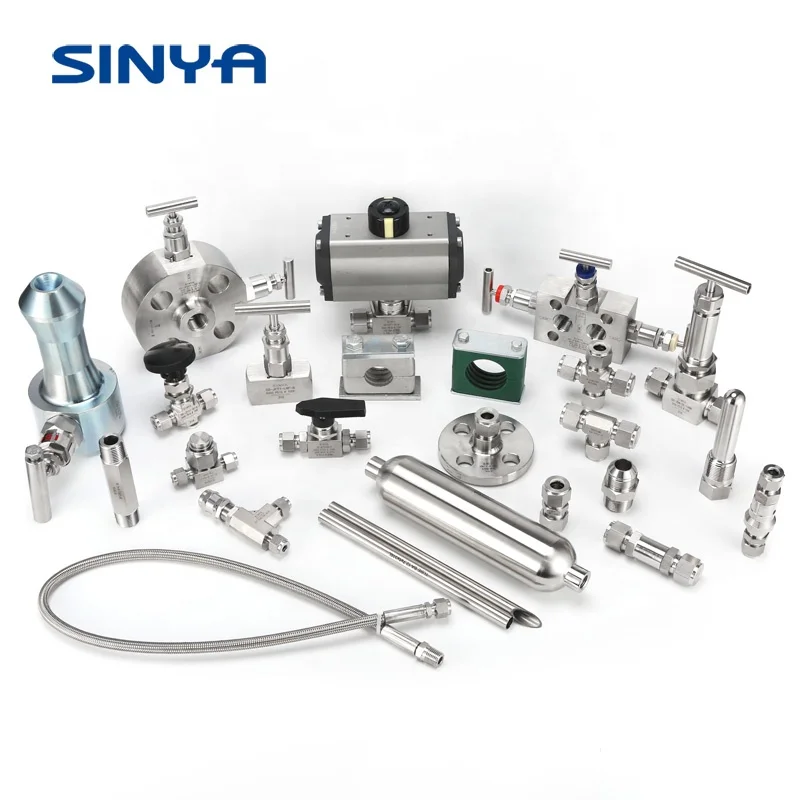

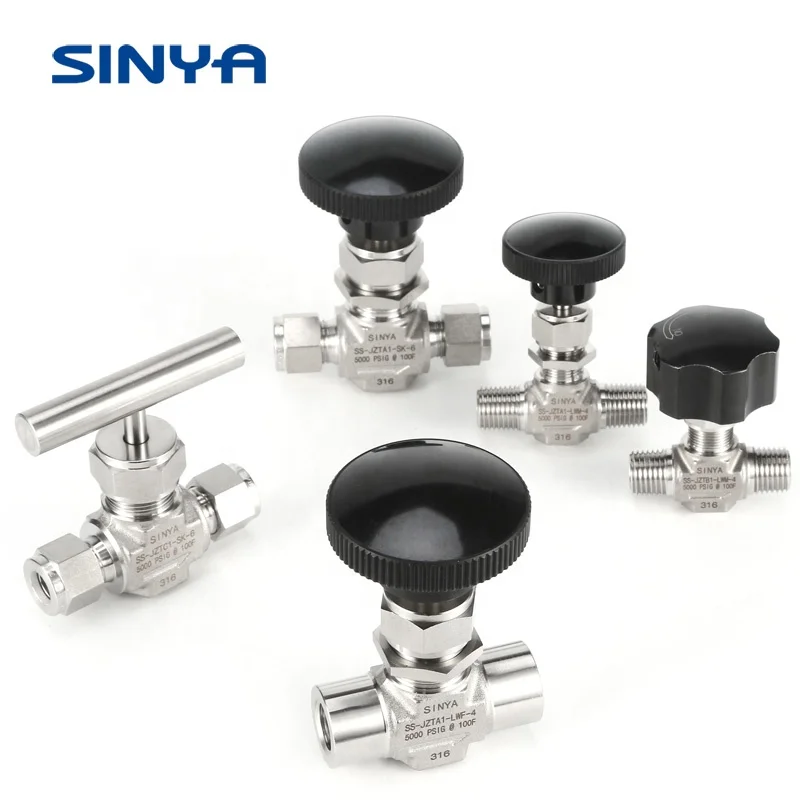

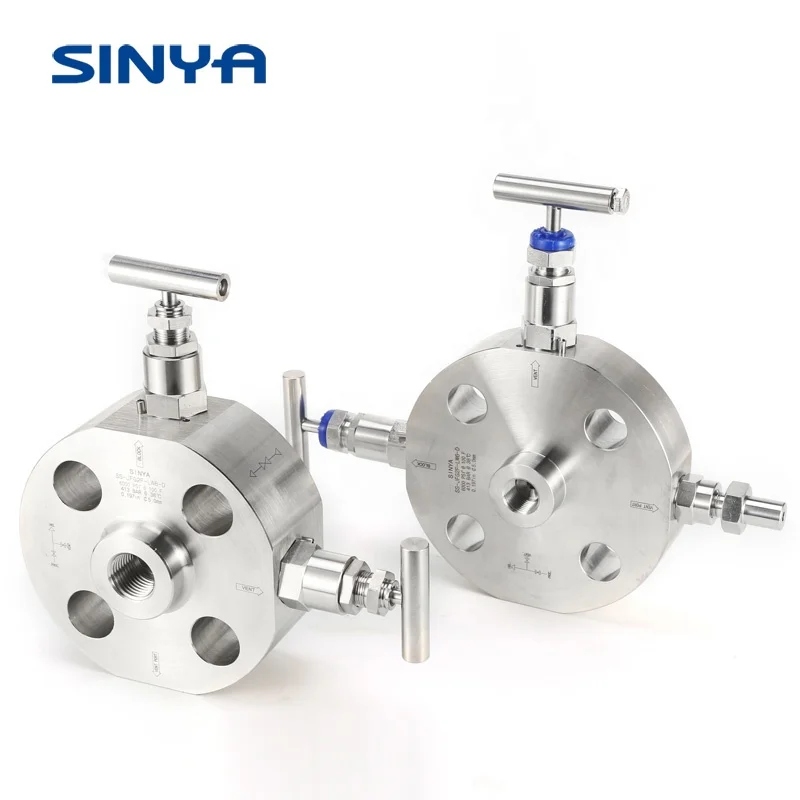

Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packaging & Delivery
Mode of packing: | Export standard package or as your detail request. | ||||||||
Delivery time: | 2 weeks after receipt of payment | ||||||||
Mode of shipment: | By Express like DHL,Fedex,TNT Ups. | ||||||||
Our Company
1.Established in 1995. | ||||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||||
8.We have obtained ISO9001 certificate, CE Certificate. | ||||||||
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries. | ||||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||||
Certifications
Integral Bonnet Forged Stainless steel 316L 6000Psi Water Pipe Needle Valves Low Flow Female Straight Thread Mini Needle Valve Integral Bonnet Forged Stainless steel 316L 6000Psi Water Pipe Needle Valves Low Flow Female Straight Thread Mini Needle Valve SWAGELOK SS-1KS8 INTEGRAL BONNET NEEDLE VALVE 1/2" TUBE OD 5000 PSI 316S/S Female Thread Straight Type Needle valves
