SY-P031 медицинский usb эндоскопическая камера для ПК/монитор
US $50.00-$399.00
Инновационный выпуклый/линейный/кардиологический Беспроводной ультразвуковой зонд 3 в 1 2020 поддерживает Huawei
- Категория: Другие ультразвуковое, оптическое, электронный эквалайзер >>>
- Поставщик: Beijing,Konted,Medical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.23 $* | 0.16 $* |
| Aug-18-2025 | 0.84 $* | 0.53 $* |
| Jul-18-2025 | 0.73 $* | 0.14 $* |
| Jun-18-2025 | 0.59 $* | 0.20 $* |
| May-18-2025 | 0.11 $* | 0.73 $* |
| Apr-18-2025 | 0.32 $* | 0.62 $* |
| Mar-18-2025 | 0.99 $* | 0.71 $* |
| Feb-18-2025 | 0.12 $* | 0.47 $* |
| Jan-18-2025 | 0.68 $* | 0.43 $* |
Характеристики
Product Description
New Product with $200 Discount!
Introduction

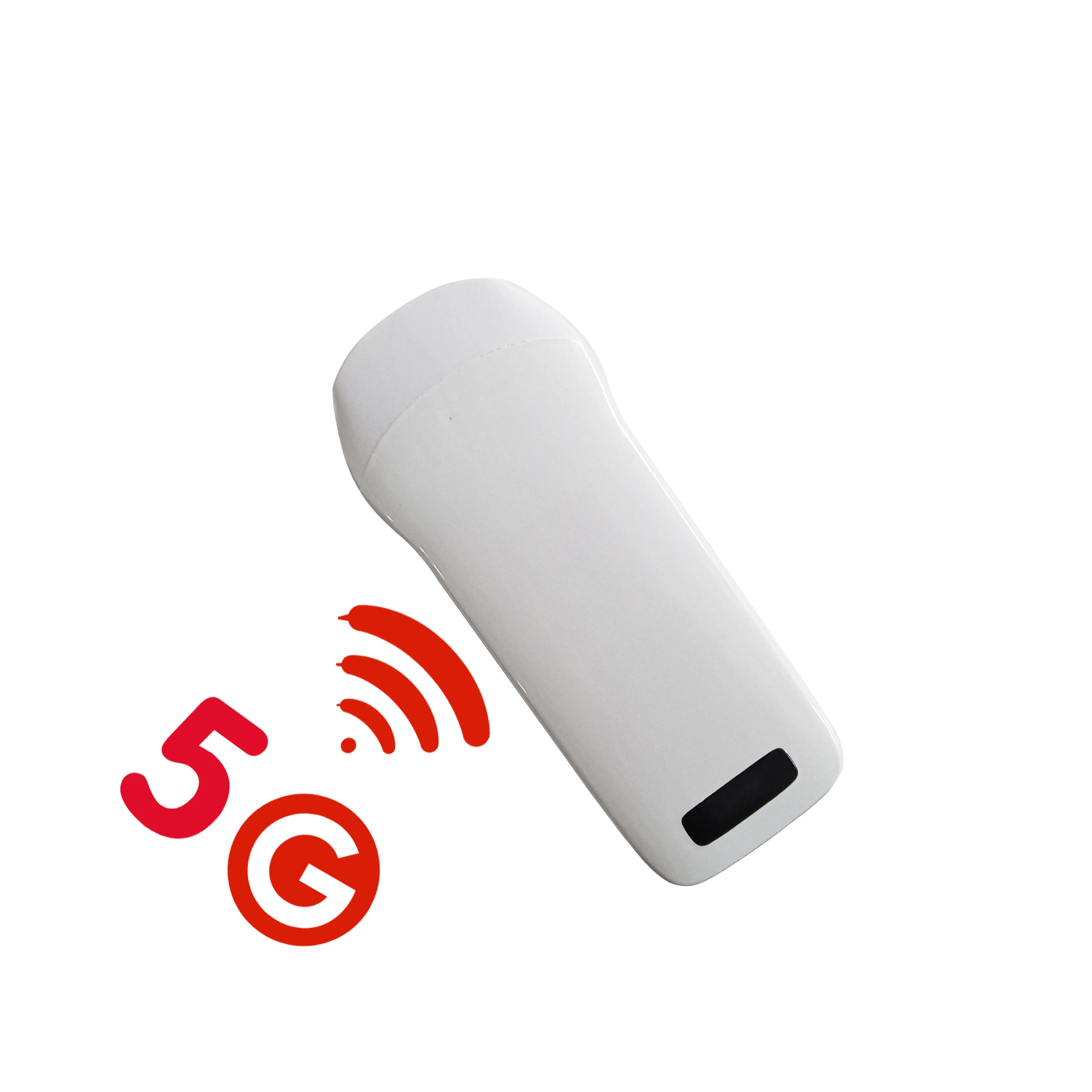

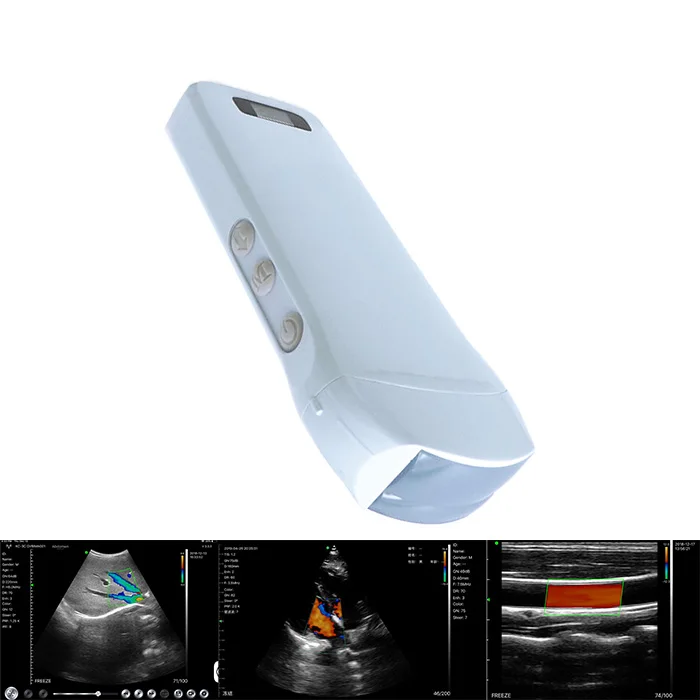

The wireless probe is a mini portable doppler ultrasound scanner without a screen. The interior is equipped with an integrated ultrasonic circuit board that can be wirelessly connected to a PC tablet computer or smart phone. After installing ultrasonic software, the ultrasonic scanner function is realized. And transmit the image on the smartphone / tablet via Wi-Fi. The probe has its own WiFi and does not require an external Wi-Fi signal. Small size, intelligent, easy to carry and operate.
Innovate

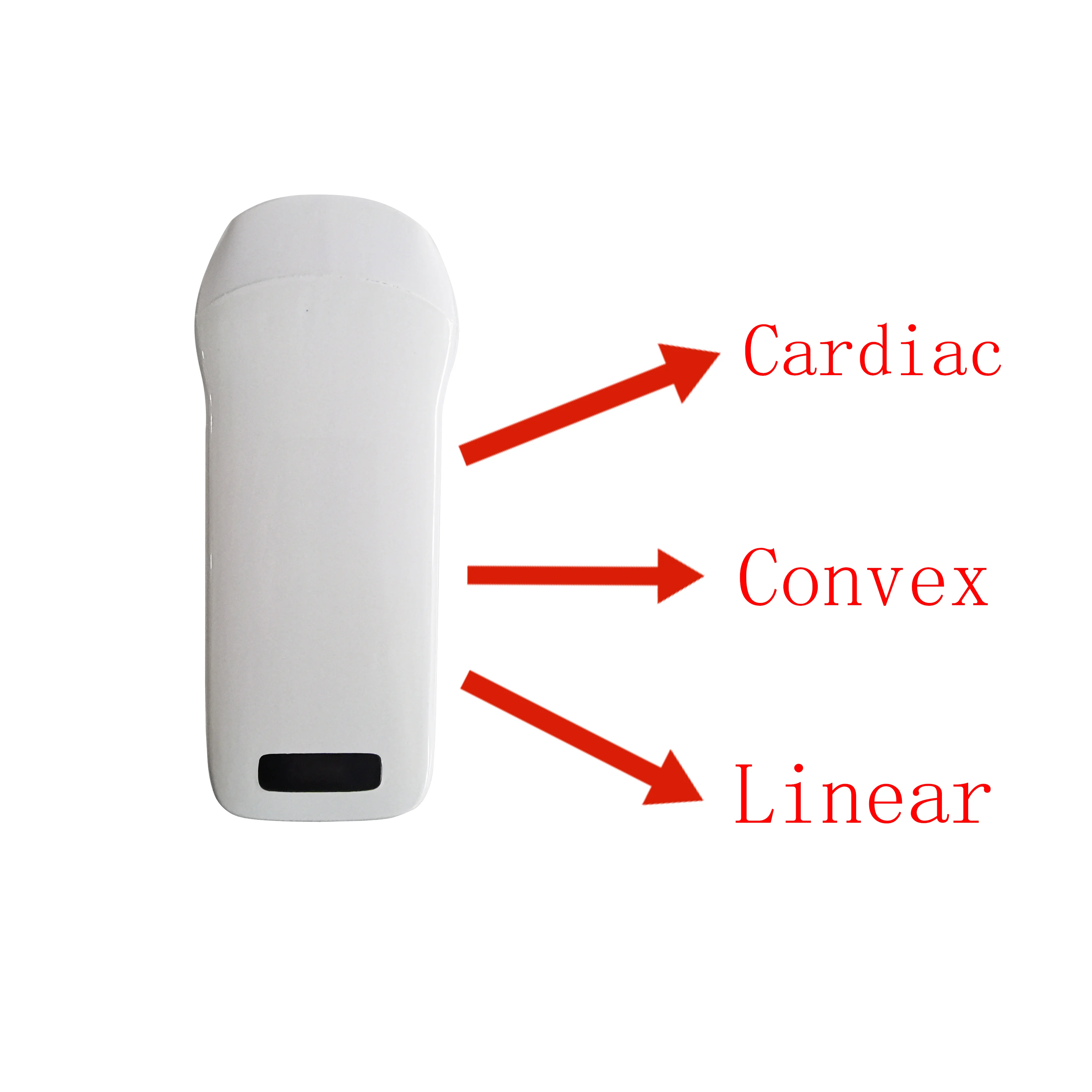

C10T realizes linear array, convex array and heart scan without the conversion of probe.By clicking the operation software, different modes can be switched to complete the scanning of different parts.
One probe three function. no need changed the probe head can realized convex linear and cardiac scan.
Feedback
Medical First Aid
Specification
GEN5 Color Doppler {B, B/M, color, PW, PDI}
Model | C10T |
Type | Linear/Convex/Cardiac |
Frequency | Convex:3.5/5Mhz |
Linear:7.5/10MHz | |
Cardiac:2.5/5Mhz | |
Depth | Convex:90~305mm |
Linear:20~80mm | |
Cardiac:90~160mm | |
# Elements | 128 |
Radius | R=45mm |
Length | N/A |
Dimensions | 157(h)x70(w)x30(d) mm |
Package size | 240(h)x235(w)x100(d) mm |
Net weight | 227g |
Gross weight | 1.1KGS |
Wifi type | 802.11n/20MHz/5G |
Working system | Android,iOS,Windows |
APP interface adjustment | GN(gain) |
D(depth) | |
ENH(enhancement) | |
DR(dynamic range) | |
F(frequency) | |
Mode:B, B/M, color, PW, PDI | |
8TGC | |
Measure: Length, Area, Circumference,GA(CRL,BPD,GS,FL,HC,AC) |
Feature
 | Wireless Freedom
Probe comes with wireless network |
Without switching the probe
the linear probe, convex probe and Cardiac probe can be realized directly through software switching. |
|
 | Various charging methods
Comes with a wired charging cable and wireless charger
|
Easy to carry
The entire machine weighs only 227g and the size is 157x70x30mm |  |
LATEST SOFT WARE UPGRADE(All the soft ware is free and free upgrade all life)
1. Measurement function Add "angle measurement", "trajectory measurement", "fetal weight"
2. Image flip
3. Software language Add "Russian, German, Italian, Spanish, Portuguese(Brazil)"
4. Report print ,with clinic image + diagnosis result
Application
Linear ultrasound probe :MSK(Muscular-skeletal), Orthopedics, Vascular, Pediatrics, Sports medicine, anesthesia , injection , Puncture , nevers...ect. Point of care, Ultrasound-guided procedures, Veterinary and among other medical fields.
Convex ultrasound Probe :OB&GYN, liver ,kidney ,Urinary ...ect .Point of care, Internal medicine, Ultrasound-guided procedures, Veterinary and among other medical fields.
Cardiac
Packaging & Shipping

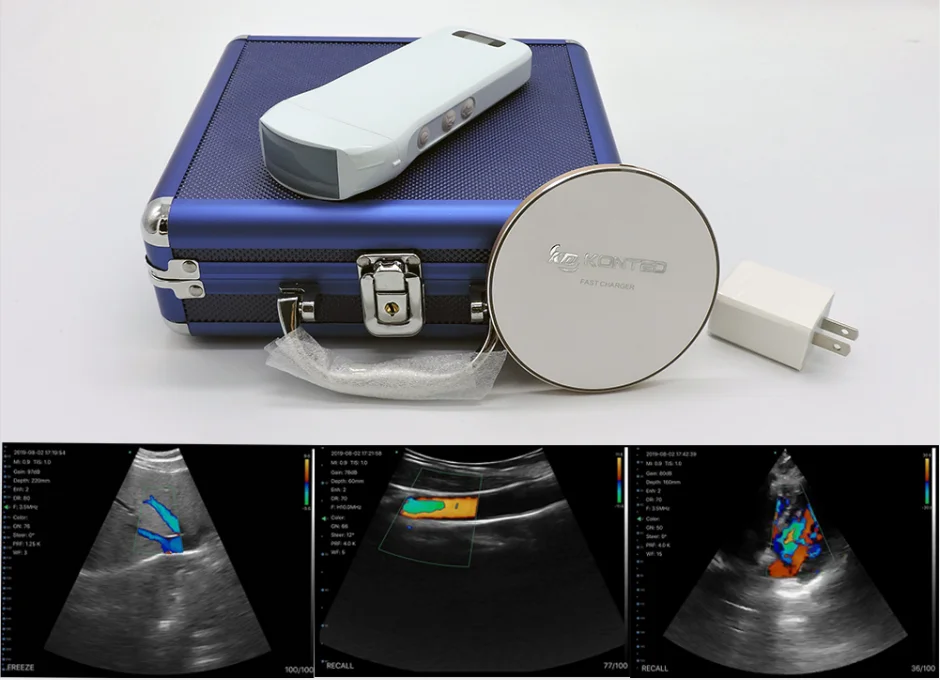

New Pakage : Aluminum packing
Shipping : DHL , Fedax , Aramex, EMS , TNT ect
Related Products
Our Services
1. We offer 18 month warranty period ,24 hours calling service.
2. Return Policy Allowed.
3. There is OEM&ODM service for distributor.
4. After you get the machine, there is user manual, maintain manual, training video guide you to operate the machine.
5. 100% Calibration before Shipment.
6. All products will be shipped within 1-3 working days upon payment .
