Розетка разъем M8 многожильный мини 6-контактный 3-контактный кабельные
- Категория: Connectors >>>
- Поставщик: Guangzhou,Diwei,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2.22 $* | 2.6 $* |
| Aug-17-2025 | 2.10 $* | 2.78 $* |
| Jul-17-2025 | 2.62 $* | 2.86 $* |
| Jun-17-2025 | 2.18 $* | 2.66 $* |
| May-17-2025 | 2.7 $* | 2.88 $* |
| Apr-17-2025 | 2.49 $* | 2.74 $* |
| Mar-17-2025 | 2.15 $* | 2.19 $* |
| Feb-17-2025 | 2.49 $* | 2.67 $* |
| Jan-17-2025 | 2.79 $* | 2.49 $* |
Характеристики
Product Description

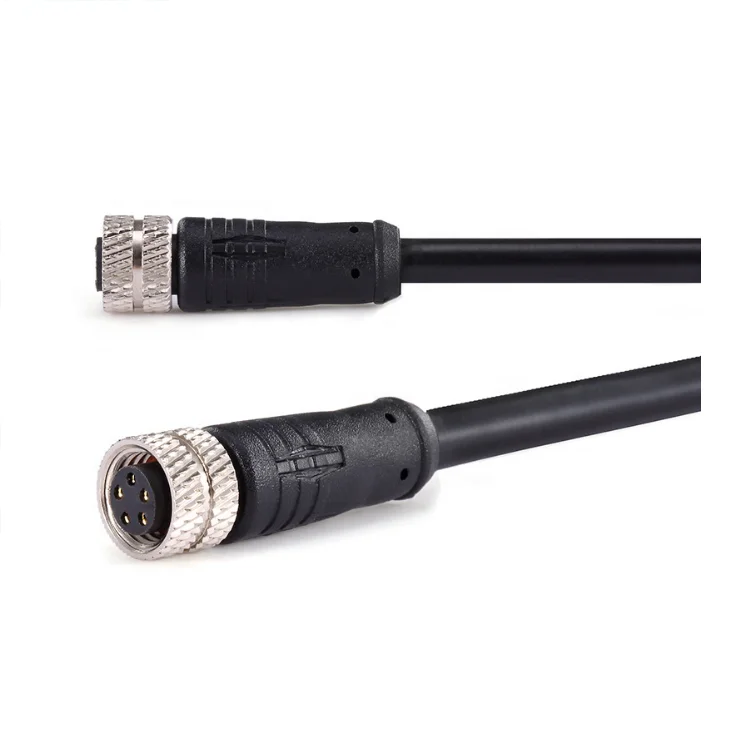

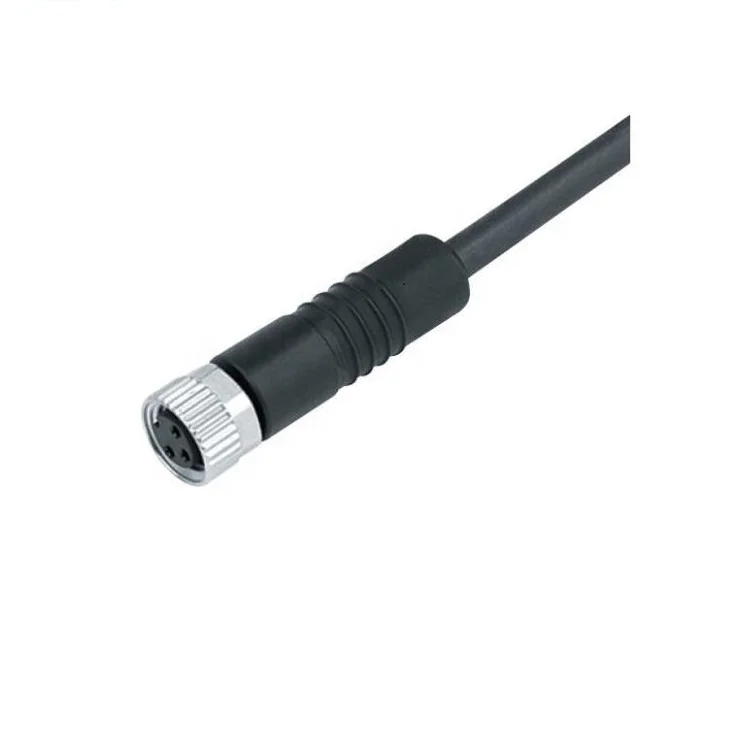

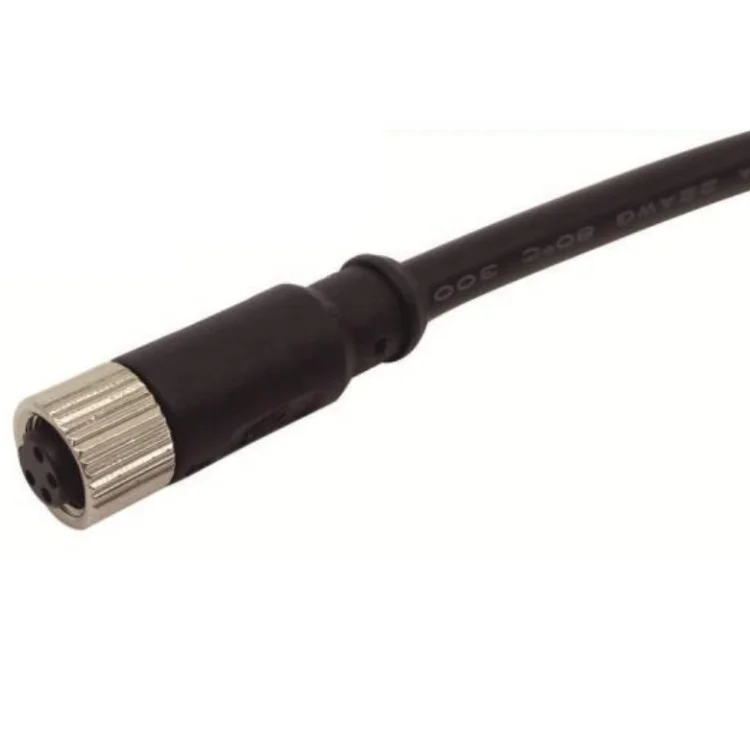

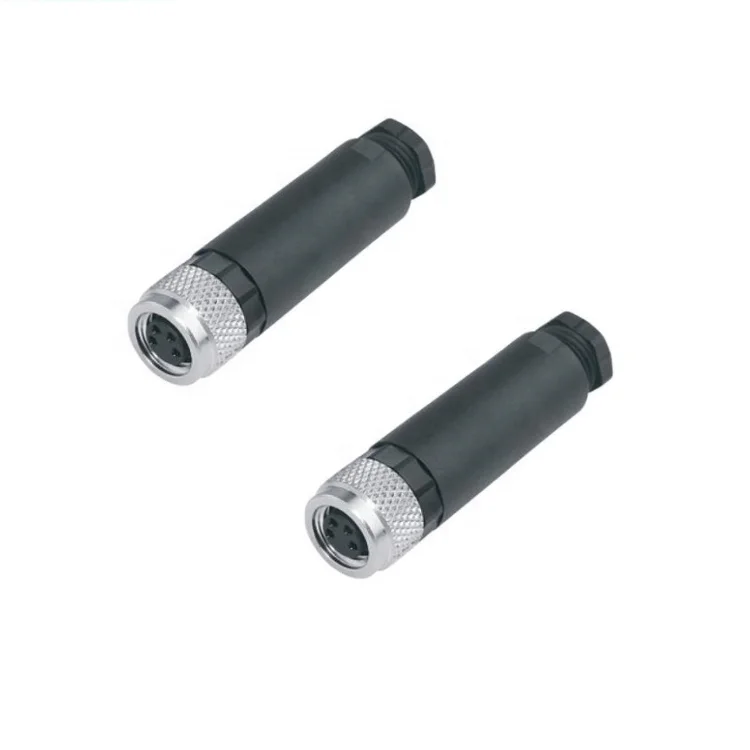

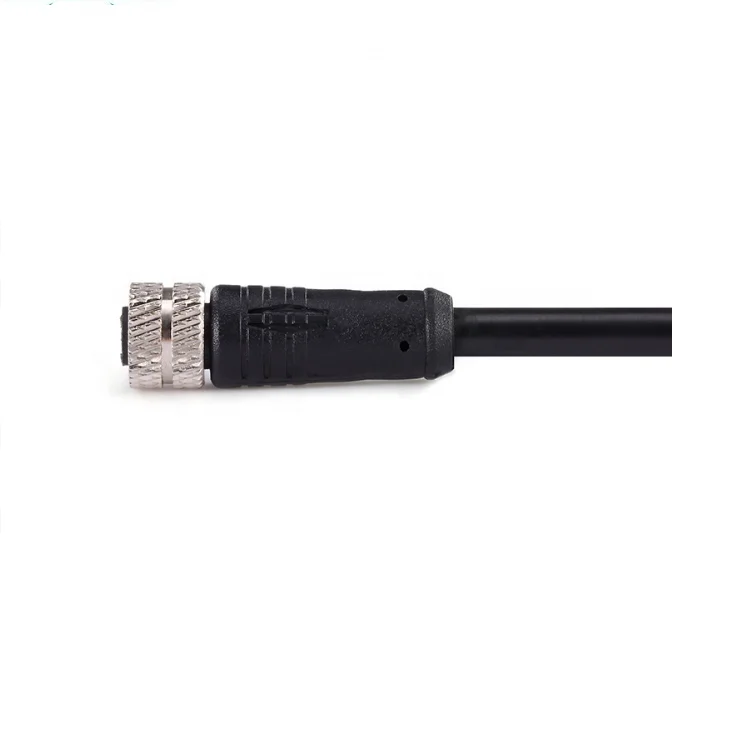

Female Socket Plug M8 Connector Multicore Mini 6pin 3Pin M8 Cable Connectors
Description of Female Socket Plug M8 Connector Multicore Mini 6pin 3Pin M8 Cable Connectors :
waterproof M8 connector,fix screw with self-locking threaded joint,waterproof IP67 M8 cable connector.
Protected from dust and water during immersion,resistance to many oils and chemical.
Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.
Satisfy all the requirements of sensor devices and actuator devices in automation technology.
Technical data of cable waterproof connector:
Standard :IEC 61076-2-101
Coding : A,B
Ambient temperature:-20°C~+80°C
Insulation resistance ≥ 100M Ω
Contact resistance:≤5MΩ
Degree of peotection : IP67 in locked condition
Certified:CE & UL
Cable waterproof connector specification:
Insert : PA+GF
Contac: brass with gold plating
Screw/nut: Brass with nickel plated
Overmold:TPU
Cable specification:
Cable Jacket:PVC or PUR
Wire insulation:PVC
Cable length:Option
Standard of cable waterproof connector:
The cable connector we produced according to standard IEC61076-2-101,this International Standard describes cable connectors M8 typically used for industrial
process measurement and control. These connectors consist of fixed and free connectors
either rewireable or non-rewireable, with screw-locking.
Our Services
Customers want
1/. High quality and competitive price
2/. Stable delivery and excellent service
3/. Reliable warranty and after-sales service
We provide
1/. 100% quality assurance, all broke parts can be guaranteed within 30 days after received.
2/. According to customer requirement, provide 10 years warranty.
3/.Repairs parts are available within 10years; EOL products will be always informed to you.
4/.Supply free LOGO to the surface of over-molded connectors upon customers' requirement.
Packaging & Shipping
Packaging Details:
1.Our standard packing:
Individual part with transparent PE bag with label;
cartoon size:46*30*20(mm)
OEM package available.
2.At buyer's option
Delivery Time: Usually shipped within 7-10 days after payment
Company Information
Diwei was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M5, M8, M12, M16, M23,Also have military waterproof connector, push pull connector, quick- connect connector etc . They're mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on ,they are equivalent to Phoenix, , Binder, Lumberg and Molex etc.
With several years experience in self researching and developing ,Diwei represent a professional manufacturer of industrial connector, cable assemblies and worldwide custom made solution provider.
Our philosophy and purpose is: Customer Foremost, Service First. Quality first.Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany,Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers.
Warmly welcome you join in us, your support will be always our motivation!
FAQ
1. Are you a manufacturer or a trader?
Yes, We are a cable connctors factory.
2. What kind of terminal blocks can you provide?
We specialized in producing waterproof cables & waterproof connectors such as M5, M8, M12, M16, M23,Also have military waterproof connector, push pull connector, quick- connect connector etc .
3. What kind of certificates do you have?
Our products are approved UL, VDE, CE, ROHS
4. What’s the payment?
We accept bank transfer, TT, Paypal & Western Union, or others methods.
5. What is lead time?
Samples: 5-7 workdays;
Orders: 7-15 workdays;
6. Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
7. How do you ship the finished product?
A: Based on the customer request. Usually DHL, FEDEX, UPS, TNT etc.
8.What kind of delivery terms or trade terms is available?
A: EXW, FOB, FCA HK, Telex releases are available.
Quotation will be send you within 24 hours after receiving your specific enquiry. For more informations and items, please contact us.
