Китайский завод с ЧПУ Jinan Маленький гравировальный станок для металла маршрутизатор 4040 меди алюминия стали 400*400
- Категория: Metal Engraving Machinery >>>
- Поставщик: Shandong,Dadi,CNC,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2142.29 $* | 2249.34 $* |
| Aug-19-2025 | 2124.77 $* | 2230.84 $* |
| Jul-19-2025 | 1782.41 $* | 1871.7 $* |
| Jun-19-2025 | 2088.67 $* | 2192.51 $* |
| May-19-2025 | 1818.75 $* | 1909.23 $* |
| Apr-19-2025 | 2052.87 $* | 2155.74 $* |
| Mar-19-2025 | 2034.84 $* | 2136.57 $* |
| Feb-19-2025 | 2016.69 $* | 2117.81 $* |
| Jan-19-2025 | 1998.9 $* | 2098.23 $* |
Характеристики
Product Description

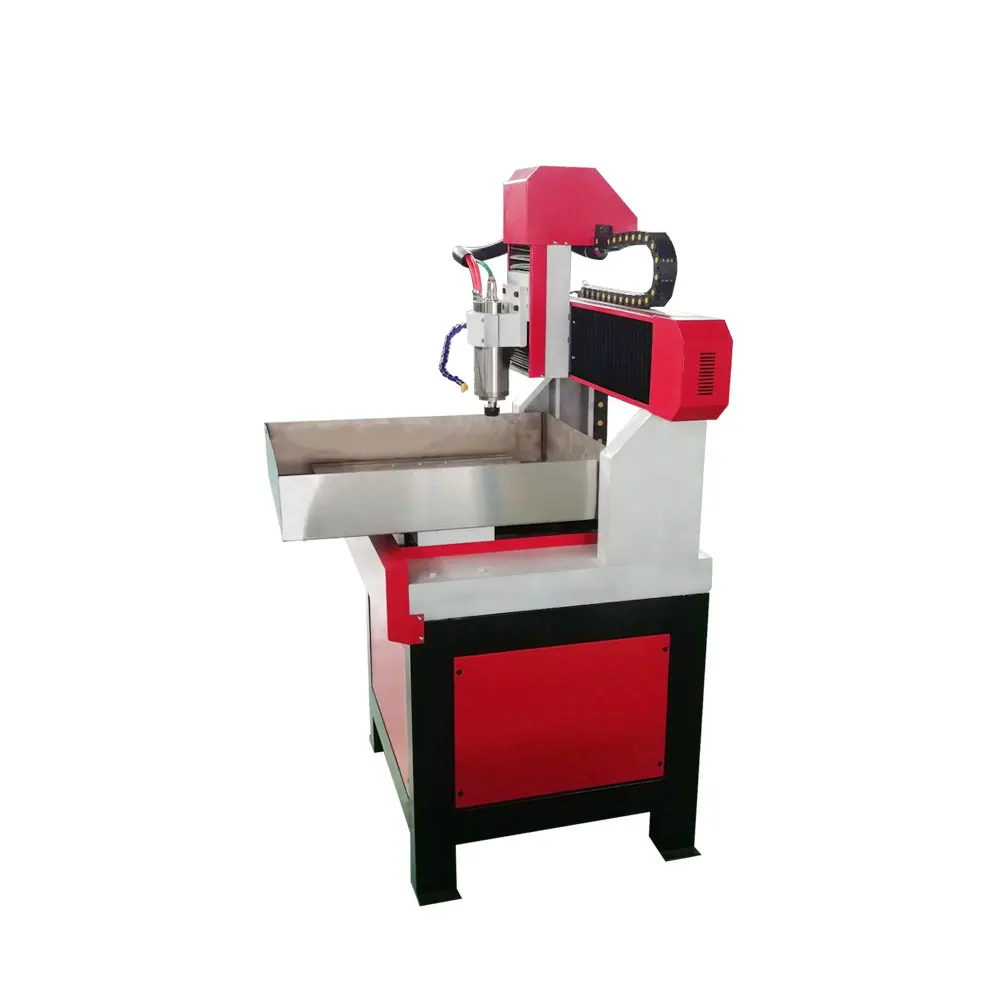

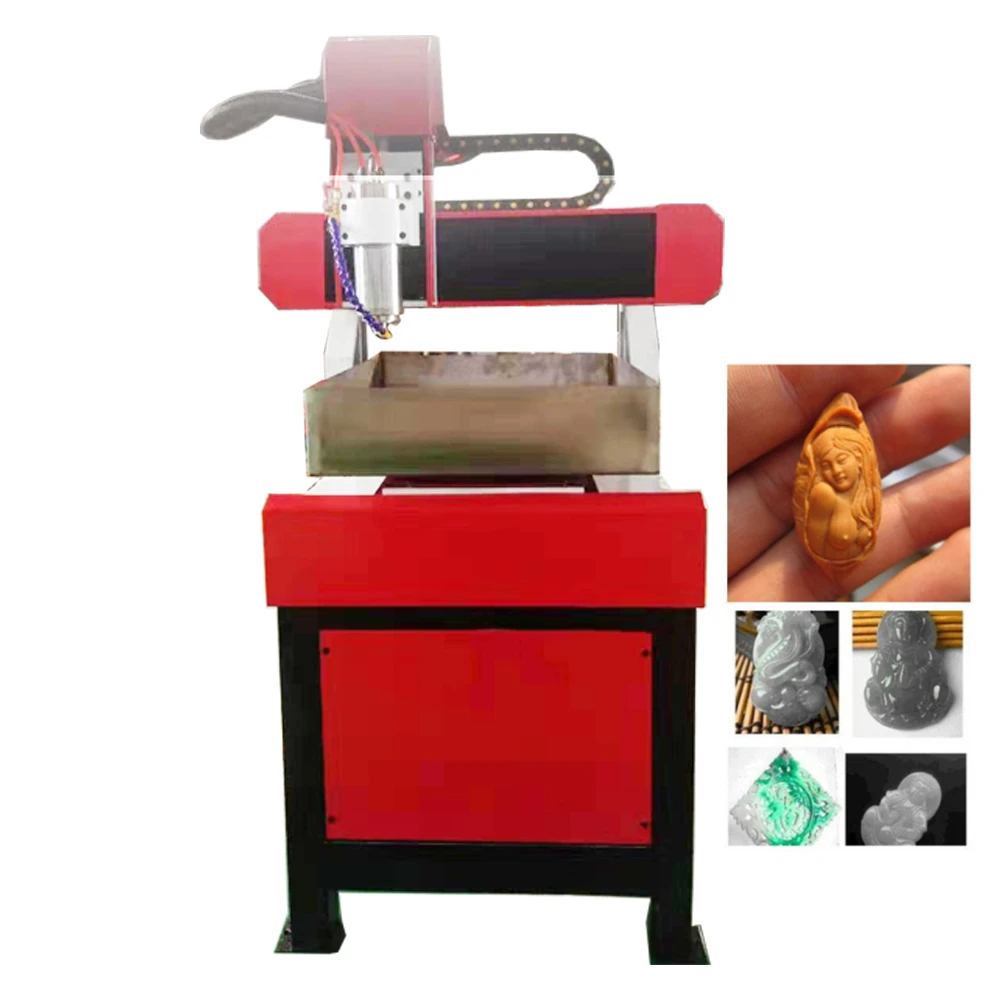

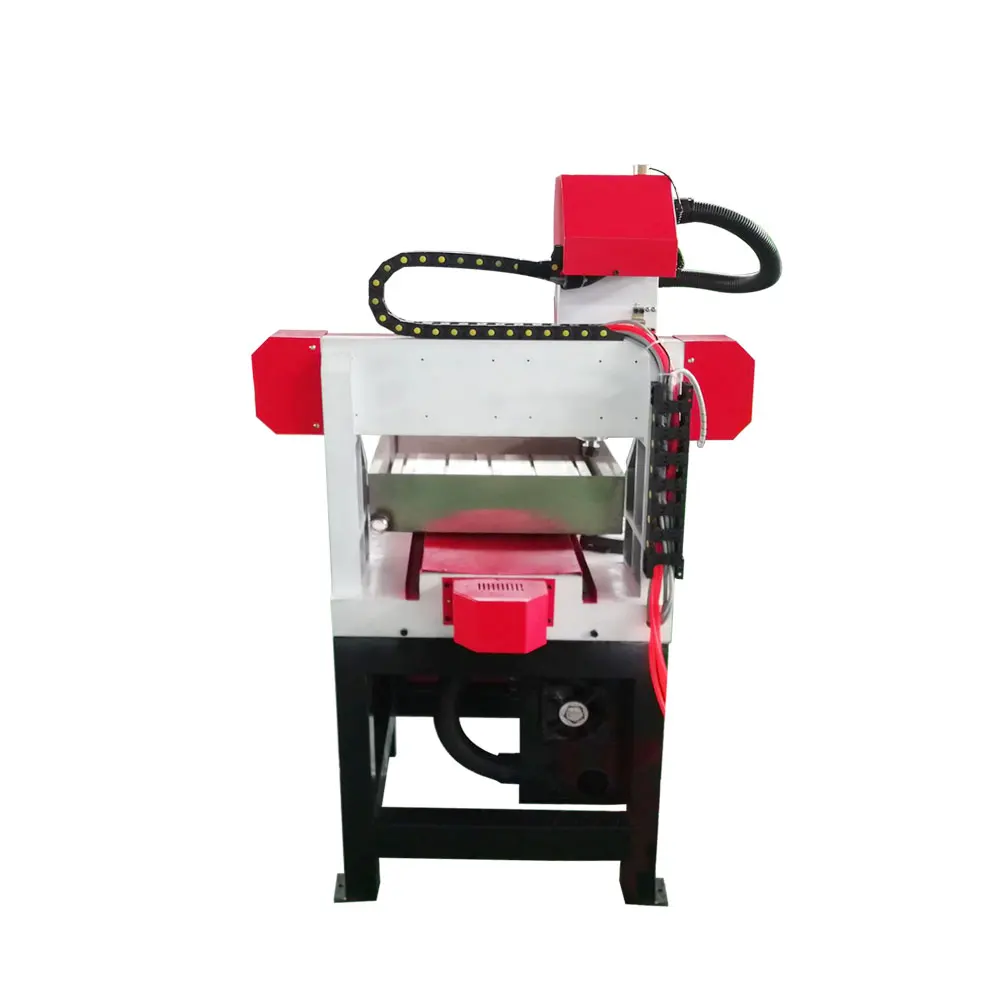

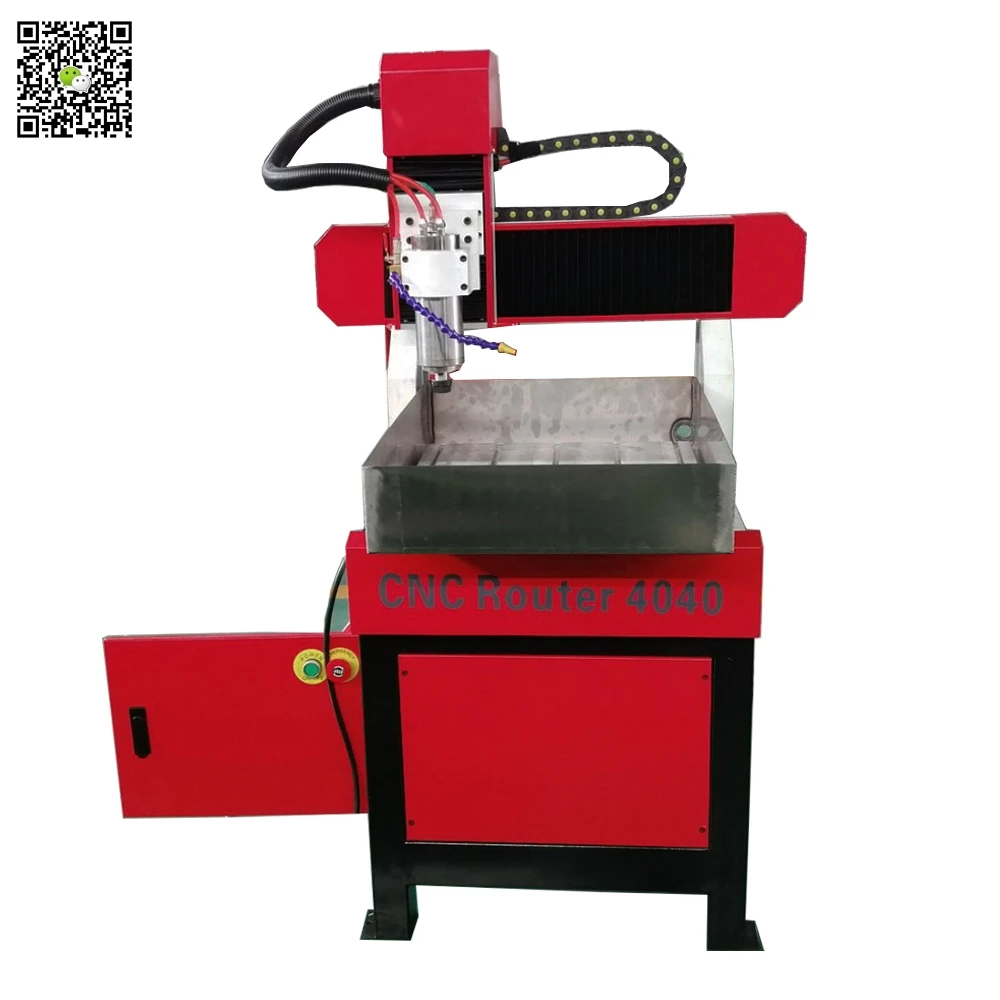

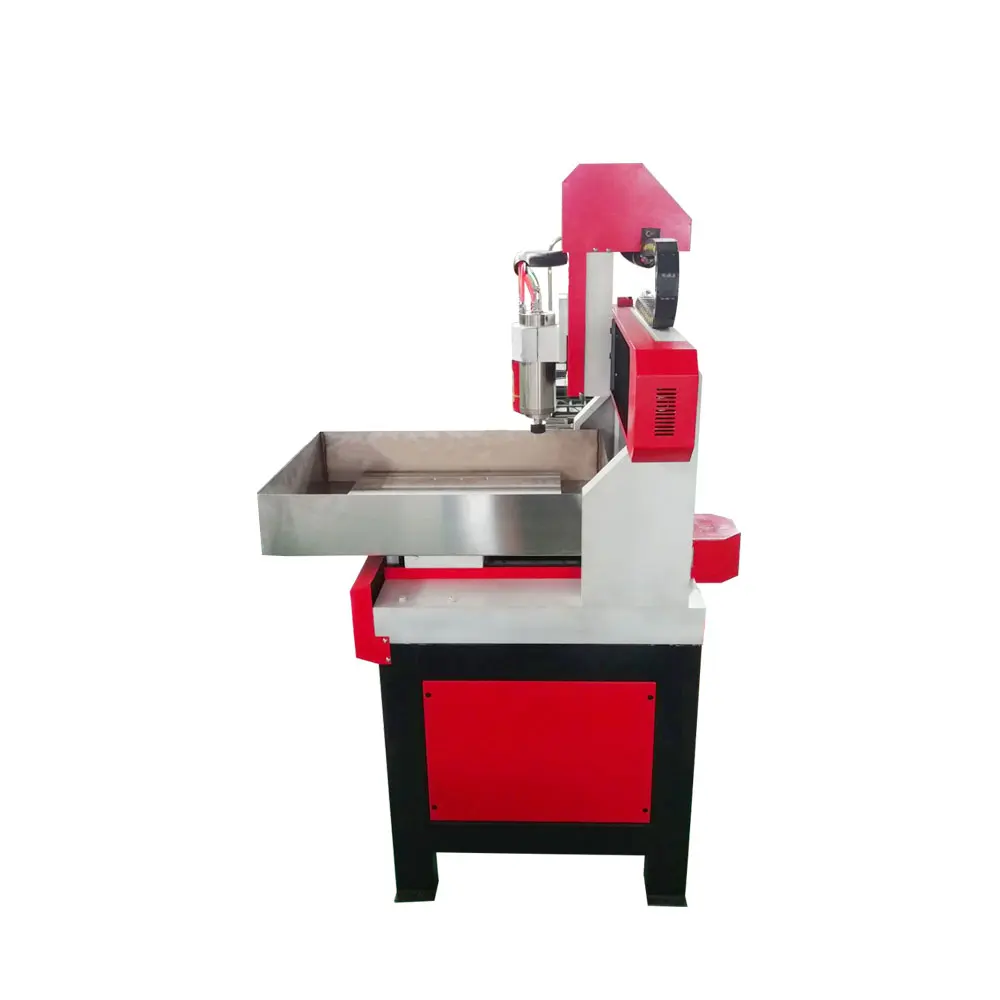

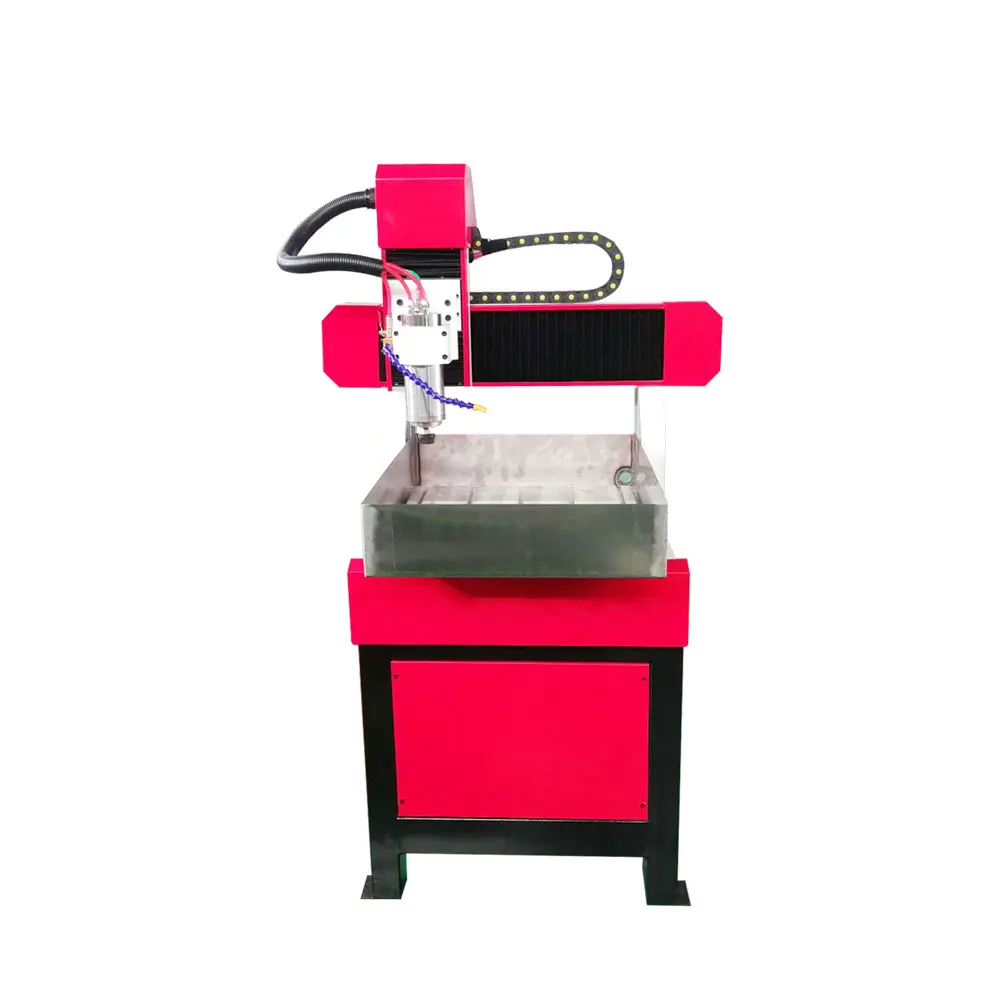

Small Metal CNC Engraving Machine CNC Router 4040 For Copper Aluminum Steel 400*400mm
Technical Data
Model | DA4040 | |||
Working Size | 400×400×130mm/150mm/200mm/300mm | |||
Frame | Whole cast aluminum or Whole cast iron | |||
Guide Rails | Square Rails Hiwin 20mm | |||
Transmission | X Y Z TBI Ball screw | |||
Motor | Stepper motor & driver (Optional servo motor) | |||
Cabinet | Inside Cabinet | |||
Control system | NC-Studio / A11 Panel /Mach3 USB | |||
Moving Speed | Max 8m / min | |||
Engraving Speed | Max 6m / min | |||
Spindle | 1.5KW/2.2KW/3.2KW water cooling | |||
Spindle speed | 6000-24000 rpm | |||
Table | Vacuum Table/Aluminum T Slot Table | |||
Lubrication | Centralized Lubrication | |||
Software | Type3 / ARTCAM/ Ucancam | |||
Working Voltage | 220v ±10%, 50Hz/60Hz |
Machine Feature
1.Cast iron machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.
2.Imported ball screw transmission for X Y Z-axis, good stability, high precision and long life time.
3. Linear square guide rail , Taiwan HIWIN,diameter 20mm, longer life,more durable,OPTIONAL : linear round guide rail
4.Stainless steel water slot cooling system, cooling for the tools and materials, necessary for the metal/stone/glass processing.
5.Nc Studio control system , can connect with desktop computer , support Windows XP , RichAuto A11, you can control machine without control system , Mach3 control system ,can be connected with desktop computer and laptop computer , with USB interface , support Winxp/7,windows10
6.2.2KW water cooling spindle, With ER20, support 3.175mm,4mm,6mm.8mm,10mm,12.7mm
optional:3.2KW /1.5KW China-made water cooling spindle.
optional:3.2KW /1.5KW China-made water cooling spindle.
7.Can realize the multi-layered 3D processing, fast speed, smooth three-dimensional processing, engraving and cutting.
8.Emergency stop button, ensuring the operation safe.
9.Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
10.Gantry moving type ,aluminum T-slot table, higher accuracy .
Application
1. Wood industry: wood furniture making, 3d wood relief carving, wooden craftwork production Speakers, game consoles cabinets,computer tables, sewing machine table etc.
2. Advertising products industry: 3D letters sign making, acrylic cutting and engraving.
3. Board processing industry: insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures’s milling process.
4. Decoration industry: folding screen, wave plates, advertising boards, sign making and logo’s processing.
5. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
6. Processing material: engraving, milling and cutting processing for acrylic, PVC, artificial stones plastics and soft metal
sheets and so on.
Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc. 4040 cnc
sheets and so on.
Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc. 4040 cnc
Details Images
Spindle
Machine adopt 2.2kw water cooling spindle , ER20 collet , 24000rpm , China famous brand .
DSP Control System
DSP A11 offline control system with usb interface .
Auto tool sensor
Z axis adopt auto tool sensor , free along with the machine .
Limit switch
XYZ axis adopt famous brand limit switch
