Светодиодный ночной Светильник для шкафа на батарейках
US $0.49-$0.75
Небольшого размера ультра плоская панель светодиодная осветительная Панель Светодиодная машина зрение коллимационные задние
- Категория: Other Lights & Lighting Products >>>
- Поставщик: Shanghai,Fugen,Automation,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 121.87 $* | 123.59 $* |
| Jul-19-2025 | 98.24 $* | 100.77 $* |
| Jun-19-2025 | 119.17 $* | 121.58 $* |
| May-19-2025 | 118.43 $* | 120.80 $* |
| Apr-19-2025 | 94.70 $* | 96.14 $* |
| Mar-19-2025 | 116.60 $* | 118.69 $* |
| Feb-19-2025 | 115.89 $* | 117.79 $* |
| Jan-19-2025 | 114.26 $* | 116.4 $* |
Характеристики
Product Description

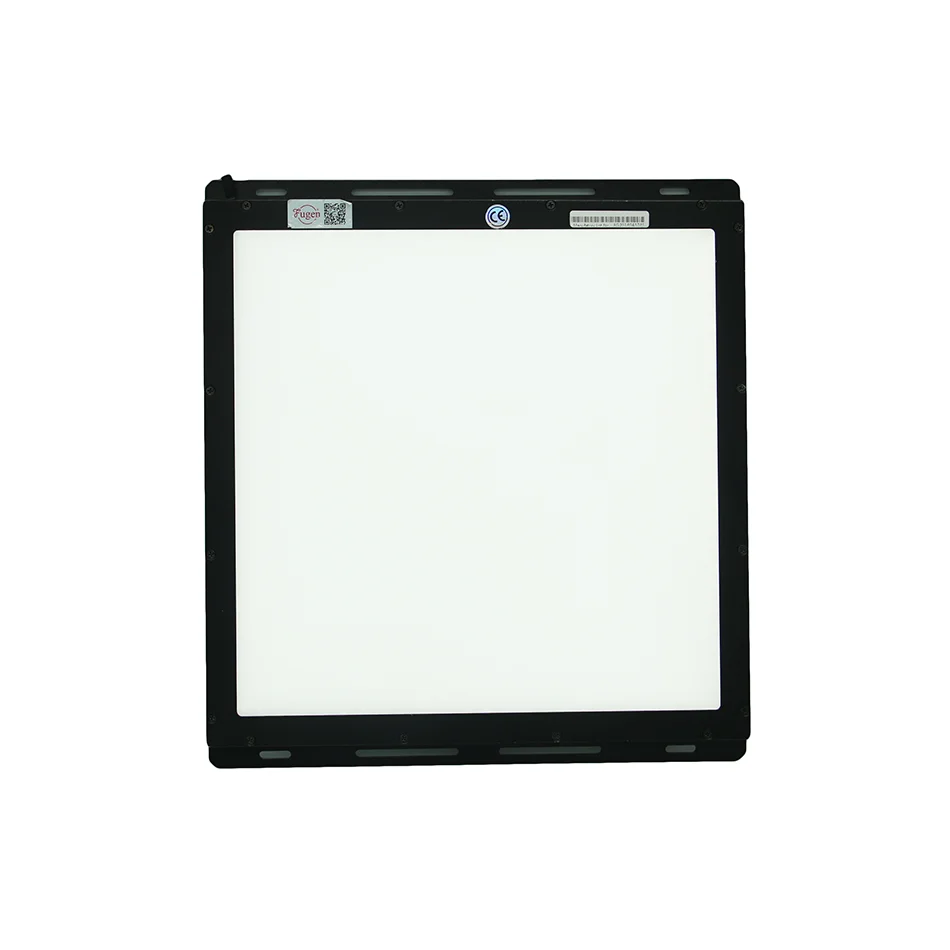

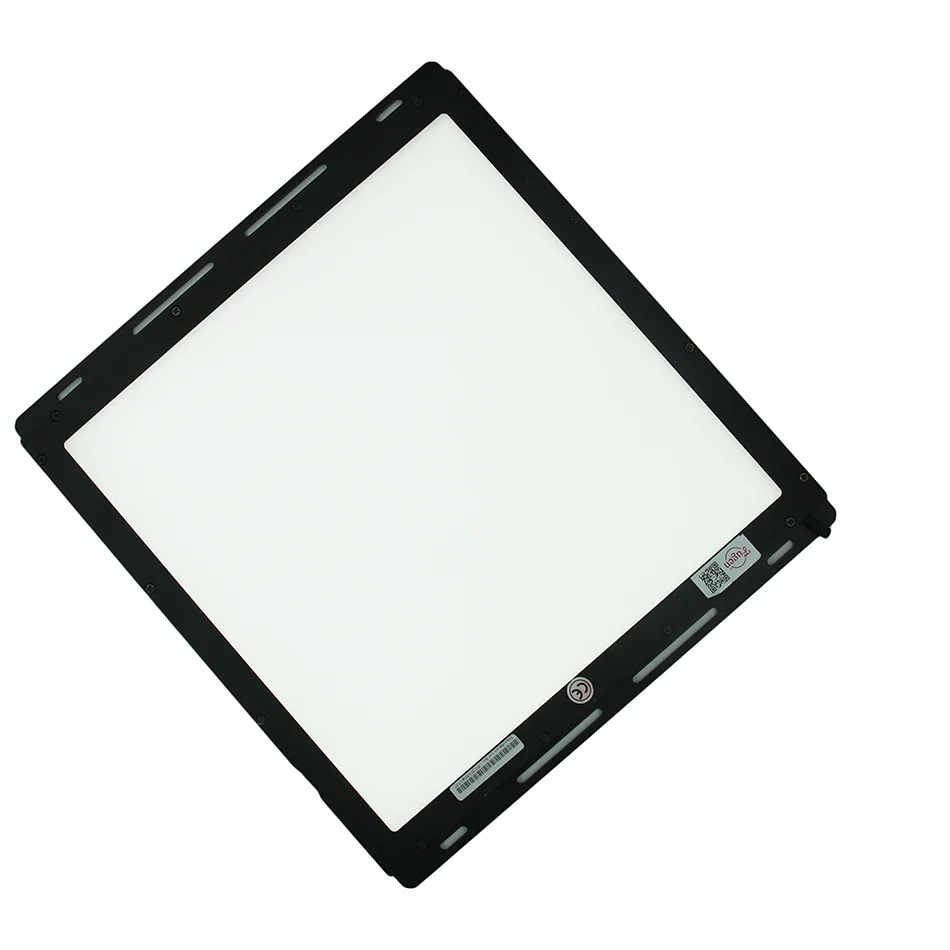

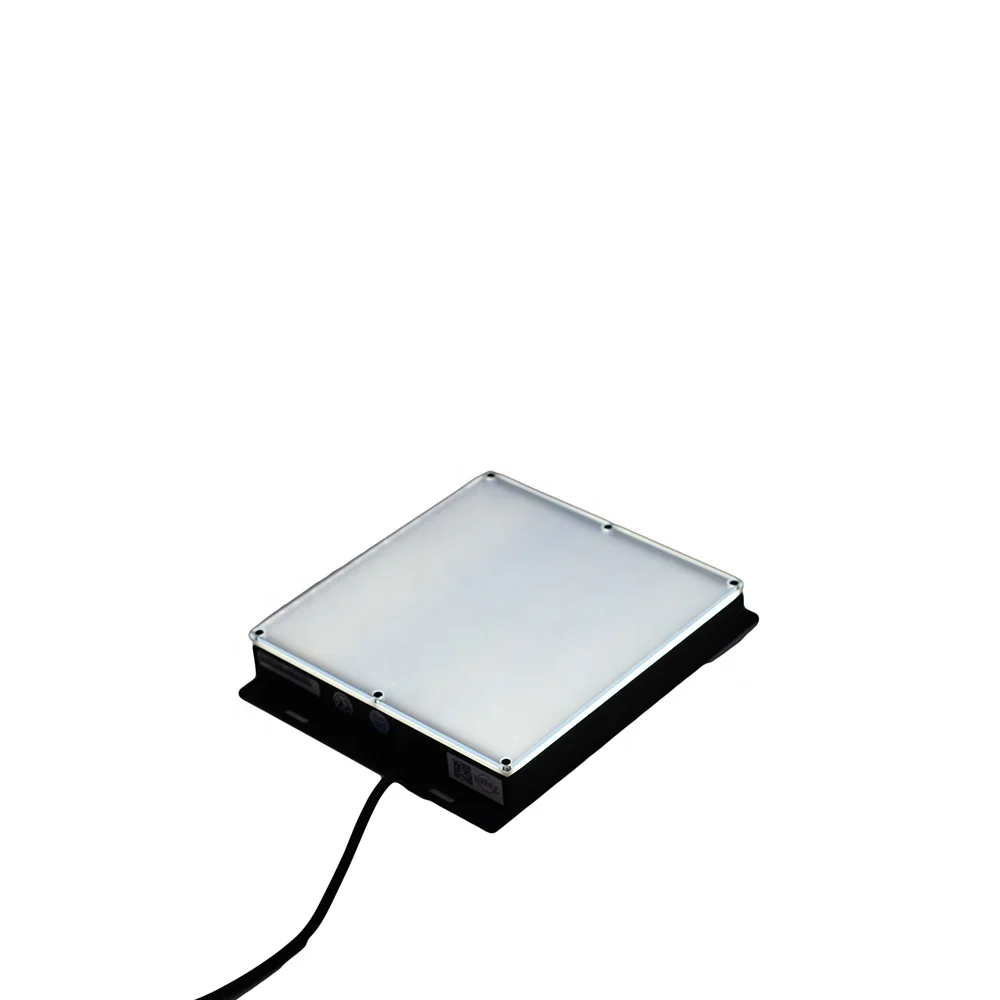

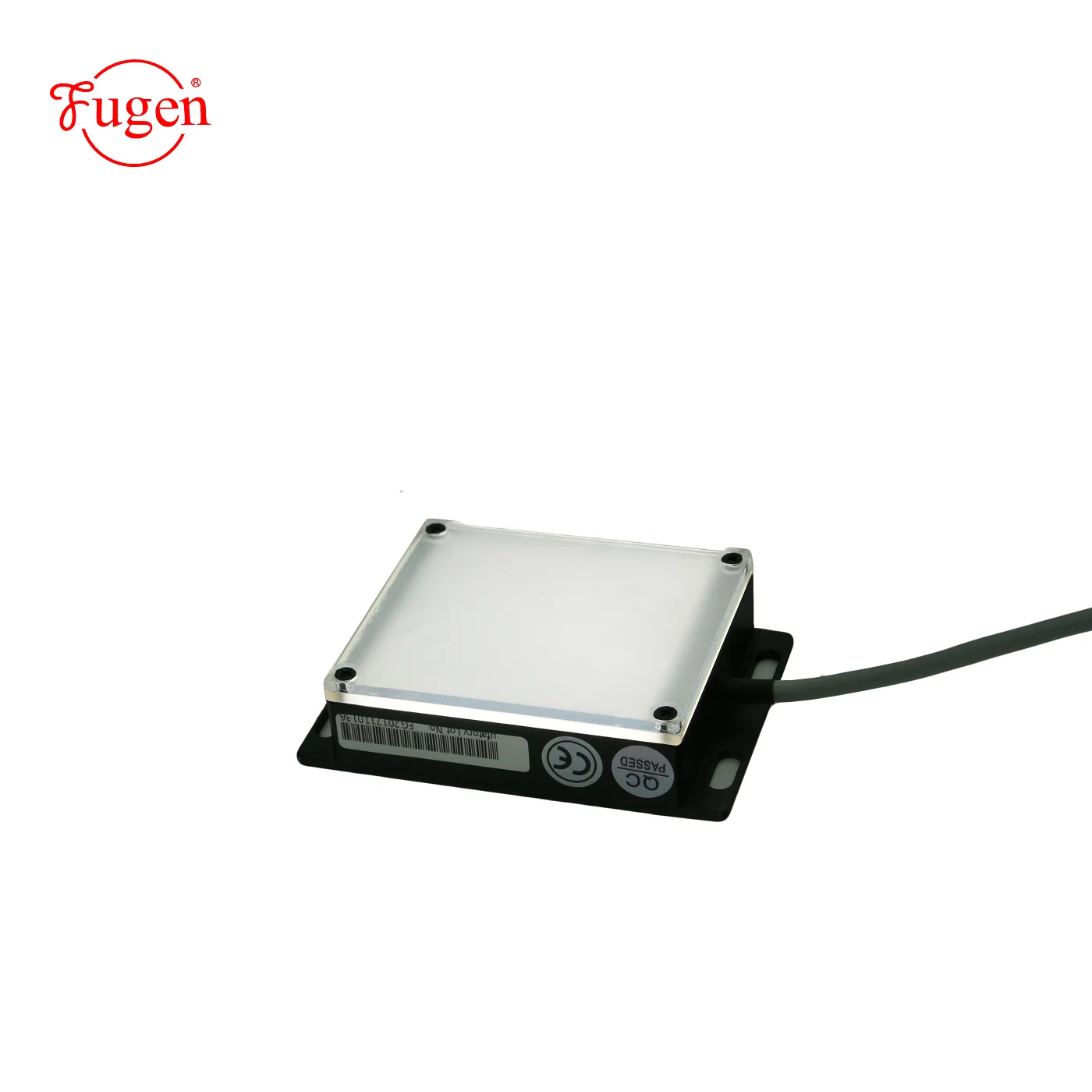

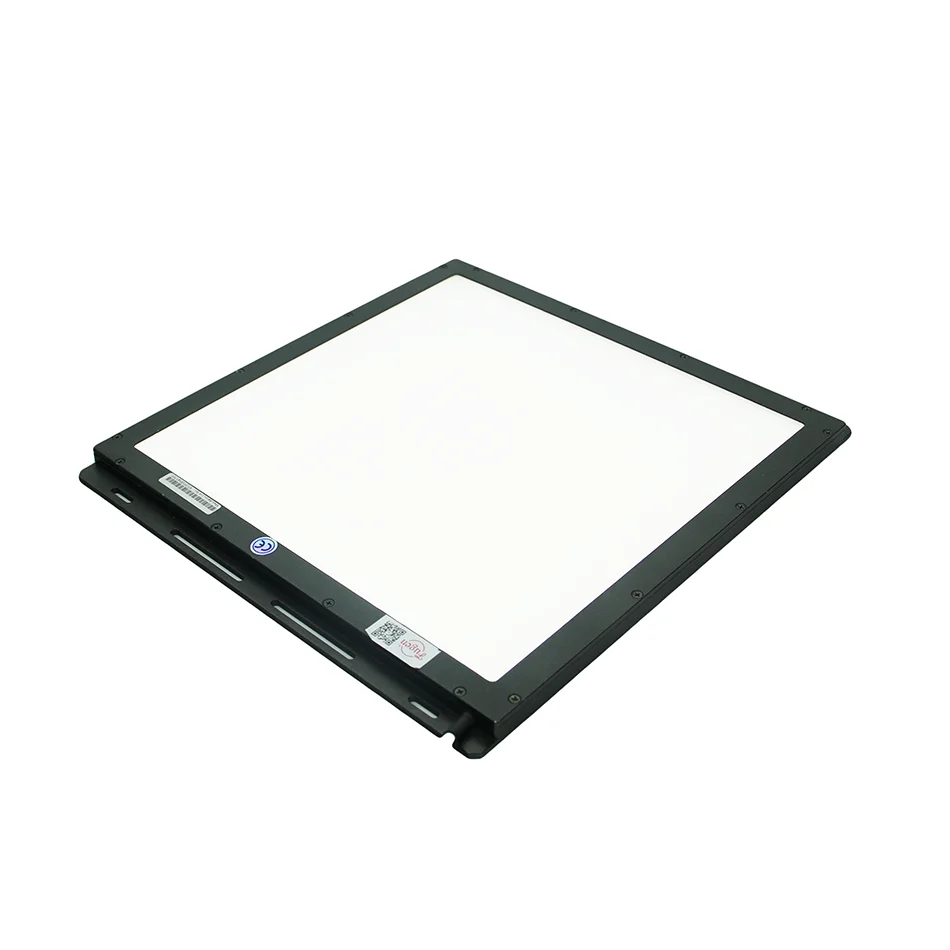

Small Size Ultra flat Panel LED Illumination Lighting Panel LED
Machine Vision Collimated Backlights
Machine Vision Collimated Backlights
We are professional manufacturer of machine vision led lights. We have a wide range of our products, high quality, long service life, low price. We are direct marketing manufacturer. Now, we are looking for the agents and wholesalers all over the world sincerely. Expecting your joining! Let us make a more magnificent future together!
Back Light
Collimated back light adopted special optical transmission material to improve the light path, and the high density LED patch array improved the uniformity of light efficiently. It makes the design of more dimensions of lights more conveniently, especially fit those occasions that require better effect of better parallelity and more clear dear outline.
Features
* Available to be combined to multi sizes of emitting area.
* Adopted reflow soldering technology, easier installation from lateral.
* Faster in developing new dimensions, high uniformity, high cost-effective.
* Adopted special optical transmission material, better parallelity and higher uniformity.
Application Areas
* Inspect the height of liquid level and liquid impurities.
* Inspect the outline of round products and the distance between target products.
* Inspect the fuse wire, the height and flatness of connector terminal.
* Inspect the breakage of outside edge.
* Inspect if there's any error of outlook dimensions under uniformity illimination.
* Inspect the outline of metal particles.
Model: FG-TH9090-B
Add special optical film, make the light irradiate approximate parallelly, to make the outline more clear.
*Inspect the medical injection needle tip.
Model: FG-THP5050-R
Add special optical film, make the light irradiate approximate parallelly, utilize the penetrability of red light to penetrate the plastic shell, to make the contour line more clear.
*Inspect the outer contour of automobile bearing.
Model: FG-THP300300-R
Illuminating uniformly, similarly as collimated light, to make the outline more clear.
Technical Index
Color (Wavelength) | Red:620-630nm | Green:525-530nm | Blue:465-470nm | ||
White color temperature: 6600-7000K | UV:365/385nm | IR:850/940nm | |||
Operating environment | Temperature: 0 to 50 ℃, Humidity: 20% to 85% RH | ||||
Life time | 100,000hrs theoretical service time(Depends on the operating environment, not a guarantee.) | ||||
Compatible Control Unit | Analog Controller, Digital Controller, Constant Current Controller | ||||
Optional Accessory | 1. Lights source and lens adaptor. | ||||
2. Diffusion plate, Polarizing plate.(Opational transmittance:60%,70%,80%,90%) | |||||
3. Extension cable: 1m/2m/5m/10m/15m(2 kinds of materials of the shell of wire:PVC of hardness;silicone of softness.) | |||||
Warranty | One year warranty, Free samples and technical support(buyers pay for the freight) | ||||
Lights customization | Provide design and development service according to individual needs of customers. Reach the best image effects. | ||||
Selection Guide:
FG | THP- | ** | ** | R/G/B/W |
Fugen | FlatLight | Lighting Length | Lighting Width | Color |
Lights customization: We provide design and development service according to individual needs of customers,To reach the best image effects.
Installation Process
Installation Diagram
Certifications
Company Introduction
Shanghai Fugen Automation Technology Co., Limited
Shanghai Fugen Automation Technology Co., Limited was founded in 2009,and we are a professional machine vision light manufacturer.
Payment&Shipping
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. But you need pay for the the freight.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 50 pieces.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS etc., usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 y ears warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
For more information, please contact us
