Высокоскоростная компьютеризированная машина для разделения
- Категория: Weaving Machines >>>
- Поставщик: Changzhou,A-Zen,Textile,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.15 $* | 0.96 $* |
| Aug-17-2025 | 0.17 $* | 0.99 $* |
| Jul-17-2025 | 0.47 $* | 0.28 $* |
| Jun-17-2025 | 0.1 $* | 0.2 $* |
| May-17-2025 | 0.63 $* | 0.51 $* |
| Apr-17-2025 | 0.36 $* | 0.84 $* |
| Mar-17-2025 | 0.2 $* | 0.32 $* |
| Feb-17-2025 | 0.9 $* | 0.75 $* |
| Jan-17-2025 | 0.93 $* | 0.32 $* |
Характеристики
Product Description
About high speed split yarn splitting warping machine split yarn
A-ZEN Split Yarn Warping Machine is suitable yarn such as polyester, polyamide etc. The mother yarn is made of a number of monofilament.

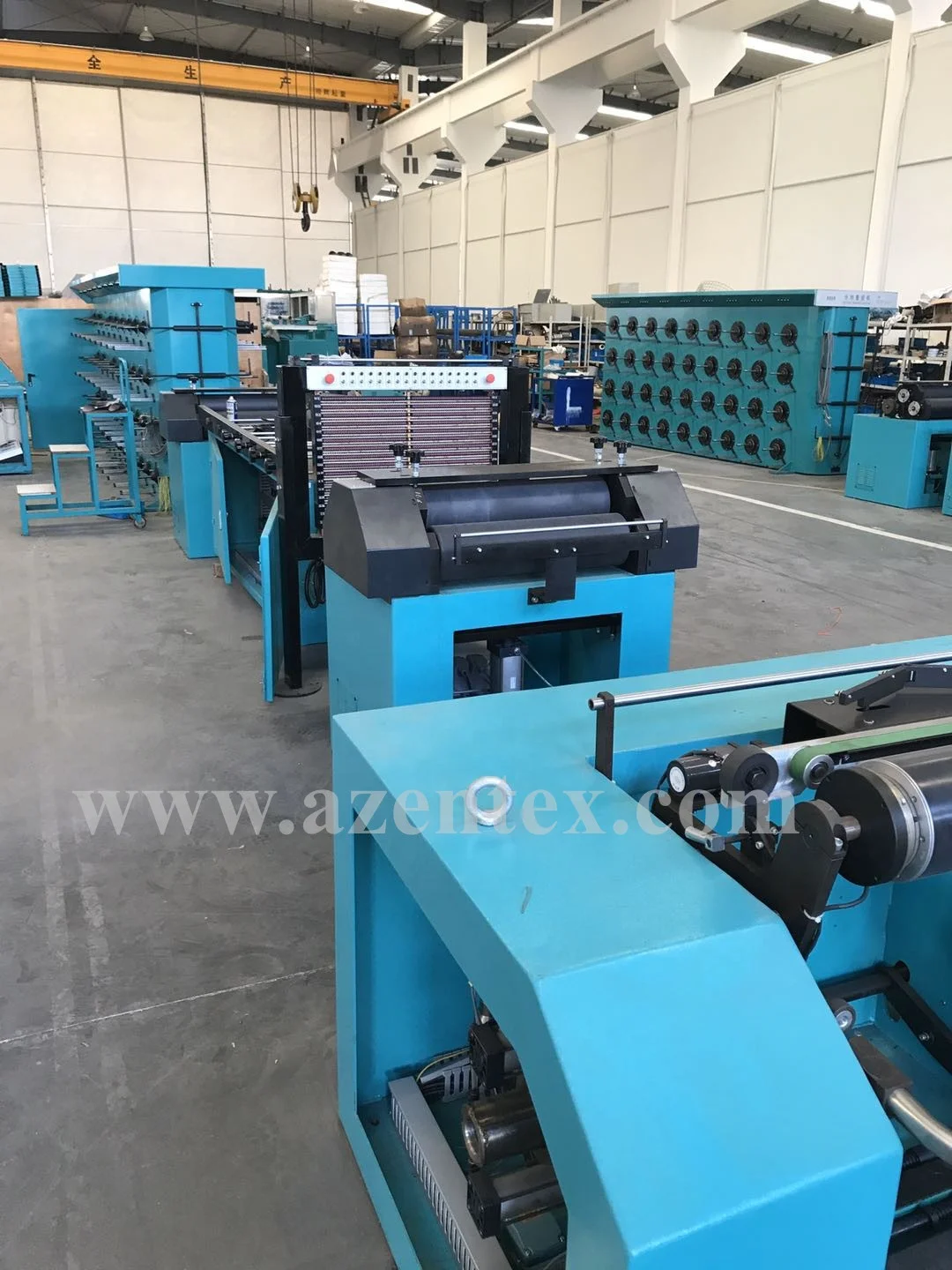

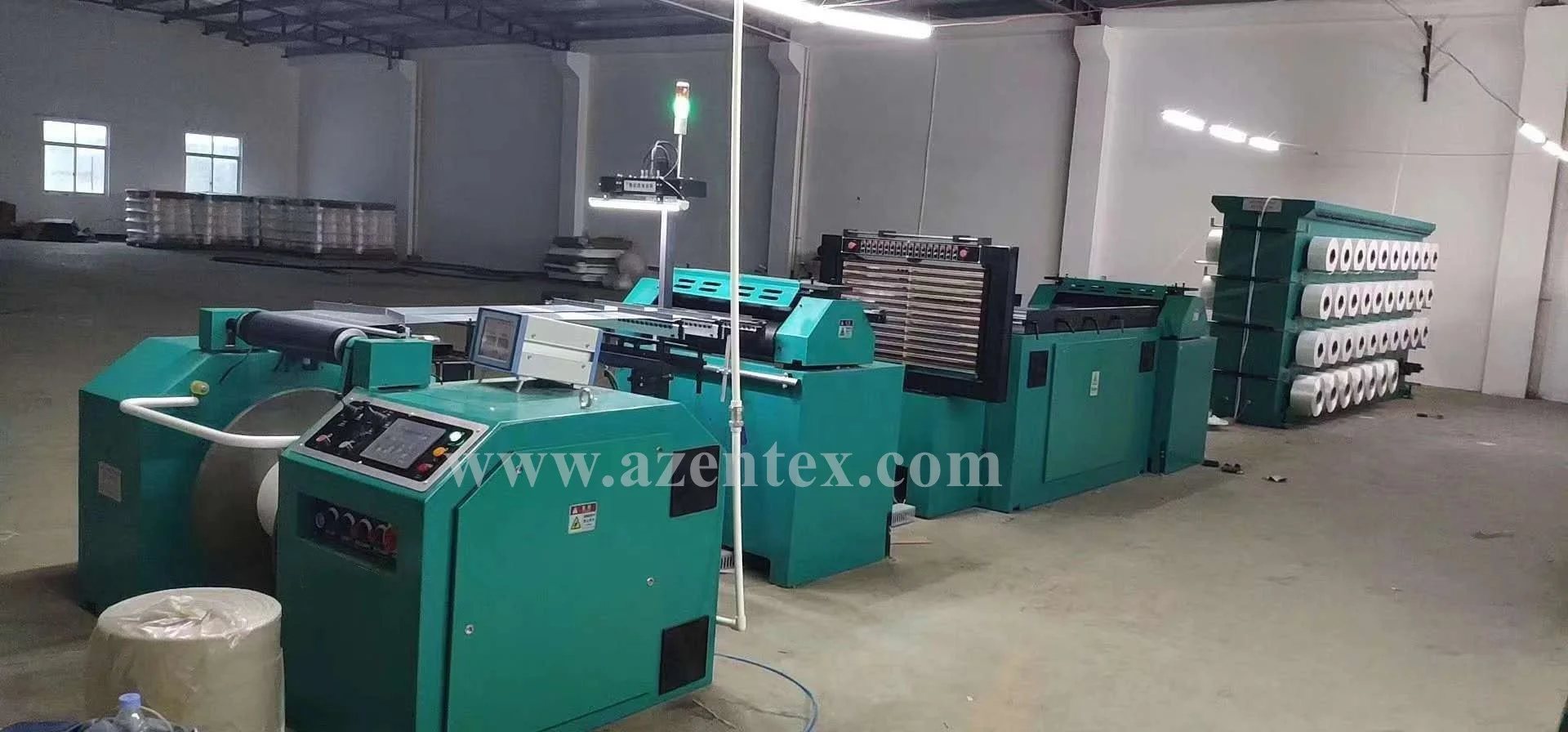

AZ358 is mainly composed by creel, yarn guider back drawing rollers, tension roller, split yarn collection board, front drawing roller and warper head.
Each strand of mother yarn is tensioned by a torque motor to get an initial tension, the back drawing rollers draws the mother yarn from the creel to the yarn collection board through several tension rollers. The yarn is split from the collection board, tghe front drawing rollers draw the monofilament to the beam. The liner speed is stable, then tension is controlled and small wave.
SPECIFICATIONS FOR AZ358 PATEERN BEAM WARPING MACHINE | ||||||
Beam Size | 21"*21", 21"*30" | Leveling Roller | Servo Controlled | |||
Warper Capacity | Customerized | Drop Stop Device | Equiped | |||
Warp Liner Speed | 50- 750(m/min) | Main Motor | 7.5 KW AC frequency conversion contril | |||
Mother Strand | 72 | Control Mode | Computer real-time control | |||
Main Features
1) Advanced model, intelligently distinguish human-computer interface, all data is saved automatically;
2) Speed tracking servo control & automatic control detection mechanism;
3) Computer real-time testing, intelligently control tension;
4) Load and unload beams pneumatically driving, go-up & down straightly, move stable & fix accurately;
5) Main shaft is driven pneumatically so braking is fast & stable;
6) Warping tension is even, wave is tiny & beam is falt and smopth.
