Матрица 3X4 под заказ силиконовая рамка нержавеющая сталь цифровая светодиодная подсветка уличная


Поделиться:


Цена:12,00 $ - 18,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 14.22 $* 15.38 $*
Aug-16-2025 14.22 $* 15.14 $*
Jul-16-2025 12.40 $* 13.95 $*
Jun-16-2025 14.52 $* 15.76 $*
May-16-2025 12.41 $* 13.45 $*
Apr-16-2025 14.3 $* 15.54 $*
Mar-16-2025 14.7 $* 15.93 $*
Feb-16-2025 13.42 $* 14.18 $*
Jan-16-2025 13.88 $* 14.91 $*

Характеристики



Product Description

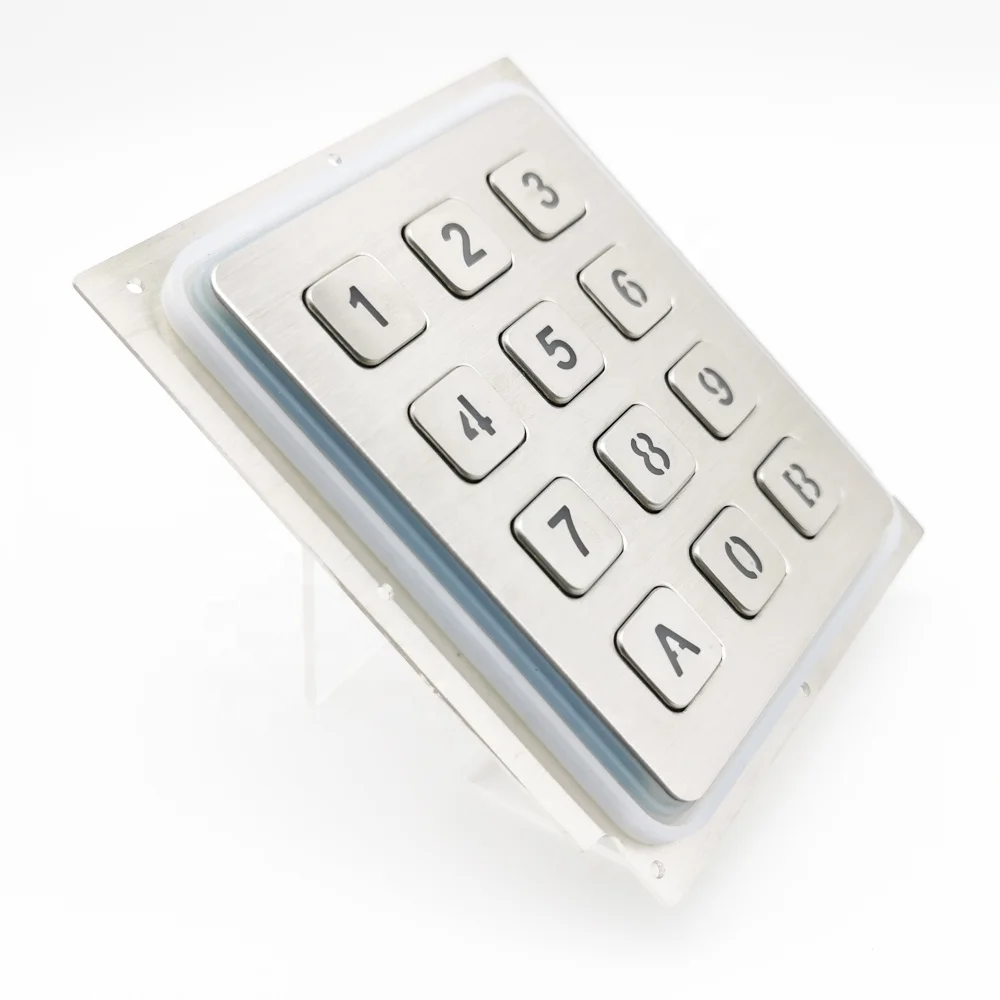

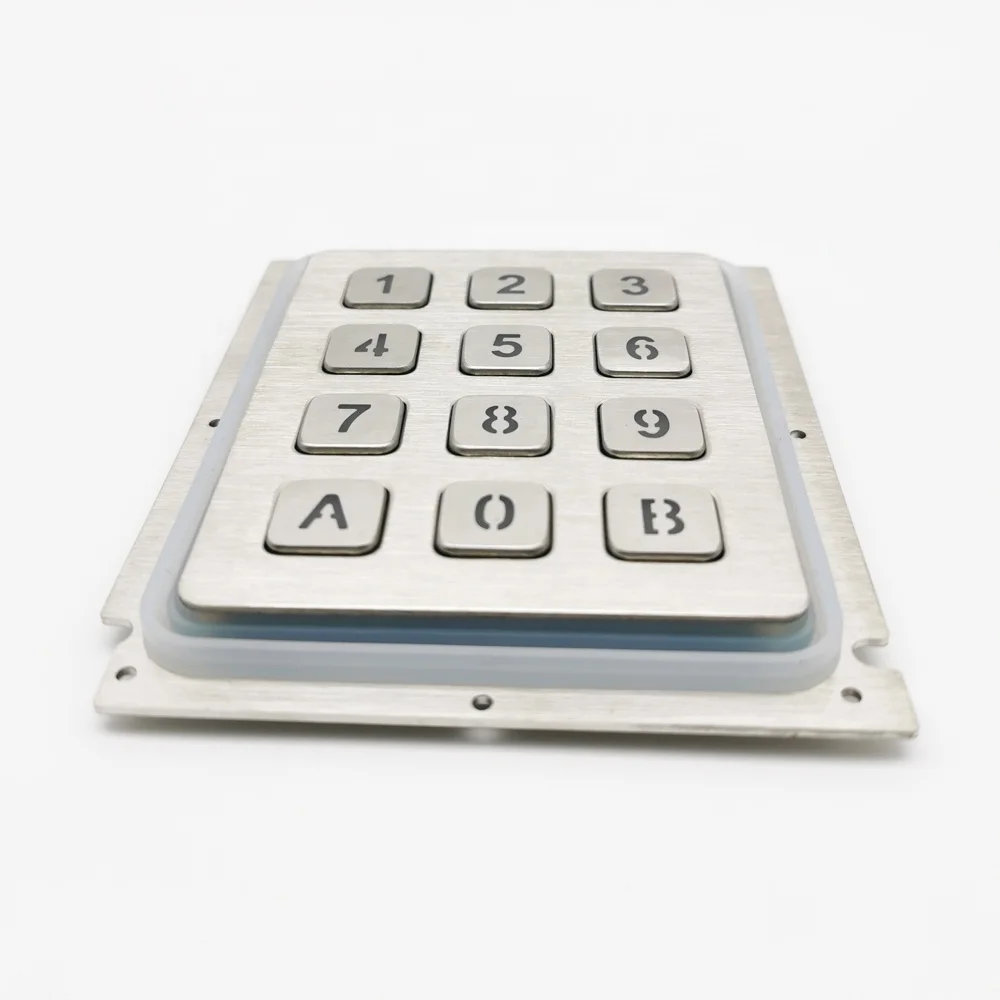

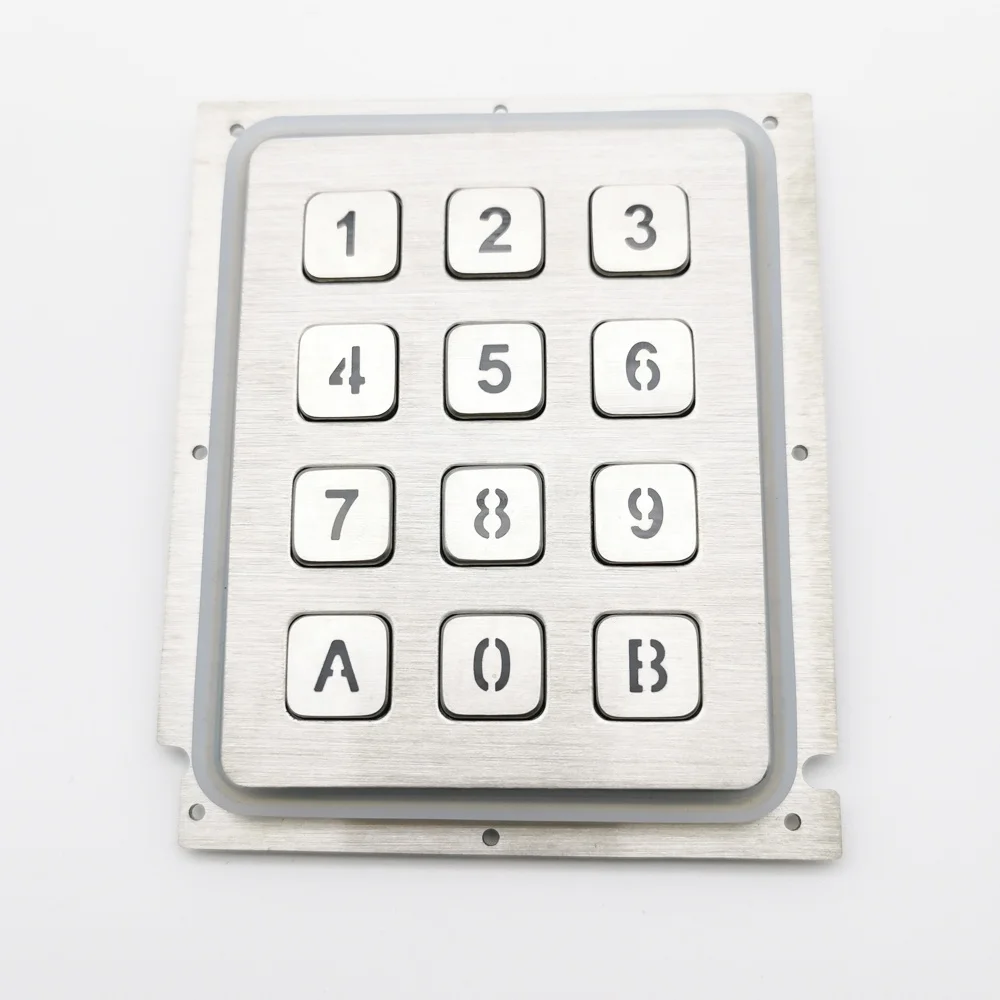

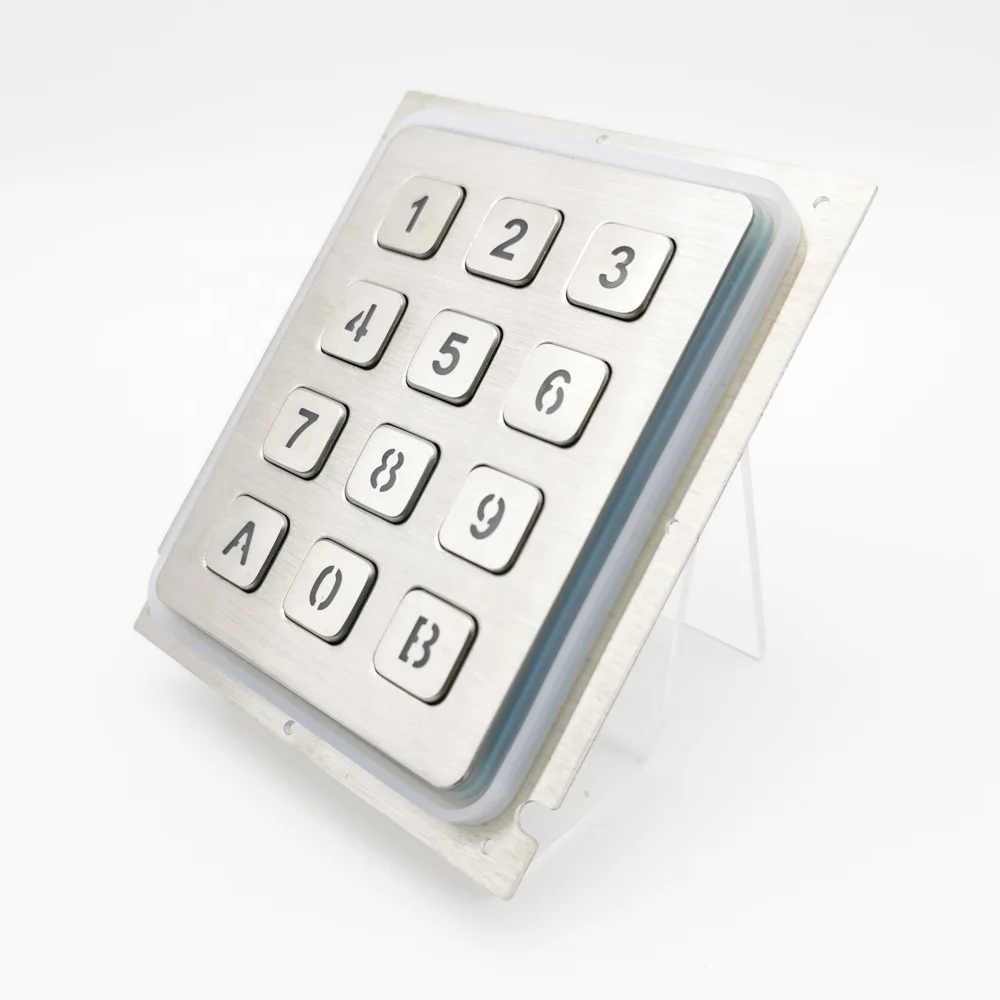

            3X4 matrix custom silicone frame stainless numeric LED backlight outdoor keypad








S01B_DBD_JP-6 - .jpgS01B_DBD_JP-2 - .jpgS01B_DBD_JP - .jpg








 Feature


1.Keys by laser engraving or chermical corrosion anti-falling off

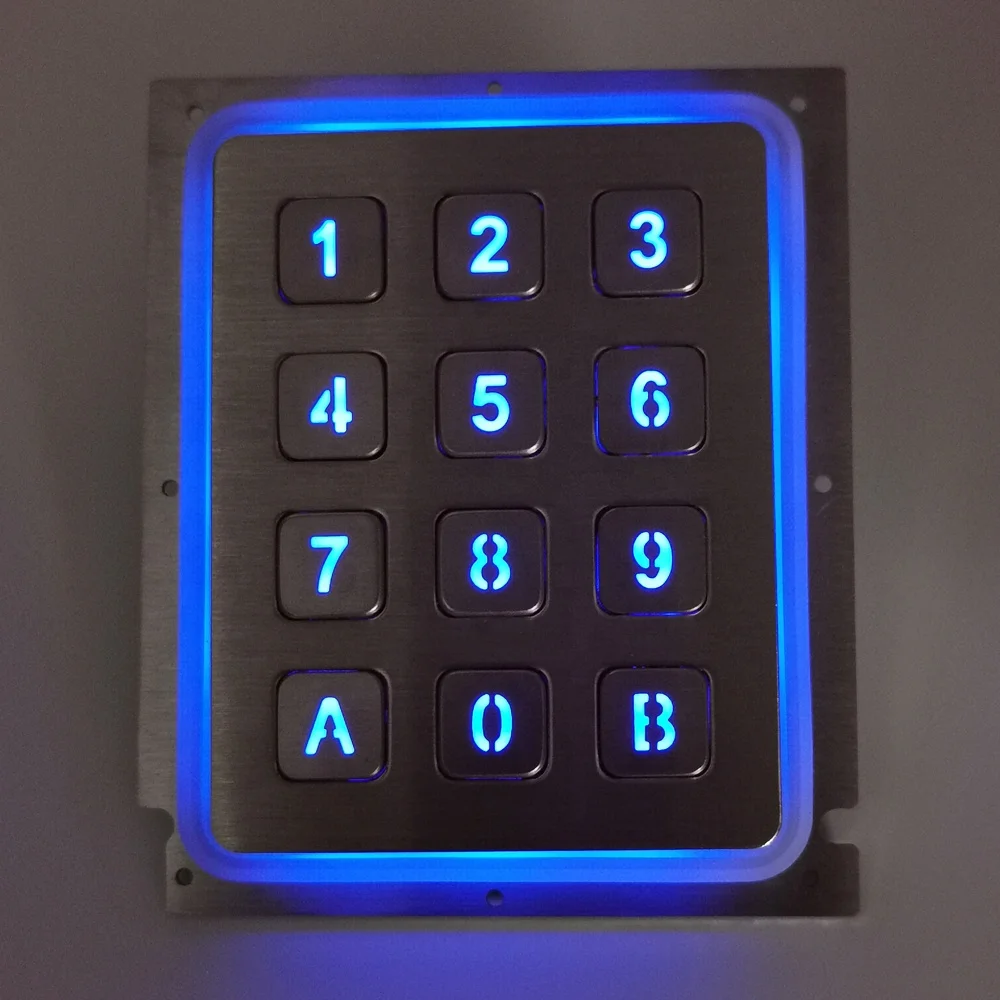

2.LED light transmission technology high definition can be operated in very weak light


3.Special water proof design,IP65 protect level,it has good performance of water proof,dust proof and vandal-proof,which make it a good choice for public use or harsh environment


4.Reinforced PCB to guarantee the mechanical stability


5.Simple installation,easy maintenance and durable service


6.Keys are good touch feeling and accurate date input without any noise


7.Font and pattern can be customized according to customer requirements


8.Very strict ex-factory inspection standards.



























































































































MECHANICAL DATA



Model Number



JXS01B_DBD_JP



keys



12 keys



Switching material



carbon-on-Gold key switch technology PCB



Actuation Force



2.0 N+/-0.1N (pressure point)



Frame/keys materials



Stainless steel 304



Dimensions



72.5mm *93.5mm



led color



Blue



Key Size



14.0mm *14.0mm



Key Travel



0.45mm



Key life



more than 1 million of operations



G.W.



235g approx



ELECTRICAL DATA



Power supply voltage



 5VDC  Or customize



Current Rating



appr. 20mA



Backlight:



Yes



Contact resistance



5 ohm (max)



Electrical lifetime



> 5 years



Interface

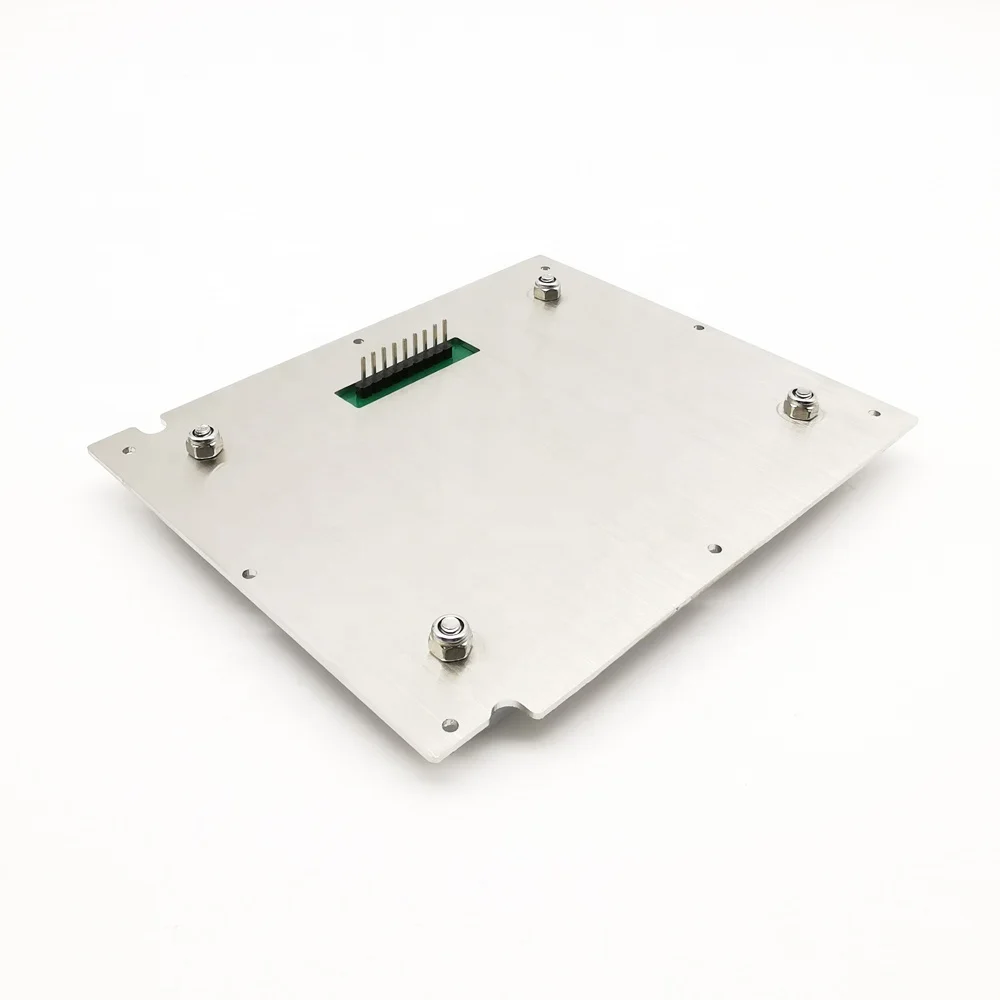

 Matrix Male pinout connector  10PIN 2.54mm



 Or customize PS2/USB/RS232



OS



All windows, Linux, Unix, Mac OSX



ENVIRONMENTAL ADAPTABILITY



Operating temperature



-20 to +75



Storage temperature



-35 to +85



Operating RH



30-90%RH



Atmospheric pressure



60-106Kpa



RELIABILITY



Protection Level



IP65(front panel)



Vandal resistant



IK09









Packaging & Shipping




























PACKAGING



Inner Box



1Set



Carton



60Sets



Carton Size



41*24*25.5CM



Carton G.W.



15KG









Certifications


.png





TM contact








Related Products


















Our Services




_04











Company Information


_01


FAQ


1. Q: Are you factory?


A: Yes,we are a factory specializing in the production of industrial metal keypad ,so the price are more competitive





2. Q: Whether support sample?


A: Samples are available for test





3. Q: how long is the warranty period?


A: 12 Months





4. Q: How to pay?


A: TT and western union





5. Q: How to pay the deposit?


A:50% in advance and balance before shipping





6. Q: How to ensure the quality of the products?


A: Every set of our products are under strict and repeated tests before delivery





7.  Q: How will you deliver the products?


A:We can deliver the products by express by sea,by air or at you request





8. Q: Do you accept customized keypad?


A:Yes,OEM and ODM are available for us. We have a professional research and development team
