40 ключ водонепроницаемый usb промышленный металлический механический цифровой лазерный автомат
- Категория: Keypads & Keyboards >>>
- Поставщик: Yuyao,Jiexin,Electronics,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 44.83 $* | 45.78 $* |
| Jul-17-2025 | 36.31 $* | 37.42 $* |
| Jun-17-2025 | 44.81 $* | 45.95 $* |
| May-17-2025 | 43.99 $* | 44.48 $* |
| Apr-17-2025 | 35.38 $* | 36.60 $* |
| Mar-17-2025 | 43.92 $* | 44.12 $* |
| Feb-17-2025 | 42.3 $* | 43.16 $* |
| Jan-17-2025 | 42.51 $* | 43.9 $* |
Характеристики

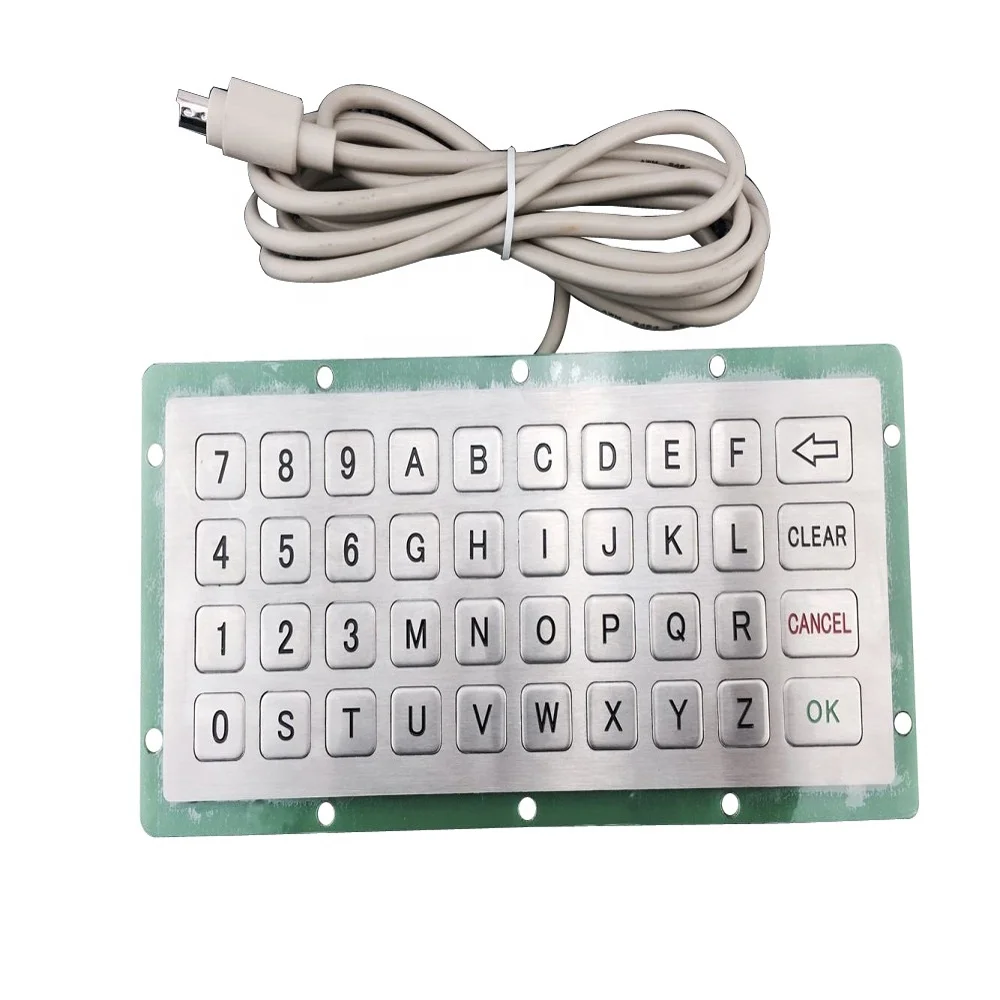

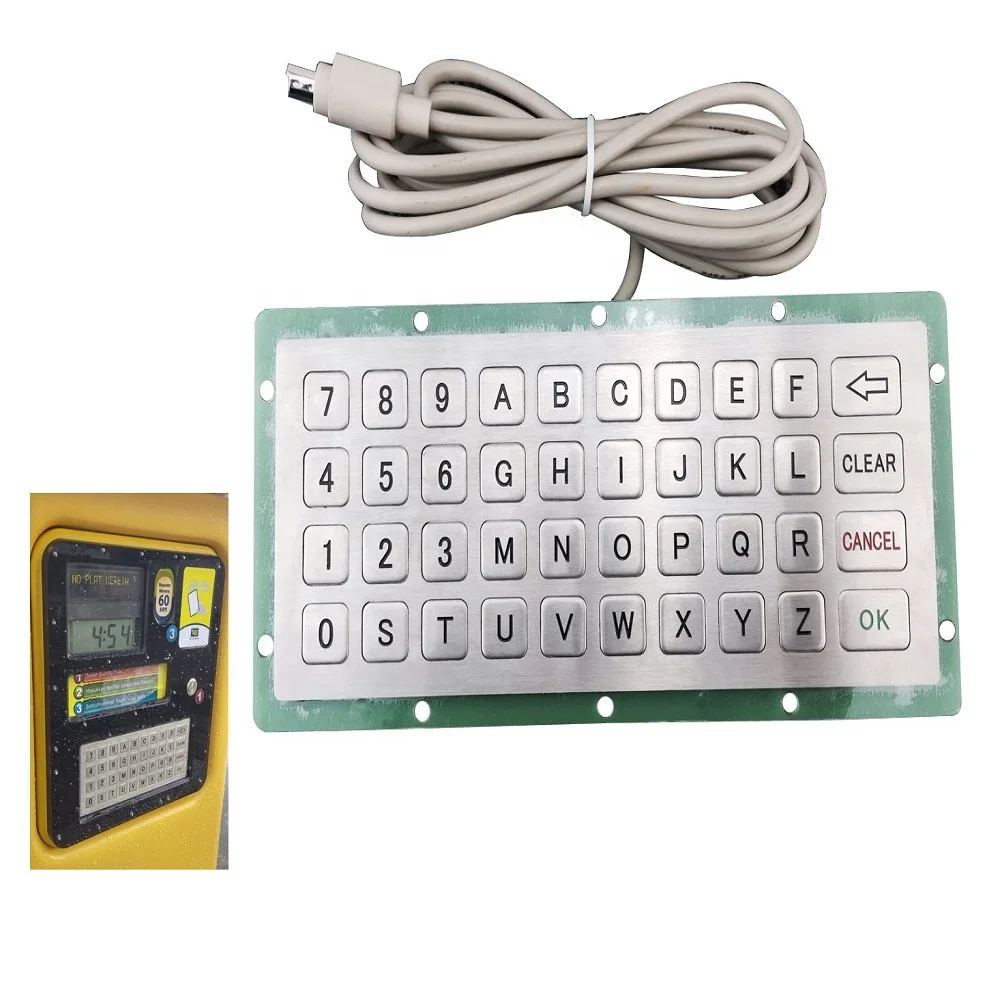

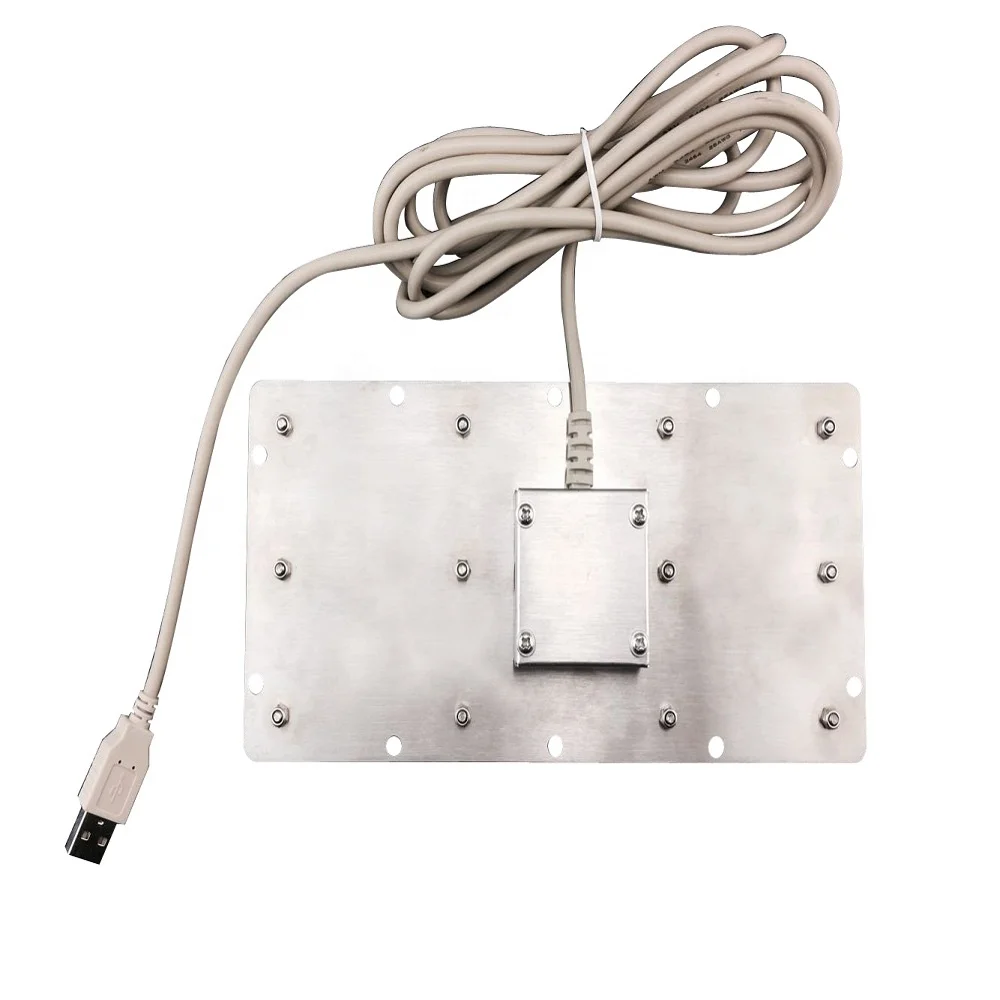

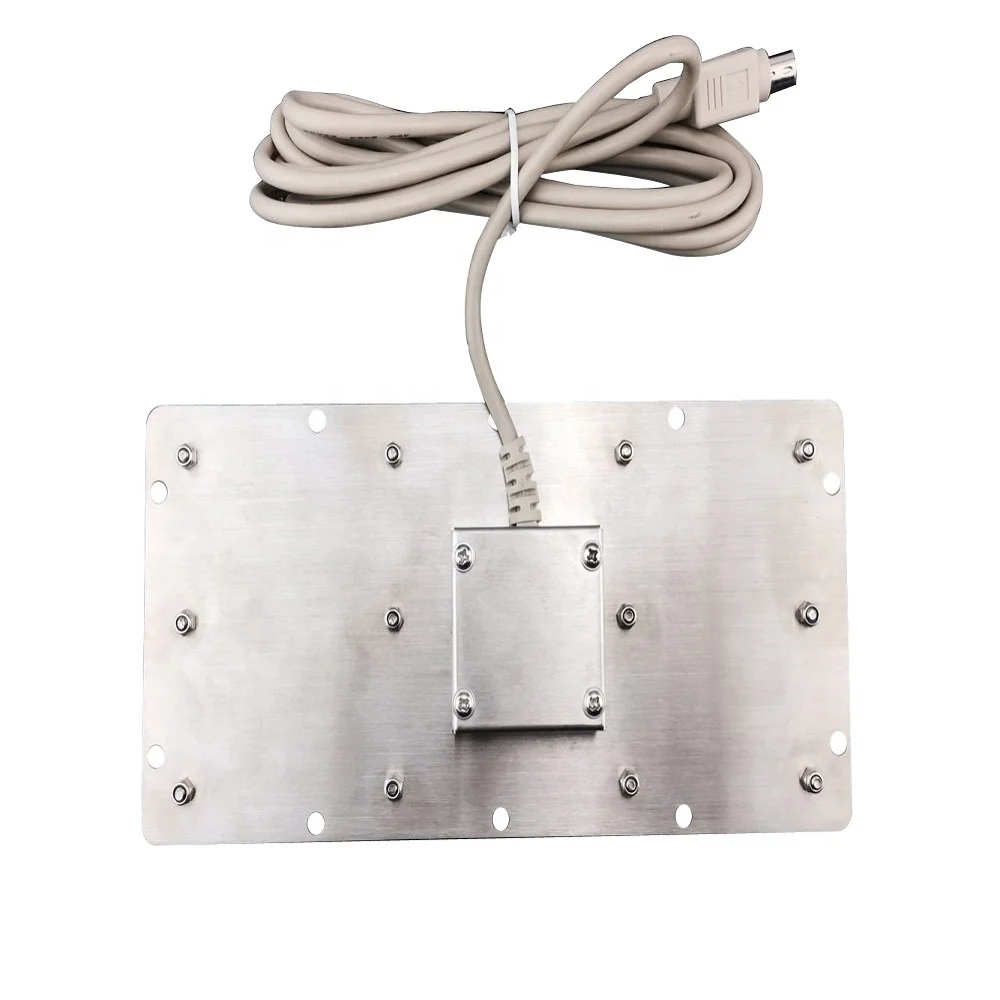

40 key waterproof usb industrial metal Selfservice terminal vending machine keyboard
Product Description
Feature
1.40 Keys 10 number keys 30 function keys
2.Keypad surface precision wire-drawing process

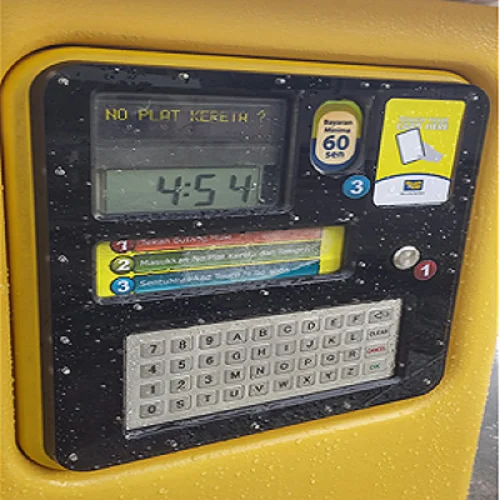

3.Special water proof design,IP65 protect level,it has good performance of water proof,dust proof and vandal-proof,which make it a good choice for public use or harsh environment
4.Reinforced PCB to guarantee the mechanical stability
5.Simple installation,easy maintenance and durable service
6.Keys are good touch feeling and accurate date input without any noise
7.Font and pattern can be customized according to customer requirements
8.Very strict ex-factory inspection standards
MECHANICAL DATA | |
Model Number | JXPC40 |
keys | 40 keys |
Switching material | carbon-on-Gold key switch technology PCB |
Actuation Force | 2.0 N+/-0.1N (pressure point) |
Frame/keys materials | Stainless steel 304 |

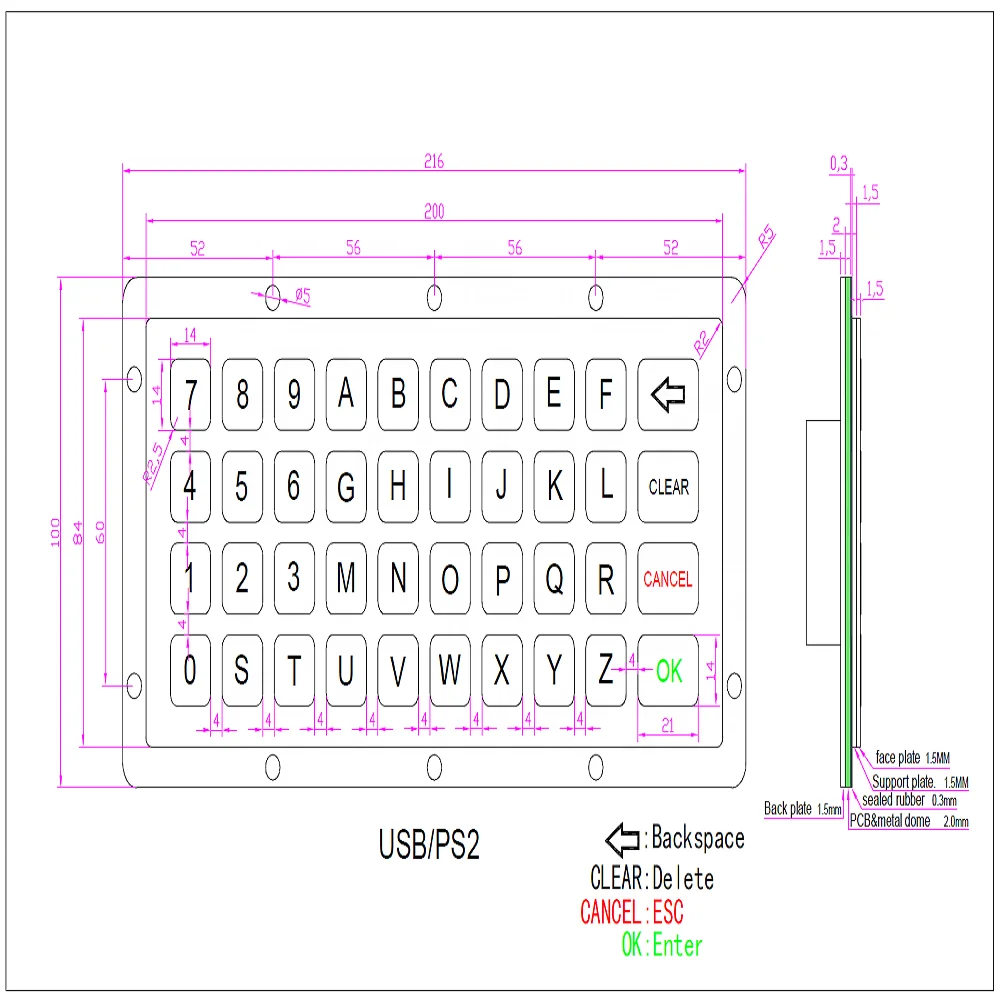

Dimensions | 200mm*84mm |
Key Size | 14.0mm *14.0mm 21.0mm *14.0mm |
Key Travel | 0.45mm |
Key life | more than 1 million of operations |
G.W. | 750g approx |
ELECTRICAL DATA | |
Power supply voltage | 0-24V DC |
Current Rating | appr. 20mA |
Contact resistance | 5 ohm (max) |
Electrical lifetime | > 5 years |
Interface | USB/ PS2 |
OS | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +75℃ |
Storage temperature | -35℃ to +85℃ |
Operating RH | 30-90%RH |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
Packaging & Shipping
PACKAGING | |
Inner Box | 1Set |
Carton | 20Sets |
Carton Size | 41*24*25.5CM |
Carton G.W. | 17KG |
Certifications
TM contact
Related Products
Our Services
Company Information
FAQ
1. Q: Are you factory?
A: Yes,we are a factory specializing in the production of industrial metal keypad ,so the price are more competitive
2. Q: Whether support sample?
A: Samples are available for test
3. Q: how long is the warranty period?
A: 12 Months
4. Q: How to pay?
A: TT and western union
5. Q: How to pay the deposit?
A:50% in advance and balance before shipping
6. Q: How to ensure the quality of the products?
A: Every set of our products are under strict and repeated tests before delivery
7. Q: How will you deliver the products?
A:We can deliver the products by express by sea,by air or at you request
8. Q: Do you accept customized keypad?
A:Yes,OEM and ODM are available for us. We have a professional research and development team
