4CH 4k камера для домашней безопасности системы 4x проводной 8MP Fisheyes 360 градусов AHD камеры 4 канальный цифровой видеогеристратор обособленный Система контроля доступа поддержка 8
- Категория: Камера видеонаблюдения >>>
- Поставщик: Shenzhen,Anxinshi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 283.75 $* | 297.38 $* |
| Aug-19-2025 | 281.75 $* | 295.51 $* |
| Jul-19-2025 | 236.15 $* | 248.31 $* |
| Jun-19-2025 | 276.61 $* | 290.15 $* |
| May-19-2025 | 240.84 $* | 252.37 $* |
| Apr-19-2025 | 271.8 $* | 285.75 $* |
| Mar-19-2025 | 269.6 $* | 282.72 $* |
| Feb-19-2025 | 267.17 $* | 280.17 $* |
| Jan-19-2025 | 264.65 $* | 277.59 $* |
Характеристики
Product Description
Key Features:
1. 1.8mm fisheye lens,Multi-dimensional video correction, close to 360° viewing angle
2. 1/2" 8.0MP Progressive Scan CMOS
3. Support 4 output modes , Full HD 8MP TVI/AHD/CVI video output or CVBS output
4. Min illumination color 0.01 Lux, 0 Lux with IR
5. Day/Night(ICR)& DNR&AWB&AGC&BLC
6. Support the OSD menu control, support UTC function
7. 3pcs Array IR LEDs, up to 25m IR distance
8. Metal housing
9. IP66 rating
Form parameters:
| Mode | Name and Description | 8.0MP 4 In 1 High Definition IR Fisheye Panoramic Dome Camera |
| ASHD20-D25-80 | ||
| Camera | Media Processor | NVP2481H + OV OS08A10 |
| Image Sensor | 1/2" 8.0MP Progressive Scan CMOS | |
| Effective Pixels | 3840(H)*2160(V) | |
| Video Frame Rate | 3840*2160@25fps (PAL)/3840*2160@30fps(NTSC) | |
| Signal System | PAL/NTSC | |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time | AUTO/ 1/50(1/60)-1/10,000sec | |
| Lens | 1.8mm fisheye lens | |
| Lens Mount | M12 Mount | |
| Day& Night | Auto,dual IR-cut filter | |
| IR Distance | 25m(3pcs Array IR LEDs) | |
| Video Output | 1 channel, 8MPTVI/8MPAHD/8MPCVI / CVBS (960H) | |
| Synchronization | Internal Synchronization | |
| Menu | Auto Gain | Low/Middle/High |
| BLC | BLC/HSBLC/OFF | |
| White Balance | AWB/ATW/Indoor/Outdoor/Manual | |
| D-WDR | ON/OFF | |
| Noise Reduction | 2D/3D | |
| Private Mask | Support | |
| Motion Detection | Support | |
| Language | Chinese/English/Italian/Polish/Portuguese | |
| Function | AWB, BLC , Mirror,D-WDR | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Dimension | 94(W)X94(H)×69(D) | |
| Weight | 0.25Kg |

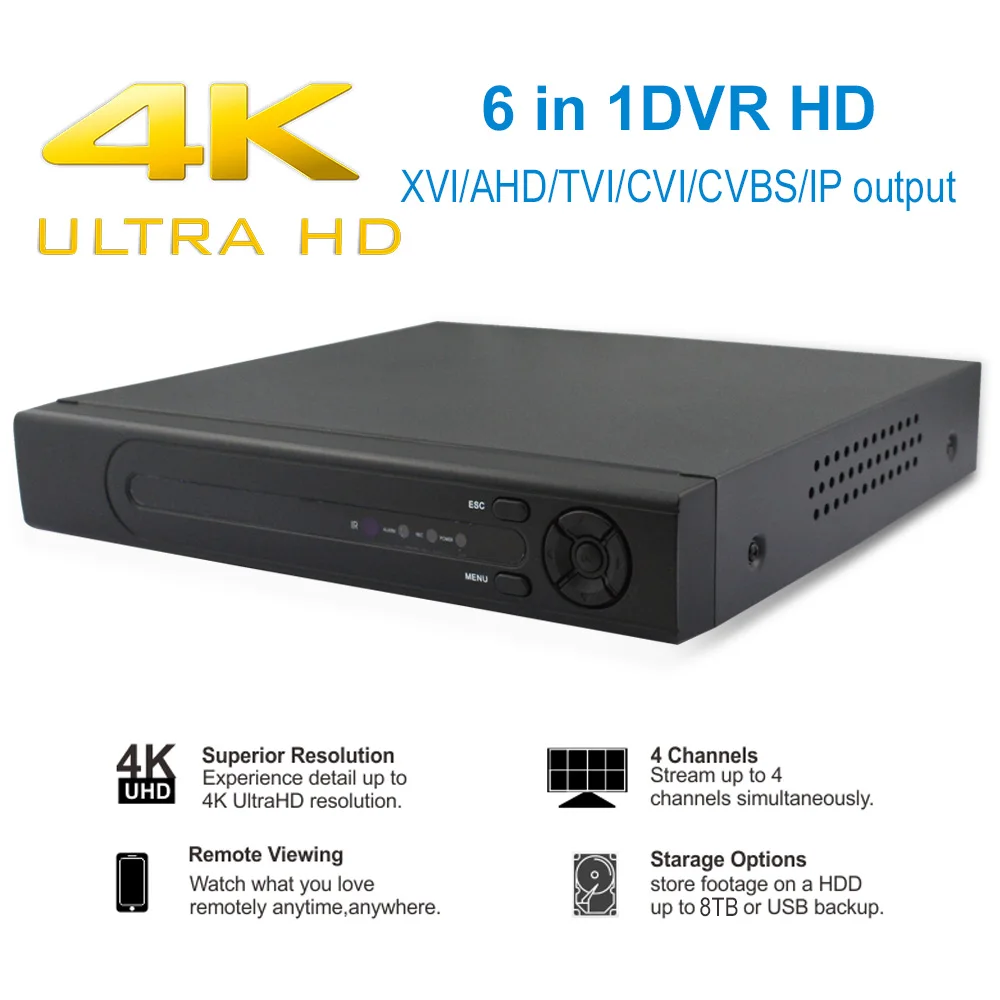

DVR Technical :
1. Support 4-way 4K-N front-end non-real-time encoding;
2. Support XVI, AHD, TVI, CVI, CVBS, IP HD signal input;
3. Support VGA maximum 1080P output, HDMI up to 4K output;
4. Mini 1U chassis, 1 SATA interface (single maximum support 8T);
5. One 10/100Mbps adaptive Ethernet port, RJ45 interface
Support automatic networking, add devices with one click;
6. Support Onvif protocol, which can connect to third-party devices;
7. Support GB28181 protocol access to third-party platform (optional);
8. Support cloud service, network penetration, alarm information push function;
9. Support remote access, with its own domain name service function (ARSP);
10. Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, alarm center, etc.;
11. Support mobile phone monitoring (iOS, Android);
12. Support multiple browser access (IE, Chrome, Firefox, Safari);
13. Support more than 20 languages and break the boundaries of national borders;
14. Perfect protection circuit, unique triple watchdog function;
15. Support WEB, CMS, VMS, MYEYE platform, and provide SDK development;
16. Support coaxial control
Form parameters
| Model | Name and Description | 1SATA 4ch 8TB 8MP HD Analog 6 IN 1 DVR |
| ADVR8304-S | ||
| System | processor | Hi3520D V400 |
| Video | Codec | H.265+/H.265/H.264 |
| Encode | 4ch 4M@8fps(6 in 1)/4ch 5M@6fps(6 in 1)/ 4ch 4K-N@7fps (6 in 1), default 4M | |
| Decode | 4ch 4M@8fps(6 in 1)/1ch 5M@6fps(6 in 1)/ 1ch 4K-N@7fps (6 in 1), default 4M | |
| Preview capability | 4ch 4M@15fps(6 in 1)/4ch 5M@12fps(6 in 1)/ 4ch 4K-N@15fps (6 in 1), default 4M | |
| Multi-mode | Simulation: 4 way 4M/4 way 5M; | |
| Digital-to-analog conversion: support (except 4 way 5M, 4 way 4M+4 way 4M mode) Mixing: 4 channels 4M (analog) + 4 channels 4M (network) | ||
| Pure network: 16 channels 1080P/8 channels 5M | ||
| Playback | 4ch | |
| Audio | Compression | G.711a |
| Intercom | Support | |
| Management | Record mode | Manual Recording > Alarm Recording > Dynamic Detection Recording > Timed Recording |
| Video query | Point-in-time retrieval, calendar retrieval, event retrieval, channel retrieval | |
| Video saving | Local hard disk storage, network storage | |
| Backup method | Network backup, USB backup, SATA burning | |

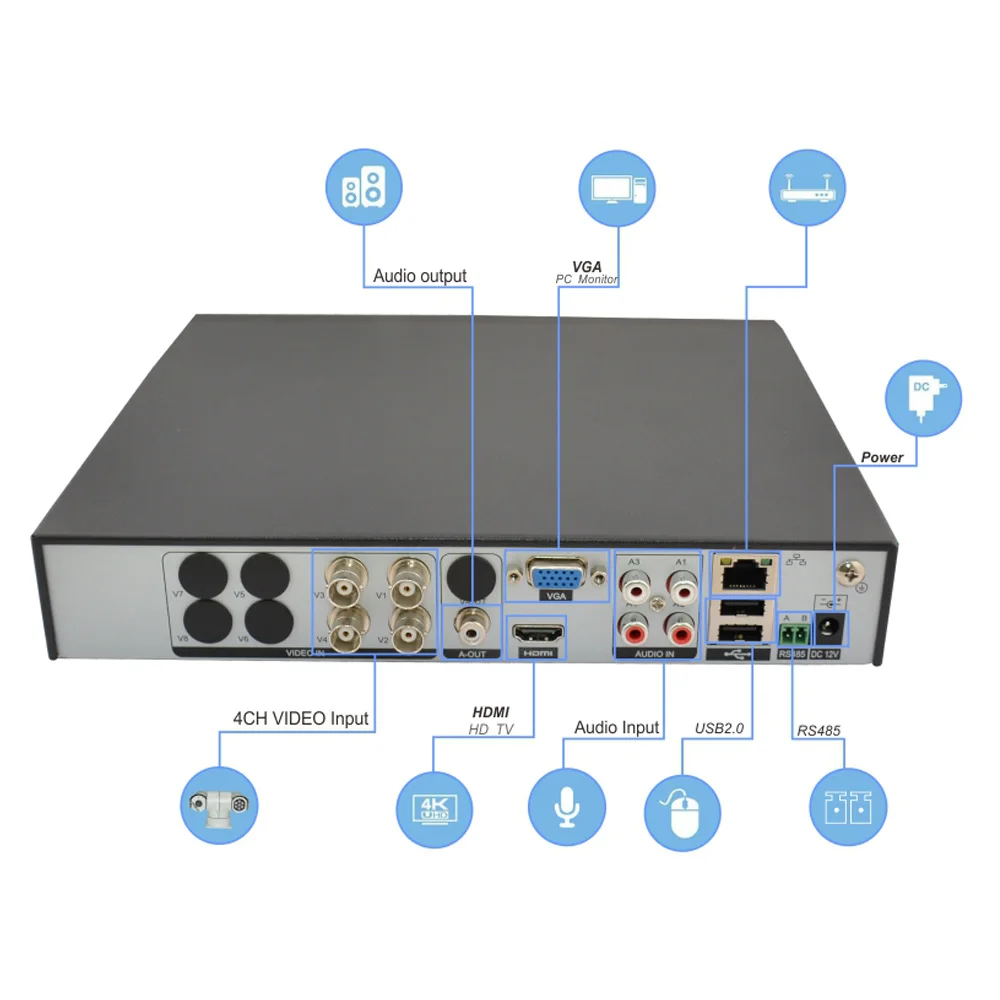

| Interface | Video input | 4-channel BNC interface (supports coaxial control) |
| HDMI interface | 1 HDMI interface (output resolution: MAX 4K) | |
| VGA interface | 1 VGA interface (output resolution: MAX 1080P) | |
| Audio I/O | 1/1 | |
| Alarm I/O | 0/0 | |
| Network Interface | 1 10/100Mbps adaptive Ethernet port, RJ45 interface | |
| PTZ control | Support multiple PTZ protocols | |
| USB interface | 2 USB2.0 ports, 3G, WIFI (expanded via USB) | |
| Hard disk interface | 1 SATA interfaces (single maximum support 8T) | |
| General | Operating temperature | 0°C-+55°C |
| Working humidity | 10%-90% RH | |
| power supply | 12V/2A | |
| Power consumption | <10W (without hard disk) | |
| weight | About 1KG | |
| Size | 255mm (length) * 236mm (width) * 44mm (height) |
Packaging & Shipping
Packaging:
Shipping: Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean
a. If the weight is under 100Kgs, it can be sent by Express or Air.
b. If the weight is over 100Kgs, we recommend sending them by Ocean
Shipping Notice:
Kindly Reminder:
In order to make your goods arrive betimes. Please make sure your name is complete, shipping address is detailed, post code and phone number is correct
Our Services
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
Company Information
Shenzhen Anxinshi Technology Co.,Ltd is a company specializing in security surveillance products manufacturers, the company set the development, production, sales and service as a whole, products to professional intelligent, digital and network video surveillance equipment. To provide our clients with professional security video surveillance products and customized to meet customer demand system solutions as their responsibility, to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
The operation of the company and the sales of products include: Intelligent speed dome camera, intelligent medium-speed spherical camera, speed dome camera, mini intelligent speed dome camera, infrared automatic tracking ball machine, infrared ball machine, infrared bolt, bolt, net dome camera, network intelligent network tracking of spherical camera, intelligent control keyboard, such as 3D hemisphere. At the same time, domestic companies Acting major brand products, and domestic and foreign customers OEM, ODM service. The company's products, products, foundry services long-term unremitting efforts, the company has been in the video monitoring field of industry of domestic and foreign customers has been good quality evaluation and praise of the market. Our spirit of enterprise is the dedication, innovation and development, operating principle is quality, service.
