12025 AC 19W 12CM охлаждающий вентилятор 120 мм

Описание и отзывы

Трекер стоимости

Характеристики

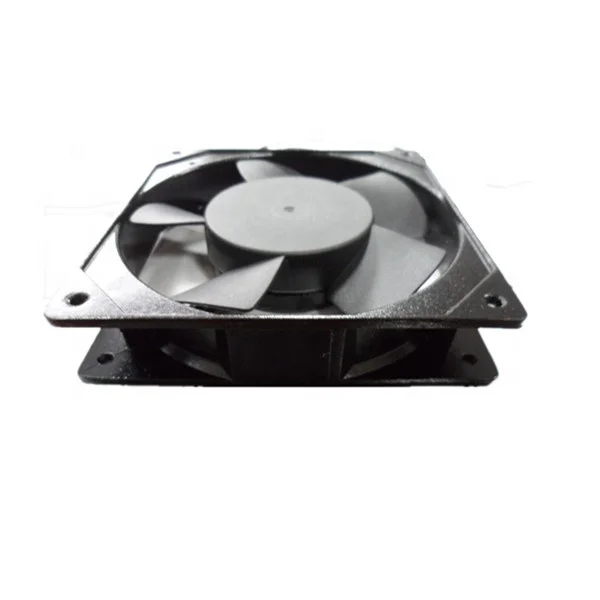

12025  AC 19W 12CM cooling fan 120mm 220v

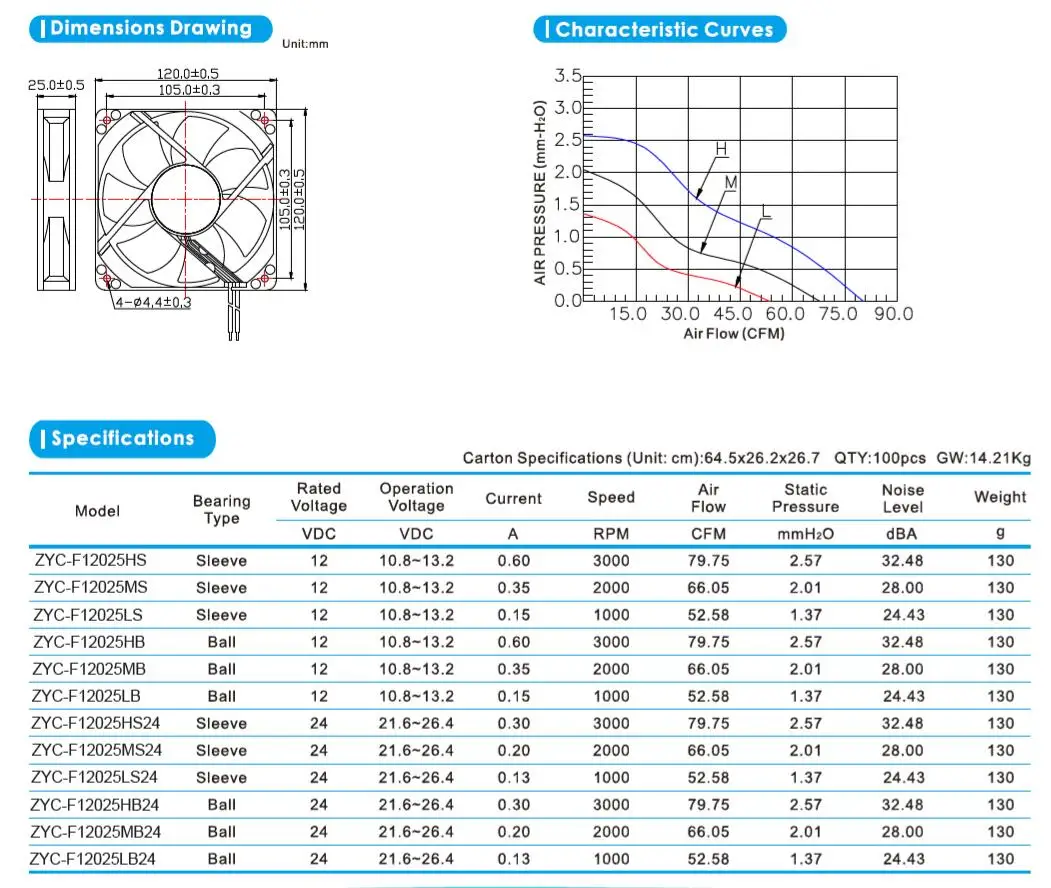

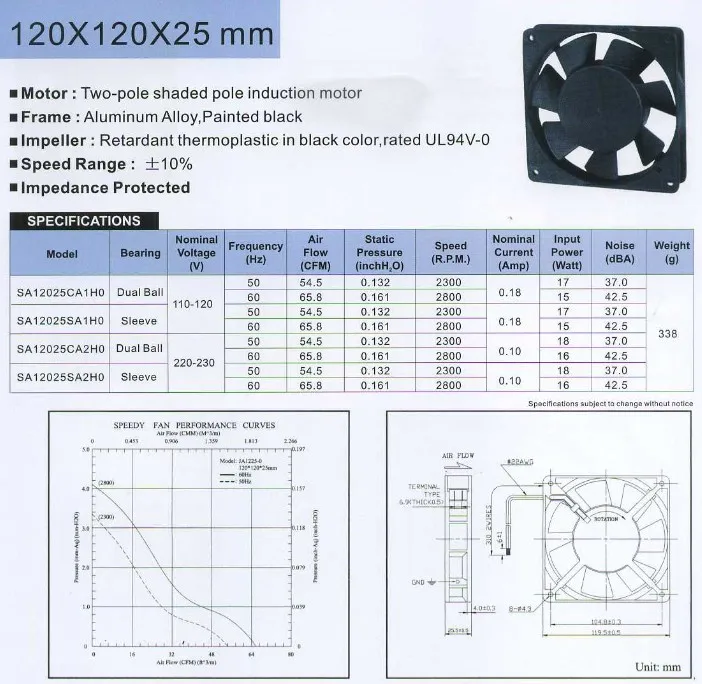

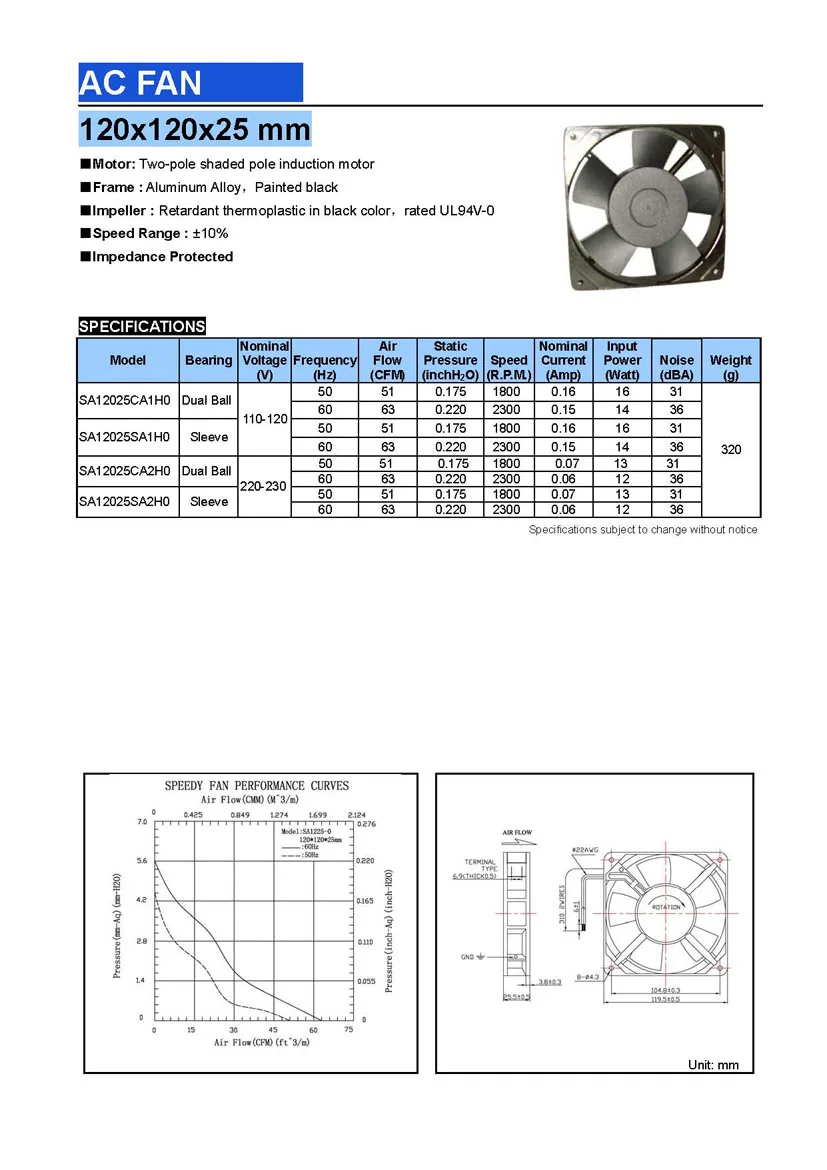

Specification
Dimension mm (LXWXThickness)	120x120x25MM
Frame	aluminum
Material	BLACK PBT (UL94V-0)
Bearing System	sleeve/dual ball
Rated Voltage(v)	380V
Rated Current(A)	0.07A-0.19A
Rated Power(W)	18W/19W
Rated Speed (RPM)	2200RPM-2400RPM
Air Flow (CFM)	66CFM / 78CFM
Air Pressure (H2O)	3.2mmH2O - 3.56mmH2O
Noise (dBA)	29dBA-40dBA
Motor Protection	Impedance Protected
Certificate	CE Rohs
Power Joint	Lead Wire





Customized



1. Rated voltage:

                 DC(3V, 5V, 7V, 9V, 12V, 18V, 24V, 48V...)

                 AC(100-125v, 220-240v, 380v)



2. Air flow, air pressure, speed and rated voltage can be customized as customer's requirement.



3. Sleeve bearing : 30000hours @ 25°C temperature

    Hypro bearing :  30000hours @ 40°C temperature

    NMB Ball bearing :50000hours @ 40°C temperature

4.Parameter: Speed(RPM), Air Flow(CFM), Noise(dBA),

5. Power Joint: Terminal

                            Lead Wire(+, -, Tachometer Sensor, Lock Alarm, Speed Control )

6. Dustproof & Waterproof: IP xx(IP 68 is the highest level)



7. Privated Labelling: All of axial fan are able to be Private labeled.



8. 2 wires, 3 or 4 wires (PWM / FG / RD function ) can be made if needed.





Factory production view :





Certificate:





FAQ for AC/ DC Cooling fan:

1. Can I do OEM?

Yes.

2. What is your payment term?

Trade Assurance, T/T, Western Union, Paypal

3. Delivery time of the sample?

About 3-7 working days.

4. Delivery time of order?

Depends on quantity, negociable.

5. What is your guarantee period?

12 months.
