4ft 3X12W Troffer Retrofit линейная арматура
- Категория: Вентилируемый LED-светильник >>>
- Поставщик: Naiming,Opto-Electronics,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12.45 $* | 13.23 $* |
| Aug-16-2025 | 12.75 $* | 13.74 $* |
| Jul-16-2025 | 10.38 $* | 11.77 $* |
| Jun-16-2025 | 12.69 $* | 13.76 $* |
| May-16-2025 | 10.3 $* | 11.3 $* |
| Apr-16-2025 | 11.2 $* | 12.30 $* |
| Mar-16-2025 | 11.77 $* | 12.16 $* |
| Feb-16-2025 | 11.49 $* | 12.59 $* |
| Jan-16-2025 | 11.65 $* | 12.6 $* |
Характеристики
Specification

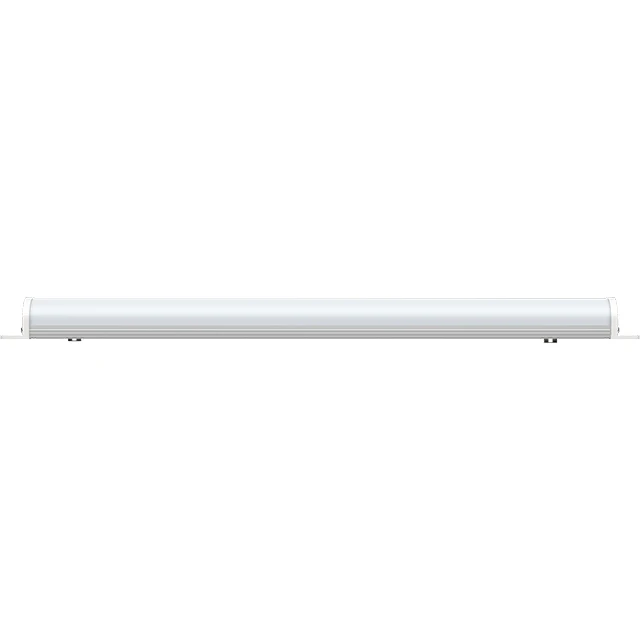

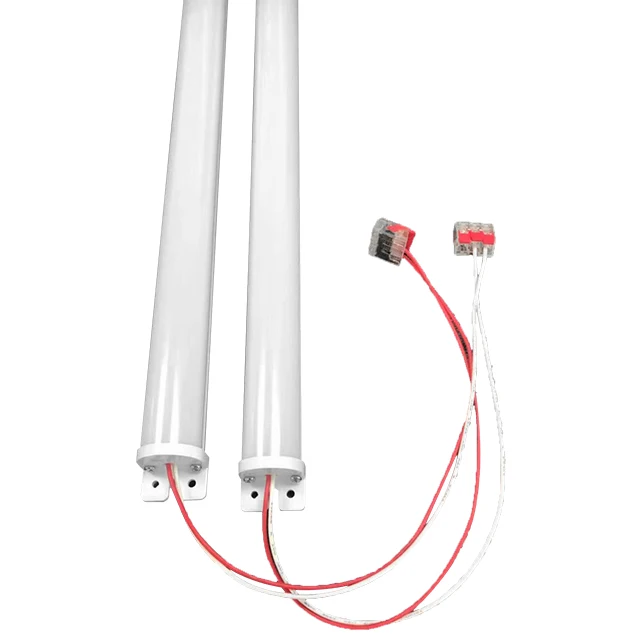

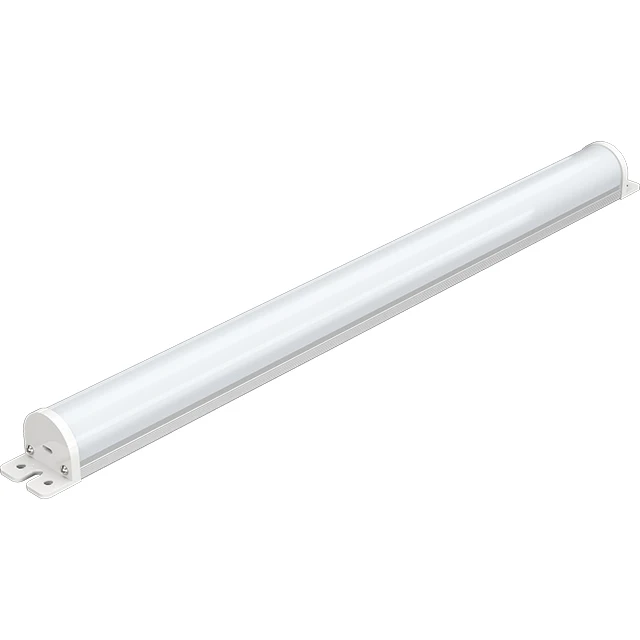

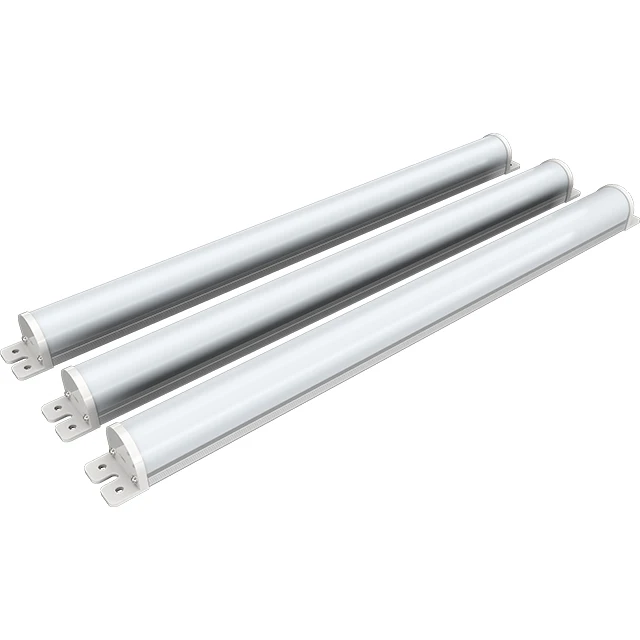

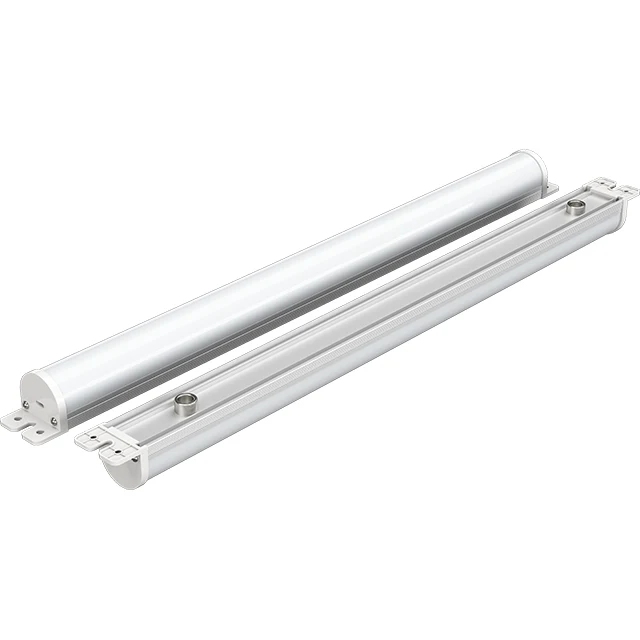

4ft 3X12W Troffer Retrofit linear fixture kit
① Product Features
- Quick and convenient installation with existing luminaire body within 2 or 3 minutes.

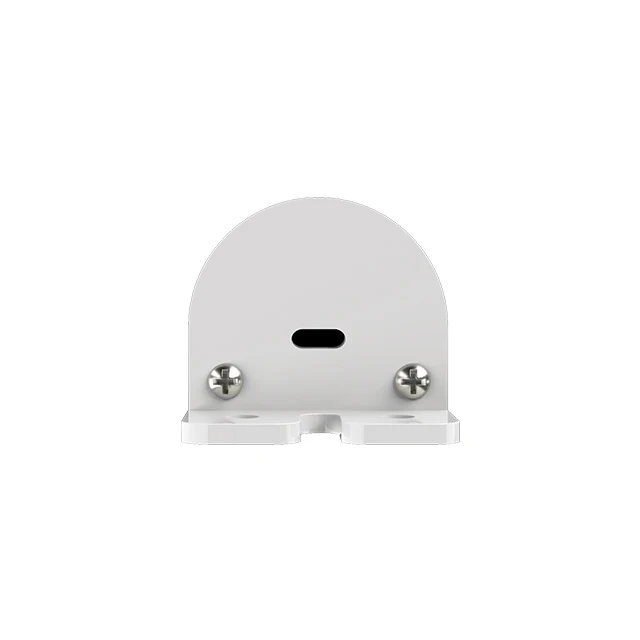

2.Mounting method: Magnetic, quick-connect.
- Ideal for office, retail and other architectural spaces.
- Luminous Efficiency: 130lm/w Luminaire; 0-10V dimming; PF>0.9;
- CCT: 3000K-5000K
- 5 years warranty.
② Product Dimension
Model | 2FT | 4FT | |
Size (inch) | L | 22.45 | 44.49 |
W | 0.99 | 0.99 | |
H | 0.98 | 0.98 | |
Power | 16W-42W | 48W |
Driver Size L X W X H (inch) | 7 X 1.2 X 0.91 | 9.72 X 1.2 X 0.91 |
③ Specification
Part No. | Length | QTY LED Strip | Power | Luminous Flux | Luminous Efficacy | Input Voltage | Ra | PF | Warranty | Certificate |
EDI-SR2ft-2x8W | 2ft | 2 | 16w | 2080lm | 130lm/W | AC100-277V | >80 | >0.9 | 5 Years | ETL&DLC |
EDI-SR2ft-3x8W | 2ft | 3 | 24w | 3120lm | ||||||
EDI-SR2ft-4x8W | 2ft | 4 | 32w | 4160lm | ||||||
EDI-SR2ft-2x10W | 2ft | 2 | 20w | 2600lm | ||||||
EDI-SR2ft-3x10W | 2ft | 3 | 30w | 3900lm | ||||||
EDI-SR2ft-4x10W | 2ft | 4 | 40w | 5200lm | ||||||
EDI-SR2ft-2x12W | 2ft | 2 | 24w | 3120lm | ||||||
EDI-SR2ft-3x12W | 2ft | 3 | 36w | 4680lm | ||||||
EDI-SR2ft-4x12W | 2ft | 4 | 48w | 6240lm | ||||||
EDI-SR2ft-2x12W | 4ft | 2 | 24w | 3120lm | 130lm/W | AC100-277V | >80 | >0.9 | 5 Years | ETL&DLC |
EDI-SR2ft-3x12W | 4ft | 3 | 36w | 4680lm | ||||||
EDI-SR2ft-4x12W | 4ft | 4 | 48w | 6240lm | ||||||
EDI-SR2ft-2x14W | 4ft | 2 | 28w | 3640lm | ||||||
EDI-SR2ft-3x14W | 4ft | 3 | 42w | 5460lm | ||||||
EDI-SR2ft-4x14W | 4ft | 4 | 56w | 7280lm | ||||||
EDI-SR2ft-2x16W | 4ft | 2 | 32w | 4160lm | ||||||
EDI-SR2ft-3x16W | 4ft | 3 | 48w | 6240lm | ||||||
EDI-SR2ft-2x18W | 4ft | 2 | 36w | 4680lm | ||||||
EDI-SR2ft-2x20W | 4ft | 2 | 40w | 5200lm |
⑦ Warning
1.This product can be directly installed in the grille lamp panel, which can replace fluorescent tubes.
2.The whole installation or maintenance process must be operated by a professional electrician.
3.The installation or maintenance process need to disconnect the power supply to prevent electric shock.
4.This product is not suitable for use in the humid environment.
5.This product cannot be covered be covered with thermal insulation materials.
6.Away from corrosive substances, and keep dry and clean.
7.This product is only suitable for installation in the iron grille lamp.
Company Information
Shipping
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 15working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
