Product Description

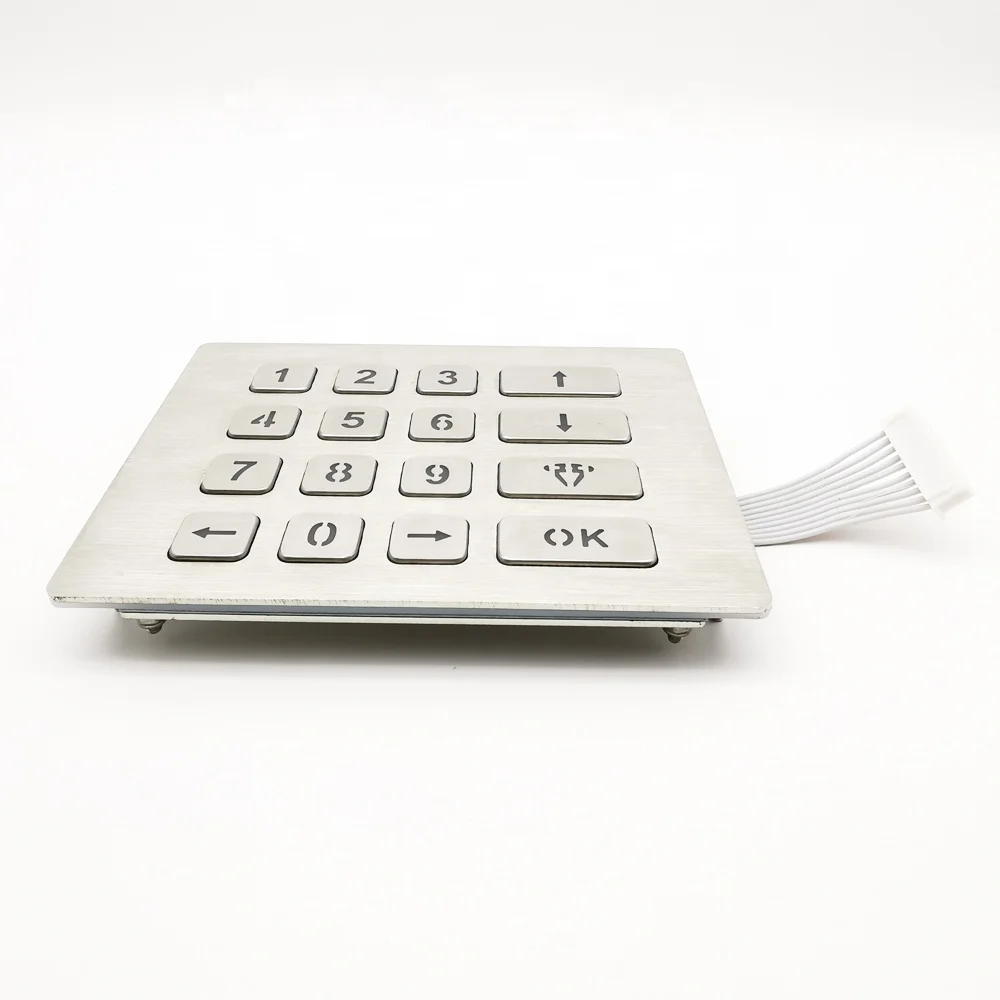

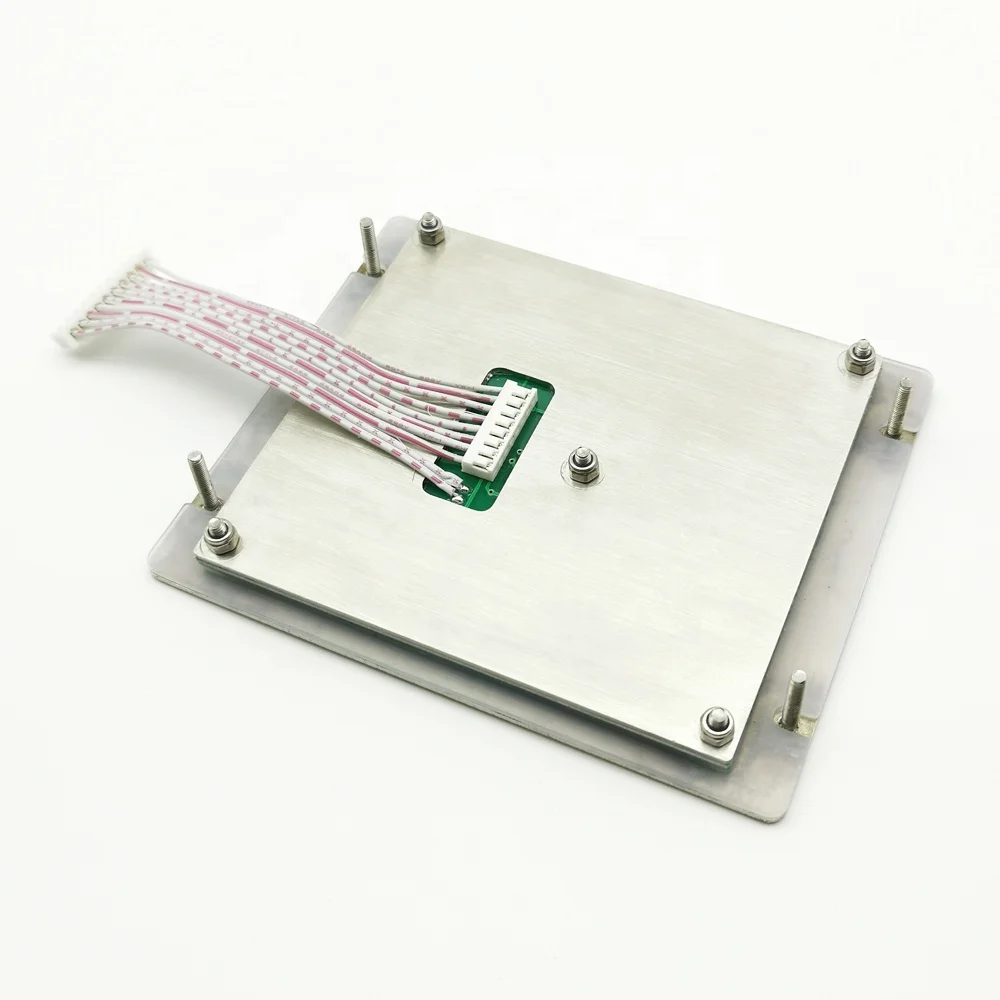

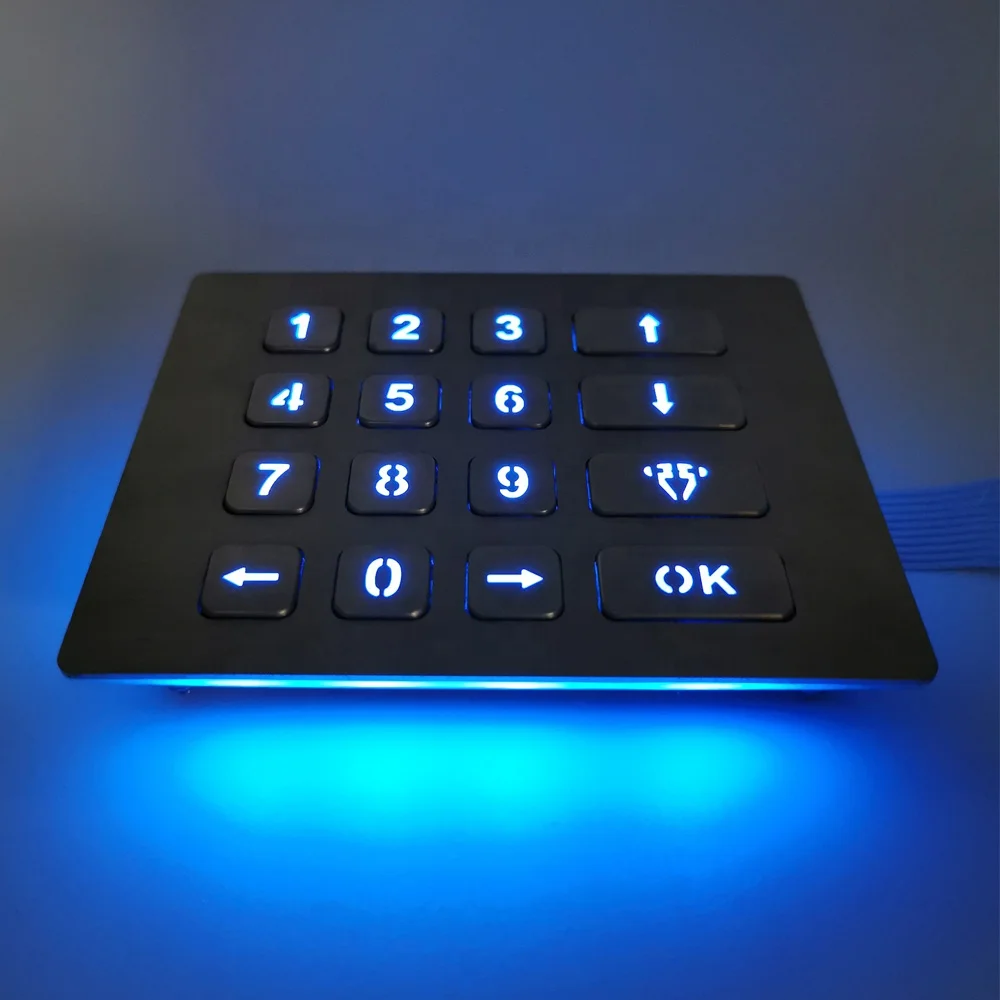

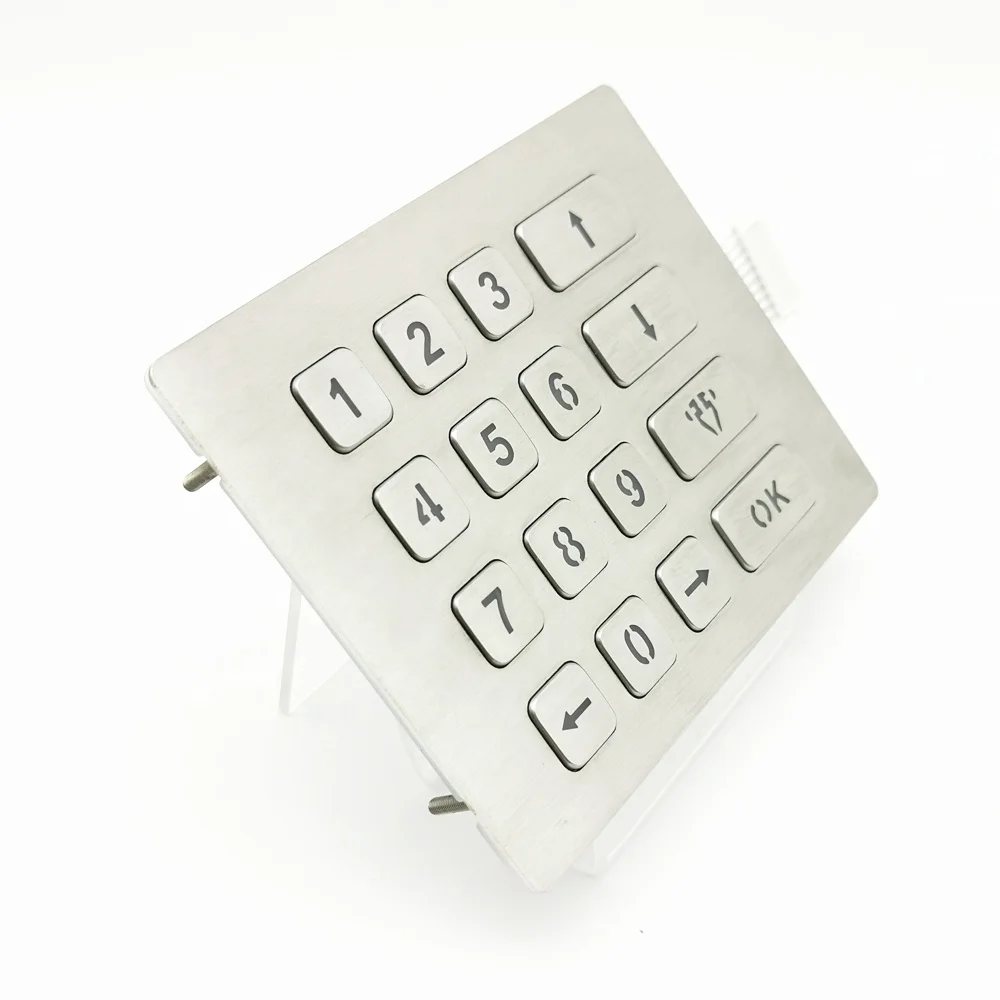

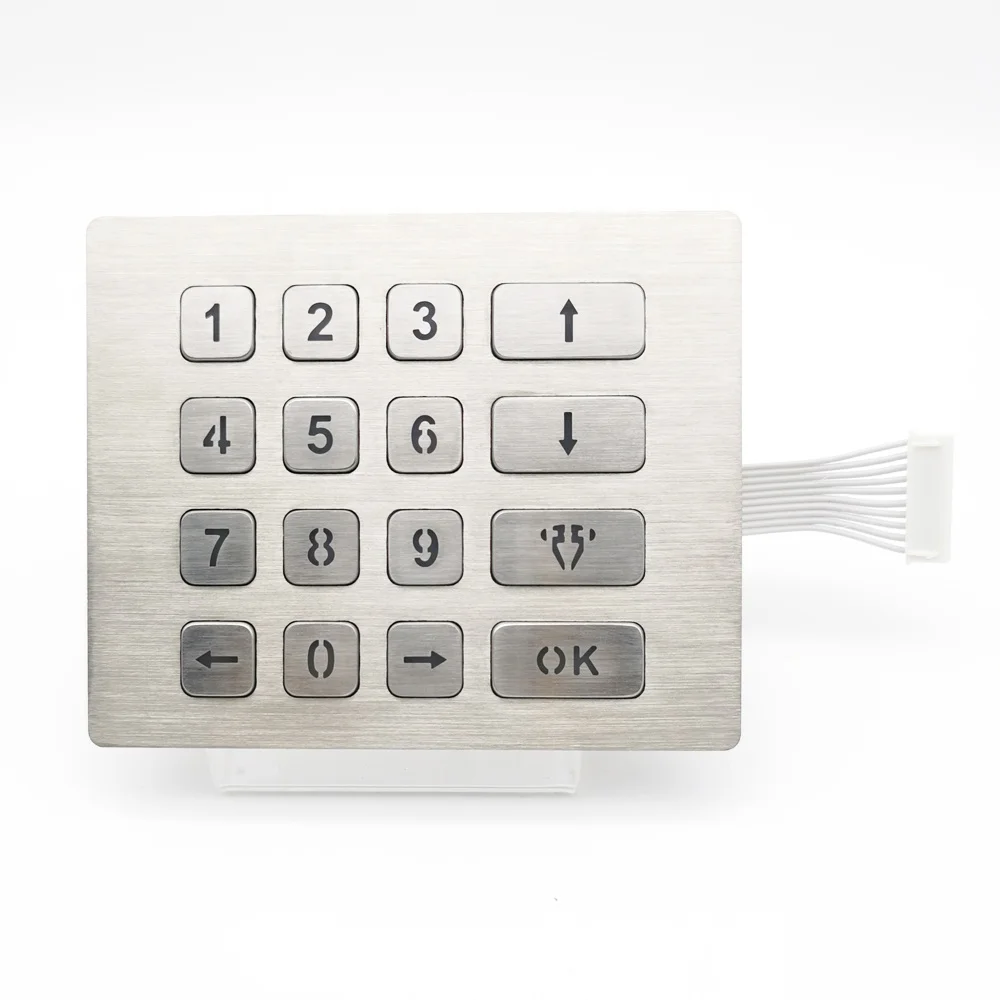

16 Key LED numeric backlight keypad for security system
Feature
1.Fine surface wire-drawing process
2.LED light transmission technology high definition can be operated in very weak light
3.Special water proof design,IP65 protect level,it has good performance of water proof,dust proof and vandal-proof,which make it a good choice for public use or harsh environment
4.Reinforced PCB to guarantee the mechanical stability
5.Simple installation,easy maintenance and durable service
6.Keys are good touch feeling and accurate date input without any noise
7.Font and pattern can be customized according to customer requirements
8.Very strict ex-factory inspection standards
MECHANICAL DATA | |
Model Number | JXS24B_MBD |
keys | 16 keys |
Switching material | carbon-on-Gold key switch technology PCB |
Actuation Force | 2.0 N+/-0.1N (pressure point) |
Frame/keys materials | Stainless steel 304 |
Dimensions | 120mm *98mm |
led color | Blue |
Key Size | 14.0mm *14.0mm 14.0mm *28.0mm |
Key Travel | 0.45mm |
Key life | more than 1 million of operations |
G.W. | 290g approx |
ELECTRICAL DATA | |
Power supply voltage | 5VDC Or customize |
Current Rating | appr. 20mA |
Backlight: | Yes |
Contact resistance | 5 ohm (max) |
Electrical lifetime | > 5 years |
Interface | Matrix Male pinout connector 10PIN 2.54mm |
Or customize PS2/USB/RS232 | |
OS | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +75℃ |
Storage temperature | -35℃ to +85℃ |
Operating RH | 30-90%RH |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
Packaging & Shipping
PACKAGING | |
Inner Box | 1Set |
Carton | 60Sets |
Carton Size | 41*24*25.5CM |
Carton G.W. | 18.5KG |
