Устройство защиты от перенапряжений питания 60KA AC защита перенапряжения
- Категория: Low Voltage Products >>>
- Поставщик: Zhejiang,THOR,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.76 $* | 0.97 $* |
| Aug-19-2025 | 0.7 $* | 0.54 $* |
| Jul-19-2025 | 0.79 $* | 0.74 $* |
| Jun-19-2025 | 0.1 $* | 0.73 $* |
| May-19-2025 | 0.93 $* | 0.4 $* |
| Apr-19-2025 | 0.90 $* | 0.91 $* |
| Mar-19-2025 | 0.47 $* | 0.6 $* |
| Feb-19-2025 | 0.15 $* | 0.37 $* |
| Jan-19-2025 | 0.32 $* | 0.93 $* |
Характеристики
Product Effects
Product Overviews

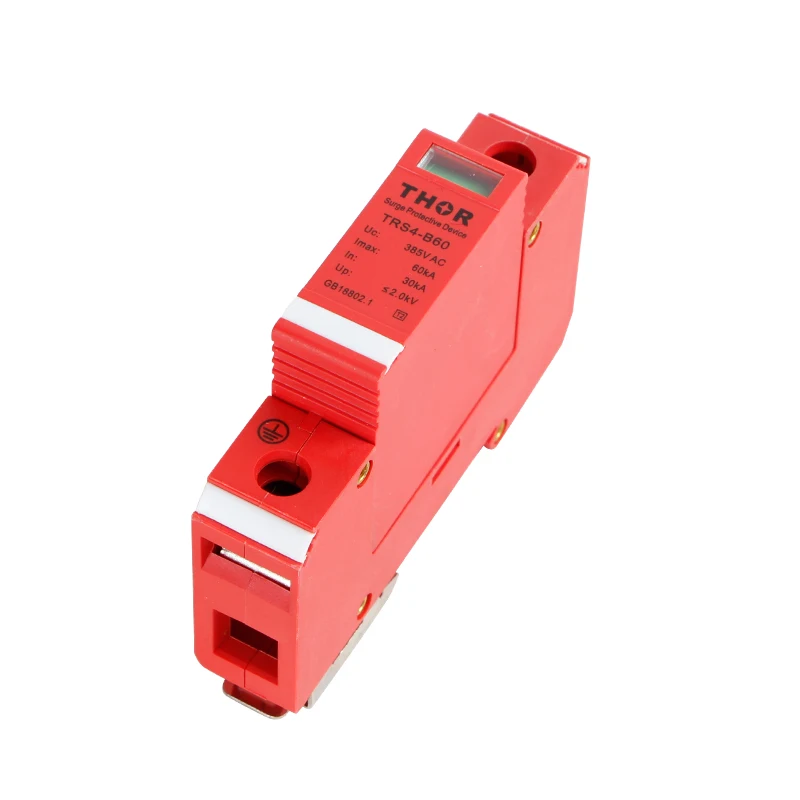

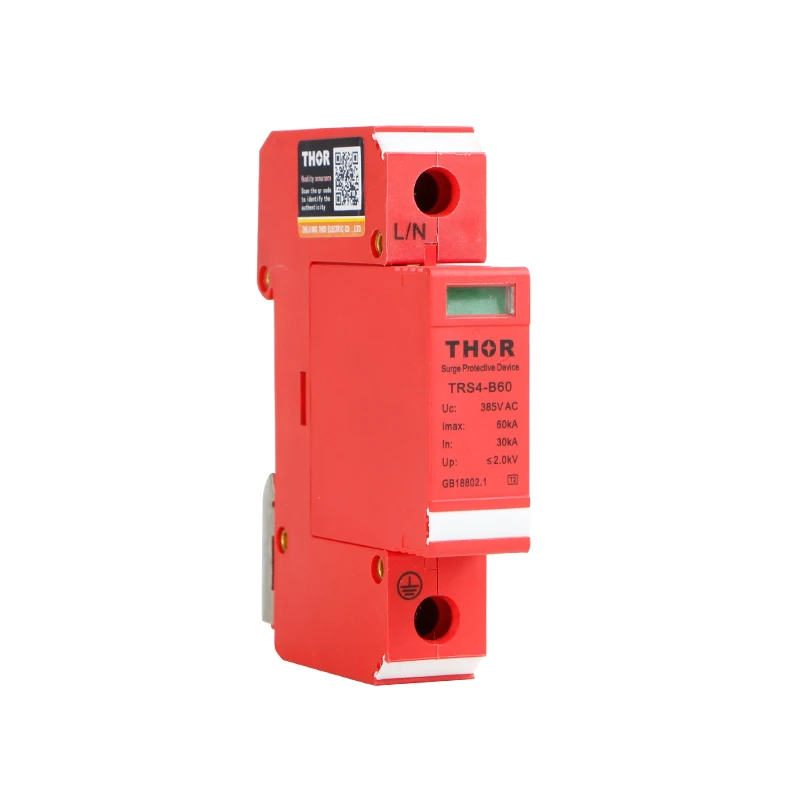

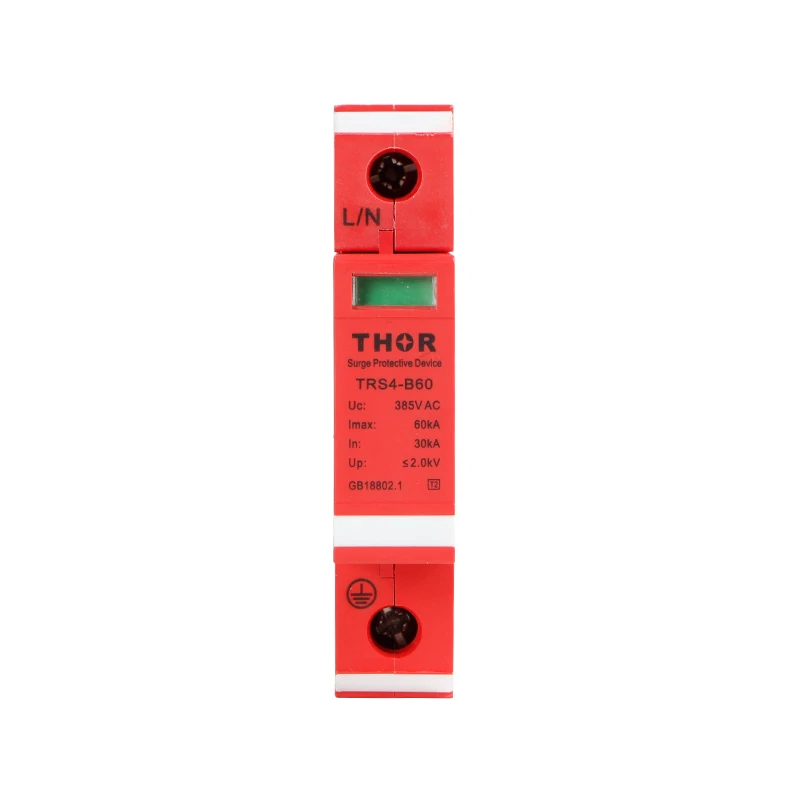

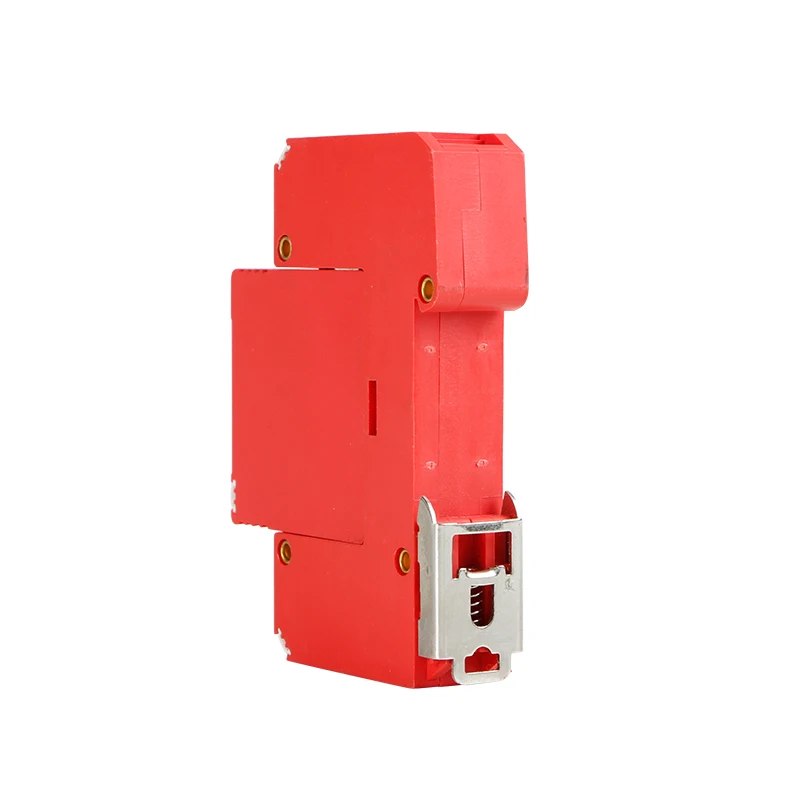

TRS4 Series surge protective device( hereinafter referred to as SPD) are suitable for AC 50/60Hz, rated voltage up to 380v IT,TT,TN-C, TN-S,TN-C-S and other power supply system, it protect to indirect and direct lightning effect or other transient over voltage.
SPD design according with GB18802.1/IEC61643-1 standard.
Main technical parameters
Main technical parameters | TRS4-B60 |
Max continuous operating voltage Uc(VAC) | 420 |
Voltage protection level Up(kV)≤ | 2.2 |
Max discharge current (8/20μS) lmax(kA) | 60 |
Nominal discharge current (8/20μS) ln(kA) | 30 |
Response time ns | <25 |
Degree of protection | IP20 |
Operating state/ fault indication | Green/ Red |
Remote signal function | Can also picking |
Remarks | Other Uc can be customized |
SPD according to IEC61643-1/EN61643-1 | type2/ ClassⅡ |
