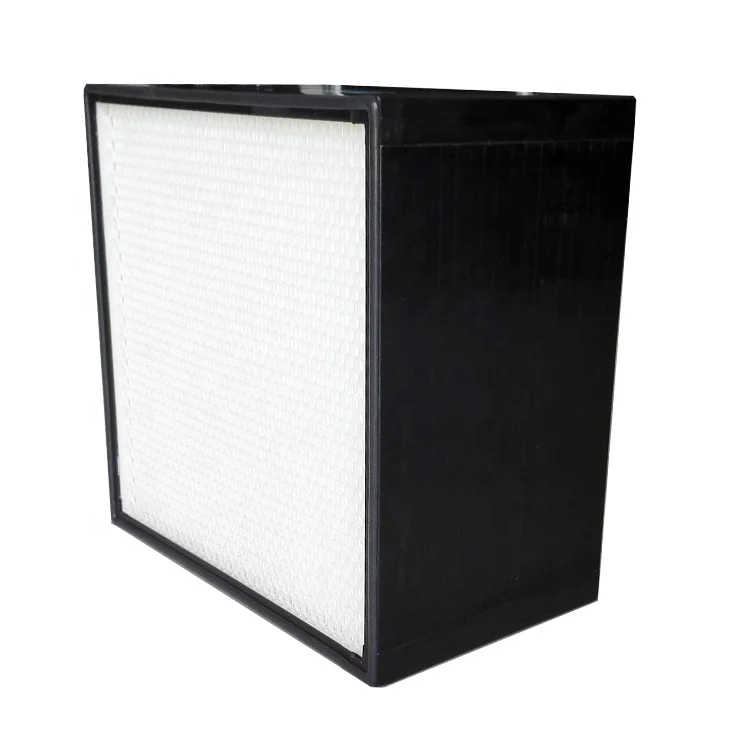

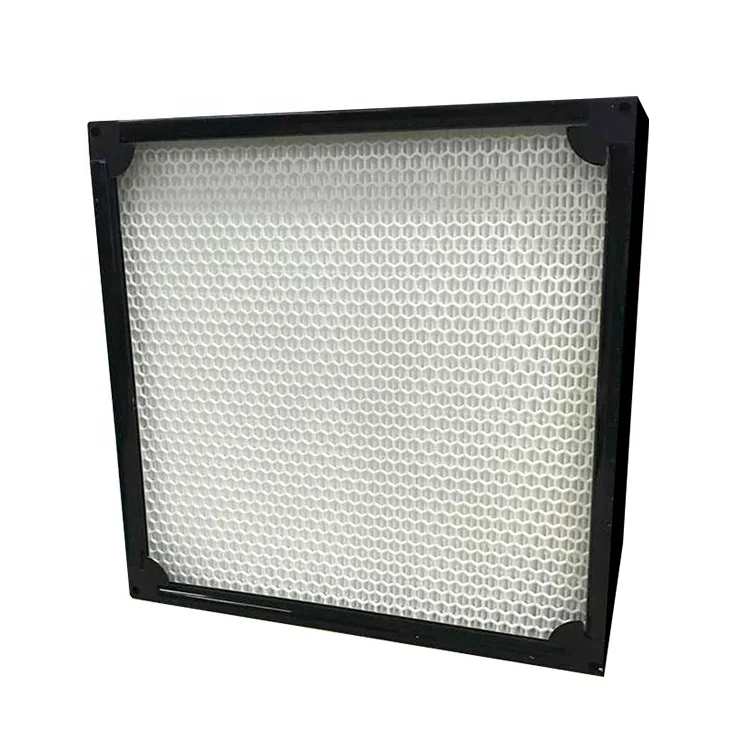

Gas Turbine Dust Collector Air Cartridge Filter 12409797 for CG260 CG170 gas engine

Newsuo High Efficiency Cassette Filters meet all requirements of standard air handling systems as to frame dimensions, depth and filter performance. New compact filter superiority with latest technology, known as the difference, is highlighted by the following:

1.Excellent for all types of air-handling systems and environments, the Newsuo filter is constructed to with stand humidity, high velocities, and turbulence as found in both atmospheric air and process environments.

2.The light-weight all-plastic PP frame is constructed of halogen-free plastic that eliminates any risk of corrosion or oxidation as found in metal constructed products.

3.High strength glass fiber paper is manufactured from a proprietary special moisture resistant inhibitors that resists moisture penetration.

4.The media pack is potted on all four sides to eliminate air-bypass around the media pack.

5.Plastic protection grids with anti-temperature on the upstream & downstream side eliminate punctures or tears of the pleated media during handling and installation.

6.Proprietary conical pleat geometry eliminates any obstruction to air flow throughout the media pack, ensuring low pressure drop, even dirt loading, and higher dust holding capacity.

7.Moisture-resistant up to100% relative humidity

8.Temperature Resistance: Continuous 170°F, peaks 190°F.

9.Gas Turbine Fine Filtration

10.Oil Mist Collection



Data Sheet:

Performance	Unit	M98
Dimension	MM	495*495*295 mm
Type		Mini-pleated filter
EN779		F6
Average efficiency (0.4um)	%	75
Nominal air flow rate	M3/h	4250
Max.permissible air flow rate	M3/h	5500
Initial pressure drop	Pa	100
Recommended final pressure drop	Pa	650
Bursting strength	Pa	>6000
Dust holding capacity	G	4000
Weight	Kg	10.5
Media area	ft2	330 (31m2)





Using on the MWM gas engine
