QT4-25 гидравлическая блокировочная машина для производства брусчатки в
- Категория: Оборудование для производства кирпича >>>
- Поставщик: Linyi,Wante,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 14042.78 $* | 14744.80 $* |
| Aug-17-2025 | 13924.60 $* | 14620.32 $* |
| Jul-17-2025 | 11682.65 $* | 12266.9 $* |
| Jun-17-2025 | 13688.76 $* | 14372.95 $* |
| May-17-2025 | 11918.45 $* | 12514.43 $* |
| Apr-17-2025 | 13452.95 $* | 14125.81 $* |
| Mar-17-2025 | 13334.43 $* | 14001.75 $* |
| Feb-17-2025 | 13216.16 $* | 13877.57 $* |
| Jan-17-2025 | 13098.36 $* | 13753.38 $* |
Характеристики
Product Description

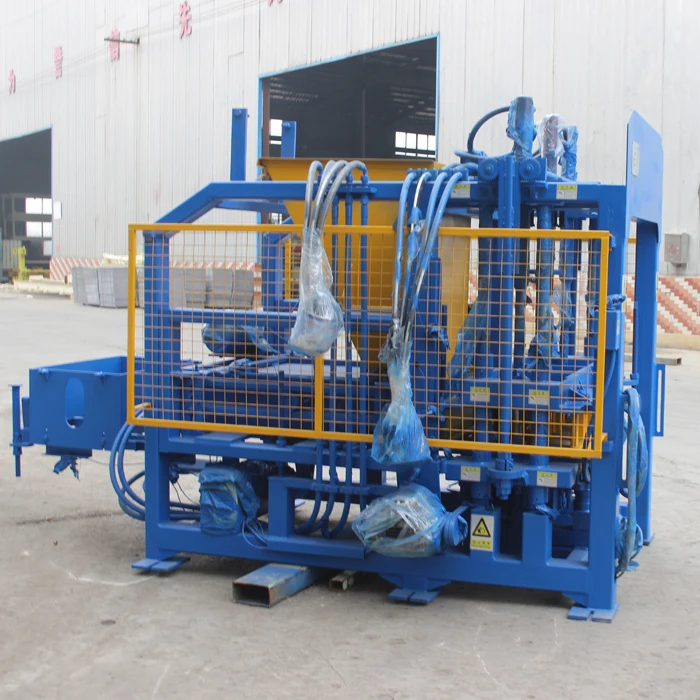

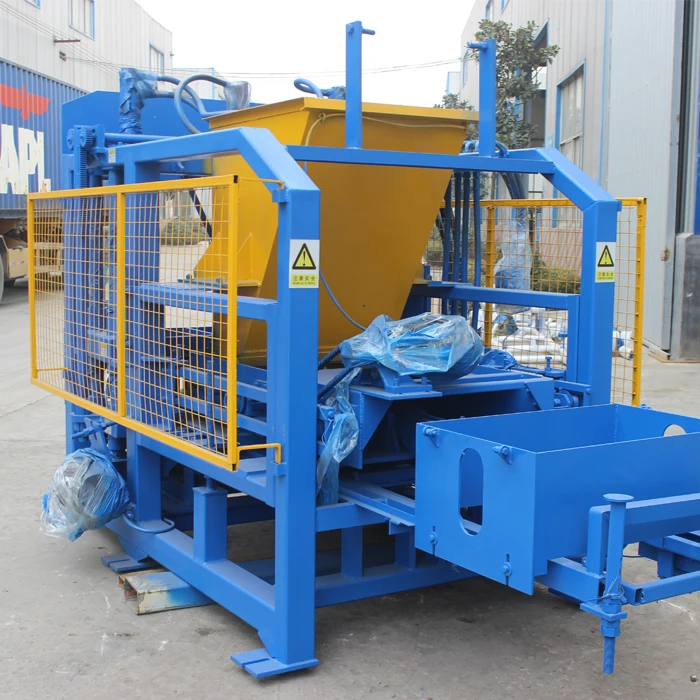

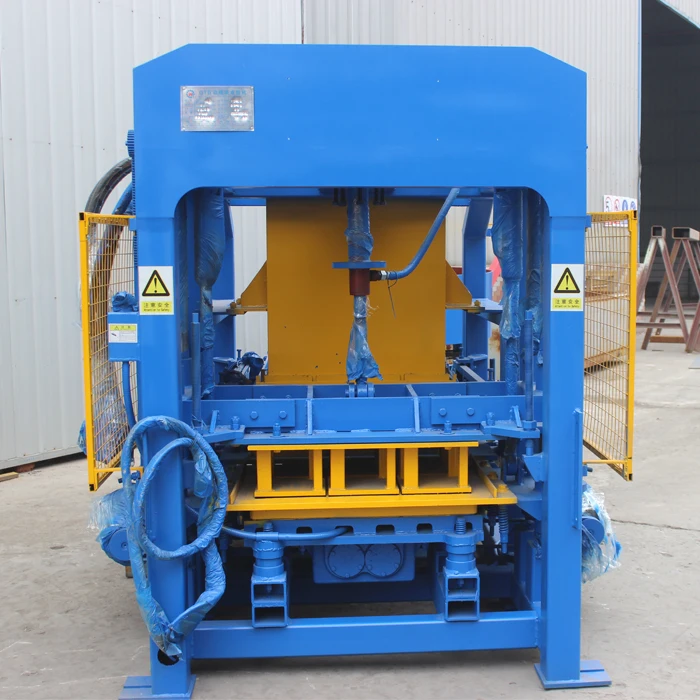

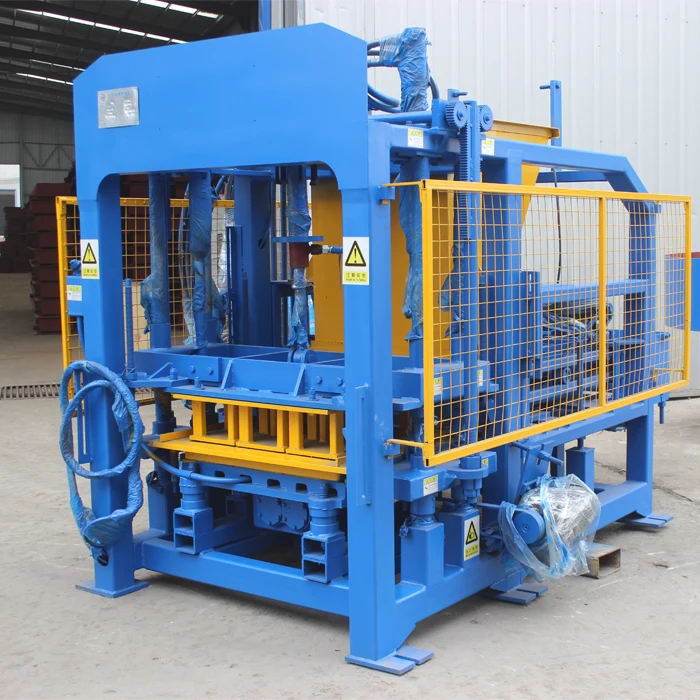

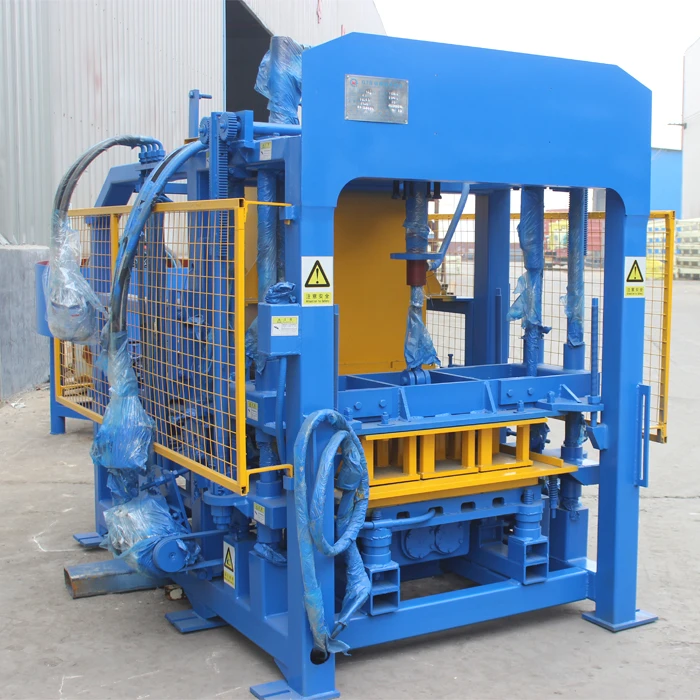

QT4-25 hydraulic interlocking paving stone block making machine in namibia
Main Features of QT4-25 hydraulic interlocking paving stone block making machine in namibia
1)Computer PLC control system, which can realize the automation production.
2)the four poles orientation means and ultra-long guide bearing, to ensure the pressure head and tooling accurate motion3) fast mould replacement, can produce road brick, road-edge stone, hollow blocks, standard brick different specifications shapes of cement products multi-usage
4) motor adopts nation inspection-exempted motor (pure TongXin), oil top USES a large-scale hydraulic machinery for oil crest
5)mechanical transmission, compact structure, convenient maintenance, flexible operation, good reliability
6)that pressurize strong rammer, especially and production of high strength concrete-block (bearing heavy intensity can reach 22-30MP
Techinical parameters of QT4-25 hydraulic interlocking paving stone block making machine in namibia | ||||||
Dimemsion of machine | 2700*1600*2500mm | Power of machine | 24kw | |||
Weight of machine | 4500kgs | Forming period | 15-20s | |||
Vibration forace | 40-60kn | Pallets size | 850*550*30mm | |||
360 scatter mixer part of QT4-25 hydraulic interlocking paving stone block making machine in namibia
Scatter material tough revolving 360 degree ,this progress likes to mixer the material again after the mixer,the tecnology makes the block evenly and high density.
Hydraulic station of QT4-25 hydraulic interlocking paving stone block making machine in namibia
It is a combination of hydraulic valve and passage body together. It practice direction hydraulic oil, pressure, flow regulation.
Water-cooled
Control system of QT4-25 hydraulic interlocking paving stone block making machine in namibia
Automatic fault diagnosis system:when the machine work, the light will be on ,if the indicator is always on , there will be a problem with this process.
Single chain of command of the operating system easier to identify problems and reduce maintenance costs.
Capacity of QT4-25 hydraulic interlocking paving stone block making machine in namibia | ||||||
Block design | Block size(mm) | Pcs/mould(pcs) | Pcs/ hour(pcs) | |||
Hollow block | 400*200*200 | 4 | 960 | |||
Hollow block | 240*115*90 | 12 | 2880 | |||
Standerd brick | 240*115*53 | 26 | 6240 | |||

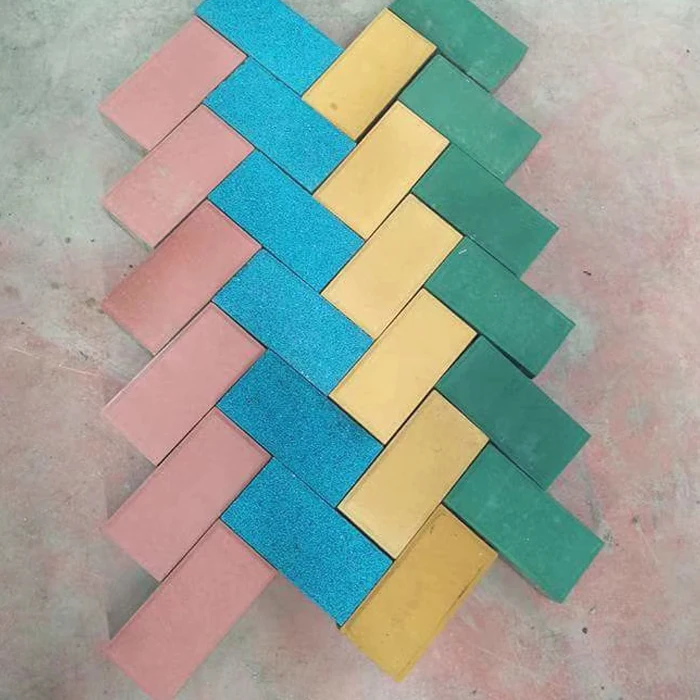

Paver | 200*100*60 | 16 | 2880 | |||
Paver | 200*163*60 | 12 | 2160 | |||
Block mould
1.box plate useing wire-electrode cutting ,more accurate size ,more accurate design
2.mold steel comparation,our mold including press head and mold core all use 45# steel ,its is three times hard than other manufacturer
3.mold use carbon dioxide arc welding weld is more beautiful,no welding slag .the most important is the better strength.
4.Our carburizing furnace treatment,the lift of warm/pressure head or the nether mold is more than 200000 times.
Certifications
Production line
QT4-25 hydraulic automatic hollow concrete block making machine in fiji price . One is simple production line ,like the picture , including JS500 concrete mixer , 6m conveyor belt ,block machine ,Brick platform,stacker machine .Like the below picture.
QT4-25 hydraulic automatic hollow concrete block making machine in fiji price ,if you want to more automatic ,can also equip with batching machine PLD1200/PLD800, automatic pallet feedering machine , color feeding machine , color material mixer,and double stacker machine .
Batching machine PLD1200
Automatic concrete mixer
Automatic block making machine
Color feeding machine
Automatic pallets feeding machine
Stacker machine
Customer feedback
Packing & Delivery
QT4-25 hydraulic interlocking paving stone block making machine in namibia,Whole line will need one or two 40 ft container . According to you choose things.
