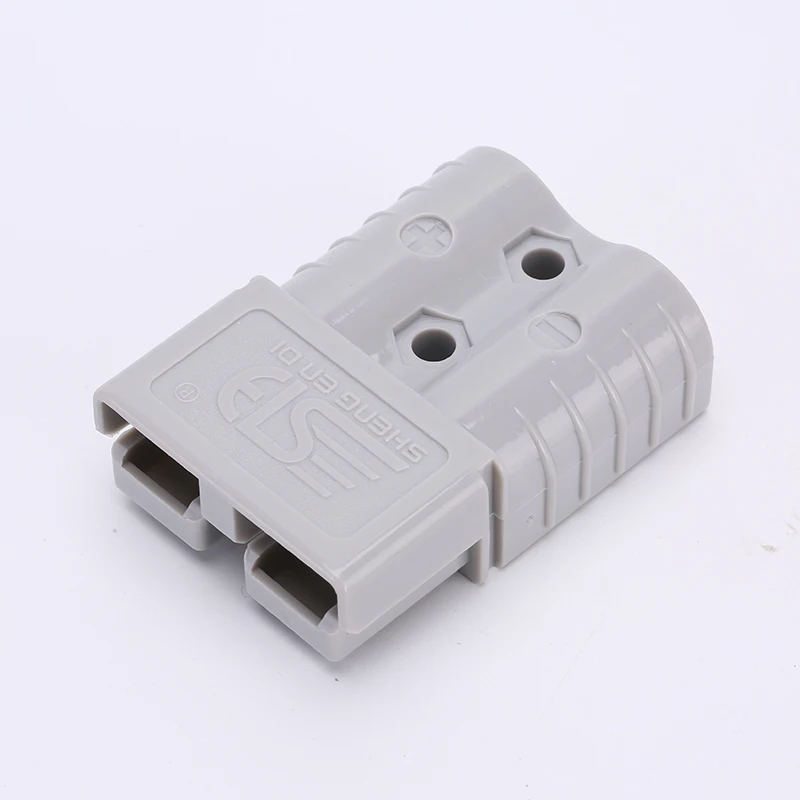

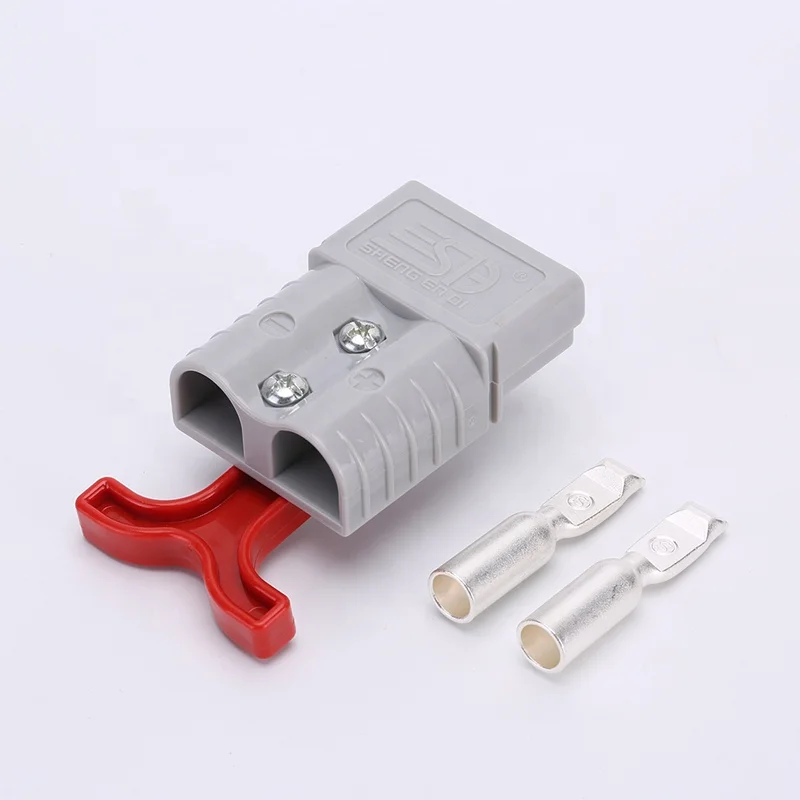

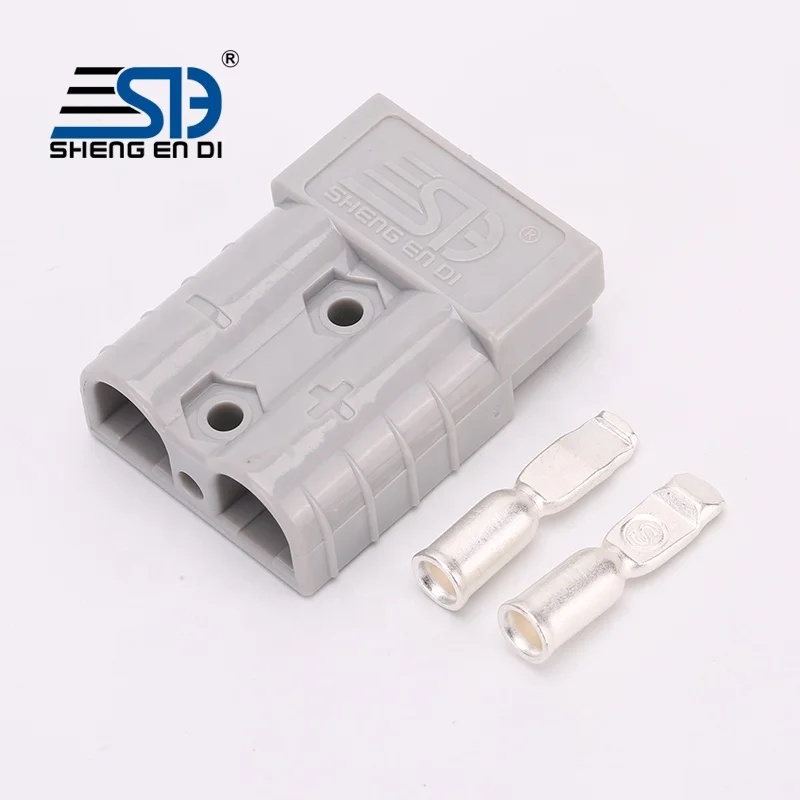

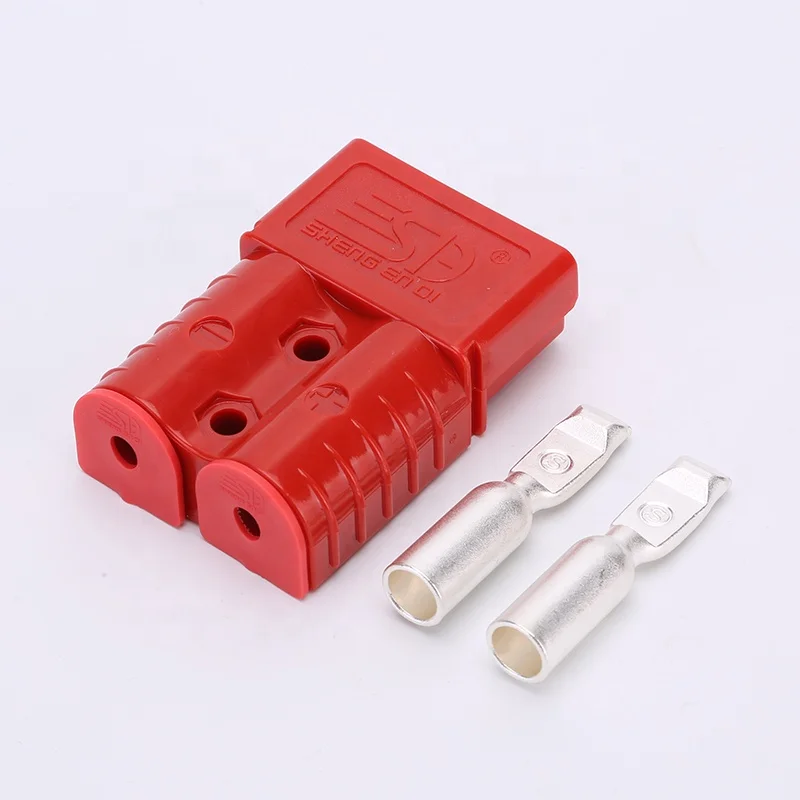

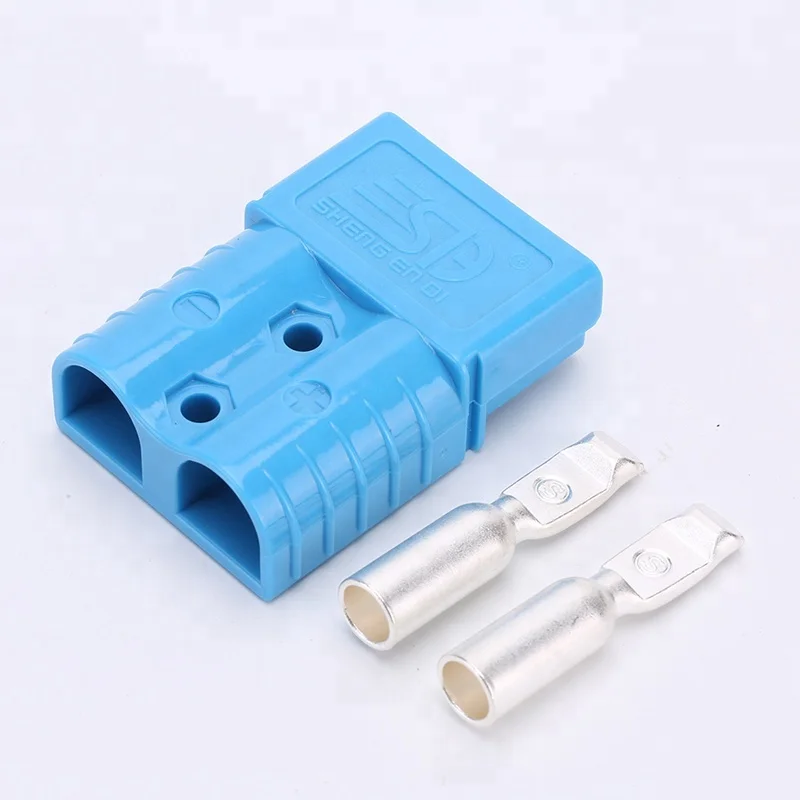

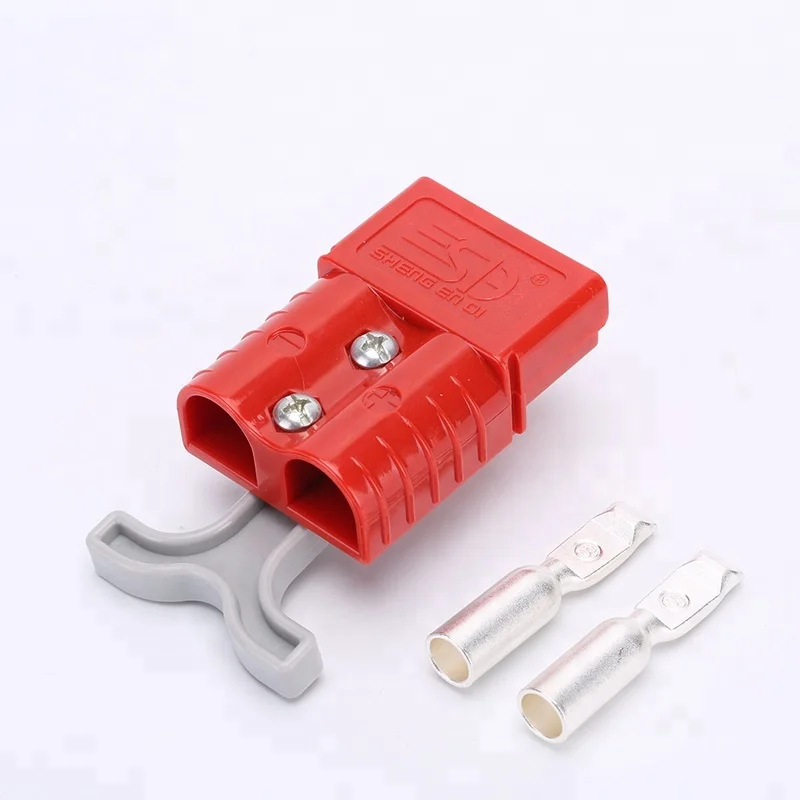

Лидер продаж разъем аккумулятора 50 А 600 В Быстроразъемное соединение оптовая продажа с завода разъемы Anderson для электрического автомобиля автомобильной

Описание и отзывы

Трекер стоимости

Характеристики





Outline and dimensions: Outline and dimensions of the connector is shown on the following drawing Technical Parameters:
Rated current(Amperes):	50A
Rated voltage(Volts):	600V
Insulation Resistance:	5000MΩ
Average.Connection/disconnect(N):	95±5N
Without load(Contact/Disconnect Cycles):	To 10000
With Load(Hot Plug 250 Cycles&120V):	40A
Flammability:	UL94 V-0
Material of Terminal:	Red copper
Fully Ag-plating on surface:	it's Ag-plating thickness is1μm
(Packing and Storage) 1. Standard packing qty: 50pcs/bag for connector; 100pcs/bag for terminal; mate with way: 1connector uses 2 terminal. 2.The products storage condition: temperature: 5-30℃,relative humidity:80%, store in no acidic nor alkaline and no corrosive atmosphere warehouse, storage period: 2years.





1.What is your payment term?
We mainly request TT payment, T/T 30% deposit to confirm order and proceed before production, balance before shipment. Paypal and western union are acceptable for sample order.

2.Are you a factory?
Yes, we have a factory located in Guangzhou. Welcome to visit us.

3.How many types connectors do you produce?
Our factory projection manufactures UPS connector, high-current connectors, power sockets and wiring terminal, etc.

4.What is the MOQ?
The sample in stock is 1pcs; the price can be negotiated for bulk order.

5.Can I customize the size?
Yes, the power line can be customized according to your requirements.

6.What is your main selling market?
Europe, Asia, Africa, America.
