Промышленная сверхпрочная стальная конструкция палатка для цеха
- Категория: Стальные конструкции >>>
- Поставщик: Beiliu,TMG,Metal,Tech,Company,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.91 $* | 0.55 $* |
| Aug-15-2025 | 0.32 $* | 0.48 $* |
| Jul-15-2025 | 0.78 $* | 0.19 $* |
| Jun-15-2025 | 0.77 $* | 0.68 $* |
| May-15-2025 | 0.34 $* | 0.48 $* |
| Apr-15-2025 | 0.18 $* | 0.32 $* |
| Mar-15-2025 | 0.25 $* | 0.37 $* |
| Feb-15-2025 | 0.5 $* | 0.33 $* |
| Jan-15-2025 | 0.18 $* | 0.96 $* |
Характеристики
Products Name
Heavy Duty Industrial Warehouse Storage Shelter 406021SL Size: 406021SL (W40'xL60'xH21')
Product Description
Product Application
1. Cover Options: High quality PVC / PE fabric cover, water proof, fire against and UV-resistant.
2. Frame Options: Single or double truss
Steel frame: Hot dip galvanized steel
3. Allowed temperature conditions: -30℃ ~ +70℃ (-22℉~+158℉)
4. Max Wind Load: 26m/s
Max Snow Load: 126kg/m²
2. Frame Options: Single or double truss
Steel frame: Hot dip galvanized steel
3. Allowed temperature conditions: -30℃ ~ +70℃ (-22℉~+158℉)
4. Max Wind Load: 26m/s
Max Snow Load: 126kg/m²
Function: Industrial, agriculture, construction warehouse, vehicle storage, aircraft hangar, livestock raising.
Feature: High strength, easy assemble and dismounting, large capacity, excellent stability.
Advantages:
Low Cost compared with steel structure warehouse and prefabricated house.
All weather suitable, year round applicable.100% waterproof, fire resistance, flame retardant and UV inhibitor.
This product can be easily installed and removed and can be used anywhere, anytime...
Life Span: more than 10 years.
Usage | Warehouse,Carports,Temporary office,Farm or industrial equipment (such as Livestock house),Workshop,Parties,Big event... | |||
Description | Series No.:W40H21 | Peak Roof Style Double Truss Frame | ||
Size | (W12xL18xH6.4m) | |||
Sidewall Height : | 3.4m | |||
Other Models | 404021SL/406021SL/4080SL/4010021SL/4012021SL | |||
Door | Winch Doors Size: | W4xH4m | ||
Fabric Cover | Material: | 300gsm PE/500gsm &650gsm PVC | ||
Color: | White/Blue/Forest Green/Army Green/Grey/Red | |||
Main Structure Material | Arch Frame Space: | 3 m | ||
Arch Tube: | 60*1.8mm | |||
Purlin Tube: | 60*1.8mm | |||
Installation Notes:
Installation Notes:
(1) Keep work area clean. Cluttered areas invite injuries.
(2)Keep children away. Be aware of personal safety.
(3) It is easy assembling if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4)Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during hurricane.
(5)Clean off snow in time and do not allow snow to sit for extended periods of time.
(6)Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
Detailed Images
Heavy Duty Winch Doors
Size: W4xH4m
Product Brand: TMG Industrial
Original: China

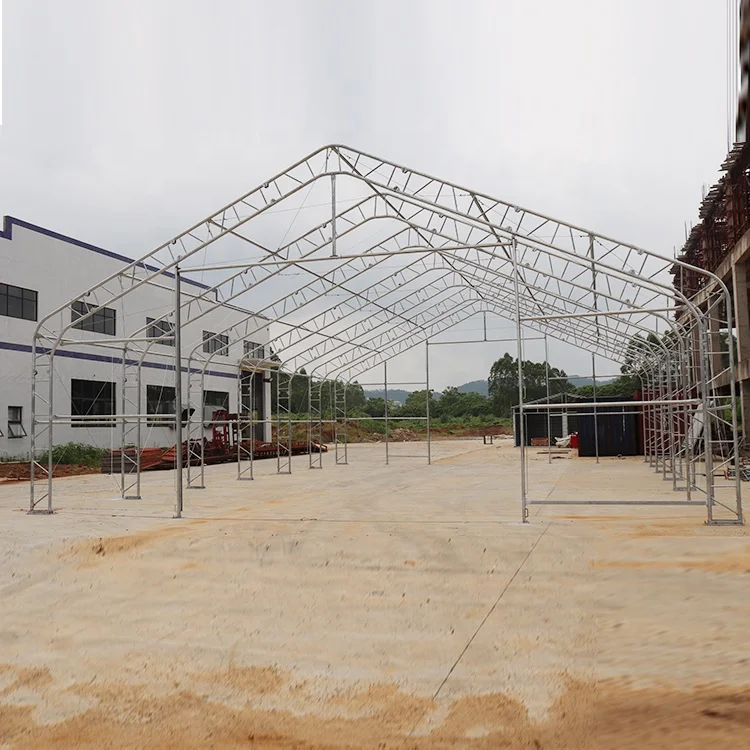

Main Double Truss Arch Frame
Structure: 60*1.8mm Steel Tube
Against: Heavy Snow and Strong Wind
Produce: By welding and bolts
Vents of the ends
Material: Net and Fabric
Could be open and closed.
Advantage: Good air circulation
The size could be made following your requestments.
Logo:
We could make the logo on roof cover or labels if you like.
Welcome to inquiry...
Package
Metal Box with Customer's Labels.
Beautiful and firm, conducive to handling, rust-proof, waterproof and fireproof.
Part Bag:
Bolts , Rope, Steel Wire and manuals ...
Our Service
Pre-Sales Service
Steel Frame Structure
100% hot dip galvanizing steel frame is rustproof and strong enough to bear the wind and snow.
Specification: Single Pipe and Double Pipe Truss Frame
100% hot dip galvanizing steel frame is rustproof and strong enough to bear the wind and snow.
Specification: Single Pipe and Double Pipe Truss Frame
* Inquiry and consulting support .
* Sample testing support.
* View our Factory.
After-Sales Service
The PE fabric could be used for 3 years. We supply for a 1 years' warranty.
The PVC fabric could be used for 6 years. We supply for a 3 years' warranty.
The Hot Dip Galvanized Frame could be used for 10 years. We supply for a 5 years' warranty.
OEM Service, we supply for the Engineer's drawing and manuals and the part replacement.
Packing & Delivery
Packaging | ||
Size | 3150(L) * 1100 (W) * 1100 (D)mm | |
Weight | 960kgs | |
Packaging Details | The normal package is metal box or plywood box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packages Photos for reference. Package and Shipment: "Easy transportation and store" Our products use strong steel crates package, easy and safe to transport by truck and forklift. | ||
TMG INDUSTRIAL
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in steel boxes. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages.
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
