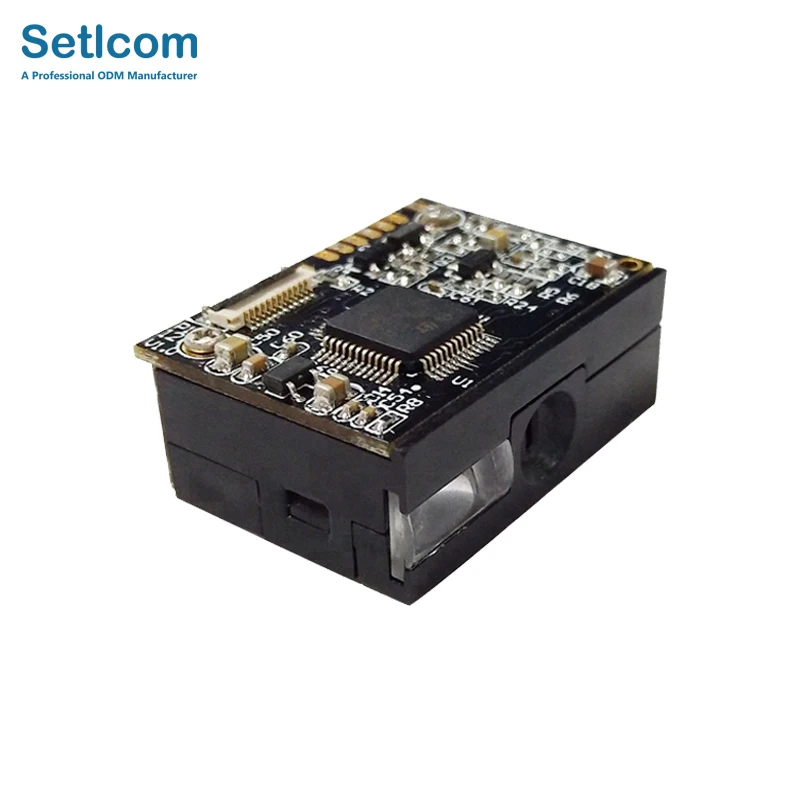

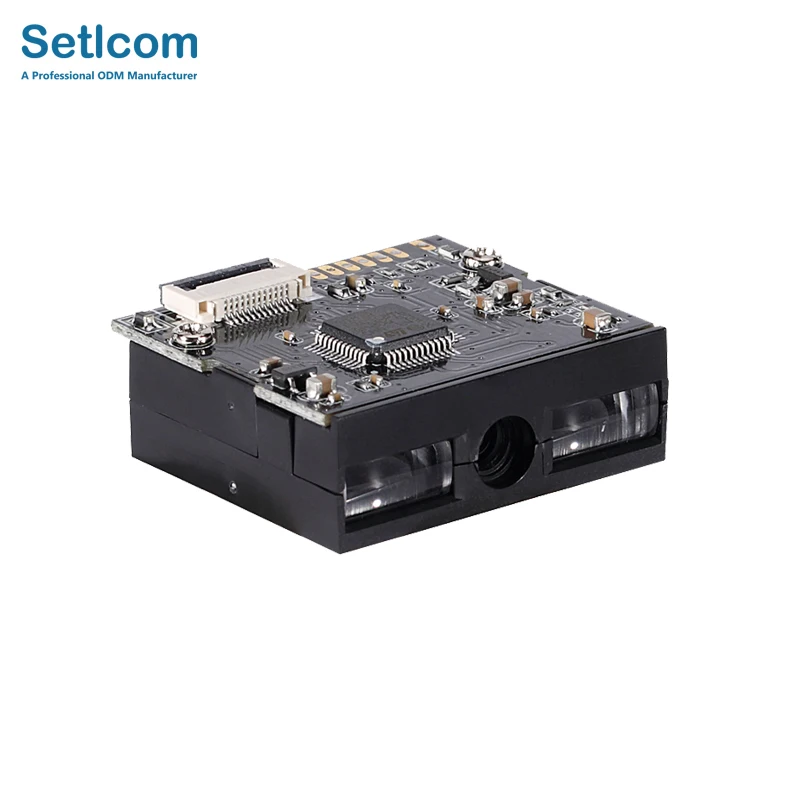

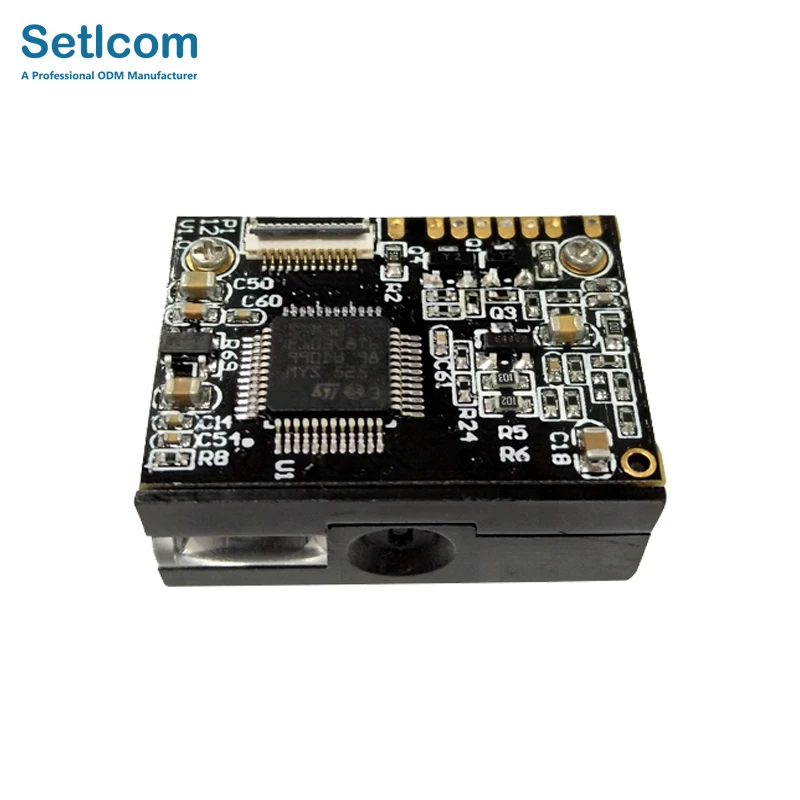

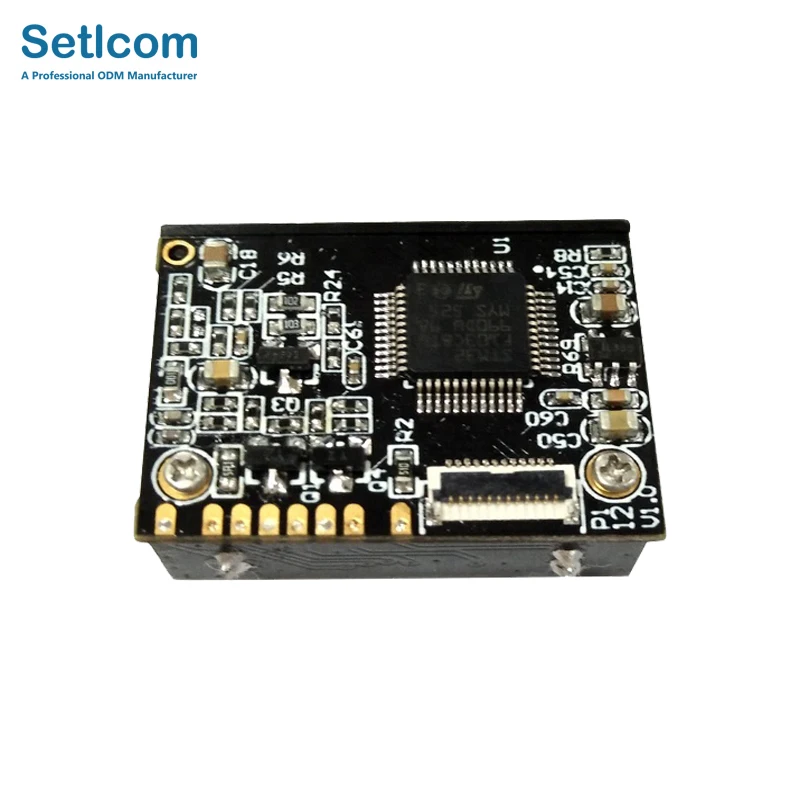

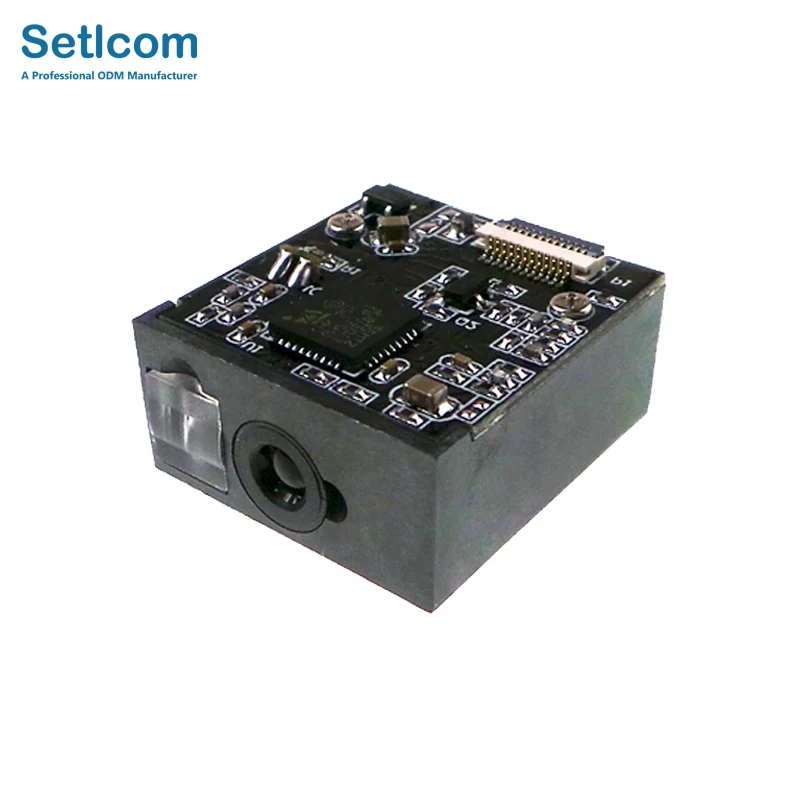

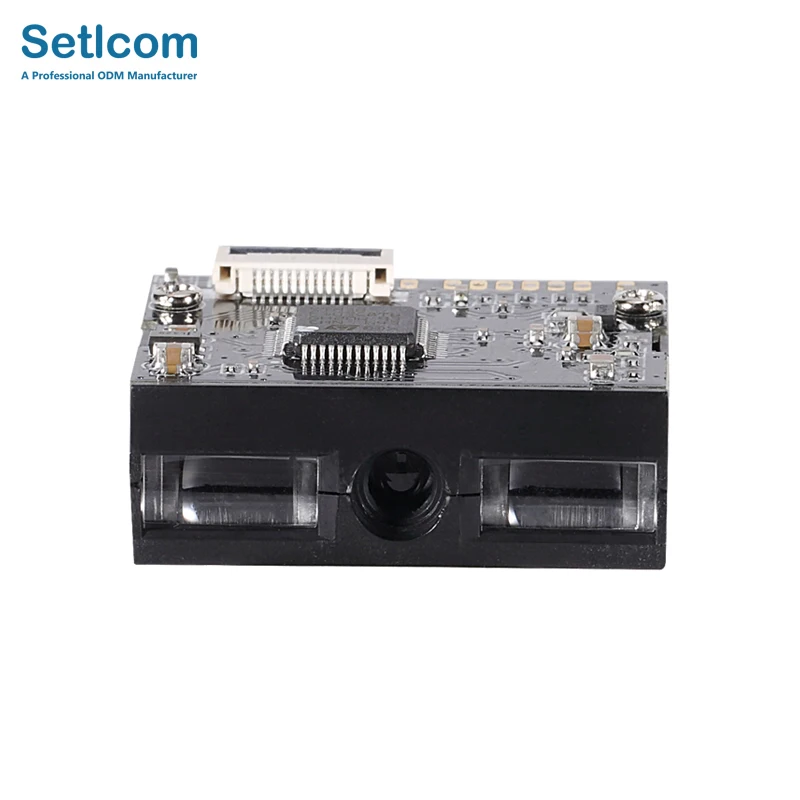

Двигатель для сканирования штрих-кода SETLCOM SC3200S/3210 2D самообслуживания терминала

Physical Characteristics

Dimensions

31.50mmX12.00mmX11.10mm

Weight

18g

Voltage/Current

5V(DC)+/-10% @400mA

Performance Characteristics

Image(Pixels)

640 pixels (H) x 480 pixels (V)

Light Source

Aiming 617 nm LED; illumination 6500K LED

Field of View

40°(H)x26°(V)

Roll/Pitch/Yaw

360°, ±65°, ±60°

Motion Tolerances

Up to 25 in. (63.5cm)per second

Print Contrast

20%minimum reflective difference

Interfaces Supported

USB, RS232

Symbology Decode Capability

1D

UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc.

2D

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.

Decode Ranges

5 mil (Code 39)

20mm-70mm

13 mil (100%UPCA)

40mm-160mm

Minimal Resolution

5 mil Code 39

User Environment

Operating Temperature

0℃ to 50℃

Storage Temperature

-40℃ to 70℃

Humidity

0% to 95%relative humidity, non-condensing

Shock Specifications

Designed to withstand 1.5m(5’)drops

Ambient Light Immunity

100.000Lux.
