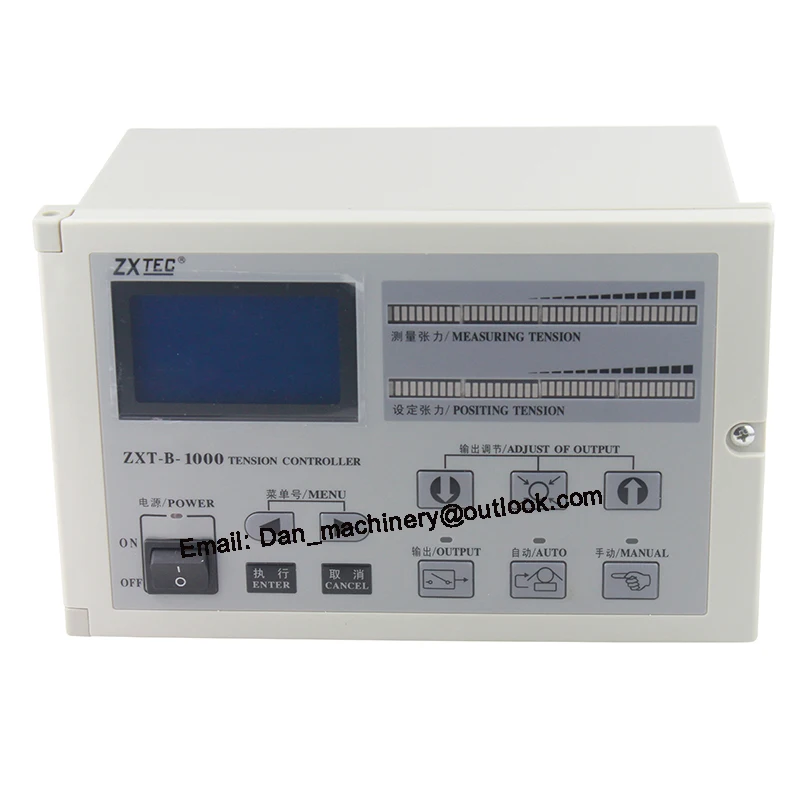

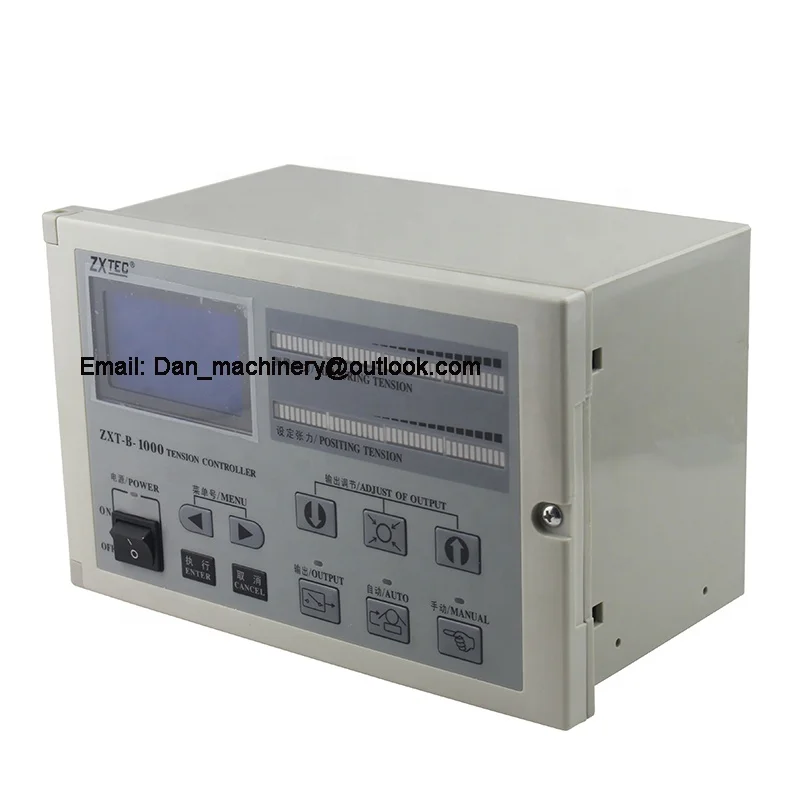

ZXT-B-1000 цифровой автоматический контроллер постоянного натяжения для печати и

Description:

ZXT-B-1000 All-Digital High-Precision Automatic Constant Tension Controller, which is mainly composed by the tension detector, high-precision A / D, D / A converters, high-performance single-chip and other components. The automatic constant tension controller is a measure of the tension coil by tension detector compared with the target set by the tension by SCM PID calculation automatically adjust D / A output to change the magnetic clutch, brake or servo motor excitation current torque to achieve constant tension coil. It can be widely used in various occasions where need for precise measurement and control of tension, with the use of flexible and broad applicability.

1. LCD display has two languages for choice, Chinese or English display.

2. Easy to change automatic or manual mode.

3. tension detector wiring easy.

4. convenient to set parameters.

5. exchange with duplex output shaft

Main Technical Parameter:

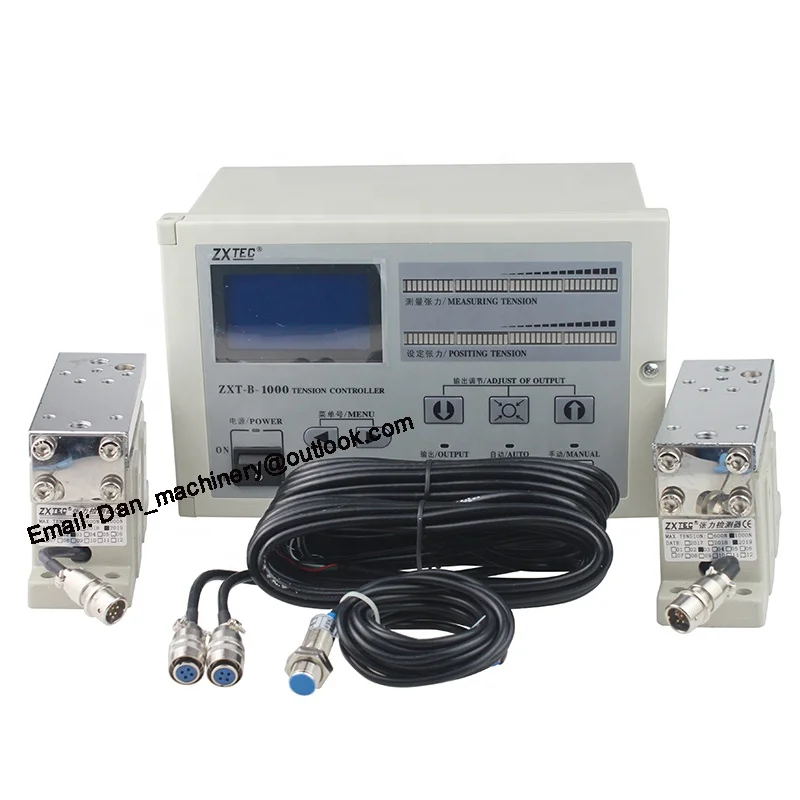

Delivery Note : 1 Set including 1 PCS tension controller , 2 pcs Tension loadcell

Application:

It is widely used in the industries of printing, packing, paper-making, cable, rubber, electron battery and textiles printing.
