MTK-F3-1200-20 автоматический диспенсер для карт устройство чтения и записи

MTK-F3-1200-20 автоматический диспенсер для карт устройство чтения и записи

Категория: Vending Machines >>>
Поставщик: Shenzhen,MUTEK,Limited

Цена:207,90 $ - 231,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	263.45 $*	268.97 $*
Jul-18-2025	213.21 $*	217.85 $*
Jun-18-2025	259.57 $*	264.71 $*
May-18-2025	257.68 $*	262.34 $*
Apr-18-2025	205.57 $*	209.13 $*
Mar-18-2025	253.65 $*	258.78 $*
Feb-18-2025	250.94 $*	255.3 $*
Jan-18-2025	248.85 $*	253.99 $*

Характеристики

Product Description

Product Application

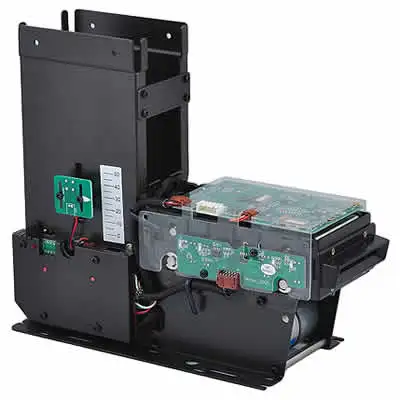

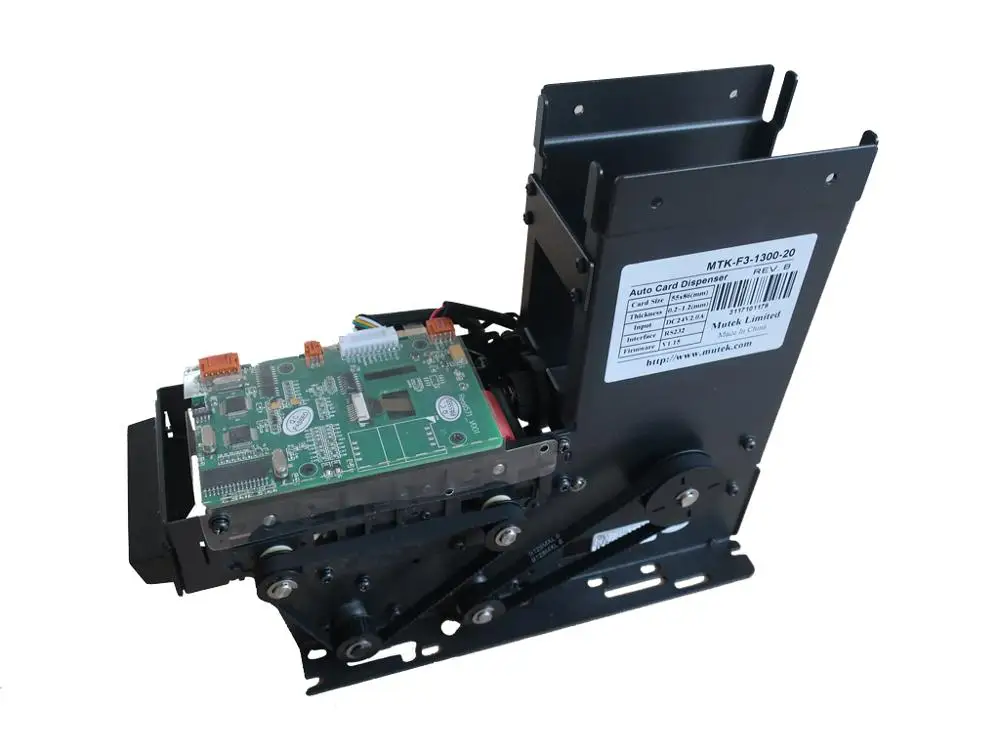

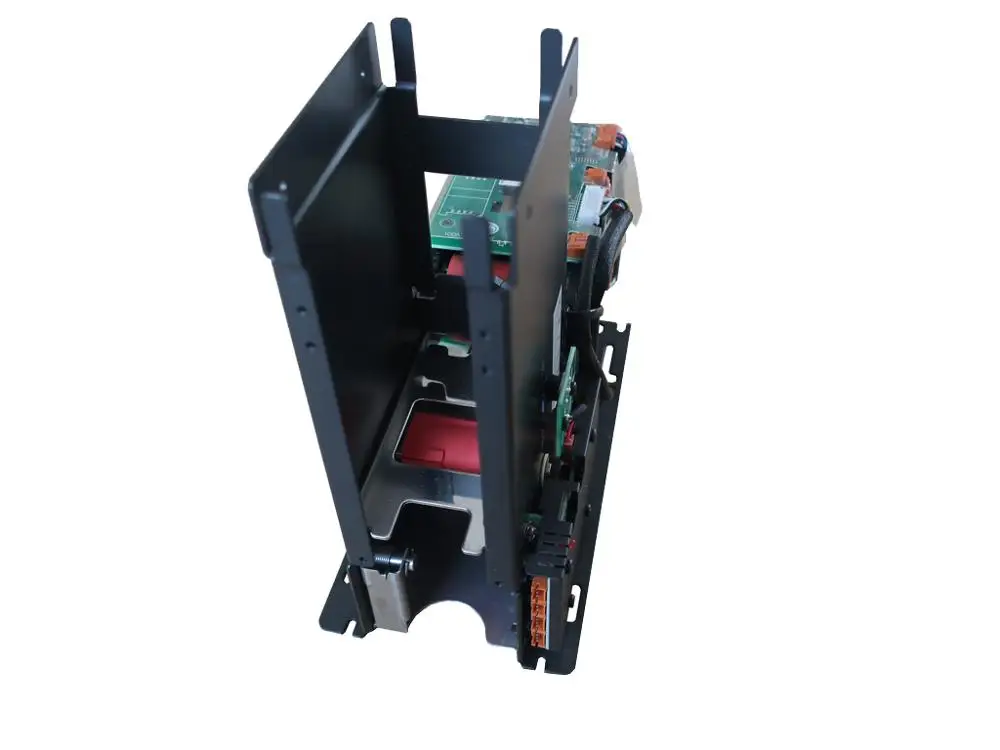

MTK-F31 is the motorized card dispenser machine built to accommodate an RFID Module or a Smart card module. The dispenser is based on a unique and reliable mechanism within a smooth transportation mechanism.

\t Parameters - MTK-F31 Smart Card Dispenser
\t _Items		\t _Description
\t _{Card Thickness}		\t 0.2mm~1.2mm(Ex-work Default: 0.8mm)
\t _{Card Size}		\t Length*Width: 85.47-85.90x53.92-54.18mm (ISO 7810/CR-80/CR-79, ID-1)

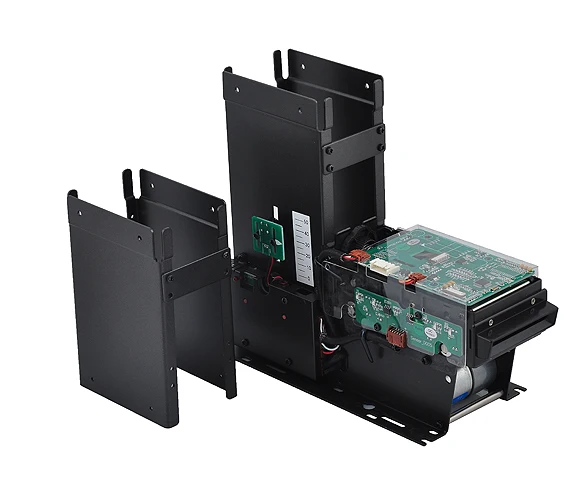

\t Card Hopper Capacity		\t 170pcs(0.76mm thickness non-embossed); Extensible to ~300/500pcs with stacked hopper(s);
\t Reject Bin Capacity		\t Reject Bin for 25 pcs cards(0.76mm thickness)
\t Remaining Card Check		\t 0~50pcs Low card level warning; Empty card hopper Error;
\t Smart Card Reader		\t Integrated Contactless and/or Contact Reader &Optional SAM slot: Contactless: ISO14443 type A&B, ISO15693; Mifare S50/S70/UL/Plus/Desire; Contact IC: ISO7816-1,2,3,4; T=0&1 CPU Cards; SLE4442/4428, AT42Cxxx series;
\t Dispensing Speed		\t ~1.0 Sec/Card(Non-Stop for card reading)
\t Interface		\t RS-232; RS-232+USB2.0(For PC/SC Reader Models)
\t Power Supply		\t DC24V±5%, 2.0A; Curent: Idle~200mA, Peak~1500mA;
\t Life Cycle		\t 500,000 times dispensing cycles; 500,000 times IC contact reading;
\t Environment Conditions		\t * Temperature &Humidity Operation: 0~50℃/0~90%RH Storage: -10~60℃/0~90%RH
\t Weight		\t 1.6KG
\t Dimension		\t 234(L) x99.0(W) x 220.0mm(H)
