QMJ 4-35 мини стационарный полуавтоматический полый блок для производства
- Категория: Brick Making Machinery >>>
- Поставщик: Henan,Yongshuo,Heavy,Industry,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1785.91 $* | 1874.35 $* |
| Aug-16-2025 | 1770.96 $* | 1859.87 $* |
| Jul-16-2025 | 1485.38 $* | 1559.0 $* |
| Jun-16-2025 | 1740.73 $* | 1827.66 $* |
| May-16-2025 | 1515.52 $* | 1591.10 $* |
| Apr-16-2025 | 1710.94 $* | 1796.57 $* |
| Mar-16-2025 | 1695.51 $* | 1780.91 $* |
| Feb-16-2025 | 1680.46 $* | 1764.52 $* |
| Jan-16-2025 | 1665.41 $* | 1748.74 $* |
Характеристики
Product Description
Simple structure, easy to operate, easy to replace the mold, easy to maintain
Advanced design, wide applicability reduce power consumption, improve the density of long life
Simple structure, easy to operate, easy to replace the mold, easy to maintain
The 4-35 series small semi-automatic hollow block molding machine produced by our company is the special equipment for producing small hollow block, and it is one of the ideal equipment for solving new wall materials all over China. It has the advantages of low investment, quick effect, good compactness, high strength and good appearance quality. Rigid concrete is formed by vibration compaction under high frequency and small vibration radiation. Mechanical force is used to reduce internal porosity, so as to achieve compaction. Then cement hydration is fully improved through curing. The blocks produced can be changed according to different architectural advantages and characteristics; A multi-purpose machine, fully show the flexibility and extraordinary characteristics of the machine.

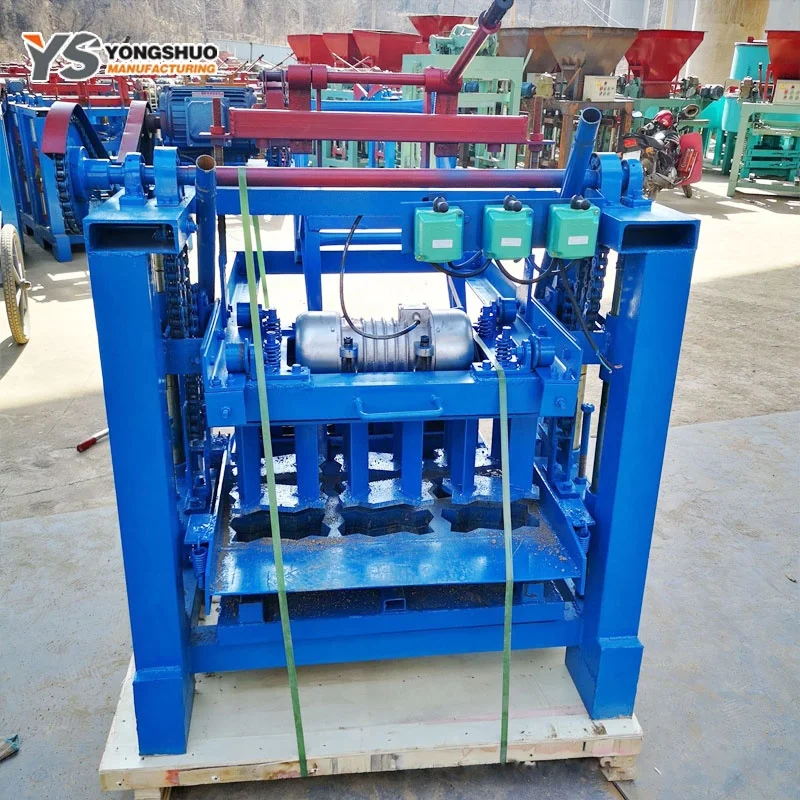

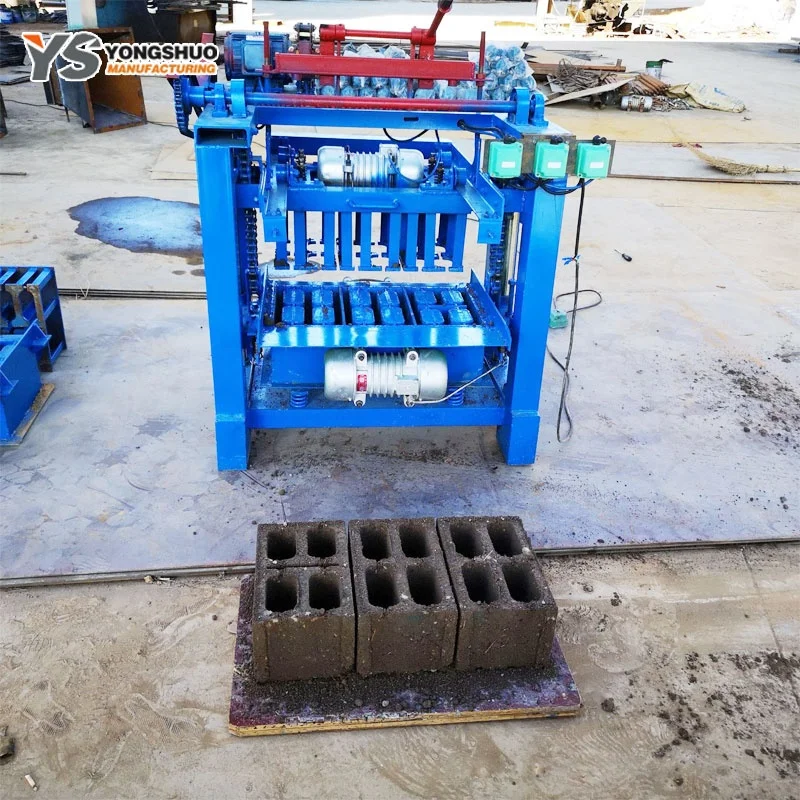

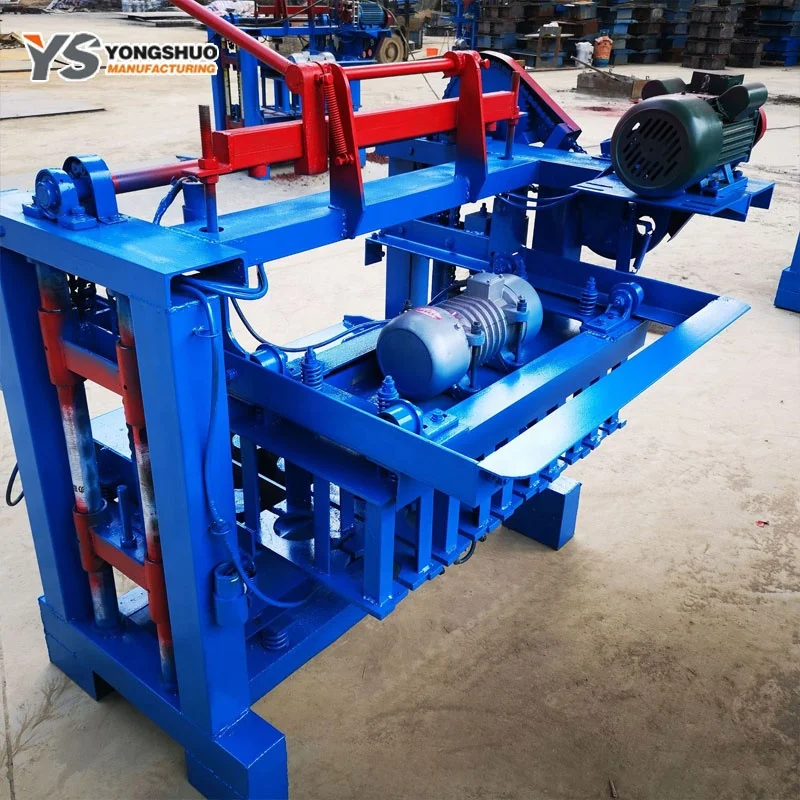

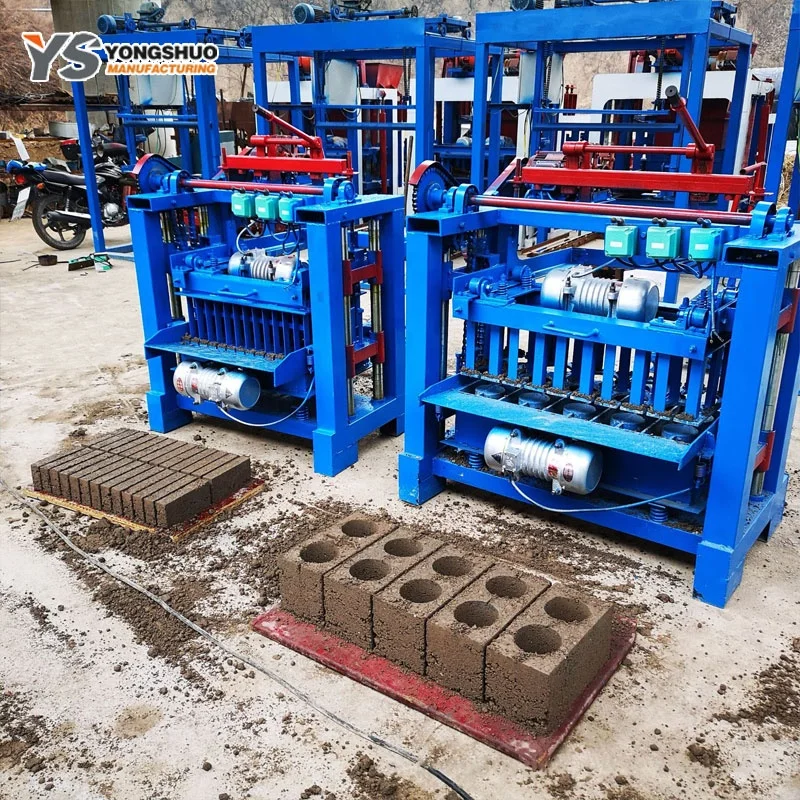

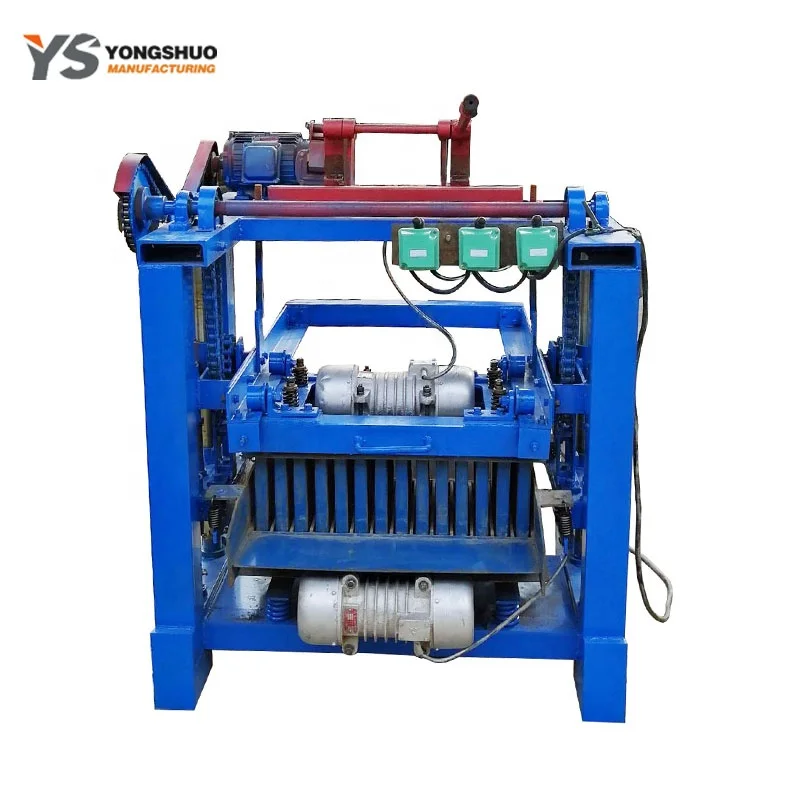

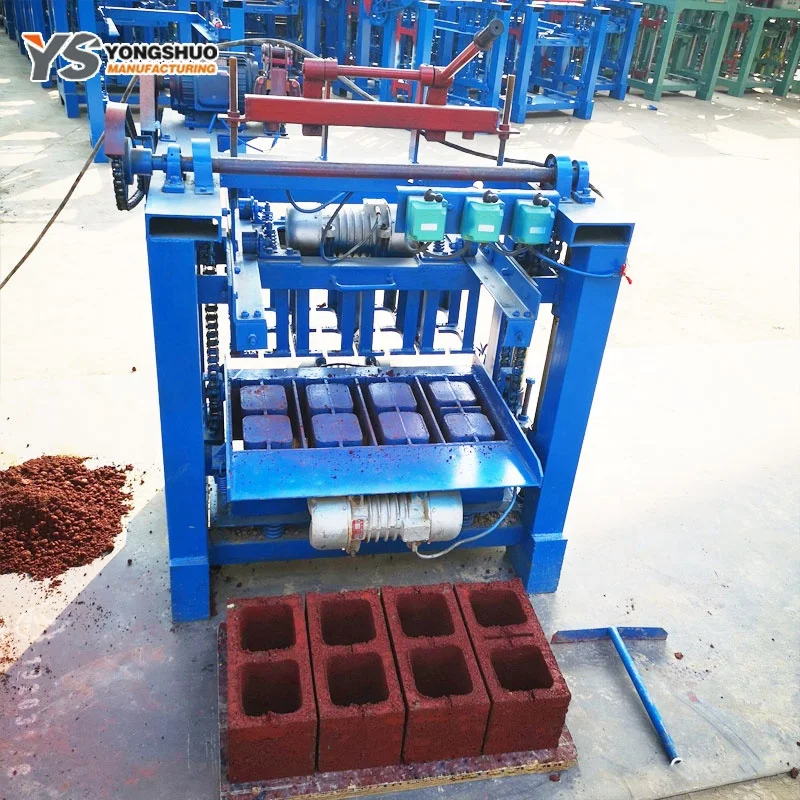

QMJ 4-35 mini stationary semi automatic hollow Block Making brick machine line
Product name/specification | 4-35B type | ||
Feed viscosity | ≤10 | ||
Molding cycle/time | 35-40seconds | ||
The vibration frequency | 2800 | ||
Equipment power | 4.8 Kw | ||
Plate size | 880*450*25mm | ||
Number of shifts per plate | 240×115×53 | 21block 0.8-1ten thousand | |
(8 hours) | 390×190×190 | 4block 0.12-0.13ten thousand | |
390×120×190 | 6block 0.18-0.23ten thousand | ||
240×115×90 | 9block 0.25-0.35ten thousand | ||
Weight of brick machine (T) | 0.75 | 0.85 | |
QMJ4-35 series block forming machine production conditions
(1) the machine needs a smooth working place (equipment placement); The front of the wooden pallet must be flat and uniform, with the same height.
(2) raw material requirements: gravel or gravel, particle size shall not be more than 10 mm, needle or flake shall not be more than 15%, containing soil, impurities not more than 2% of the weight.
(3) block curing: when (outdoor temperature: 20 ° c -- 30 ° c), natural curing can be carried out after 3 -- 4 hours of molding, covering, watering, curing, and turning pile curing can be carried out. When the temperature passes low, it can be transferred to reactor for maintenance for 7 days. Water every 2 ~ hours on sunny days. Water at least 1 or 2 times at night. Keep the block wet, in addition to watering and maintenance in winter, but also to cover heat preservation, so as not to freeze; Turn the pile, stack to handle gently, so as not to damage.
(4) in order to ensure the quality of the block, it is suggested to adopt the type 350 forced mixer produced by our factory to mix the rigid concrete.
(2) raw material requirements: gravel or gravel, particle size shall not be more than 10 mm, needle or flake shall not be more than 15%, containing soil, impurities not more than 2% of the weight.
(3) block curing: when (outdoor temperature: 20 ° c -- 30 ° c), natural curing can be carried out after 3 -- 4 hours of molding, covering, watering, curing, and turning pile curing can be carried out. When the temperature passes low, it can be transferred to reactor for maintenance for 7 days. Water every 2 ~ hours on sunny days. Water at least 1 or 2 times at night. Keep the block wet, in addition to watering and maintenance in winter, but also to cover heat preservation, so as not to freeze; Turn the pile, stack to handle gently, so as not to damage.
(4) in order to ensure the quality of the block, it is suggested to adopt the type 350 forced mixer produced by our factory to mix the rigid concrete.
QMJ 4-35 mini stationary semi automatic hollow Block Making brick machine line
Product packaging
Why Choose Us
Established in 2003, Henan Yongshuo Heavy Industry Equipment Co., Ltd. is a joint-stock enterprise integrating research, development, production and sales of automation engineering machinery equipment. It has many professional subsidiaries. The company's products include automated large, medium and small series of brick making machines, cement brick making machines, concrete mixers, mixing plants, batching machines and so on. Welcome to visit our company.
QMJ 4-35 mini stationary semi automatic hollow Block Making brick machine line
To ensure that customers use our Cement Block Making Machine with no worries, hereby we warrant:
1. We strictly select good material to ensure the reliable quality.
2. Not only in the selection of materials, but also in every production procedures, we strictly act according to the ISO9001 standard, and control by full-scale inspection.
3. The Technical and specialized support from us will be available.
4. The upgraded products information will be timely supplied.
2. Not only in the selection of materials, but also in every production procedures, we strictly act according to the ISO9001 standard, and control by full-scale inspection.
3. The Technical and specialized support from us will be available.
4. The upgraded products information will be timely supplied.
Why choose us?
1. 16 year expertise and professional experience in designing and manufacturing.
2. Design and customize block machines according to customers'requirements.
3. High levels of performance,quality and reliability of all equipments and services.
4. Reliable quality proven by customers both at home and abroad.
5. Reasonable prices without compromising any machines efficiency.
6. Promptness in both equipment delivery and technical support pre-and after sales.
2. Design and customize block machines according to customers'requirements.
3. High levels of performance,quality and reliability of all equipments and services.
4. Reliable quality proven by customers both at home and abroad.
5. Reasonable prices without compromising any machines efficiency.
6. Promptness in both equipment delivery and technical support pre-and after sales.
QMJ 4-35 mini stationary semi automatic hollow Block Making brick machine line
Pre-Sales Service
* Inquiry and consulting service
* Customers' Visiting for Factory is welcomed.
* Custom Design and OEM Capabilities
* Customers' Visiting for Factory is welcomed.
* Custom Design and OEM Capabilities
After-Sales Service
* Training how to instal and use the machine.
* Providing quick-wear parts.
* Engineers available to service machinery overseas..
* Providing quick-wear parts.
* Engineers available to service machinery overseas..
Certifications
FAQ
Q1:How long is the warranty of your equipment?
A:Our warranty period is one year generally.
Q2:What is your payment term?
A:You can transfer the payment via T/T. We will provide you the bank detail. Generally, 30% prepaid and the rest 70% should be paid before shipping.
Q3:Do you provide after-sale service?
A:Yes, we have a professional after-sales service team which can solve your problems in time.we provide the life-long technical support service from pre-sale to after-sale for every set of our Equipment.
Q4: Can I have the details information about your Equipment and your company, such as specifications, pictures, videos, price lists and catalogue?
A: Yes, surely, we would like to send all of details information about our machines to you by eamil, or on WhatsApp/WeChat/Skype at our earliest time.
Q5:Can I visit your factory?
A:Yes. Welcome to your visiting any time you are convenient!
