 GPS TRACKER

(GPS+AGPS+LBS+GSM+SMS/GPRS)

User Guide

(Version V1.0)

   Thank you for purchasing the GPS Tracker . This manual shows how to operate the device smoothly and correctly . Make sure to read this manual carefully before using this product . please note that specification and information are subject to changes without prior notice in this manual .Any change will be integrated in

the latest release . The manufacturer assumes not to be responsible for any errors or omissions in this document .

1.Product Introduction

The GPS TRACKER combined with the GSM and GPS technique and use the fireproofing material that arrived Industry standard which is 6PCS 18MM×3MM super magnet and IPX-5,the internal battery is 10000MAH that can standby 100 days. The AT-17 can track the vehicle and person’s position by SMS and GPRS on line tracking software . Easy use without installation with powerful magnet design

2.Application

2.1. Car Rental/Fleet Management

2.2. Out Door Activity

2.3. Children/Old Man/Deformed Man/Valuables

2.4. Personal Safe

2.5 Personal Management

2.6 Tracking Position

2.7 Animal Protection

3. Specification

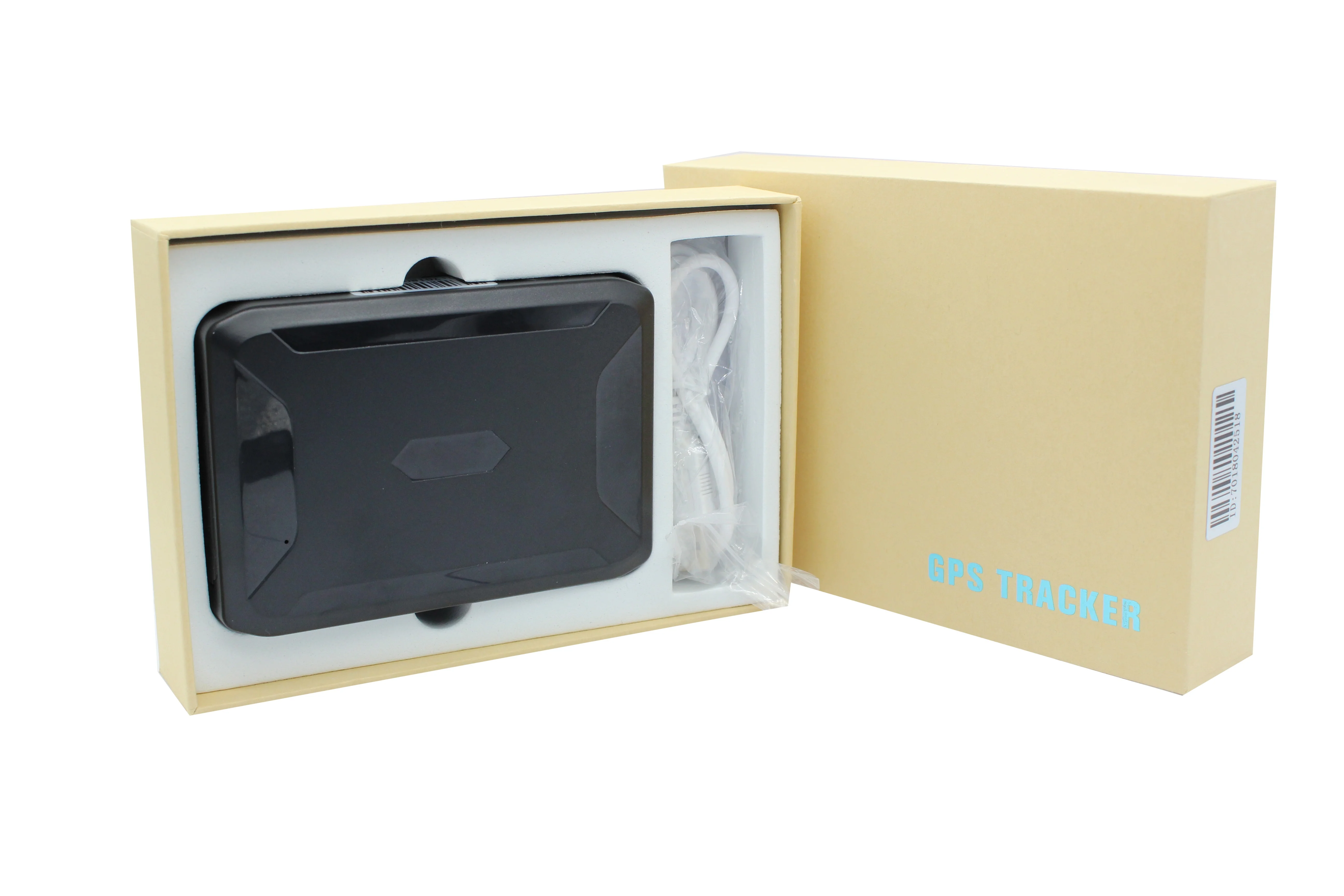

4.Product List

a.5V 1A Charger (1PCS)

b. USB Cable for charging (1PCS)

c. User Manual (CD)

d. GPS TRACKER (1PCS)

5.Manual Instruction

  5.1 Inset Sim Card and Switch on tracker

       5.1.1  Open package and check whether model name / accessories is correct, or contact your seller

       5.1.2  Tracker should insert a GSM sim card ,You can choose China Unicom or China Mobile (GSM NET can work all over the world)

       5.1.3  Remove the waterproof plug , insert the sim card (the direction of chipset of sim card should be down) and cover the waterproof plug

Pay Attention:

(1)Tracker will switch on automatic after insert the SIM card

(2)SIM Card should open the GPRS function

(3)SIM Card should open the “Caller ID display” function

(4)If your SIM Card is open and need enter SIM PIN, please check your mobile phone user manual and close the SIM PIN function

(5)Please confirm that the SIM Card have enough money.

(6)To avoid the stealer break it, please put the tracker in a covert place

(7)Do not put the tracker near the emissive source

(8)Tracker have internal GSM and GPS antenna, please ensure that the tracker should face the sky without any metal block it

5.1.4 Led Status

       5.1.4.1 Red Led-Recharge Led

5.1.4.2 Yellow Led-GSM Led

5.1.4.3 Blue Led-GPS Led
