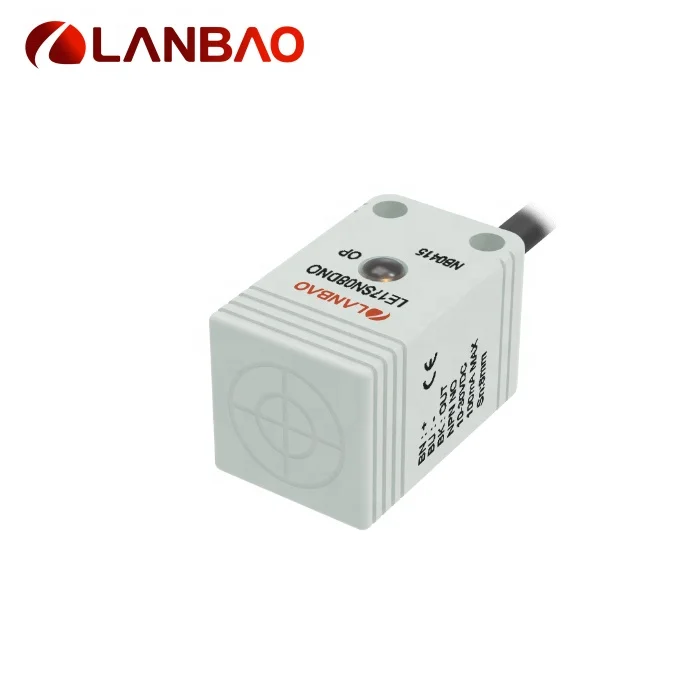

Квадратный автоматический индуктивный датчик приближения Lanbao 5 мм или 8 DC 10-30 в PNP
- Категория: Sensors >>>
- Поставщик: Shanghai,Lanbao,Sensing,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.92 $* | 2.5 $* |
| Aug-18-2025 | 2.61 $* | 2.66 $* |
| Jul-18-2025 | 2.28 $* | 2.22 $* |
| Jun-18-2025 | 2.16 $* | 2.13 $* |
| May-18-2025 | 2.1 $* | 2.34 $* |
| Apr-18-2025 | 2.88 $* | 2.56 $* |
| Mar-18-2025 | 2.21 $* | 2.25 $* |
| Feb-18-2025 | 2.2 $* | 2.3 $* |
| Jan-18-2025 | 2.89 $* | 2.91 $* |
Характеристики
Lanbao 5mm Or 8mm DC 10-30V PNP NPN Square Auto Smart Inductive proximity sensor
Product Features
♦Non contact detection, safe and reliable ;
♦ASIC design;
♦Perfect choice for metallic targets detection;
♦Non contact detection, safe and reliable ;
♦ASIC design;
♦Perfect choice for metallic targets detection;
Product Paramenters

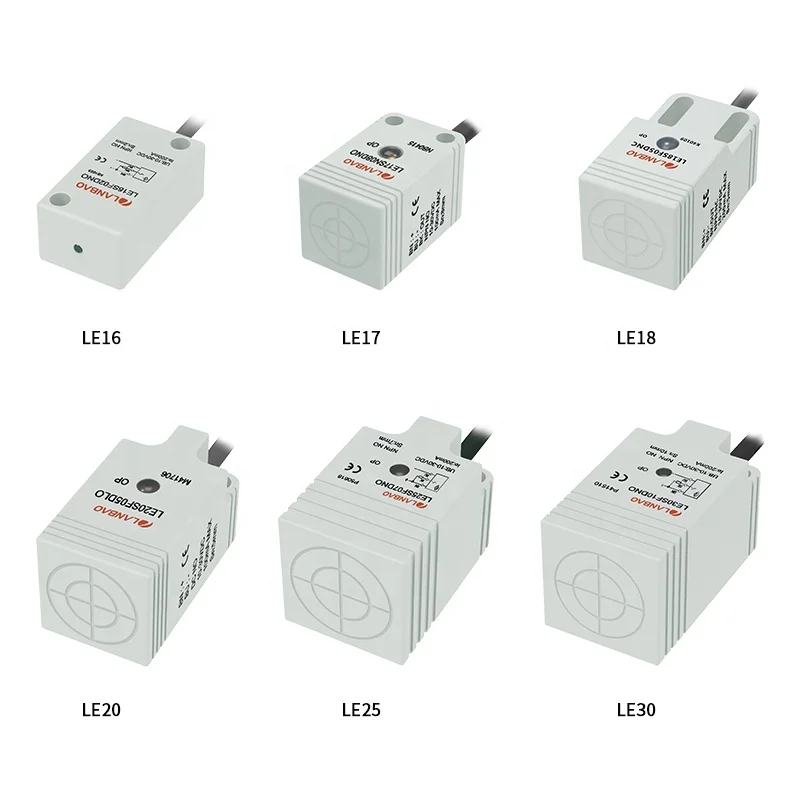

LE17/LE18 | ||||
Output | Quasi-flush | Non-flush | ||
NPN NO | LE17SF05DNO/LE18SF05DNO | LE17SN08DNO/LE18SN08DNO | ||
NPN NC | LE17SF05DNC/LE18SF05DNO | LE17SN08DNC/LE18SN08DNC | ||
PNP NO | LE17SF05DPO/LE18SF05DPO | LE17SN08DPO/LE18SN08DPO | ||
PNP NC | LE17SF05DPC/LE18SF05DPC | LE17SN08DPC/LE18SN08DPC | ||
Technical specifications | ||
Mounting | Flush Non-flush | |
Rated distance [Sn] | 5mm 8mm | |
Assured distance [Sa] | 0…4mm 0…6.4mm | |
Dimensions | 17 *17 *28 mm (LE17) 18 *18 *36 mm(LE18) | |
Output | NO/NC(depends on part number) | |
Supply voltage | 10…30 VDC | |
Standard target | Fe 17*17*1t Fe 24*24*1t | |
Switch-point drifts [%/Sr] | ≤±10% | |
Hysteresis range [%/Sr] | 1…20% | |
Repe at accuracy [R] | ≤3% | |
Load current | ≤100mA | |
Residual voltage | ≤2.5V | |
Current consumption | ≤10mA | |
Circuit protection | Short-circuit, overload and reverse polarity | |
Output indicator | Yellow LED | |
Ambient temperature | -25℃…70℃ | |
Ambient humidity | 35-95%RH | |
Switching frequency [F] | 700 Hz 500Hz | |
Voltage withstand | 1000V/AC 50/60Hz 60s | |
Insulation resistance | ≥50MΩ(500VDC) | |
Vibration resistance | 10…50Hz (1.5mm) | |
Degree of protection | IP67 | |
Housing material | PBT | |
Connection type | 2m PVC cable | |
Dimension
LE17

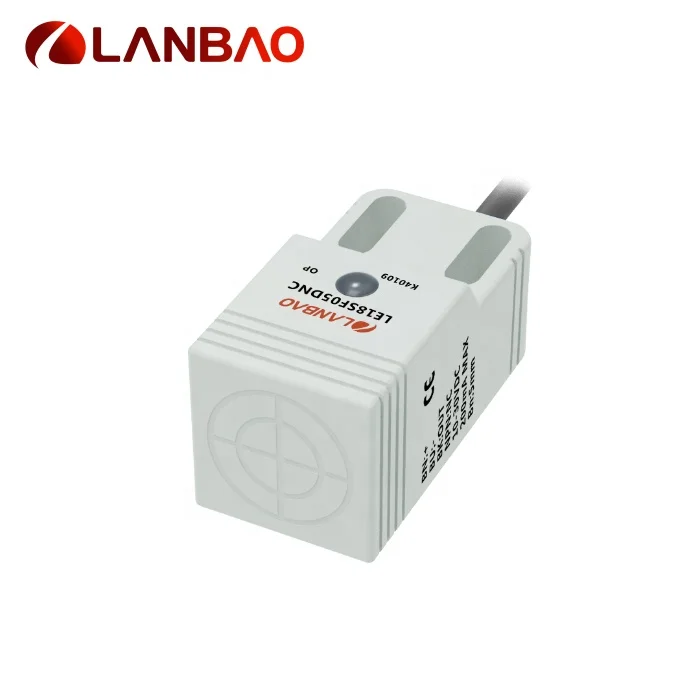

LE18
Wiring diagram
Certifications
Our standard products already obtained ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,
ROHS certificates.
ROHS certificates.
Factory Show
We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40
products lines including complete production lines which worked with Mitsubishi (Japan). 200 staffsin
production line and 3million products per year.Factory process
products lines including complete production lines which worked with Mitsubishi (Japan). 200 staffsin
production line and 3million products per year.Factory process
Factory process
Packing
Packaging is designed according to specific products for better protection.
Packaging is designed according to specific products for better protection.
Exhibition
International Exhibitions
We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US),
SPS(Germany),SPS (Guangzhou) and other industrial shows (textile, robot, elevator, logistic etc.) .As a
professional sensor manufacturer with core competitiveness and complete value chain, our products sell
well in more than 100 countries in the world, allowing more customers to appreciate the charm of “passing the world, sensing the future”.
We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US),
SPS(Germany),SPS (Guangzhou) and other industrial shows (textile, robot, elevator, logistic etc.) .As a
professional sensor manufacturer with core competitiveness and complete value chain, our products sell
well in more than 100 countries in the world, allowing more customers to appreciate the charm of “passing the world, sensing the future”.

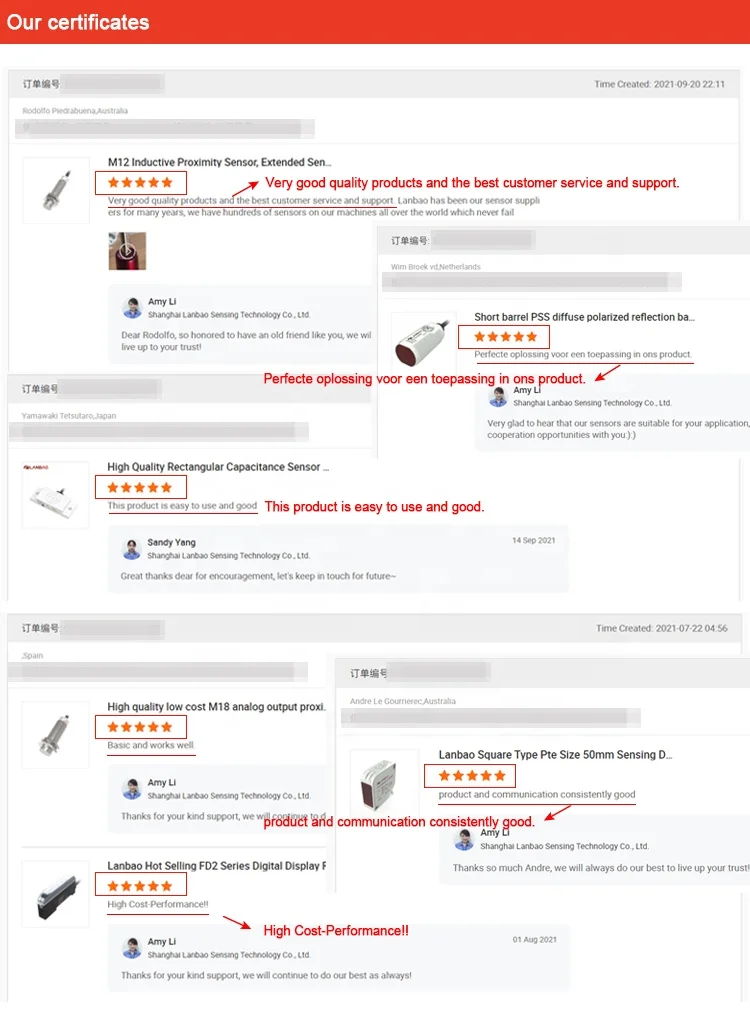

Customer Photos
Our partners
Specializing in precision,Lanbao always adheres to the business philosophy of”Quality First,
Reasonable Price, PromptDelivery, and Attentive Service", maximize the needs and continuously
create long-term value and potential growth forcustomers.With comprehensive and efficient services
Lanbao's footprint has now spread to more than 100 countries andregions around the world such as US,
Canada, Germany Thailand etc.
Specializing in precision,Lanbao always adheres to the business philosophy of”Quality First,
Reasonable Price, PromptDelivery, and Attentive Service", maximize the needs and continuously
create long-term value and potential growth forcustomers.With comprehensive and efficient services
Lanbao's footprint has now spread to more than 100 countries andregions around the world such as US,
Canada, Germany Thailand etc.
Company Profile
Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers Association
Governing Units,established in 1998 in Shanghai, a leading domestic industrial automation product
supplier,specializing in the research,development, production, sale and service of industrial sensors,
sensor measurement and control systems.
Our products cover over 30 series, 5000 specifications, including inductive sensor, photoelectric sensor,
capacitivesensor,light curtain,laser distance measuring sensors. Our products are widely used in
warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery,
rail transportation,chemical, robot industry.
Governing Units,established in 1998 in Shanghai, a leading domestic industrial automation product
supplier,specializing in the research,development, production, sale and service of industrial sensors,
sensor measurement and control systems.
Our products cover over 30 series, 5000 specifications, including inductive sensor, photoelectric sensor,
capacitivesensor,light curtain,laser distance measuring sensors. Our products are widely used in
warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery,
rail transportation,chemical, robot industry.
Our advantage
1 day shipping guarantee for stock products
23 years ODM and OEM experience for world top sensor brands
100+ regions and countries
150+ patents and copyrights
500+ employees (110 engineers in R&D center)
100,000 m² factory
5000+ specifications
5,000,000 production capacity per year
1 day shipping guarantee for stock products
23 years ODM and OEM experience for world top sensor brands
100+ regions and countries
150+ patents and copyrights
500+ employees (110 engineers in R&D center)
100,000 m² factory
5000+ specifications
5,000,000 production capacity per year
Our customers
Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world ……
Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world ……
FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders
Q : Can I get a sample?
A : Of course, but you need to pay the minimum sample fee
Q : When will you ship my order?
A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q : How can you guarantee the production quality?
A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders
Q : Can I get a sample?
A : Of course, but you need to pay the minimum sample fee
Q : When will you ship my order?
A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q : How can you guarantee the production quality?
A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.
