Цифровая грузоподъемность 30

Категория: Датчики >>>
Поставщик: Taian,Zhonghang,Weighing,Apparatus,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.43 $*	0.27 $*
Aug-19-2025	0.40 $*	0.50 $*
Jul-19-2025	0.75 $*	0.45 $*
Jun-19-2025	0.30 $*	0.12 $*
May-19-2025	0.84 $*	0.55 $*
Apr-19-2025	0.89 $*	0.62 $*
Mar-19-2025	0.16 $*	0.43 $*
Feb-19-2025	0.78 $*	0.29 $*
Jan-19-2025	0.68 $*	0.97 $*

Характеристики

Product Description

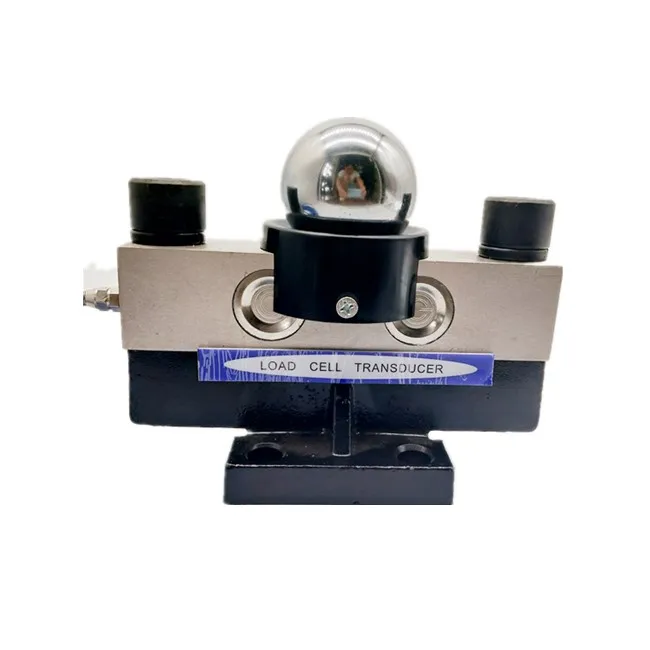

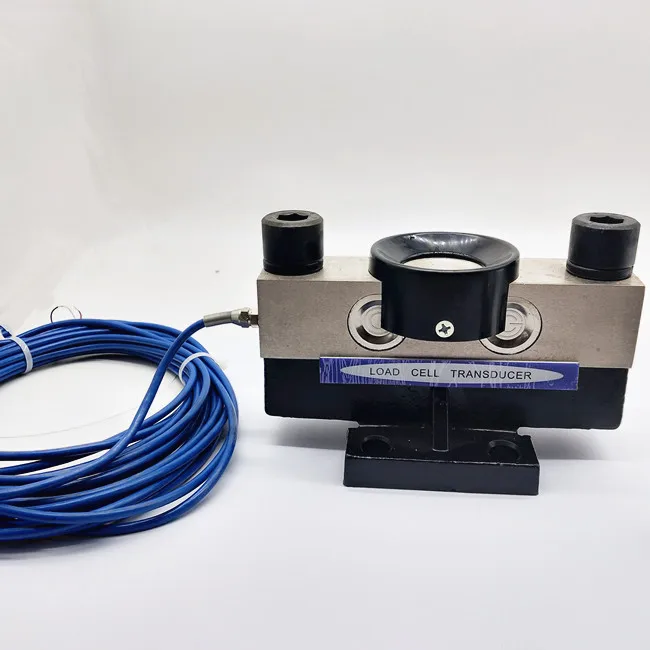

Digital load cell 30 ton

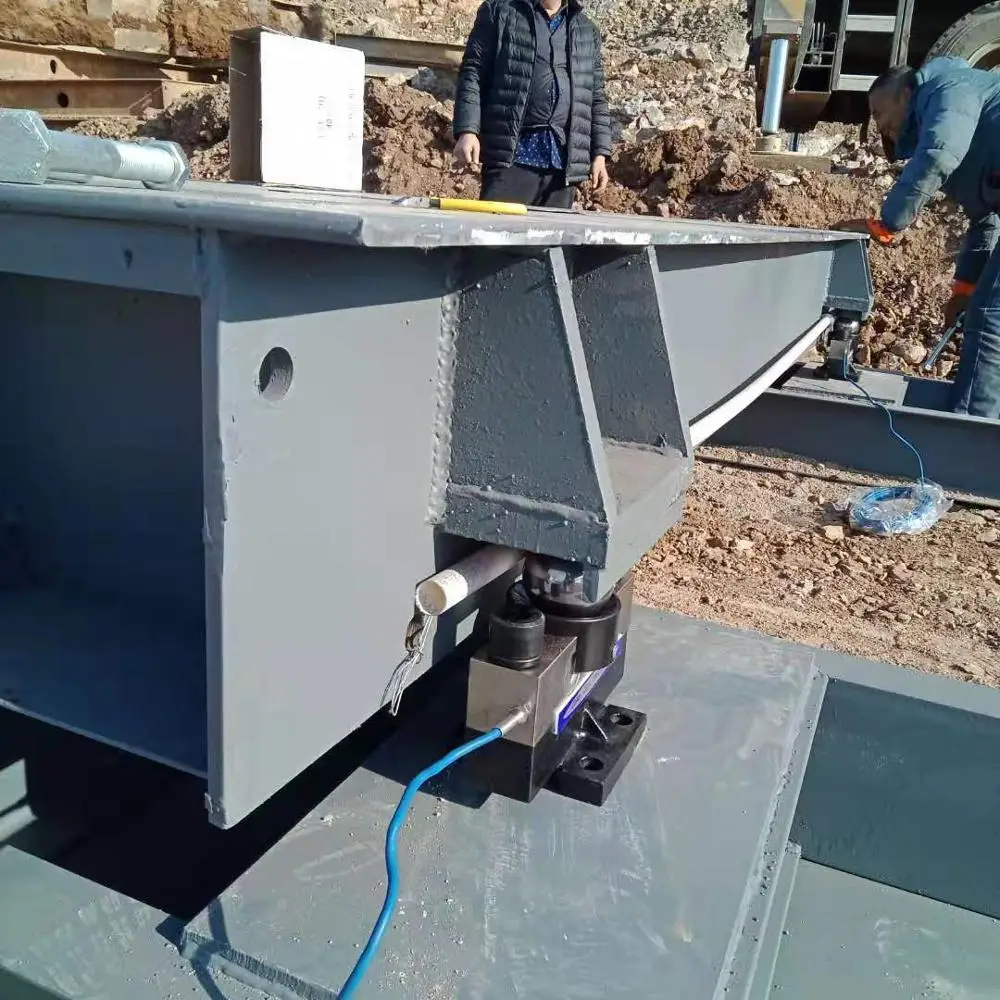

Suitable for electronic truck scale , railroad scale , hopper scale and various special scales.

Rated Load	30t
Total Error	±0.02%F.S.
Non-linearity	±0.02%F.S.
Repeatability	±0.02%F.S.
Hysteresis	±0.02%F.S.
Creep(30 min)	±0.02%F.S.
Temperature Effect On Output	±0.0016%F.S./℃
Temperature Effect On Zero	±0.002%F.S./℃
Zero unbalance	±1%F.S.
Insulation resistance	≥2000mΩ
Excitation voltage	5V
Maximum excitation	12V
Compensated temperature range	-10℃~+40℃
Operating temperature range	-30℃~+70℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Mode of Connection	Input+:Red Input-:Black Output+:Green Output-:White

Fearure:

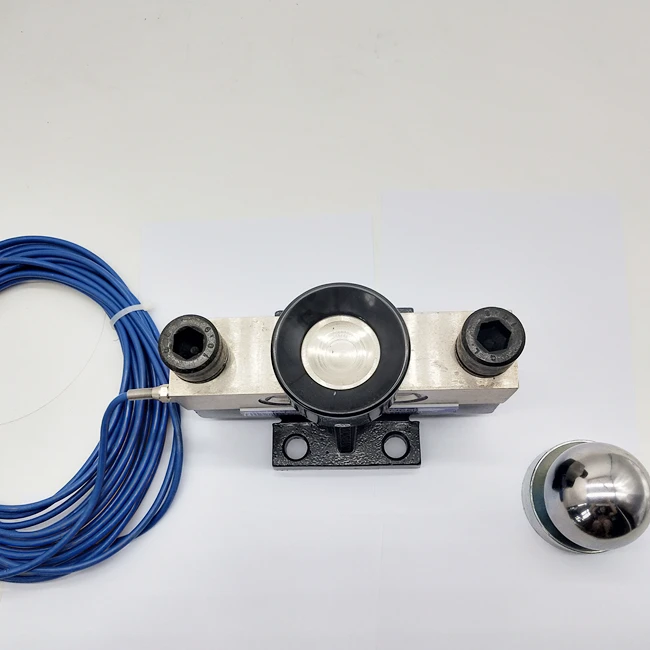

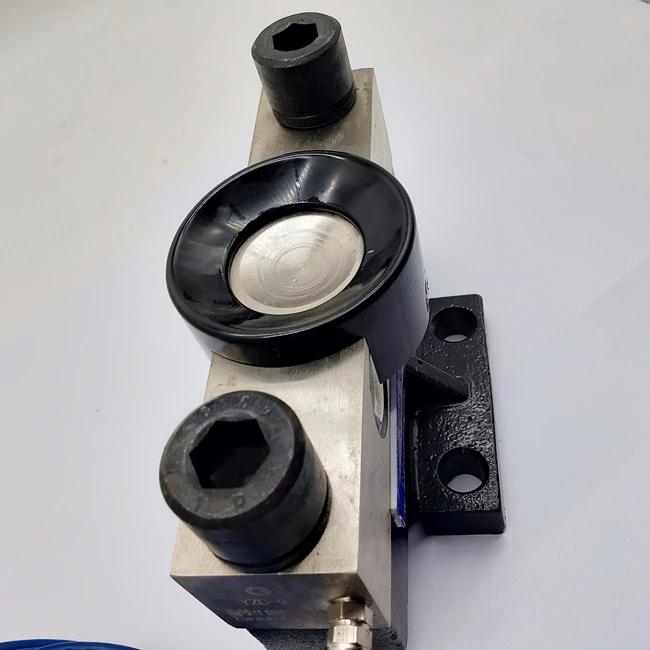

Unique bridge structure , cup and steel ball mounted , Self-resetting and centering , good side force resistance and shock resistance.
Glue sealing & welded sealing,Moisture proof sealed , ideal for hostile environment .
Simple to install, easy to use , good interchangeability
