Промышленное оборудование для пищевой промышленности устройства переработки сои и жидкости стерильности сделано в


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.78 $* 0.83 $*
Aug-16-2025 0.40 $* 0.48 $*
Jul-16-2025 0.90 $* 0.54 $*
Jun-16-2025 0.60 $* 0.71 $*
May-16-2025 0.88 $* 0.40 $*
Apr-16-2025 0.11 $* 0.65 $*
Mar-16-2025 0.2 $* 0.16 $*
Feb-16-2025 0.40 $* 0.16 $*
Jan-16-2025 0.37 $* 0.41 $*

Характеристики


Product Description

This machine adopts UHT processing method, makes the liquid dairy beverage and juice etc strictly sterilized, then into aseptic package, with the sterilization temperature: 137℃, warm keeping time:3-5S, so to keep the original nutrition, colour and flavour of the beverage and dairy, This machine is of the advantages of high heat recycle, compact and fine structure, and temperature control. Outputting material temperature, and cool package.

Capacity: semi-automatic, full automatic (PLC controlling, touch screen).

Direction for use

Capacity: semi-automatic, full automatic (PLC controlling, touch screen).


  • Description of application effect

This system use PGB type temperature holding tank to keep temperature for 5 minutes. Structure of the holding tank: adopts SUS304-2B stainless steel as material, the coil tubes are insulated by silicate in the tank.

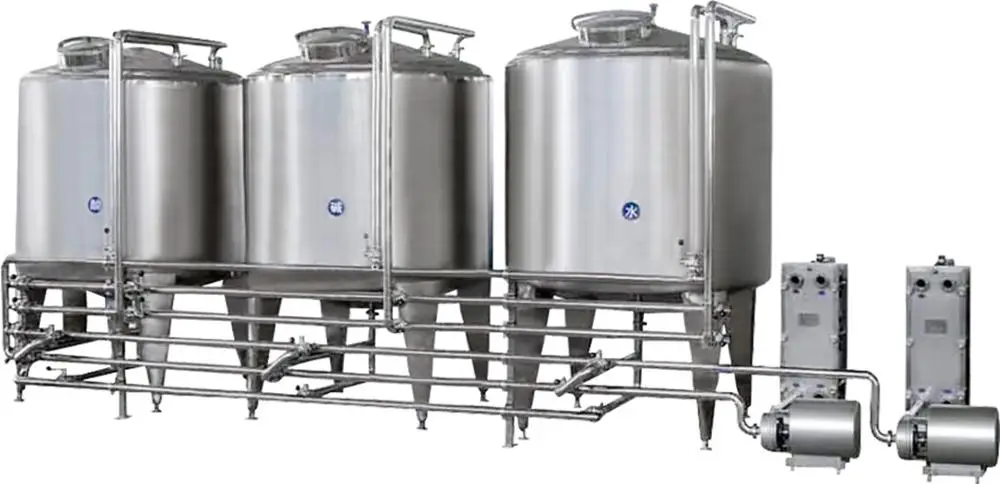

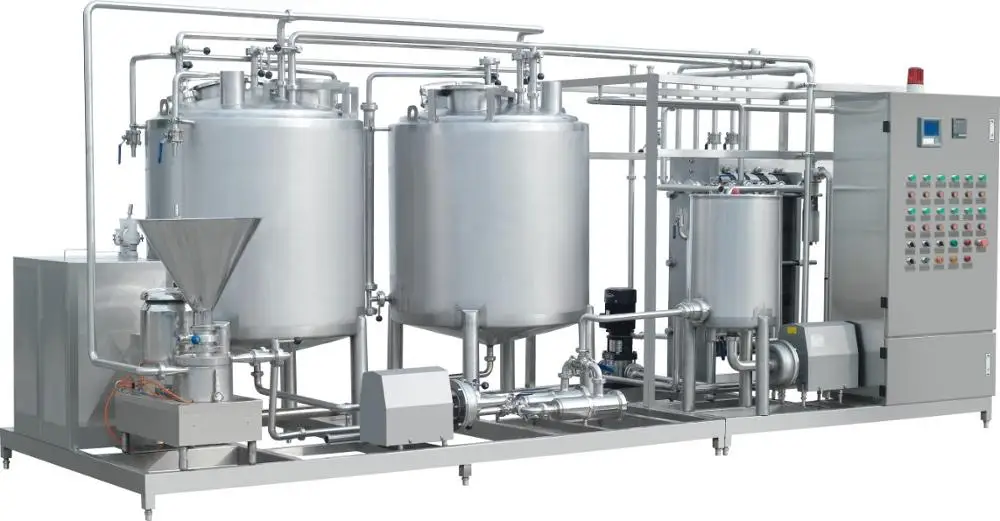

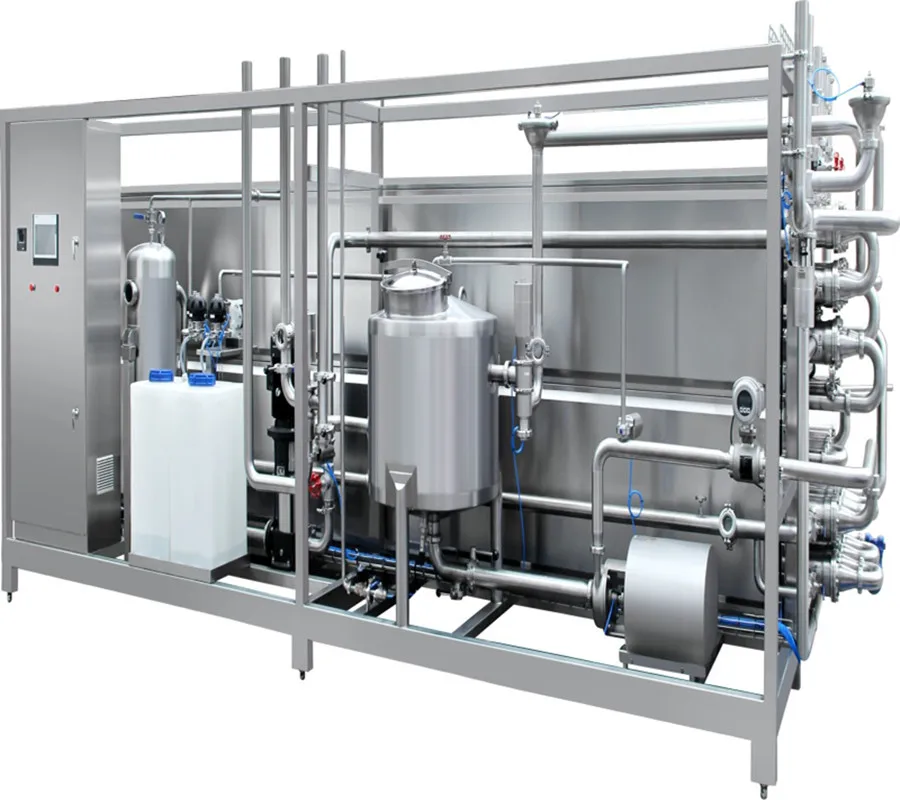

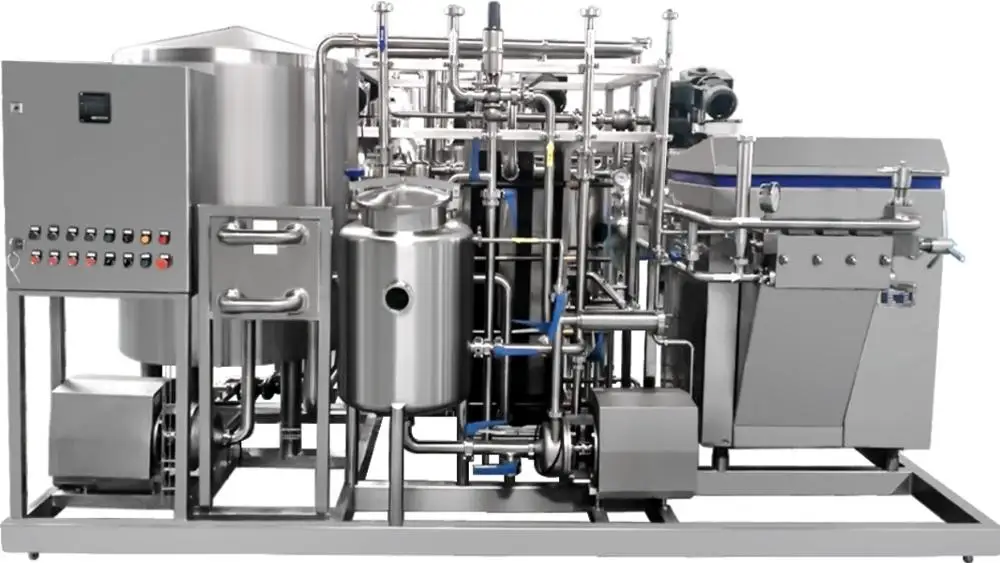

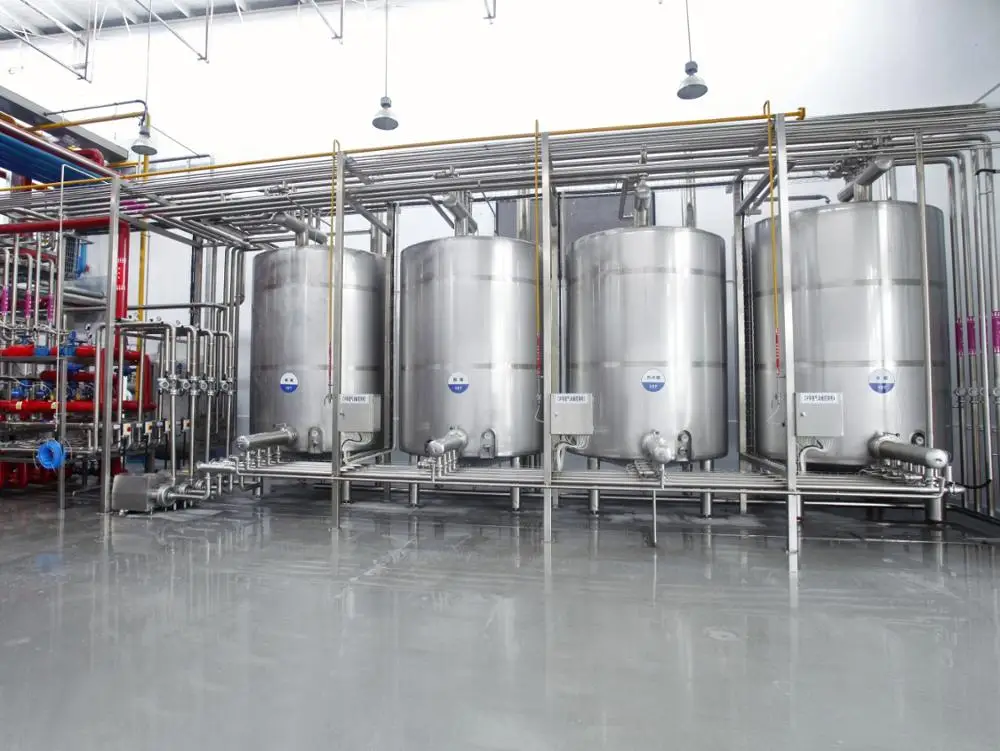

Detailed Images
Size Information
Size Chart of This Design
Model
GS-UHT-1(A)
GS-UHT-2(A)
GS-UHT-3(A)
GS-UHT-4(A)
GS-UHT-5(A)
Production capacity (L/H)
1000
2000
3000
4000
5000
Material Inlet temperature
5℃
5℃
5℃
5℃
5℃
Warm keeping time(S)
4-15
4-15
4-15
4-15
4-15
Sterilizing temperature
95~125(138℃)
95~125(138℃)
95~125(138℃)
95~125(138℃)
95~125(138℃)
Material outlet temperature
4-20
4-20
4-20
4-20
4-20
Steam pressure
0.4(0.6Mpa)
0.4(0.6Mpa)
0.4(0.6Mpa)
0.4(0.6Mpa)
0.4(0.6Mpa)
Steam cost
~130kg/h
~160kg/h
~240kg/h
~320kg/h
~400kg/h
Compressed air pressure
0.6Mpa
0.6Mpa
0.6Mpa
0.6Mpa
0.6Mpa
Compressed air consumption
50L/H
50L/H
50L/H
50L/H
50L/H
Size(Without homogenizer)
3500*1600*1800
4500*2000*1900
4500*2500*2000
5000*2000*2000
5000*2000*2000
Electrisity cost(kw)(Without homogenizer)
8.75
12
18
21
25
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
After Sales Service
WARRANTY

One year after date of bill of lading.

Company Introduction

Established in 1996, Beijing Kanglide Mechanical Equipment Manufacturing Co., Ltd. is a high-tech enterprise engaged in research, development and manufacturing of soybean product and soybean beverage machinery and equipment as well as training for production processes.



By keeping to the corporate philosophy of human oriented and technological innovation, our company has incomparable unique advantages in talents, technologies and industry influence. In addition to having our own plant protein research and development center, our company has also built a joint laboratory with the College of Food Science and Nutritional Engineering of China Agricultural University and established Kanglide -- Shaoyang Institute Joint Experimental Base with Hunan Shaoyang Institute. Since 2012, Kanglide has established long-term cooperation relationships with many enterprises such as Japan Takahashi Corporation, Japan Keiyo, YASUJIMA Co., Ltd, etc. Currently we have been granted more than 80 patents, and have undertaken tasks in the 12th Five-Year Plan and 13th Five-Year Plan programs of the Ministry of Science and Technology. The successfully developed cooked soya technology, menu type micro-pressure cooking technology, soymilk flavor generation and retention technology, unmanned soymilk automatic production line, sour water tofu automatic curding technology, brine filled tofu (uncongealed tofu) technology and okara drying technology and equipment have filled the technical blanks in the industry and led the development of the industry. As sponsor of the "Soybean Variety and Modern Soymilk Processing Seminar" and organizer of the "First Symposium on Technical Development and Application Innovation of Probiotic Soymilk (Milk)", Kanglide is pushing forward the healthy and rapid development of the soybean beverage industry together with famous enterprises in the industry.



The raw materials and parts from world's famous manufacturers, modern processing equipment, well-trained employees, scientific and reasonable mechanical design, as well as strict quality control system ensure advanced and reliable Kanglide products. We have won wide trust and high praise from users. Our company is a common choice of Beidahuang Group, Dali Group, Tongyi Enterprise, Laoganma, Doudou Group, Hangzhou Hongguang Langhua, Henan Zhongwo and many other top companies. In addition, Kanglide has also been awarded many honors such as Trustworthy Enterprise in Beijing, Excellent Manufacturer of Soybean Product Equipment in Beijing, etc.



Our company is in an endless pursuit of honesty, introduction and absorption and independent innovation. Building projects and enhancing the image is our consistent service philosophy. Respecting customers and creating value for customers is our solemn commitment to customers. Kanglide is ready to work closely with people in the industry and jointly create a brilliant future for the soybean product and soybean beverage industries.


Our Services & Strength
In addition to having our own plant protein research and development center, our company has also built a joint laboratory with the College of Food Science and Nutritional Engineering of China Agricultural University and established Kanglide -- Shaoyang Institute Joint Experimental Base with Hunan Shaoyang Institute.
FAQ
  1. Installation: If buyer needed, seller will send two technicians to make guide installation and commissioning in buyer’s factory free of charge. The expenses of roundtrip by air plane and accommodation in buyer’s country (including food, hotel and transportation)on your side.
