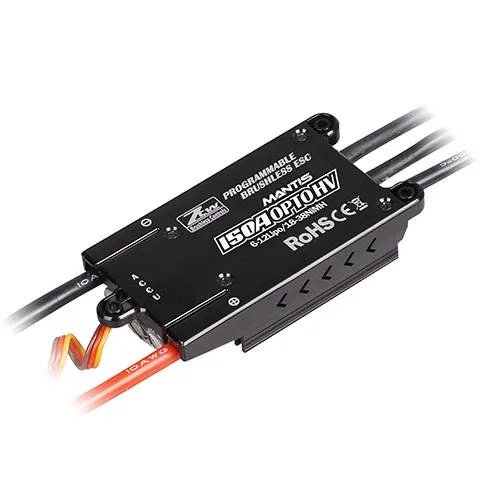

Бесщеточный Регулятор Скорости ZTW Mantis 150A OPTO HV SBEC
- Категория: Детали игрушек >>>
- Поставщик: Superior,E-Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.16 $* | 0.43 $* |
| Aug-19-2025 | 0.79 $* | 0.91 $* |
| Jul-19-2025 | 0.52 $* | 0.57 $* |
| Jun-19-2025 | 0.75 $* | 0.24 $* |
| May-19-2025 | 0.93 $* | 0.36 $* |
| Apr-19-2025 | 0.66 $* | 0.7 $* |
| Mar-19-2025 | 0.2 $* | 0.70 $* |
| Feb-19-2025 | 0.82 $* | 0.42 $* |
| Jan-19-2025 | 0.58 $* | 0.58 $* |
Характеристики
| Product type | Mantis 155A SBEC 5A | |
| Model Number | 2155211 | |
| Type | brushed/brushless | brushless |
| High Voltage / Normal | Normal | |
| Specifications | Continuous Current | 155A |
| Burst Current | 200A | |
| Battery Cell | 5-18NC/2-6Lipo | |
| BEC output | 5.0V,5.5V,6.0V ajustable/5A | |

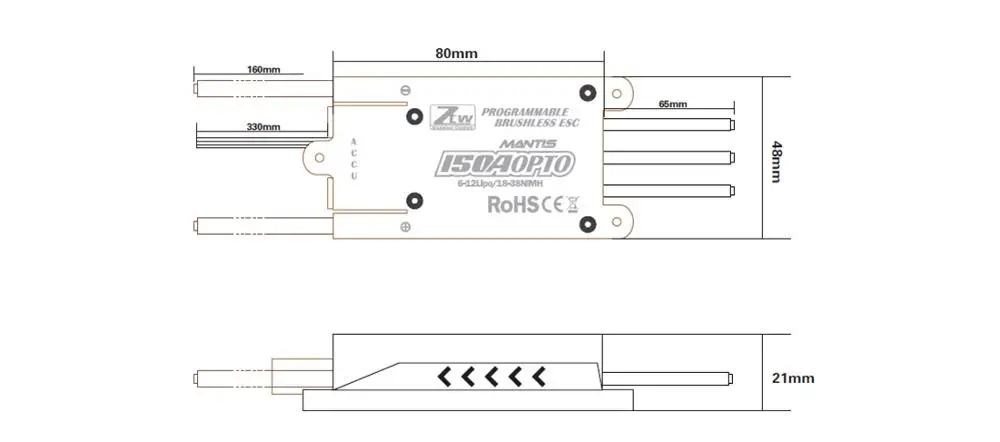

| Size | Width | 48mm |
| Length | 80mm | |
| Height | 21mm | |
| Weight | 147g | |
| Wires & Connectors | Power Wires | 10#AWG,160mm-Red/160mm-Black |
| Motor Wires | 10#AWG,65mm-Black | |
| Signal Wires | (Brown,orange and red)60C,330mm a special JR male plug at one side | |
| Signal Wires 2 | ||
| Power plug | no | |
| ESC Programing via | Transmitter | yes |
| AIR Program Card | ||
| LED Program Card | yes | |
| LCD Program Card | ||
| WiFi Module | ||
| USB program connector | ||
| Firmware | Firmware Upgrade |
| Tone of value
Prog.Item | BEEP- | BEEP- BEEP- | BEEP- BEEP-BEEP- | BEEP- BEEP- BEEP- BEEP- | BEEP— | BEEP— BEEP- | BEEP— BEEP- BEEP- | BEEP— BEEP- BEEP- BEEP- | BEEP— BEEP- BEEP- BEEP- BEEP- |
| Brake Type | Brake OFF | Soft Brake | Mid Brake | Hard Brake | |||||
| Battery Type | NiCd/NiMH | LiPo | LiFe | ||||||
| Cut Off Voltage Threshold | 2.8V/50% | 3.0V/60% | 3.2V/65% | No Protection | |||||
| Restore Factory Setup Defaults | Restore | ||||||||
| Motor Timing | Auto | 2° | 8° | 15° | 22° | 30° | |||
| SBEC Voltage Output | 5.0V | 6.0V | 7.4V | 8.4V | |||||
| Governor Mode | RPM OFF | 1st Soft Start | 2nd Soft Start | Governor Mode 1 | Governor Mode 2 | ||||
| Motor Rotation | Forward | Reverse | |||||||
| Start Up Strength | 10% | 15% | 20% | 25% | 30% | 35% | 40% | 45% | 50% |
| Low Voltage Cut Off Type | Reduce Power |
