2:1 в тканевой оплетке термоусадочные
- Категория: Insulation Materials & Elements >>>
- Поставщик: Xiamen,Mj,Industrial,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.57 $* |
| Aug-16-2025 | 0.4 $* | 0.61 $* |
| Jul-16-2025 | 0.91 $* | 0.85 $* |
| Jun-16-2025 | 0.96 $* | 0.28 $* |
| May-16-2025 | 0.83 $* | 0.52 $* |
| Apr-16-2025 | 0.97 $* | 0.95 $* |
| Mar-16-2025 | 0.63 $* | 0.24 $* |
| Feb-16-2025 | 0.24 $* | 0.33 $* |
| Jan-16-2025 | 0.43 $* | 0.79 $* |
Характеристики
MJ-FHSS 2:1 2:1 Fabric Braided Heat Shrink Tubing
What is the Special of our Fabric Heat Shrink Sleeve?
1.The best qualities of braided sleeving and heat shrink tubing in one Product.
2.Extremely flexible and resistant to trapping water, heat and humidity.
2.Provides outstanding abrasion, chafing and cutthrough protection, even at high temperatures.
3.Shrinks to 1/2 of the original diameter to conform to oddly shaped objects, and provides secure
termination of wire loom / braided sleeving projects.
4.Easily cuts with scissors without fraying for easy preparation.
5.Halogen Free.
6.RoHS Compliant.
What is the Details of our Fabric HeatShrink Tubing?
Application Fields | Fabric heat shrink sleeve ideal for rubber hosing and industrial/construction applications, as well as exposed cabling |
Material | Polyolefin and Polyester yarns |
Shrink Ratio | 2:1 |
Working Temperature | -40°C to 125°C (-40°F to 257°F) |
Minimum Shrink Temperature | 70°C (158°F) |
Minimum Fully Recovery Temperature | 120°C (248°F) |
Flammability | Non-Flame-Retardant |
Available Size | 20mm~100mm |
Standard Color | Black |
Recommended Cutting | Scissor |
Wall Type | Single |
Pliancy | Very Flexible |
Abrasion Resistance | High |
Certificated | ROHS,Halogen Free |
Chemical Resistance | Lubricating oil, Antifreeze (50% Ethylene Glycol), Brake Fluid, Engine Oil, Unleaded Gasoline, Diesel Fluid, Hydraulic Fluid, Mineral Hydraulic Fluid, Battery Acid, Water |
Packaging | 200m,100m,50m/Rollor according to your detail requirements |
| Full Size Sample Lead time: | As usual 3-7 working days |
| Production Lead time: | 10-12days |

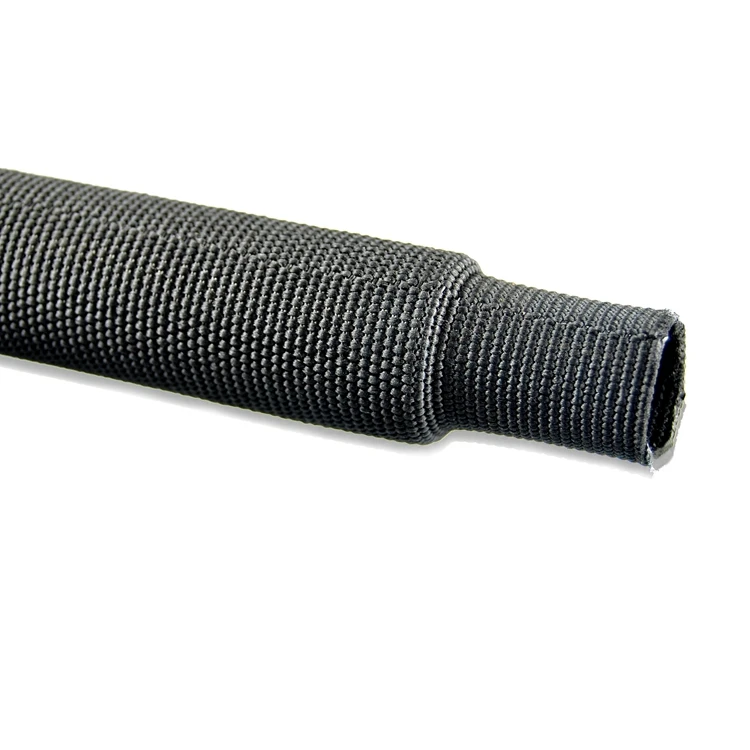

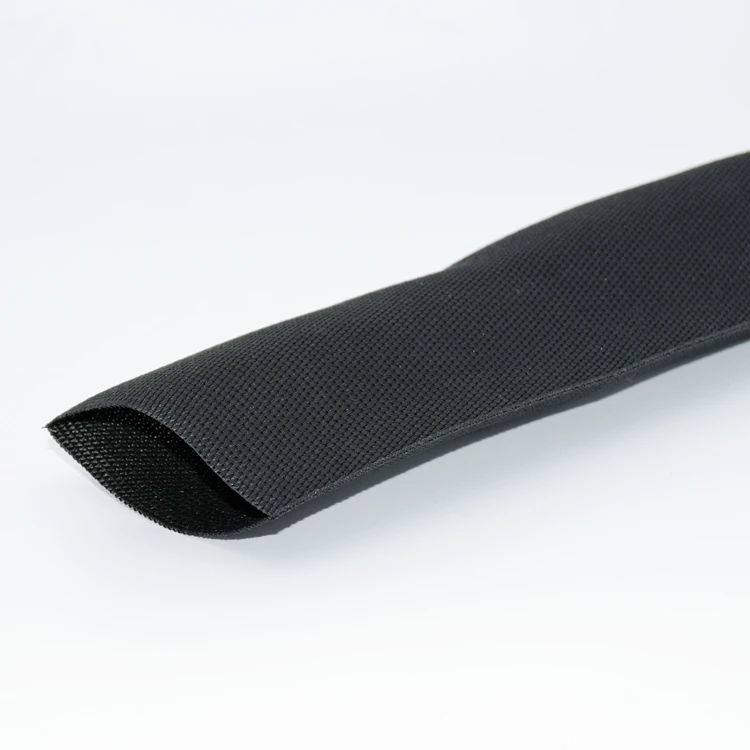

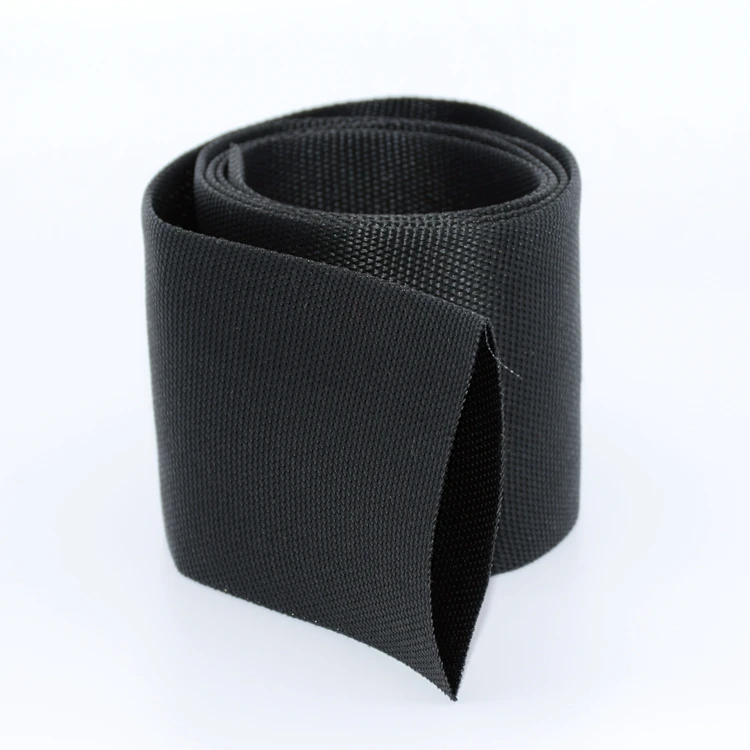

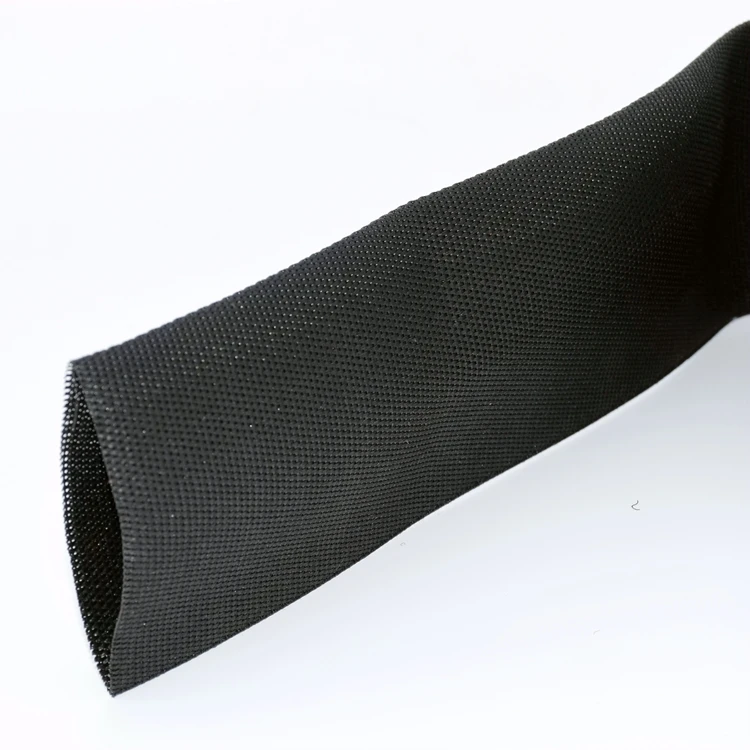

Product Picture
Product Pictures

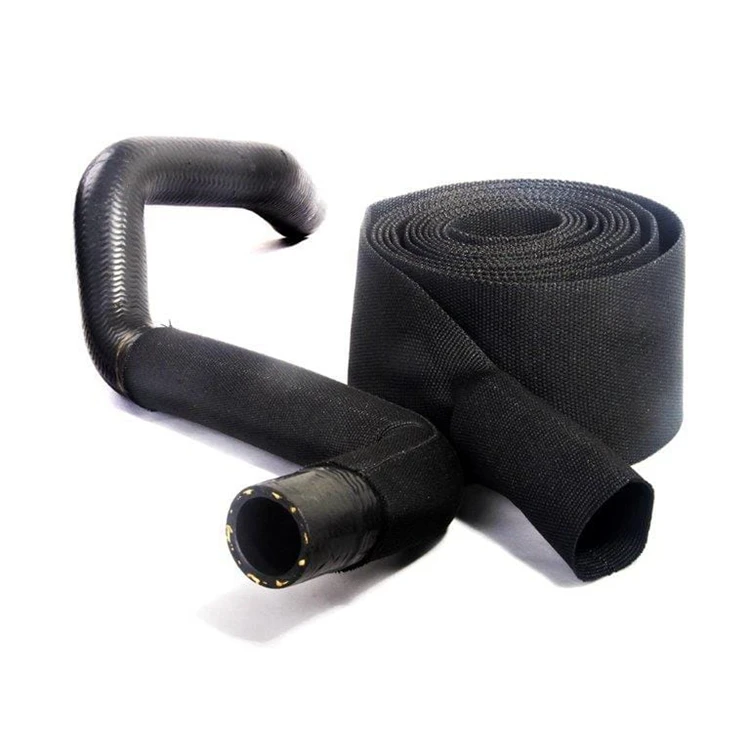

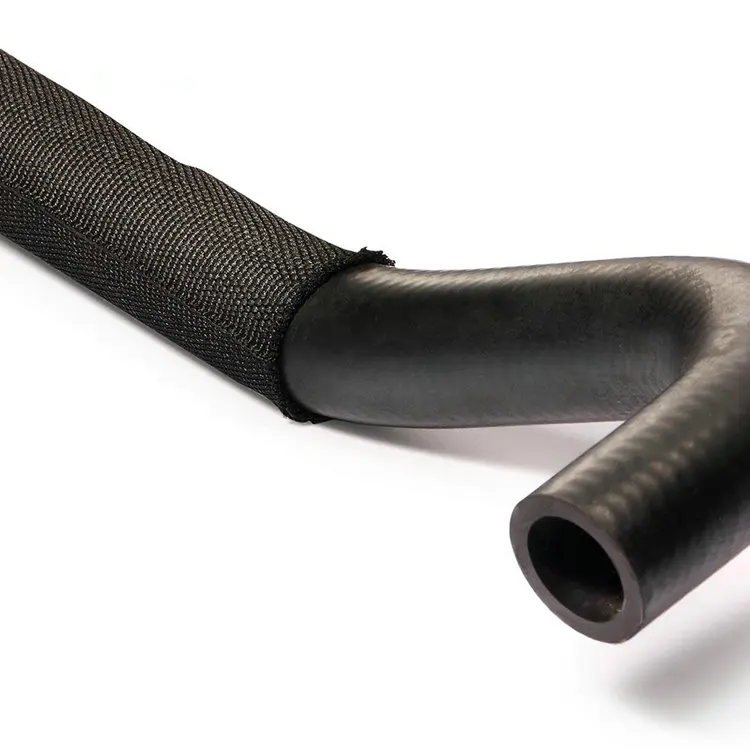

Application
Fabric Heat shrink tubing is designed primarily to provide mechanical abrasion protection for components such as rubber hoses, plastic pipes, and harness wiring bundles. Also suitable for other applications, such as noise and rattle suppression.
Specification
| Part No | Unshrunk Diameter | Shrunk Diameter | Packing(L) |
| MJ-FHSS010 | 10.00mm | 5.00mm | 200m/Roll |
| MJ-FHSS012 | 12.00mm | 6.00mm | 200m/Roll |
| MJ-FHSS020 | 20.00mm | 10.00mm | 100m/Roll |
| MJ-FHSS025 | 25.00mm | 12.50mm | 100m/Roll |
| MJ-FHSS030 | 30.00mm | 15.00mm | 100m/Roll |
| MJ-FHSS034 | 34.00mm | 17.00mm | 100m/Roll |
| MJ-FHSS040 | 40.00mm | 20.00mm | 100m/Roll |
| MJ-FHSS050 | 50.00mm | 50.00mm | 100m/Roll |
| MJ-FHSS060 | 60.00mm | 30.00mm | 100m/Roll |
| MJ-FHSS070 | 70.00mm | 35.00mm | 100m/Roll |
| MJ-FHSS080 | 80.00mm | 40.00mm | 100m/Roll |
| MJ-FHSS090 | 90.00mm | 90.00mm | 50m/Roll |
| MJ-FHSS100 | 100.00mm | 50.00mm | 50m/Roll |
PACKING AND SHIPPING
| Packaging | 200m/Roll |
| MOQ | 1 rolls/design for stocked size |
Factory Show
About MJ
Factory Show
Quality Control Process
Our Certification
FAQ
FAQ
- QWhat is the MOQ ?
- A1 rolls for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
- QCan I get the pre-production sample ?
- AYes, we will send you pp sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormaly 7-10 days receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follows ROHS,Reach,Halogen Free,CSA standards,We have 15years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
How to contact us ?
Send your Inquiry Details in the Below , Click "Send" Now !
