Поликристаллические солнечные элементы Vmaxpower 280 Вт солнечная панель 265 прозрачная для солнечной системы 5
- Категория: Solar Cells >>>
- Поставщик: Beijing,Multifit,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 60.41 $* | 63.62 $* |
| Aug-17-2025 | 59.72 $* | 62.72 $* |
| Jul-17-2025 | 50.24 $* | 53.98 $* |
| Jun-17-2025 | 58.3 $* | 61.8 $* |
| May-17-2025 | 51.90 $* | 54.33 $* |
| Apr-17-2025 | 57.84 $* | 60.75 $* |
| Mar-17-2025 | 57.7 $* | 60.63 $* |
| Feb-17-2025 | 56.95 $* | 59.52 $* |
| Jan-17-2025 | 56.56 $* | 59.71 $* |
Характеристики
Product Description

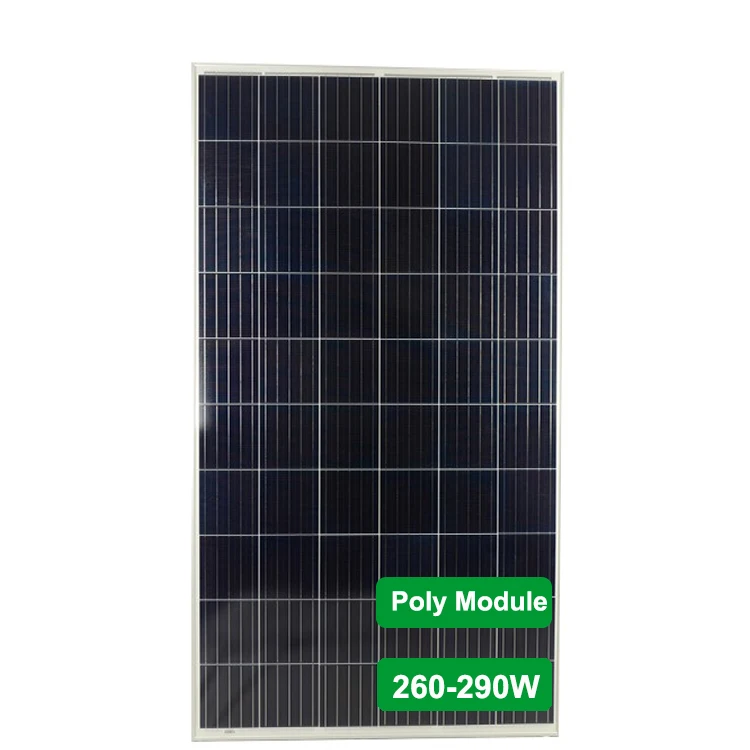

Vmaxpower 260W 265W 270W 275W 280W 285W 290W poly solar panels fr solar power systems
MUL 260~290P-60 Poly Solar Panel
60Cells solar module panels,used for 24V system.
Module | SPxxxP6-60 xxx = Peak Power Watts | ||||||||
Peak Power Watts(Pmax/W) | 260 | 265 | 270 | 280 | 290 | ||||
Power Output Tolerance(W) | 0 ~ +5 | ||||||||
Maximum Power Voltage(Vmp/V) | 30.4 | 30.6 | 30.8 | 31.0 | 31.2 | ||||
Maximum Power Current(Imp/A) | 8.55 | 8.72 | 8.77 | 8.95 | 9.01 | ||||
Open Circuit Voltage(Voc/V) | 37.5 | 37.7 | 37.9 | 38.1 | 38.3 | ||||
Short Circuit Current(Isc/A) | 8.79 | 8.88 | 8.98 | 9.07 | 9.07 | ||||
Module Effciency(%) | 15.9 | 16.2 | 16.5 | 16.8 | 17.1 | ||||
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.
*Measuring Tolerance: ±3%.
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.
Grade A Materials
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> 16-22% High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

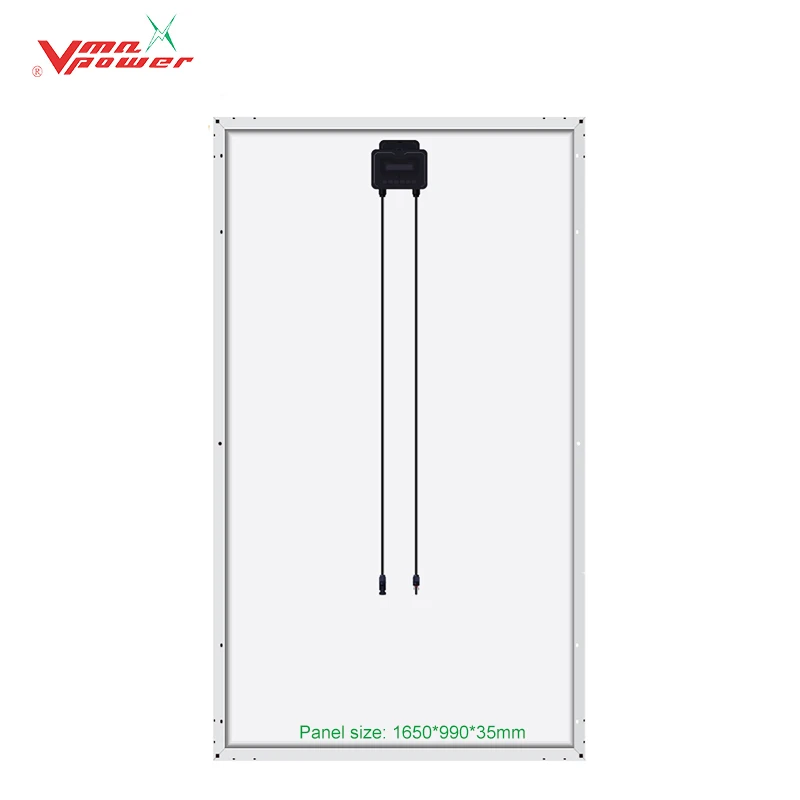

Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
(Black/Silver Optional)
110% Seal-lip Design Glue Injection
(Black/Silver Optional)

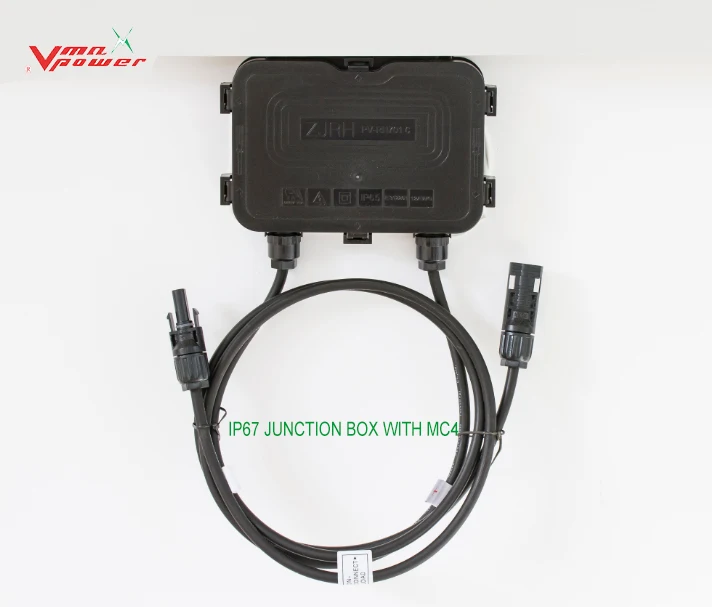

Junction box
engineering custom edition
> Quality diode ensures module running safety
> IP68 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP68 protection level
> Heat dissipation
> Long service life

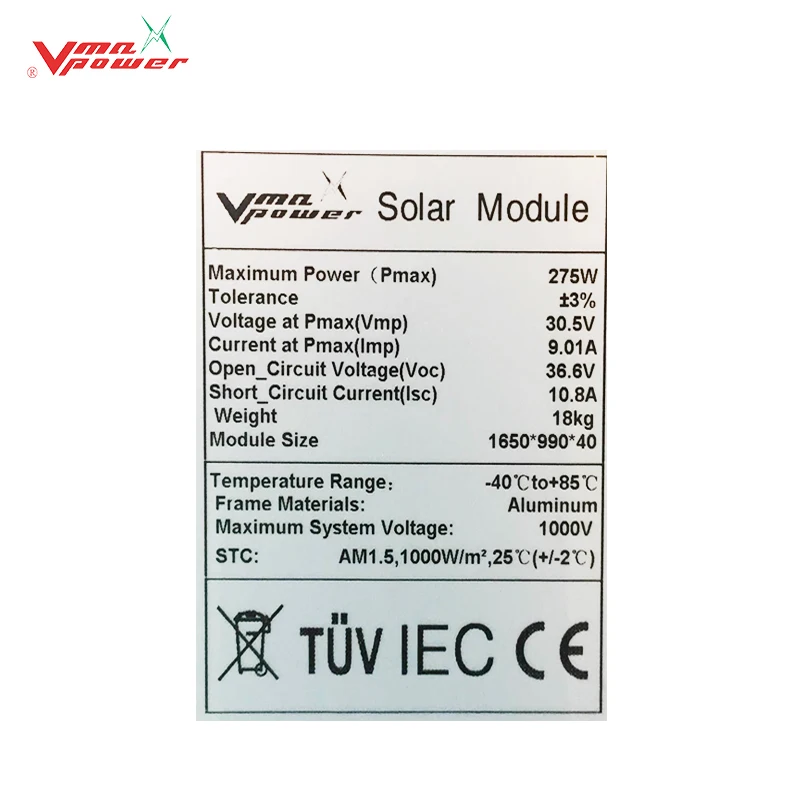

Lable
Waterproof Labels
OEM LOGO Optional
OEM LOGO Optional
Detailed Images
Vmaxpower solar module factory

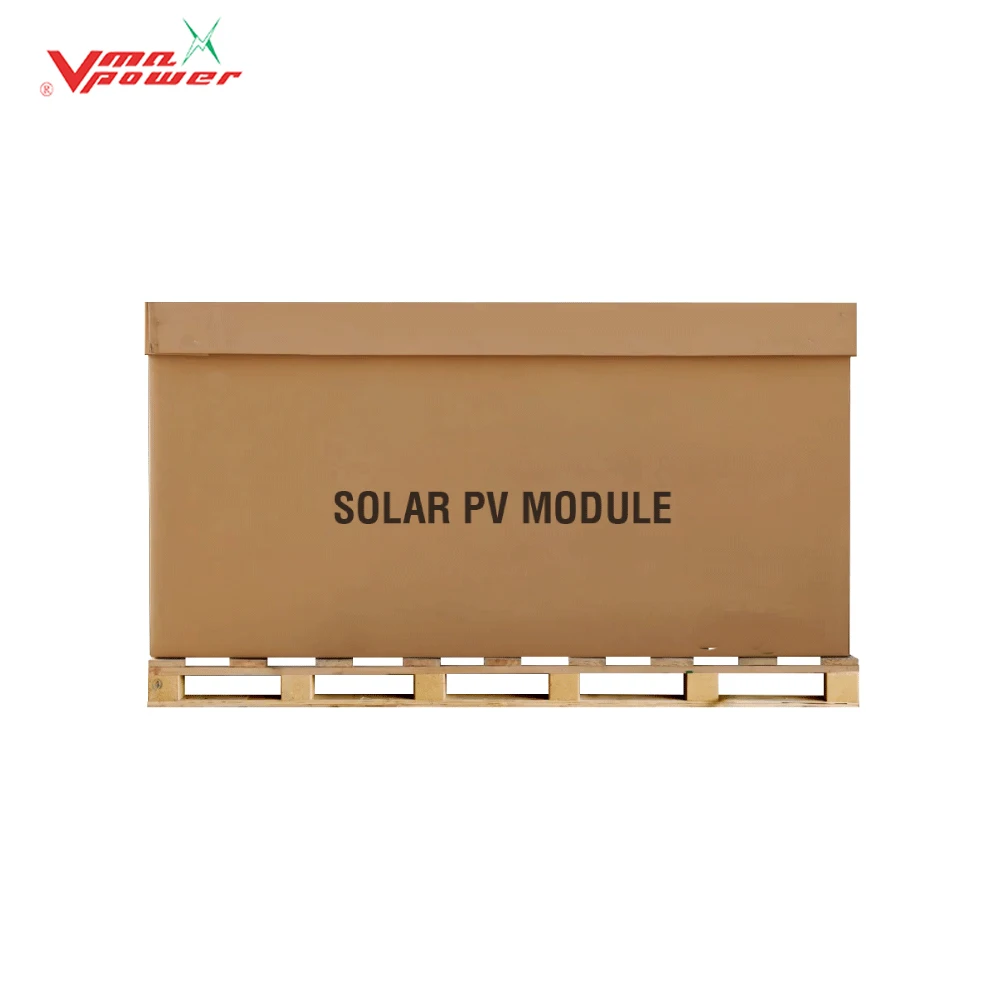

Packing&Shipping
Model | MUL260-290P-60 | ||||
Modules per box | 30 pieces | ||||
Modules per 40' container | 360 pieces | ||||
Modules per 40' container | 840 pieces | ||||
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests
Our Projects
175KW Project in Pennsylvania, USA, Totally 612 Piece MUL285P-60 Solar Panels.
4.7MW,14760 pcs Solar panels in Iran

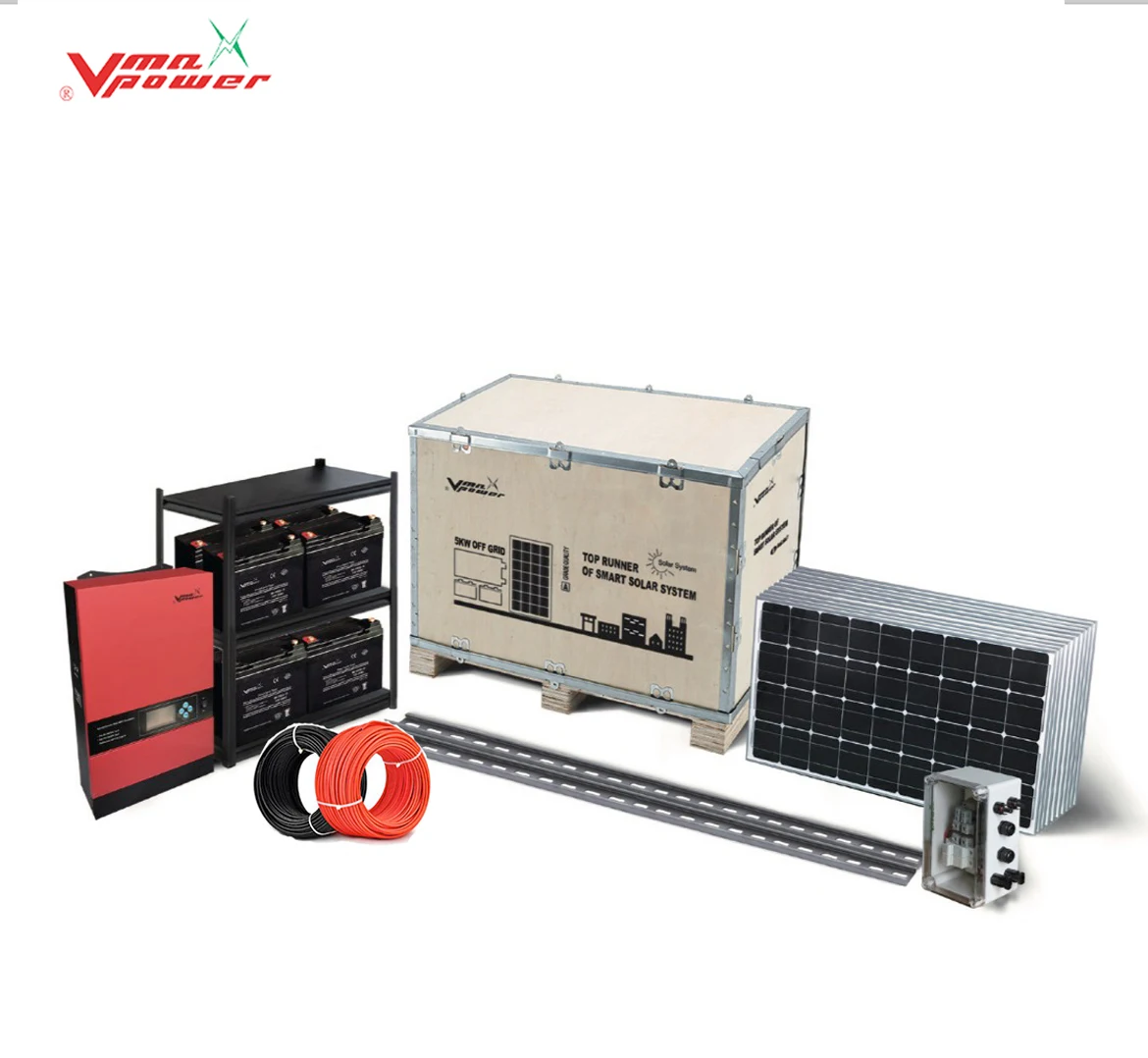

3.5KW Solar off grid system in Philippines
