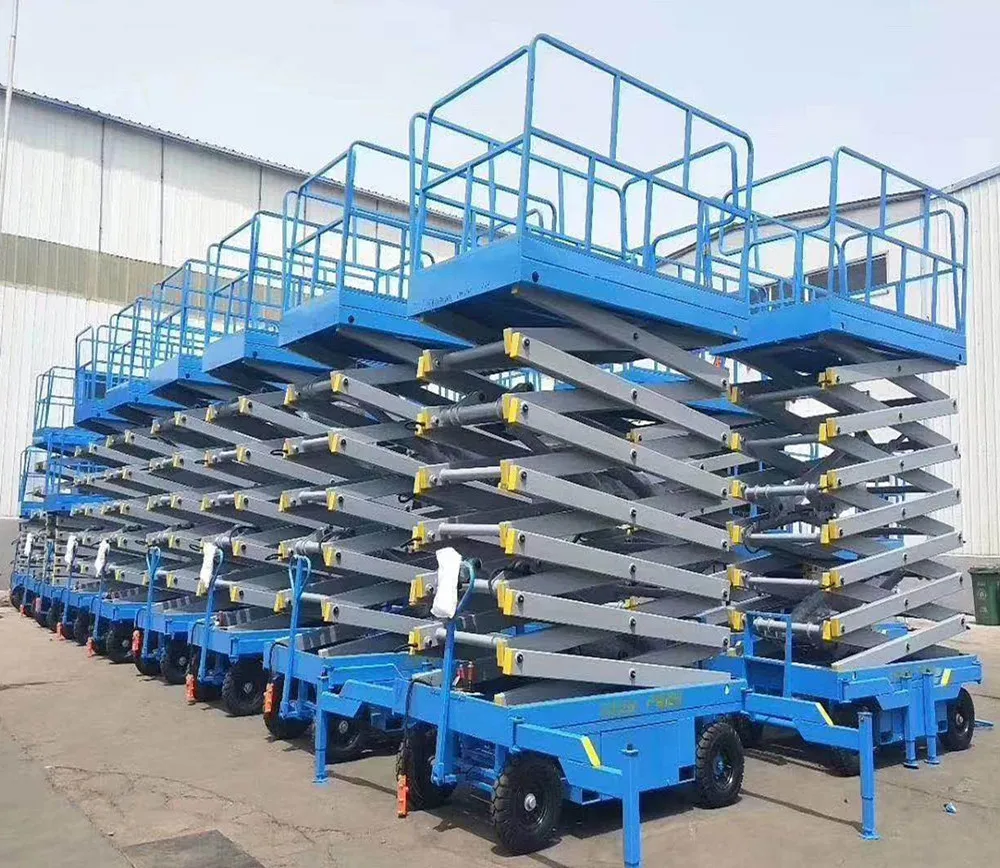

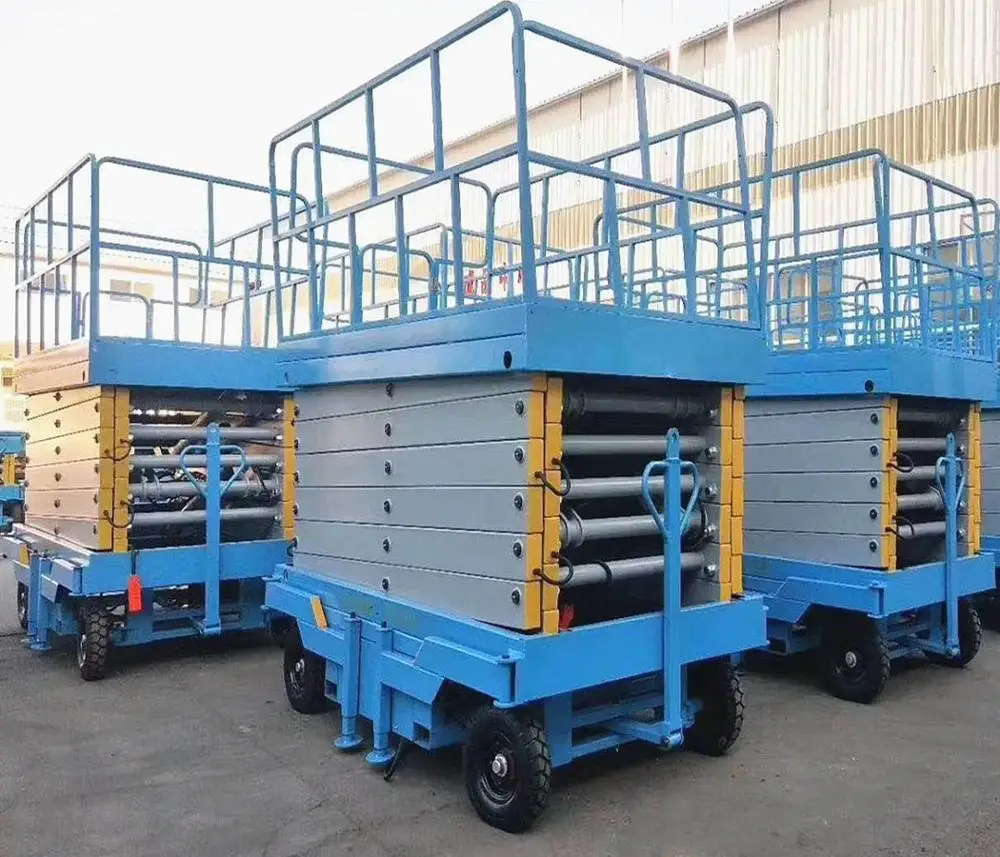

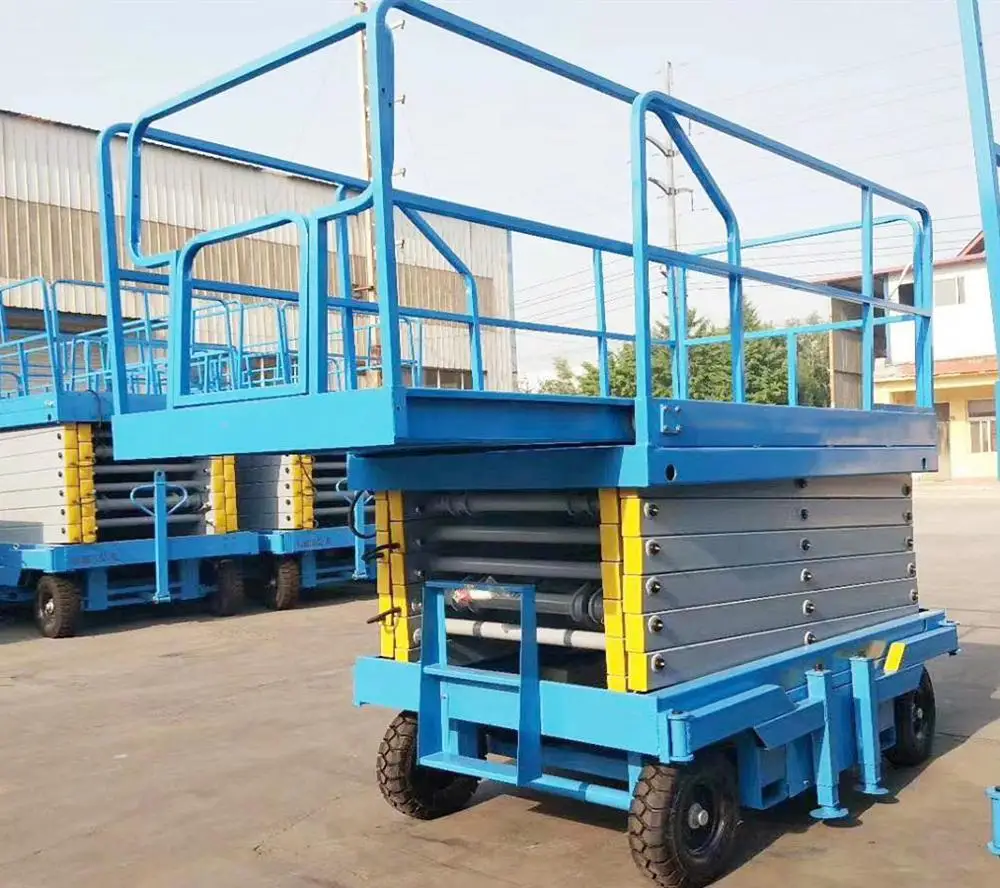

Hydraulic mechanical 20 meter working height mobile scissor lift with top quality



Mobile Scissor Lift Parameters
Model		Platform Dimension(mm)			Load(kg)	Lifting Height(m)		Overall Dimensions(mm)			Overall Weight(kg)
QYCY0.5-6		2100*830			500	6		2250*950*1200			880
QYCY0.5-7		2100*830			500	7		2250*950*1280			970
QYCY0.5-8		2100*930			500	8		2250*1060*1380			1050
QYCY0.5-9		2100*930			500	9		2250*1060*1500			1165
QYCY0.5-10		2100*1230			500	10		2250*1350*1530			1360
QYCY.05-11		2100*1230			500	11		2250*1350*1650			1400
QYCY0.5-12		2550*1530			500	12		2796*1670*1750			2260
QYCY0.5-14		2812*1530			500	14		3067*1730*1810			2486
QYCY0.3-16		2812*1600			300	16		3067*1810*2080			3063
QYCY0.3-18		3070*1600			300	18		3321*1810*2080			3900
QYCY1.0-4		2100*1200			1000	4		2250*1350*1180			1250
QYCY1.0-6		2100*1200			1000	6		2250*1350*1300			1400
QYCY1.0-8		2100*1200			1000	8		2250*1350*1420			1585
QYCY1.0-10		2100*1200			1000	10		2250*1350*1530			1700
QYCY1.0-12		2550*1530			1000	12		2250*1670*1750			2560
QYCY1.0-14		2812*1600			1000	14		3067*1810*1900			3230
QYCY1.5-6		2100*1530			1500	6		2250*1750*1530			1780
QYCY1.5-8		2100*1530			1500	8		2250*1750*1690			2070
QYCY1.5-10		2100*1530			1500	10		2250*1750*1850			2250
QYCY1.5-12		2550*1530			1500	12		2796*1762*1850			2900
QYCY1.5-14		2816*1600			1500	14		3045*1852*1960			3400
QYCY2.0-6		2100*1530			2000	6		2250*1750*1530			1780
QYCY2.0-8		2100*1530			2000	8		2250*1750*1690			2070
QYCY2.0-10		2100*1530			2000	10		2250*1750*1850			2250
QYCY2.0-12		2550*1600			2000	12		2796*1852*1954			3200
QYCY2.0-14		2816*1600			2000	14		3067*1852*2230			3900

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the lift table to stop at accurate position.
4)All the trailing scissor lift are passed 1.2 times loading test before leaving factory.

Optional configuration:
A. Imported pumping and hydraulic systems
B. Optional AC 380V power or 220V, DC, diesel-powered.
C. Assisted walking device can be added
D. Platform can extend outward



Hydraulic mechanical 20 meter working height mobile scissor lift with top quality





Shanghai Ruibiao Construction Machinery Co., Ltd.

The company is a professional manufacturer of hydraulic lifting platforms, hydraulic lifts, boarding bridges and other series of mechanical products. Since its establishment, the company has been continuously pursuing technological progress and dedicating to product innovation.

The company's products have a total of eight series of more than 60 products, the leading products are QYCY series of scissors lifting platform, GTJZ series of automatic scissors lifting platform.

All the products of the company are in line with national industry standards, and have been greatly recognized by the national metallurgical industry, railway system, China Petroleum, Iron and Steel Group and other units.

At the same time, we can also customize special lifting platforms according to the needs of customers to meet customers in various fields. We adhere to the integrity, professionalism, innovative spirit, product quality to achieve the future, adhere to research and development, learn from foreign advanced technology and process experience, and constantly improve and improve technology and process level to meet the different needs of customers.
