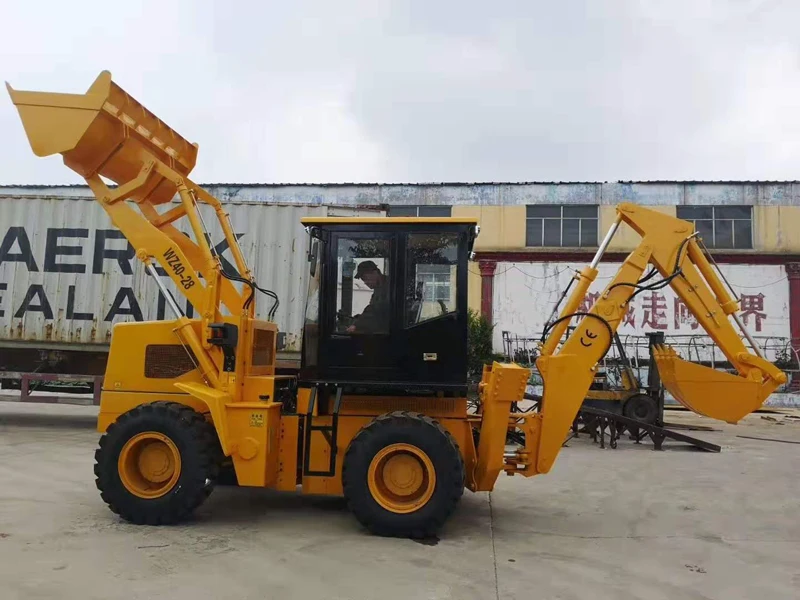

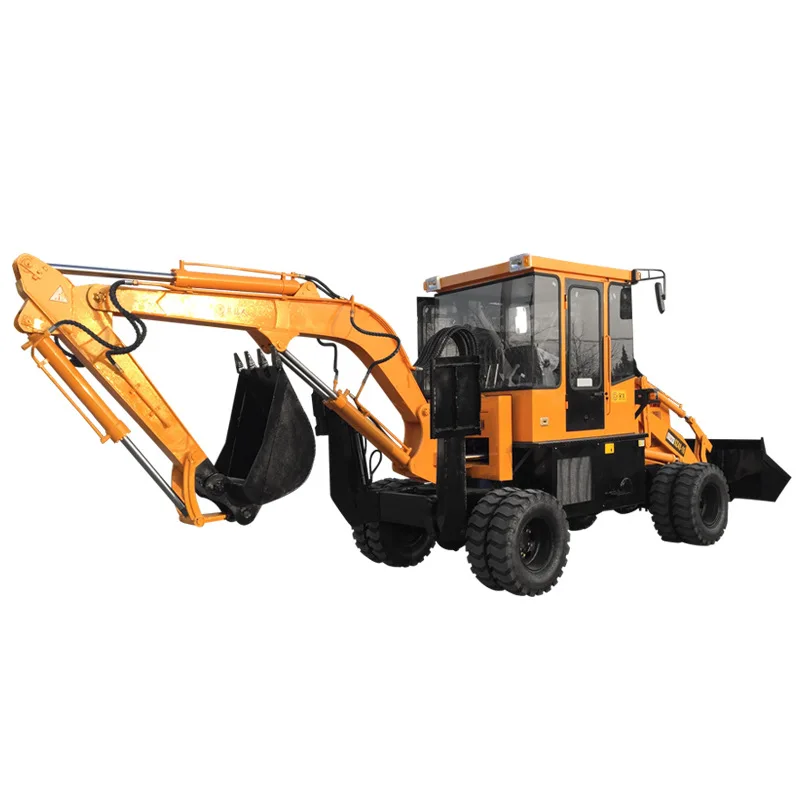

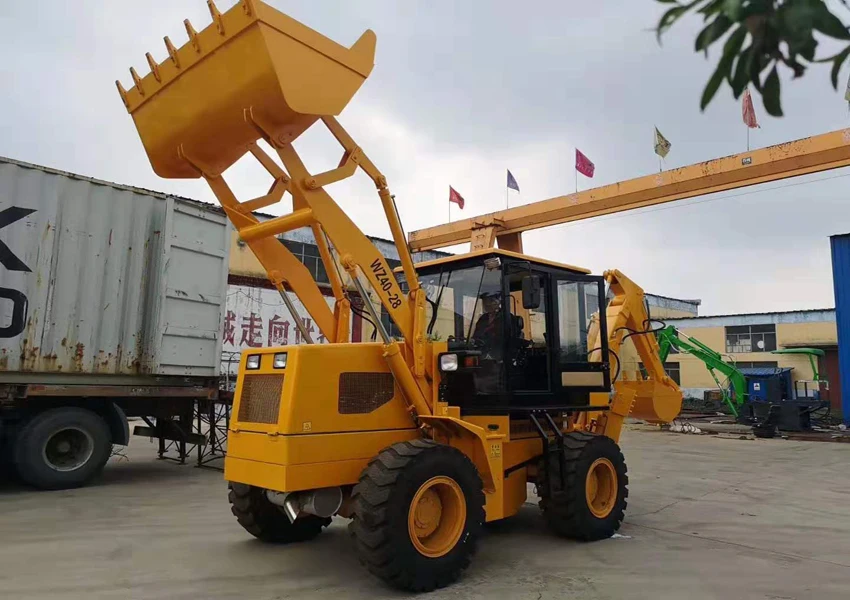

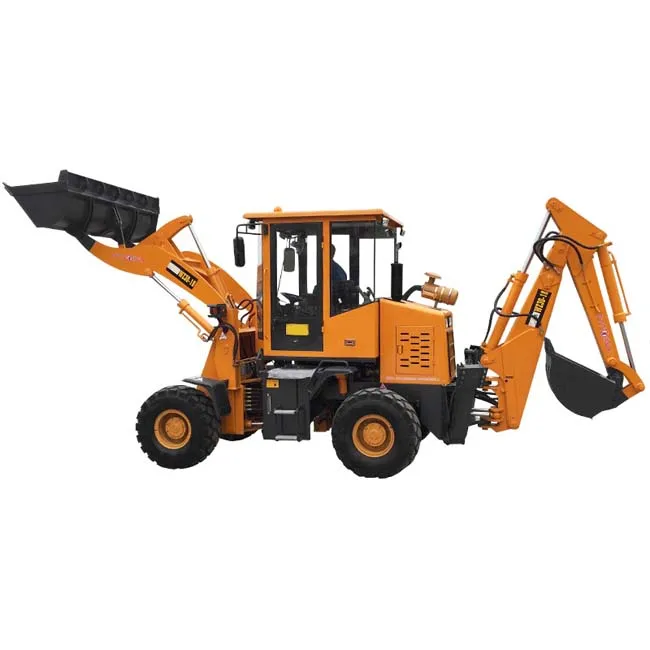

   Muti-function mini Wheel Backhoe Loader With Lift Excavator Bucket for sale



Model  WZ25-16



1, Increased cab with security glass, bright and spacious.
2, Operation table: easy to check water temperature, oil temperature, current,
3, Adopts famous brand hydraulic part, dual pump converging power; excavating, loading hydraulic power for each other.
4, Adopts suspension shock absorber-360 • rotate seat, with seat belts, and improve driver comfort and safety.
5, Hinge type front and rear frames, small turning radius, full hydraulic steering, easy and convenient operation.
Part 6, mining-led operation, light manipulation, positioning accuracy.
7, Fully equipped with all the features of small excavators and loaders.
8, Equipped with a variety of options to meet the needs of different users.
9, Reset the tap unit and the wings legs, broken rock, and when you dig deeper than other forms of mining equipment with greater stability.





WZ25-16 Full hydraulic backhoe loader parameters
Operating weight	4100kg
Capacity of bucket	0.25m3
System working pressure	20mpa
Engine	490/38KW
Max. excavating height	4000mm
Max. excavating depth	3000mm
. excavating radius	5000mm
Max excavating diameter	550mm
Capacity of bucket	0.9 m3
Rated load	1600kg
Dumping height	2900mm
Dumping reach	950mm
Min. turning radius	4500mm
Grade ability	45%
Ground clearance	220mm
Wheel base	2180
Tread	1100mm
Tire model	12-16.5
Drive type	4WD
Size(L*W*H)	6050mm*2080mm*2850mm

















If it is not suit you , pls contact us , tell us your request .and we can accept OEM too.



Our factory manufacture WZ30-25  WZ30-18 ,WZ25-20, WZ25-16 ,  SZ40-16 series



Welcome you contact us ! Clike here . You can see Website homepagehome !
