Intel PGA988 I3 I5 I7 поддерживает Mini ITX материнскую плату на основе HM65

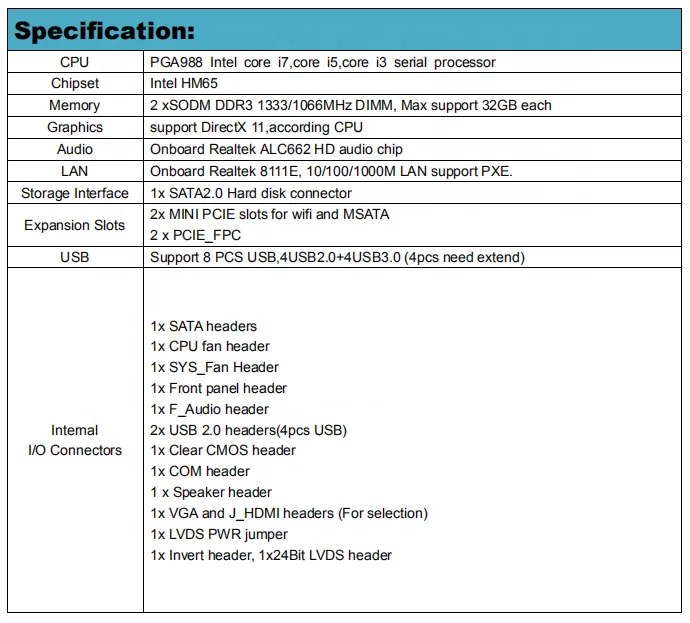

Specification:

CPU

PGA988 Intel core i7,core i5,core i3 serial processor

Chipset

Intel HM65

Memory

2 xSODM DDR3 1333/1066MHz DIMM, Max support 32GB each

Graphics

support DirectX 11,according CPU

Audio

Onboard Realtek ALC662 HD audio chip

LAN

Onboard Realtek 8111E, 10/100/1000M LAN support PXE.

Storage Interface

1x SATA2.0 Hard disk connector

Expansion Slots

2x MINI PCIE slots for wifi and MSATA

2 x PCIE_FPC

USB

Support 8 PCS USB,4USB2.0+4USB3.0 (4pcs need extend)

Internal

I/O Connectors

1x SATA headers

1x CPU fan header

1x SYS_Fan Header

1x Front panel header

1x F_Audio header

2x USB 2.0 headers(4pcs USB)

1x Clear CMOS header

1x COM header

1 x Speaker header

1x VGA and J_HDMI headers (For selection)

1x LVDS PWR jumper

1x Invert header, 1x24Bit LVDS header

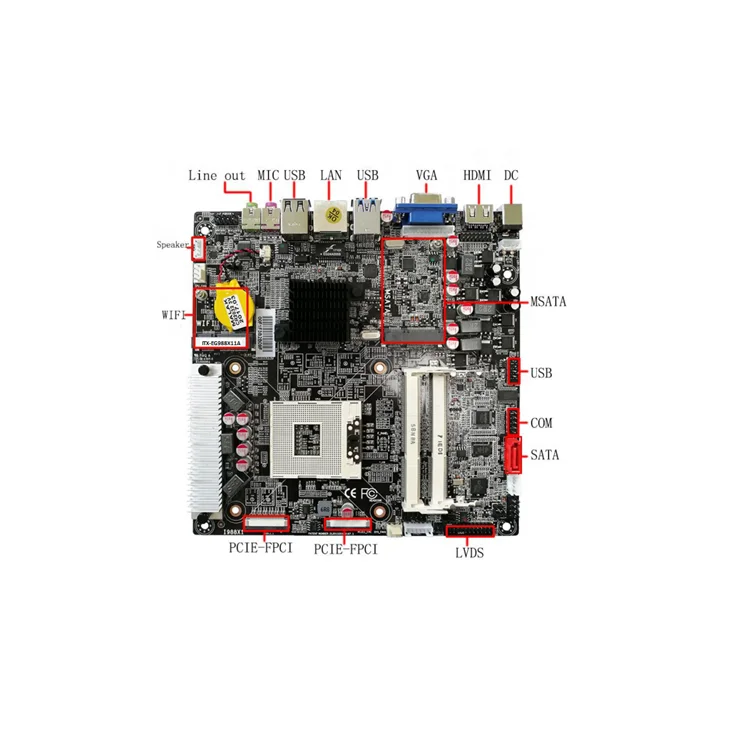

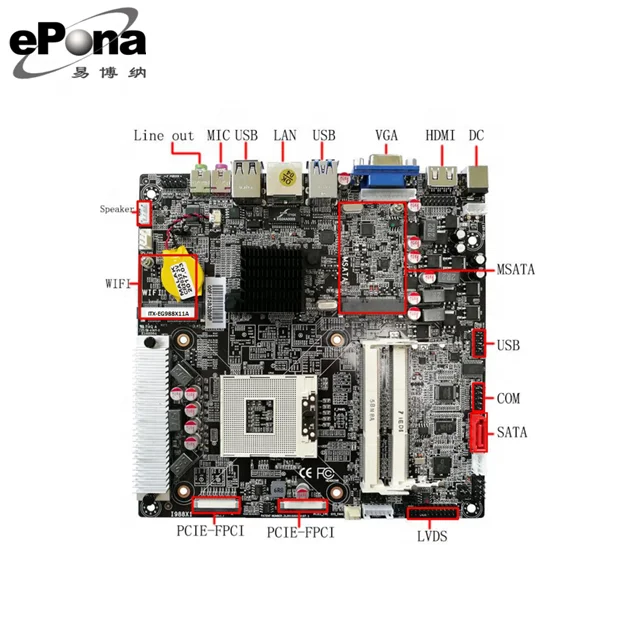

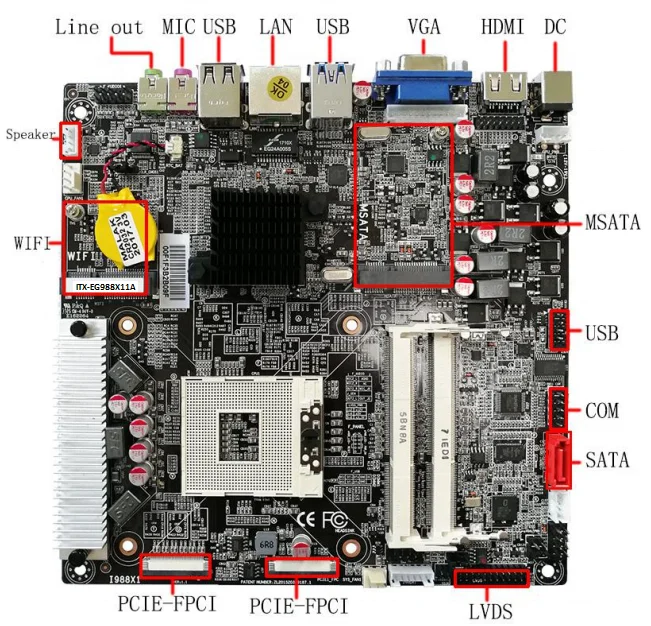

Back Panel

Connectors

1x12-19V DC Jack(2.5mm)

1x HDMI Port

1x VGA port

2x USB 3.0 ports

1x RJ45 Port

2x USB 2.0 ports

1 x audio 2 Jacks( Line-out, MIC or Line-in)

I/O Controller

1 x IT8782F

BIOS

AMI Authorized 32Mbit BIOS process, support RPL/PXE

Form Factor

Mini-ITX  170 x 170mm

Work Environmental:

Working conditional temperature

-15~55°C

Working conditional humidity

10%~80% relative humidity, non-condensing

Products Using Range

ATM, Kiosk, Digital Signage and Living Room PC
