Утилизации отходов дробильная машина полистирол уплотнитель уплотнения рециркулирующую

Scrap foam crushing machine Polystyrene compactor Compacting Recycling Line

Polystyrene compactorCF-CP Line

     Each component color, electrical components brand, packaging size can be customized according to customer requirements

  Operational principle :

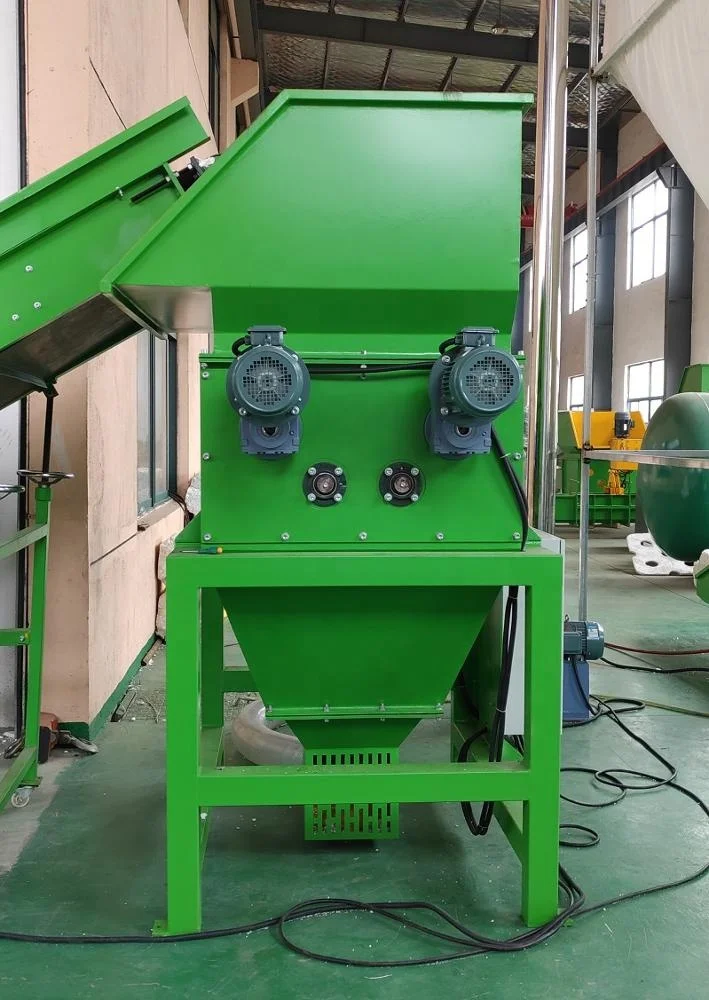

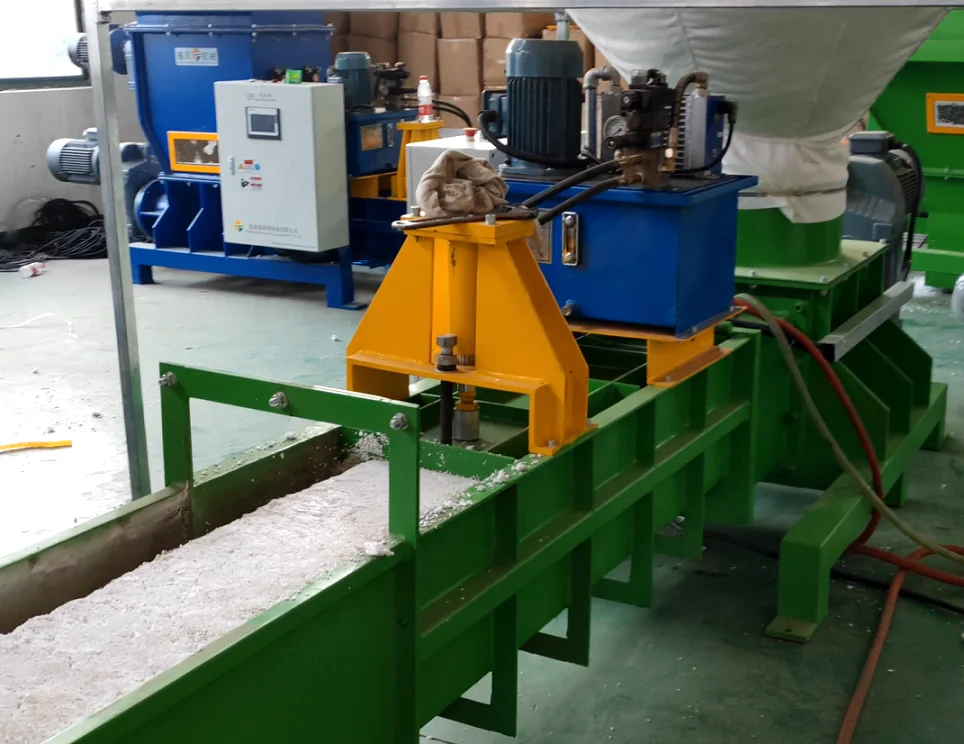

      Put the polystyrene foams into the crushing bin, and the motor drives the crushing bin to break the foams(Polystyrene beehive box) into small pieces. The foams that pass will be screened through the filter screen. Those that pass will enter the squeezing bin, while those that don't will continue to break until they pass.The extrusion bin is fed by motor driven screw.There is a water tank between the discharge channel and the extrusion bin. Two water pipes are connected on the water tank for water circulation and cooling effect.When the screw transfers small pieces of foam to the front of the outlet, the surface of the outlet is covered with a layer of 304 stainless steel, and the upper part is pressed by a hydraulic pump, so it is difficult to extrude the foam during the discharge.Wait for the foam block to be pushed out by the screw. When the hydraulic pump drops down and there is no material, the cover plate and the upper surface of the discharge channel can form a negative Angle and wait for the accumulation of foam blocks, and then repeat the previous action in a cycle.

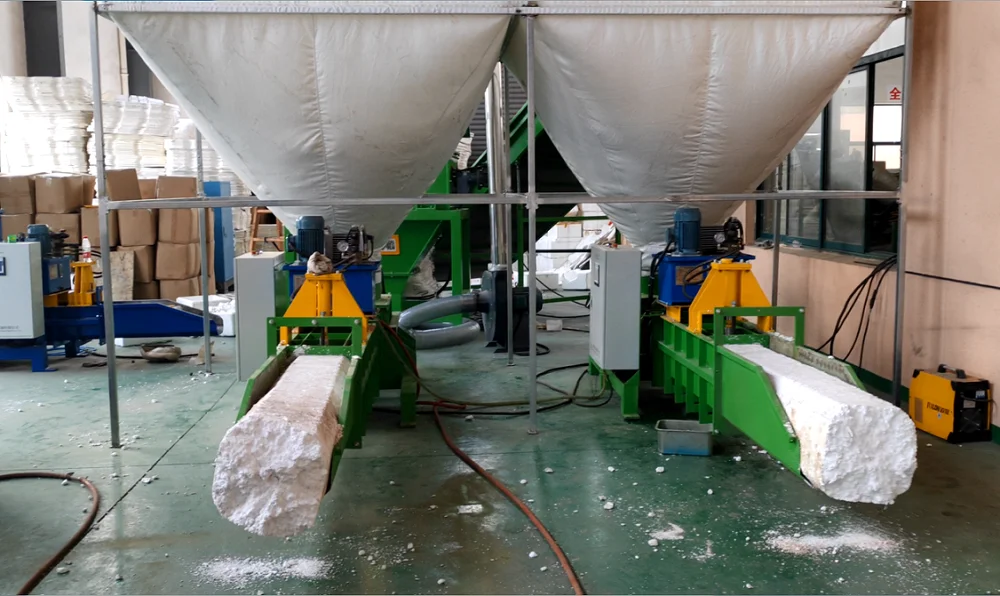

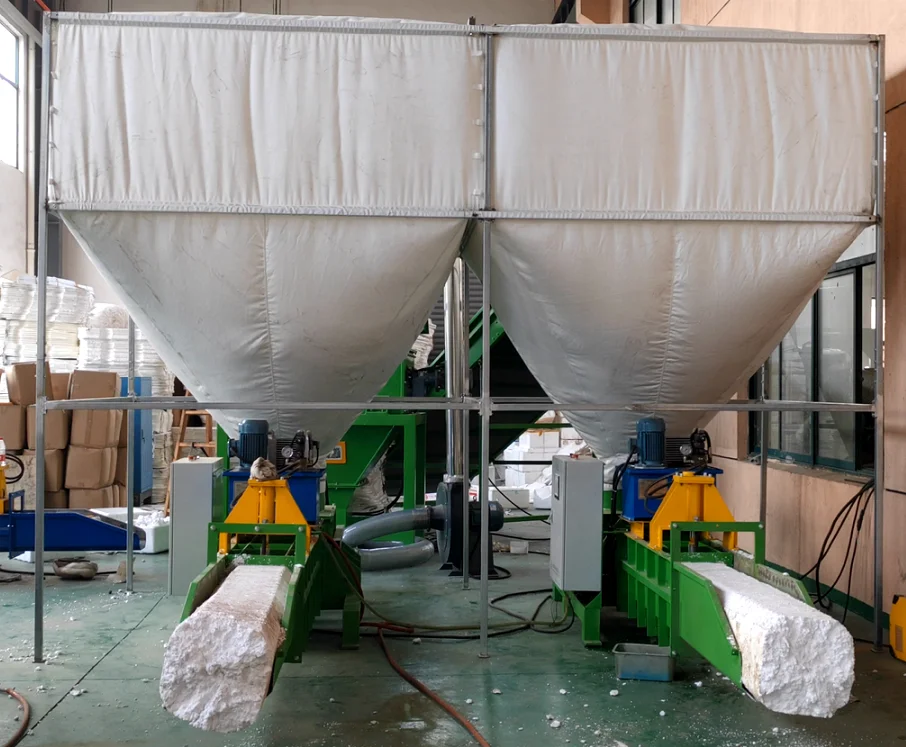

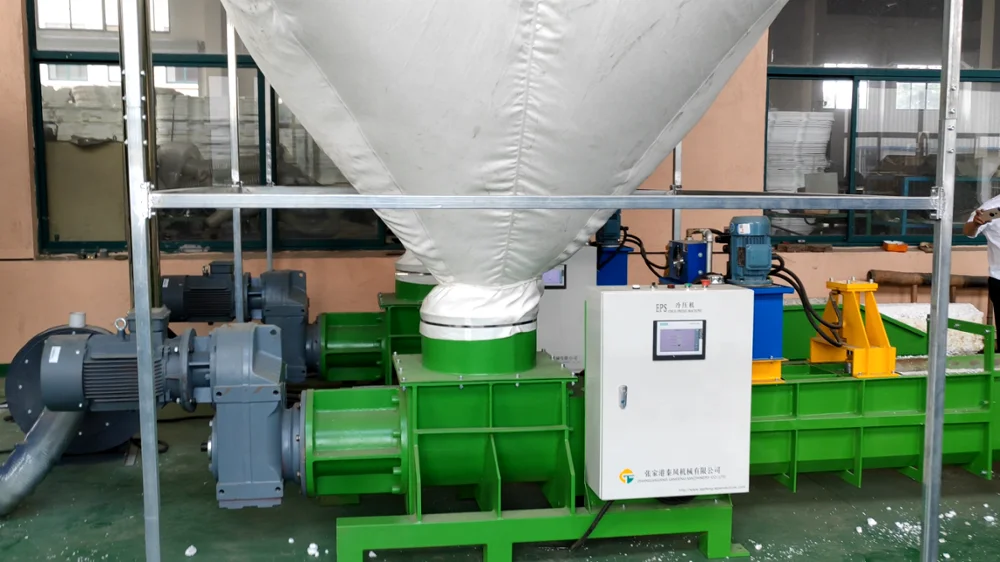

The CF-CP compacting line adopt the conveyor belt,fan delivery and silo system to increase the capacity of the line.

Mainly use in large size recycling center,big sea food market and the big distribution center.

Related Products

   CF-CP Line(200-300kg/h)      CF-HCP Line(150-200kg/h)                  CF-HCP Line(400-500kg/h)

 Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of compactors  for waste recycling.

FCL delivery, directly wrap film package packing;LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements.

(The equipment can be packaged according to customer's requirement)
