Product Description

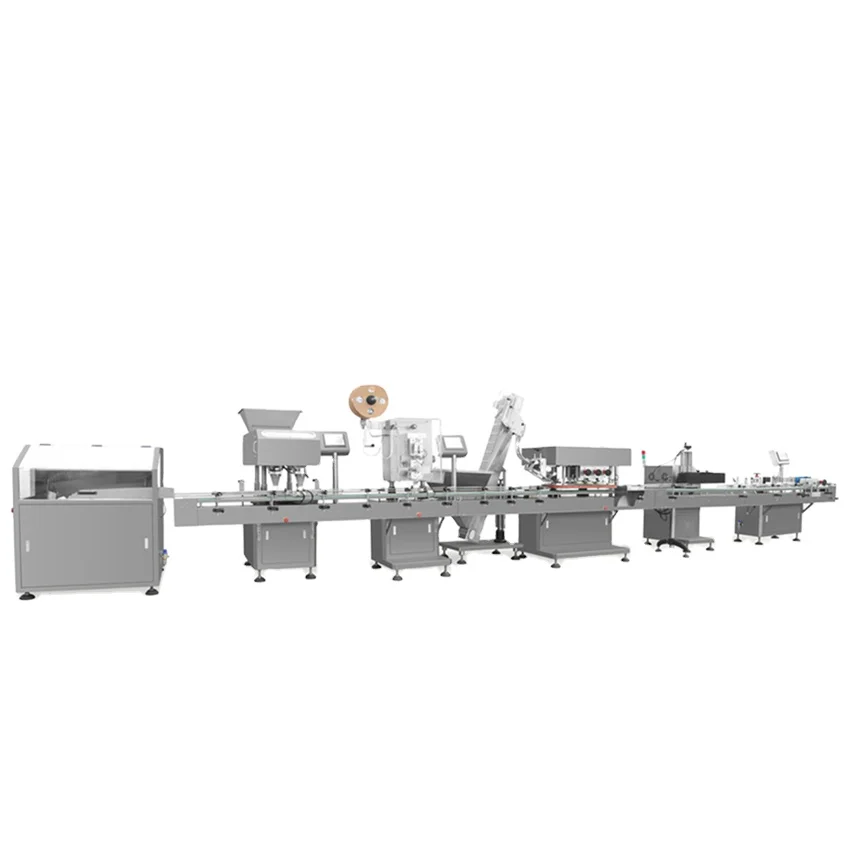

JS -160 Automatic Tablet/Capsule/Pill Bottle Packaging Lines
Automatic Tablet /Capsule /Pill Bottle Packaging lines are suitable for counting and filling wide range of tablet sizes between 5-25 mm and hard gelatin capsules #5~#00 in plastic or glass bottles .It is the most complete,innovative and affordable bottling line in the marketplace .We fully integrated this line to include from bottle unscrambler, counting and filling,paper and desiccant inserting,capping ,inspecting,induction sealing to pressure sensitive labeling system.The counter equipped with high quality intelliget sesors for 99%counting accuracy and reliablet performace.Unlike other stadard counters in the market .our counter comes with Taida Made PLC Control with color Touch screen Panel.Vibration Nozzles.secure bottle neck system for precision filling .No Bottle --No Fill,Tool-Less dismantle for cleaning and maintenace,automatic lifting system for quick bottle height changing ,etc.are among standard features on each unit.
Feature:
1)The Most Complete Innovatice and Affordable Bottle Packaging Lines in the market
2)Production Output :Up to 60 bottles/ min.on JS-16 Counter & Up to 80 bottles /min.on JS-24 Channel Counter
3)Custom integration available to meet specific requirements by our customers.
4)No Change Parts Required--All contact parts can be dismantled without tools
5)Conformance to cGMP standard
6)3-Level Vibrating Trays for Feeding
7)2 Separate Vibratory Sections,2 Separate Hoppers on JS-16 Channel Counter
8)Standard Dual Lane Sanitary Conveyor
9)Complete Onsite Integration ,Set-Up,Installation and Training available wordwide.
2)Production Output :Up to 60 bottles/ min.on JS-16 Counter & Up to 80 bottles /min.on JS-24 Channel Counter
3)Custom integration available to meet specific requirements by our customers.
4)No Change Parts Required--All contact parts can be dismantled without tools
5)Conformance to cGMP standard
6)3-Level Vibrating Trays for Feeding
7)2 Separate Vibratory Sections,2 Separate Hoppers on JS-16 Channel Counter
8)Standard Dual Lane Sanitary Conveyor
9)Complete Onsite Integration ,Set-Up,Installation and Training available wordwide.
Specifications
Specifications | Automatic Capsules/Tablets Counting Line |
Step 1 | Turntable/Bottle Unscrambler |
Step 2 | Tablet & Capsule Counter |
Step 3 | Desiccant Dispenser/Cotton Dispenser |
Step 4 | Capping Machine |
Step 5 | Induction Sealing Device |
Step 6 | Labeling Machine |
Detailed Images
JS-2A Bottle Unscrambler.
Bottle type: plastic round flat square bottles
Production capacity:60~160 bottles per minute
Power supply:AC220V 50Hz 0.25kw
Overall dimension:1200×1150×1300mm
Weight:200kg
Production capacity:60~160 bottles per minute
Power supply:AC220V 50Hz 0.25kw
Overall dimension:1200×1150×1300mm
Weight:200kg
JS-16 Automatic Counting Machine
Applicable bottle shape :round,square plastic bottle
Filling material: Φ0~5#capsule,soft capsule,Φ5.5~12compressed tablet,special-shaped tablet,sugarcoated tablet,Φ3~12pill
Production capacity: 20~80 bottles per minute(It depends on the bottle size,filling quantity and the tablet size)
Setting range of bottling volume:1-9999
Power supply:AC220V 50Hz 0.6kw
Accuracy rate:>99.5%(higher than the industrial standard )
Air pressure:0.6Mpa
Overall dimension:950×1200×1500mm
Weight:380kg

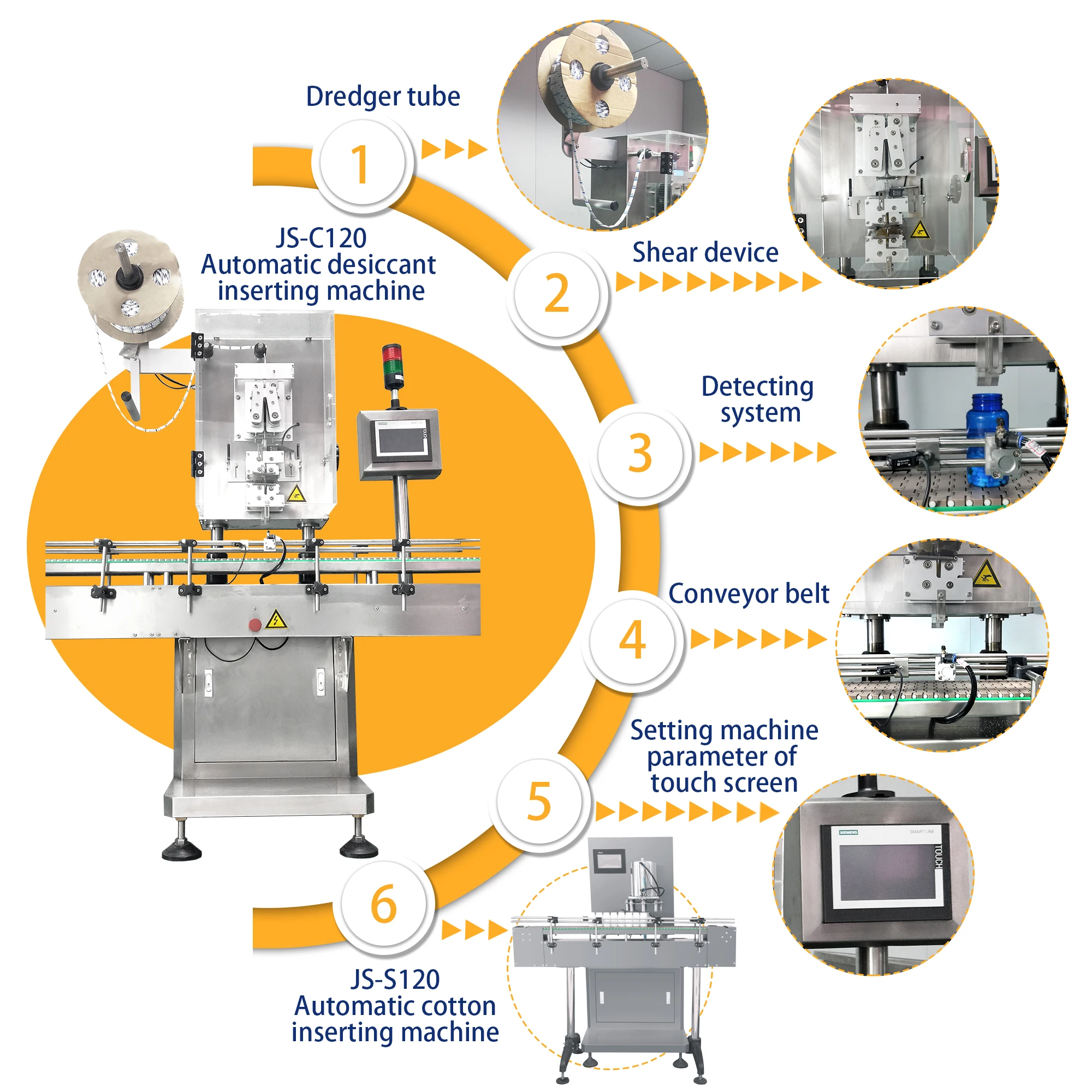

JS-C120 Automatic insert machine for desiccant.
Applicable:Round ,flat ,square,flat square bottles
Desiccant bag:Disc desiccant bag,specific size according to bottle size determination
Capacity:50~120Bottles/min
Power supply:AC220V 50Hz 0.5kw
Overall dimension:1600×750×1780mm
Weight:180kg

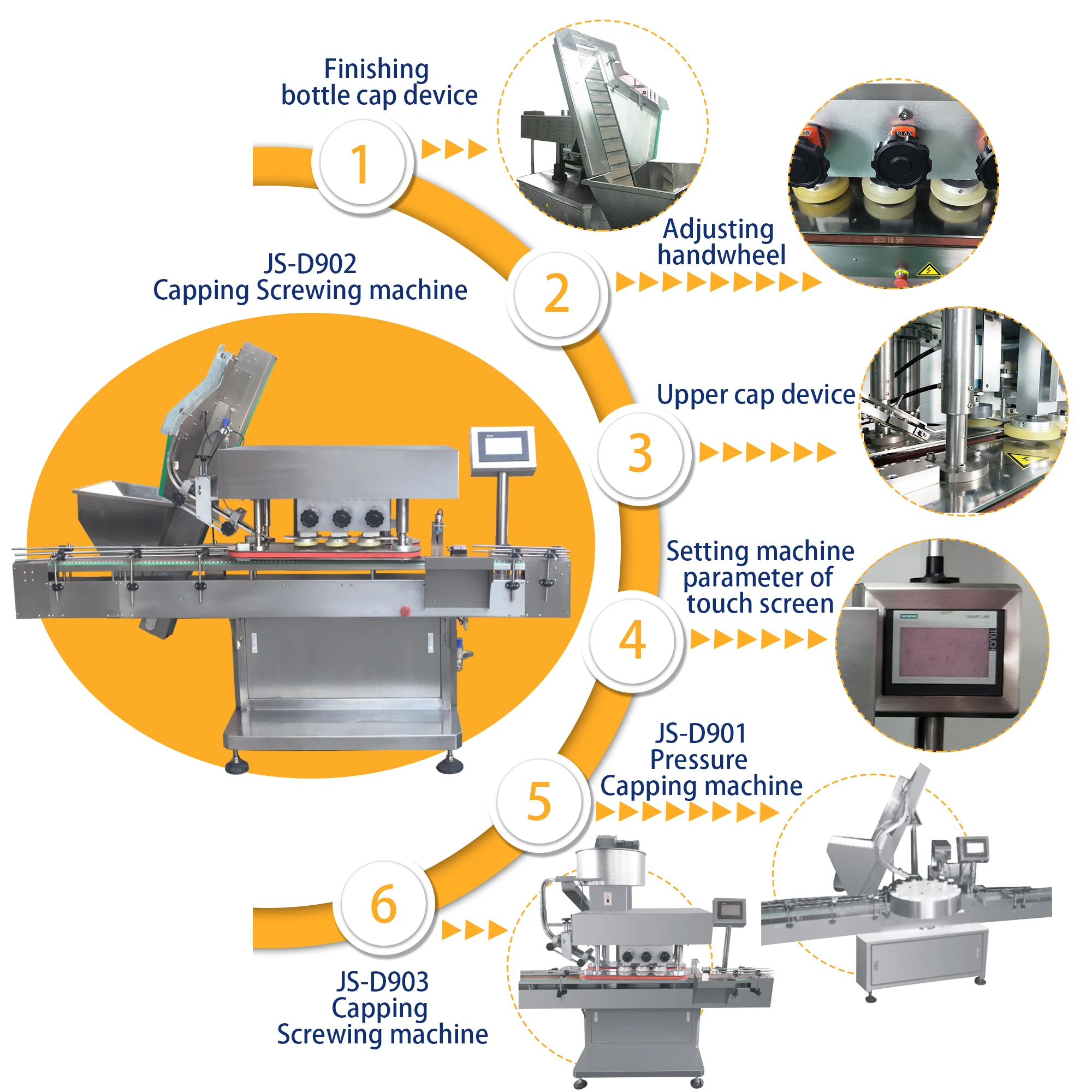

JS-D902 Cap screwing machine.
Applicable bottle shape:round,oblate,square,flat square bottle
Production capacity:50~120 bottles per minute
Power supply:AC220V 50Hz1.8kw
Air pressure:0.6Mpa
Overall dimension:1850×600×1560mm
Weight:600kg
JS-2 Electromagnetic induction aluminium foil sealing machine.
Applicable bottle shape:15~500ml round,oblate,square,flat square bottle,bottleneck diameter(15~45mm)
Production capacity:50~120 bottles per minute
Power supply:AC220V 50Hz2.5kw
Air pressure:0.6Mpa
Overall dimension:750*800*1250mm
Weight:100kg
JS-201 Round Bottle Side Face Labeler.
Applicable bottle shape:15~500ml round and square bottle
Production capacity:30~120 bottles per minute
Power supply:AC220V 50Hz0.15kw
Air pressure:0.6Mpa
Overall dimension:1650×800×900mm
Weight:150kg
