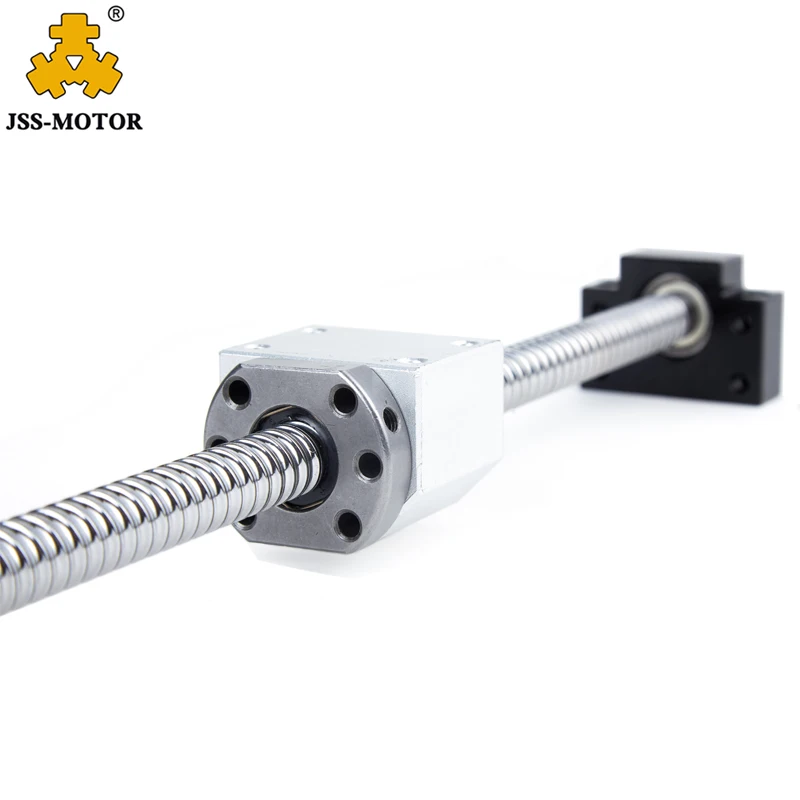

Шариковый винт комплект: 1605 шарикового винта 1000 мм 1050 1100 1150 с BK12BF12 конец обработанные + шариковая гайка SFU1605 Корпус шариковинтовой передачи
- Категория: Шариковые винтовые передачи >>>
- Поставщик: Changzhou,Jinsanshi,Mechatronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.33 $* | 0.91 $* |
| Aug-18-2025 | 0.90 $* | 0.16 $* |
| Jul-18-2025 | 0.9 $* | 0.23 $* |
| Jun-18-2025 | 0.45 $* | 0.25 $* |
| May-18-2025 | 0.39 $* | 0.30 $* |
| Apr-18-2025 | 0.38 $* | 0.41 $* |
| Mar-18-2025 | 0.28 $* | 0.93 $* |
| Feb-18-2025 | 0.7 $* | 0.89 $* |
| Jan-18-2025 | 0.78 $* | 0.0 $* |
Характеристики
Product Description

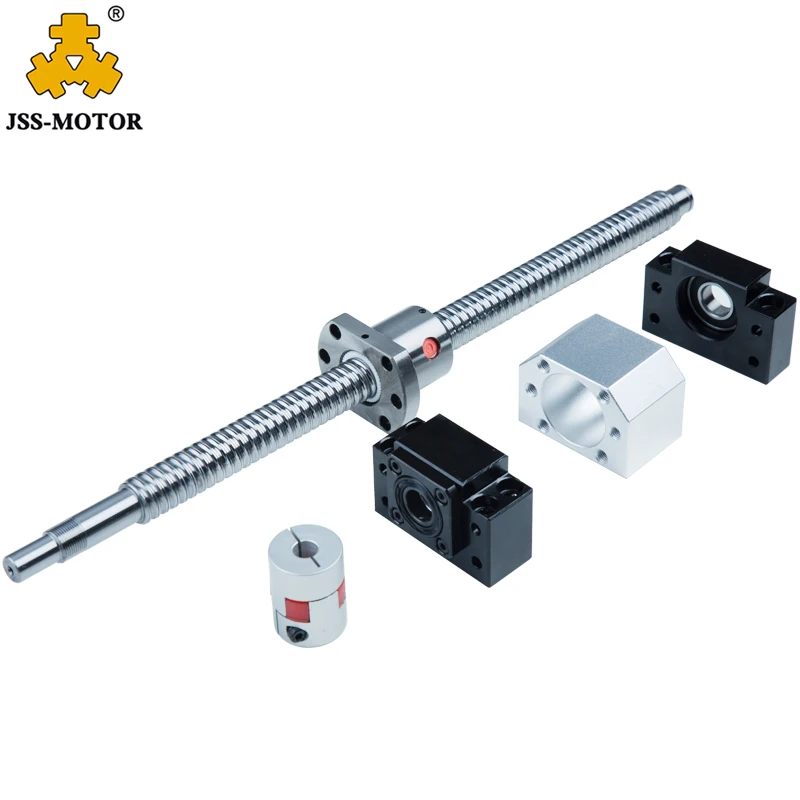

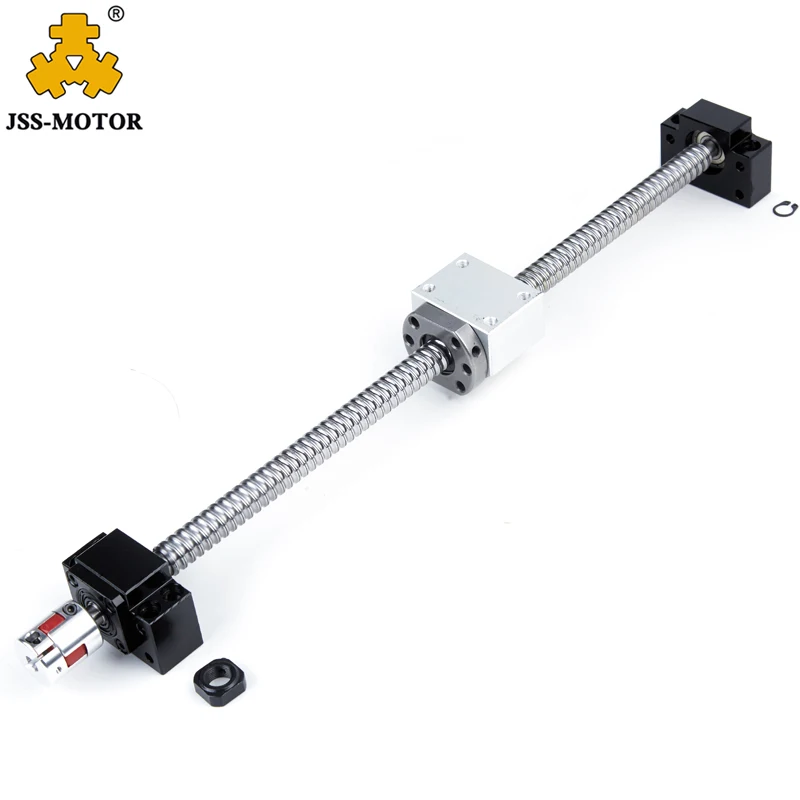

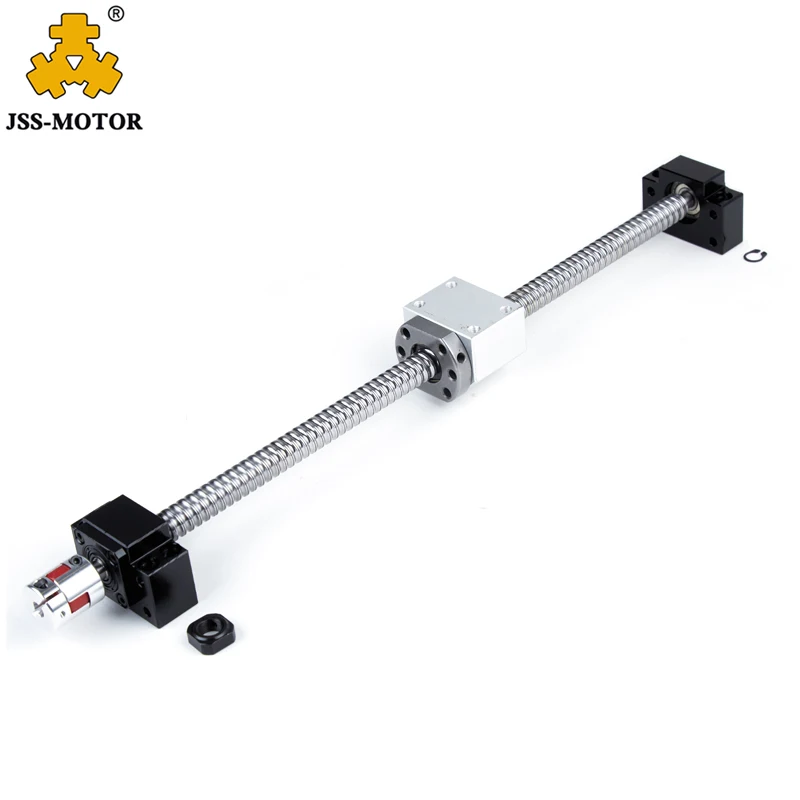

Package includes:

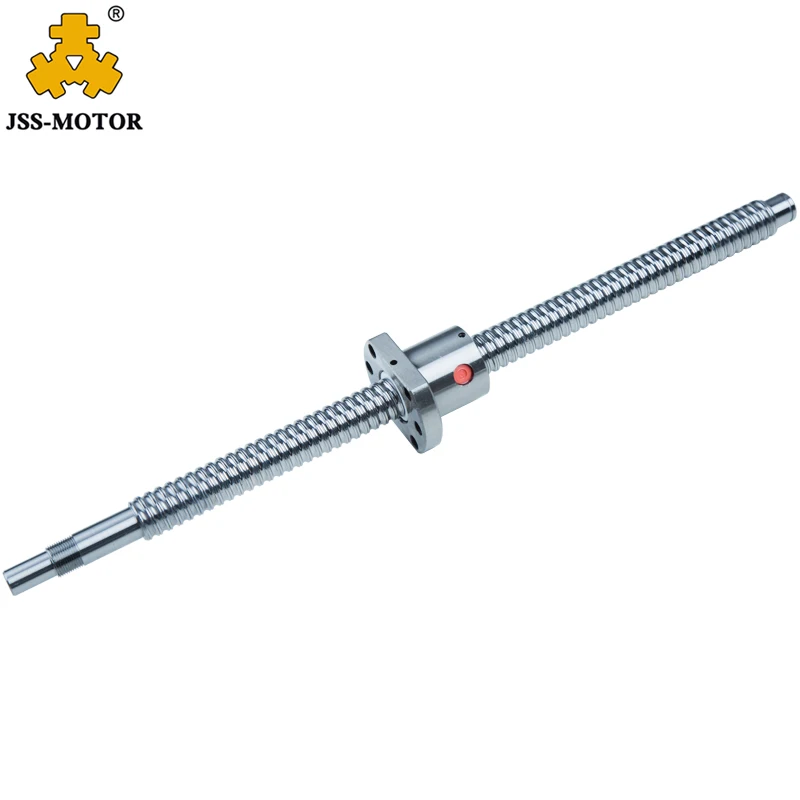

Ball screw 1605 with BKBF12 end machining L950 / 1000 / 1050 / 1100 / 1150mm, 1pc;
Ball screw nut SFU1605, 1 pc;
Ball screw supporter BK12BF12 with lock nut, 1 set;
Ball nut housing DSG16H, 1pc;
Coupling XB25-30-6.35*10mm ( inner hole can be as your needs )
Note: We can cut the length of ball screw as your request;
We can process end machining as your drawing too;
Below is the end machining for BK12BF12;
If you need other sizes or quantities, please contact us!
The more the quantity is, the lower the price will be.
Machine Drawing
Product Specificaiton
| Specification model | Nominal diameter | Nominal guide | Steel ball diameter | Flange type | Number of cycles | Nut mounting connection size | specified load | ||||||||
| D(g6) | D1 | D2 | D3 | L | B | G | H | Dynamic load Ca | Static load | ||||||
| SFU01204-3 | 12 | 4 | 2.38 | d<=32 | 3 | 22 | 42 | 32 | 4.8 | 35 | 8 | M6 | 30 | 4 | 6.7 |
| SFU01604-3 | 16 | 4 | 2.38 | d<=32 | 3 | 28 | 48 | 38 | 5.5 | 36 | 10 | M6 | 40 | 4.35 | 9.2 |
| SFU01605-3 | 16 | 5 | 3.18 | d<=32 | 3 | 28 | 48 | 38 | 5.5 | 42/44 | 10 | M6 | 40 | 7.65 | 13.2 |
| SFU01605-4 (Waist type) | 16 | 5 | 3.18 | d<=32 | 4 | 28 | 48 | 38 | 5.5 | 50 | 10 | M6 | 40 | 7.65 | 13.2 |
| SFU01610-4 | 16 | 10 | 2.78 | d<=32 | 2(Double head) | 28 | 48 | 38 | 5.5 | 42/44 | 10 | M6 | 40 | 7.36 | 12.8 |
| SFU02005-3 | 20 | 5 | 3.18 | d<=32 | 3 | 36 | 58 | 47 | 6.7 | 42/44 | 10 | M6 | 40 | 8.6 | 17.1 |
| SFU02510-3 | 25 | 10 | 4.76 | d<=32 | 3 | 40 | 62 | 51 | 6.8 | 85 | 15 | M6 | 44 | 8.7 | 20.5 |
| SFU02510-4 (Waist type) | 25 | 10 | 4.76 | d<=32 | 4 | 40 | 62 | 51 | 6.8 | 85 | 15 | M6 | 48 | 8.7 | 20.5 |
| SFU03205-3 | 32 | 5 | 3.18 | d<=32 | 5 | 50 | 80 | 65 | 9 | 52 | 12 | M6 | 62 | 16.9 | 51 |
| SFU03205-4 (Waist type) | 32 | 4 | 3.18 | d<=32 | 4 | 50 | 80 | 65 | 9 | 52 | 12 | M6 | 62 | 16.9 | 51 |
| SFU03210-3 | 32 | 10 | 6.35 | d<=32 | 3 | 50 | 80 | 65 | 9 | 74 | 12 | M6 | 62 | 26.1 | 53.1 |
| SFU03210-4 (Waist type) | 32 | 10 | 6.35 | d<=32 | 3 | 50 | 80 | 65 | 9 | 90 | 12 | M6 | 62 | 26.1 | 53.1 |
| SFU04005-5 | 40 | 5 | 3.18 | d>=40 | 5 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04005-4 (Waist type) | 40 | 4 | 3.18 | d>=40 | 4 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04010-3 | 40 | 10 | 6.35 | d>=40 | 3 | 63 | 93 | 78 | 9 | 71 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04010-4 (Waist type) | 40 | 10 | 6.35 | d>=40 | 4 | 63 | 93 | 78 | 9 | 93 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04020-3 | 40 | 20 | 6.35 | d>=40 | 3(Double head) | 63 | 93 | 78 | 9 | 94 144 | 14 | M8 | 70 | 40.3 | 98.4 |
| SFU05010-4 | 50 | 10 | 6.35 | d>=40 | 4 | 63 | 110 | 93 | 11 | 95 | 16 | M8 | 85 | 53.1 | 155 |
| SFU04005-5 | 40 | 5 | 3.18 | d>=40 | 5 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04005-4 (Waist type) | 40 | 4 | 3.18 | d>=40 | 4 | 63 | 93 | 78 | 9 | 55 | 14 | M6 | 70 | 19 | 66.2 |
| SFU04010-3 | 40 | 10 | 6.35 | d>=40 | 3 | 63 | 93 | 78 | 9 | 71 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04010-4 (Waist type) | 40 | 10 | 6.35 | d>=40 | 4 | 63 | 93 | 78 | 9 | 93 | 14 | M8 | 70 | 30.1 | 71 |
| SFU04020-3 | 40 | 20 | 6.35 | d>=40 | 3(Double head) | 63 | 93 | 78 | 9 | 94 144 | 14 | M8 | 70 | 40.3 | 98.4 |
| SFU05010-4 | 50 | 10 | 6.35 | d>=40 | 4 | 75 | 110 | 93 | 11 | 95 | 16 | M8 | 85 | 53.1 | 155 |
| SFU06310-5 | 63 | 10 | 6.35 | d>=40 | 5 | 90 | 125 | 108 | 11 | 97 | 18 | M8 | 95 | 60.7 | 206 |
| SFU08010-5 | 80 | 10 | 6.35 | d>=40 | 6 | 105 | 145 | 125 | 13.5 | 101 | 20 | M8 | 110 | 66.6 | 265 |
Packaging & Shipping
Generally, we will ship your order within 7 working days after receiving your payment, but delay delivery would happen as our storage changes every moment, if you need it urgently, please contact us in advance to check the stock.
If you don't find the shipping method you like, please contact us freely. I will choose a more suitable shipping method for your order.
Your package will be shipped to your order address, so please make sure your address and telephone number are correct.
Company Information
Changzhou Jinsanshi Mechatronics Co. Ltd. is a comprehensive company which specializes in producing and researching stepper motor and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.
Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage ...
