Product Description

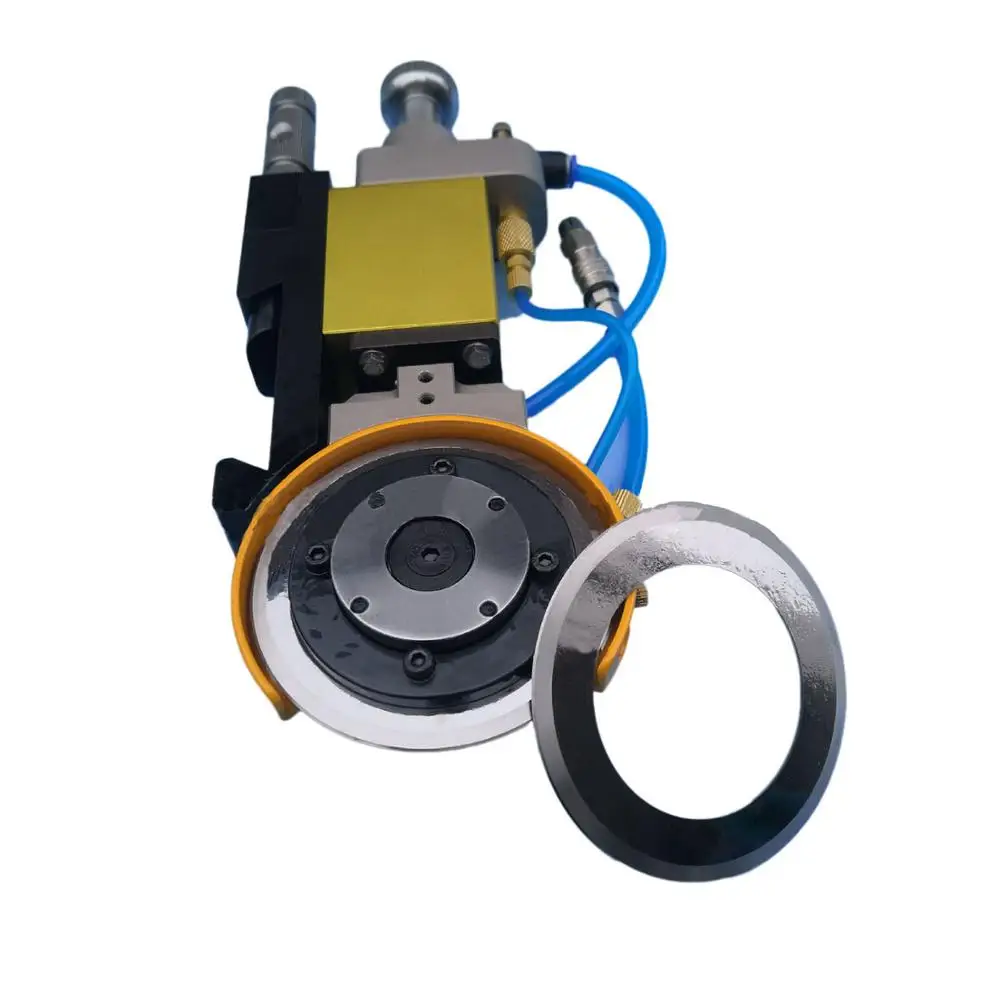

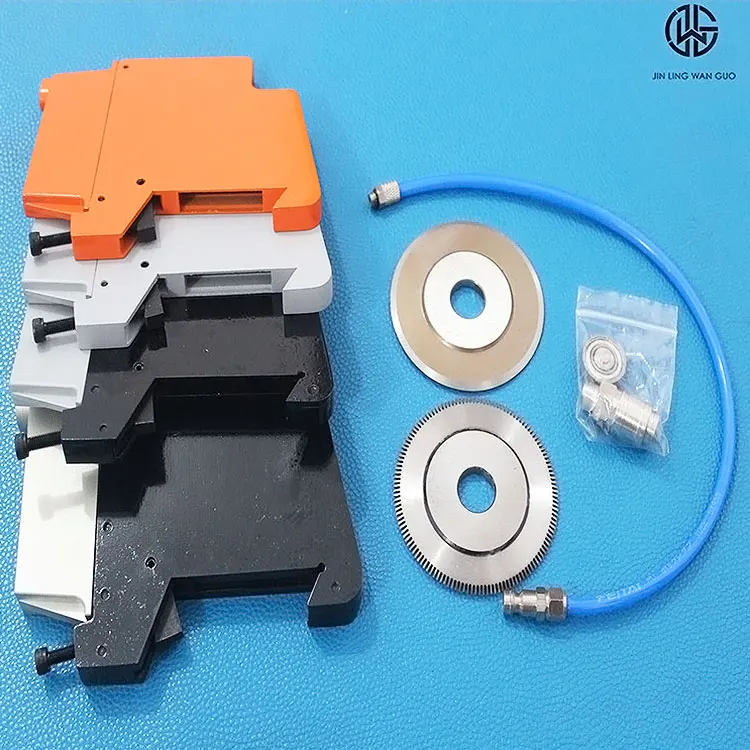

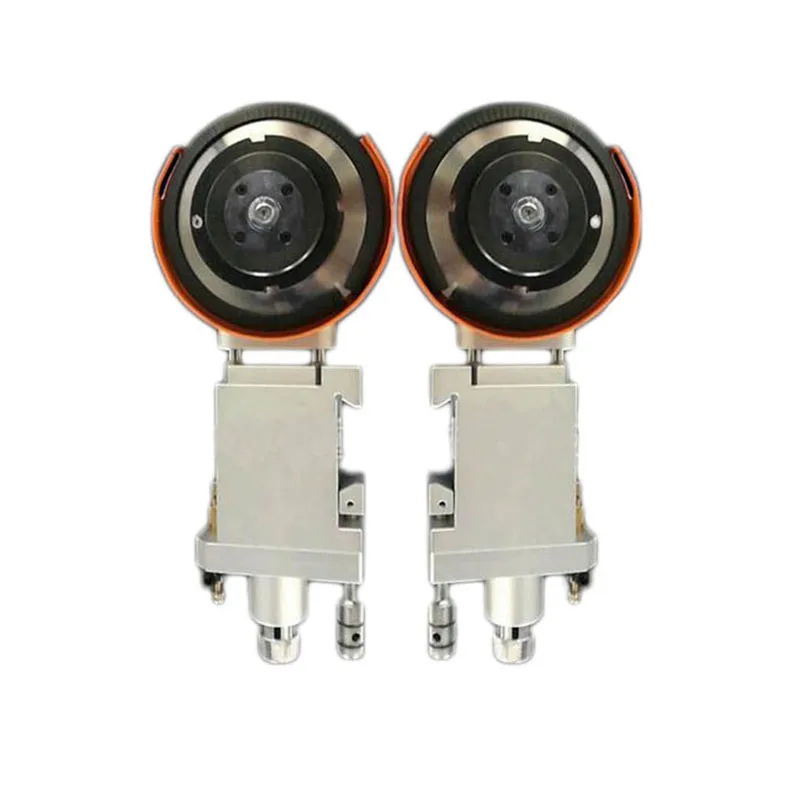

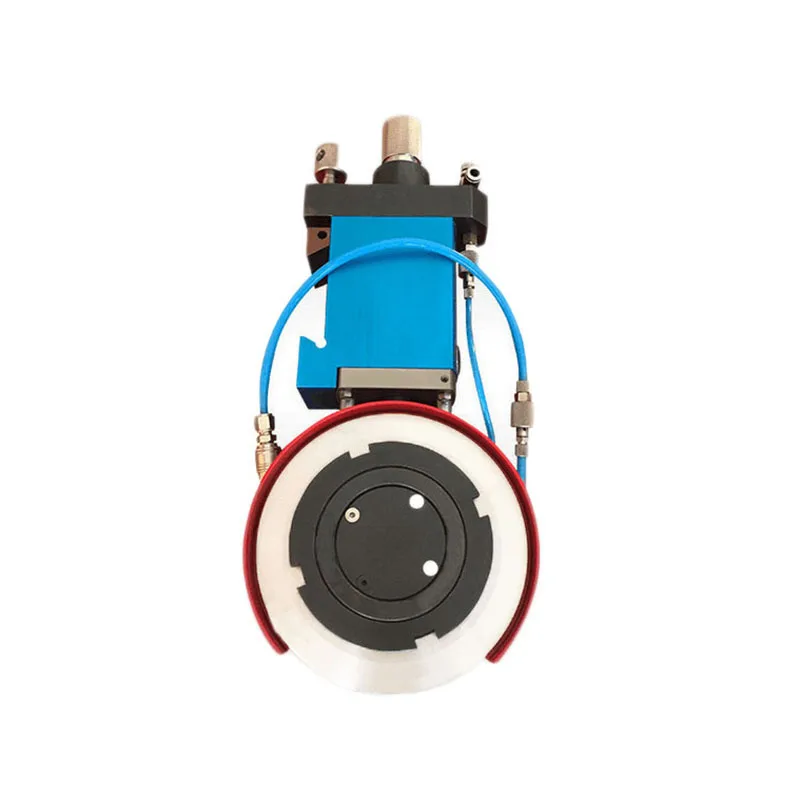

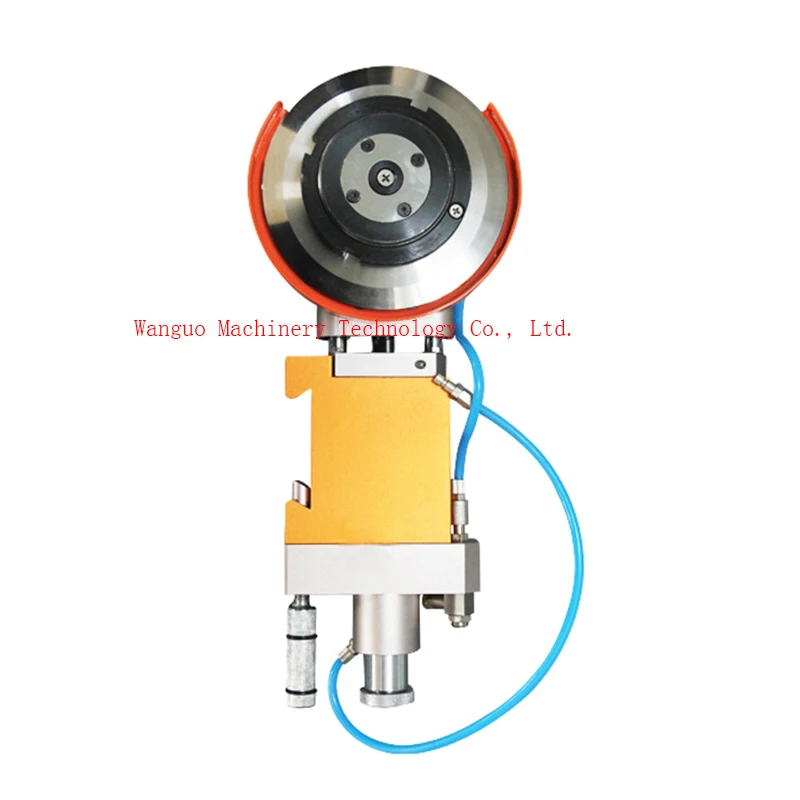

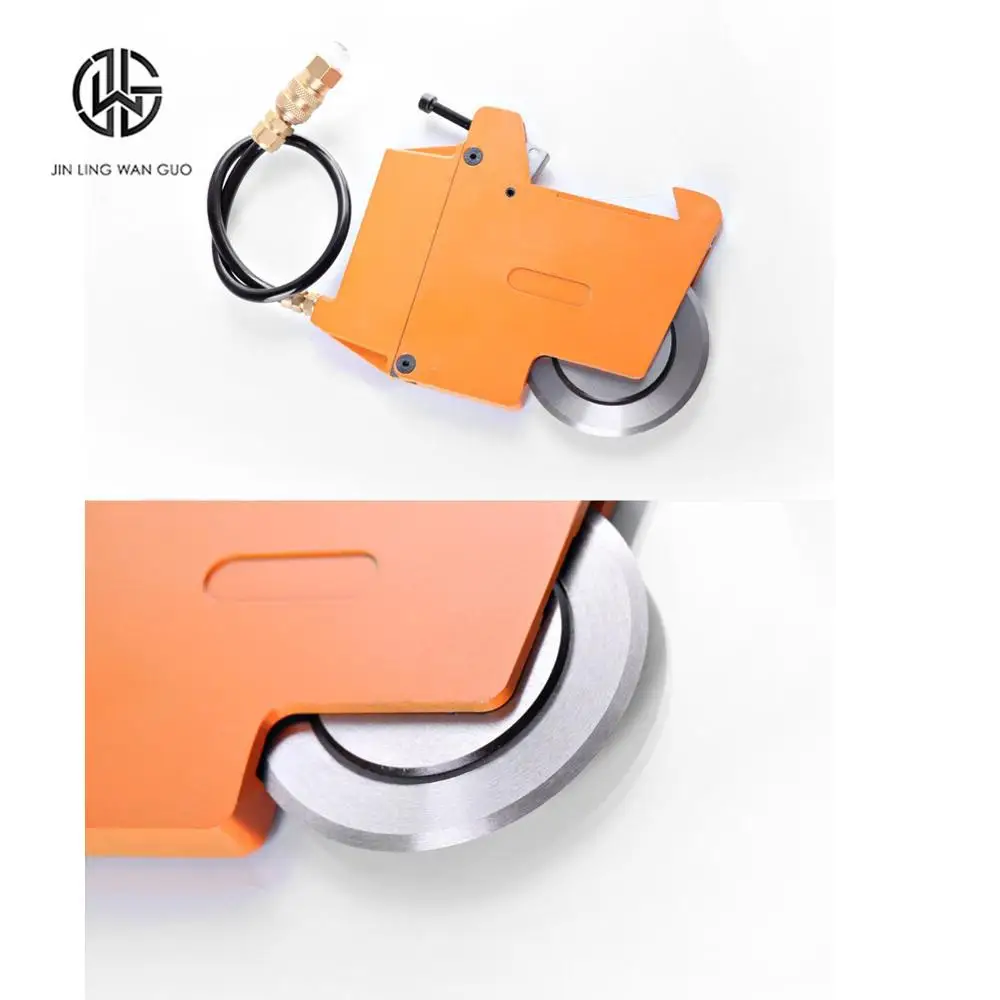

90 type shear type air pressure cutting knife Pneumatic tool holder
Pneumatic slitter adopts integrated forming design, and provides good rigidity and strength, which can be combined with the cutting tool quickly, so as to achieve accurate positioning, time-saving, rapid, stable and other advantages.
PNEUMATIC CUTTING TOOL HOLDERS | ||||||
Maximun knife stroke | 30mm | Minimum slit width | 60mm | |||
Knife trip | 3mm | Maximum applicable strip speed | 1500m/min | |||
Working pressure | 4-6kdm/m2 | Maximum sltting paper thickness | 1000g/m2 | |||
Quick Connector | 1/8″ | Maximum sltting film thickness | 2mm | |||
Features:
1. Suitable for cutting hard thick material or high speed strip
2. Minimum width can be up to 60mm
3. Automatic pneumatic knife and knife system
4. Lower cutter depth can be adjusted separately
5. Adjustable upper and lower cutter touching angle
2. Minimum width can be up to 60mm
3. Automatic pneumatic knife and knife system
4. Lower cutter depth can be adjusted separately
5. Adjustable upper and lower cutter touching angle
6. The highest speed can reach to 1000M/min
Quick Details
Material :SUJ-2, SKD-11, HSS, etc.
Dimension tolerance :OD:±0.1, ID:±0.03 -0.00, Thickness: ±0.03
Dimension tolerance :OD:±0.1, ID:±0.03 -0.00, Thickness: ±0.03
Available Sizes : 76*17*5-2, 76*17*5-3, 76*19*6-2, 76*19*6-3, 76*22*6-3, etc.
Application:
Paper: kraft paper, release paper, wallpaper, paper, sticky paper, cardboard, corrugated board, sandpaper.
Plastic film: soft PVC, hard PVC, PP, PE, ps, SBB, adhesive tape.
Cloth: non-woven cloth, synthetic leather cloth, natural cotton cloth, emery cloth, medical adhesive cloth, trademark cloth.
Foam category: foam cotton, foam cloth.
Rubber: rubber magnetic board, rubber skin.
Other products: adhesive straps and other laminating products.
Plastic film: soft PVC, hard PVC, PP, PE, ps, SBB, adhesive tape.
Cloth: non-woven cloth, synthetic leather cloth, natural cotton cloth, emery cloth, medical adhesive cloth, trademark cloth.
Foam category: foam cotton, foam cloth.
Rubber: rubber magnetic board, rubber skin.
Other products: adhesive straps and other laminating products.
