Linksys SPA3000 аналоговый телефонный адаптер 1 порт FXO +

Описание и отзывы

Трекер стоимости

Характеристики

Linksys SPA 3000
Voip ATA Linksys SPA3000
Linksys SPA3000 phone adapter
Linksys SPA3000 VoIP Telephone Adapter

Linksys SPA3000 Analog Telephone Adapter 1 Port FXO + 1 Port FXS with Original Linksys power charger



SPA-3000 Telephony Features:



1. VoIP Telephone Adapter with 1 FXS and 1 FXO Port
2. ATA Solution with a PSTN VoIP Gateway
3. SIPv2 Protocol v2 (RFC 3261, 3262, 3263, 3264)
4. Call Waiting, Transfer, Call Forwarding: No Answer / Busy / All
5. Call Return, Call Back on Busy, Call Blocking with Toll Restriction
6. G. 711a/u, G. 726, G. 729, and G. 723.1 Voice codec
7. Supports Fax Tone Detection and Pass-Through (Using. 711)
8. Web-based configuration through a built-in web server



Large-Scale Deployment and Management

The SPA3000 offers all the key features and capabilities with which service providers can provide customized services to their subscribers. The SPA3000 can be remotely provisioned and supports dynamic, in-service software upgrades. A secure profile upload saves providers the time, expense and hassle of managing and pre-configuring or re-configuring customer premise equipment (CPE) for deployment.



Model SPA-3000
* Note: Many specifications are programmable within a defined range or list of options.
Please see the SPA Administration Guide for details. The configuration profile is up
loaded to the SPA3000 at the time of provisioning.
Data Networking

MAC Address (IEEE 802.3)
IPv4 - Internet Protocol v4 (RFC 791) upgradeable to v6 (RFC 1883)
ARP - Address Resolution Protocol
DNS - A Record (RFC 1706), SRV Record (RFC 2782)
DHCP Client - Dynamic Host Configuration Protocol (RFC 2131)
ICMP - Internet Control Message Protocol (RFC792)
TCP - Transmission Control Protocol (RFC793)
UDP - User Datagram Protocol (RFC768)
RTP - Real Time Protocol (RFC 1889) (RFC 1890)
RTCP - Real Time Control Protocol (RFC 1889)
DiffServ (RFC 2475), Type of Service - TOS (RFC 791/1349)
SNTP - Simple Network Time Protocol (RFC 2030)



Voice Gateway
SIPv2: Session Initiation Protocol v2 (RFC 3261, 3262, 3263, 3264)
SIP Proxy Redundancy - Dynamic via DNS SRV, A Records
Re-registration with Primary SIP Proxy Server
SIP Support in Network Address Translation Networks - NAT (incl. STUN)
Secure (Encrypted) Calling via Pre-Standard Implementation of Secure RTP
Codec Name Assignment

Voice Algorithms
G.711 (A-law and µ-law),
G.726 (16/24/32/40 kbps),
G.729 A,
G.723.1 (6.3 kbps, 5.3 kbps)
Dynamic Payload
Adjustable Audio Frames per Packet



Fax Capability
Fax Tone Detection and Pass-Through (Using .711)
DTMF: In-band & Out-of-band (RFC 2833) (SIP Info)
Flexible Dial Plan Support with Interdigit Timers and IP Dialing
Call Progress Tone Generation
Jitter Buffer - Adaptive
Frame Loss Concealment
Full Duplex Audio
Echo Cancellation (G.165/G.168)
VAD - Voice Activity Detection with Silence Suppression
Attenuation / Gain Adjustments
Flash Hook Timer
MWI - Message Waiting Indicator Tones
VMWI - via FSK
Polarity Control
Hook Flash Event Signaling
Caller ID Generation (Name & Number) - Bellcore, DTMF, ETSI
Music on Hold Client
Streaming Audio Server - up to 10 sessions



Provisioning, Administration & Maintenance:
FXS:
Web Browser Administration & Configuration via Integrated Web Server
Telephone Key Pad Configuration with Interactive Voice Prompts
Automated Provisioning & Upgrade via HTTPS, HTTP, TFTP
Asynchronous Notification of Upgrade Availability via SIP NOTIFY
Non-intrusive, In-Service Upgrades
Report Generation & Event Logging
Stats in BYE Message
Syslog & Debug Server Records - Per Line Configurable



Physical Interfaces:
1 10baseT RJ-45 Ethernet Port (IEEE 802.3)
1 RJ-11 FXS Phone Ports - For Analog Circuit Telephone Device (Tip/Ring)
1 RJ-11 FXO Phone Ports - For a Telco or PBX Connection



FXS :

Ring Voltage: 40-55 VRMS Configurable l*



Key Features

• 1 Telephone ports
• 1 FXO (phone line port)
• Compact unit small gray box

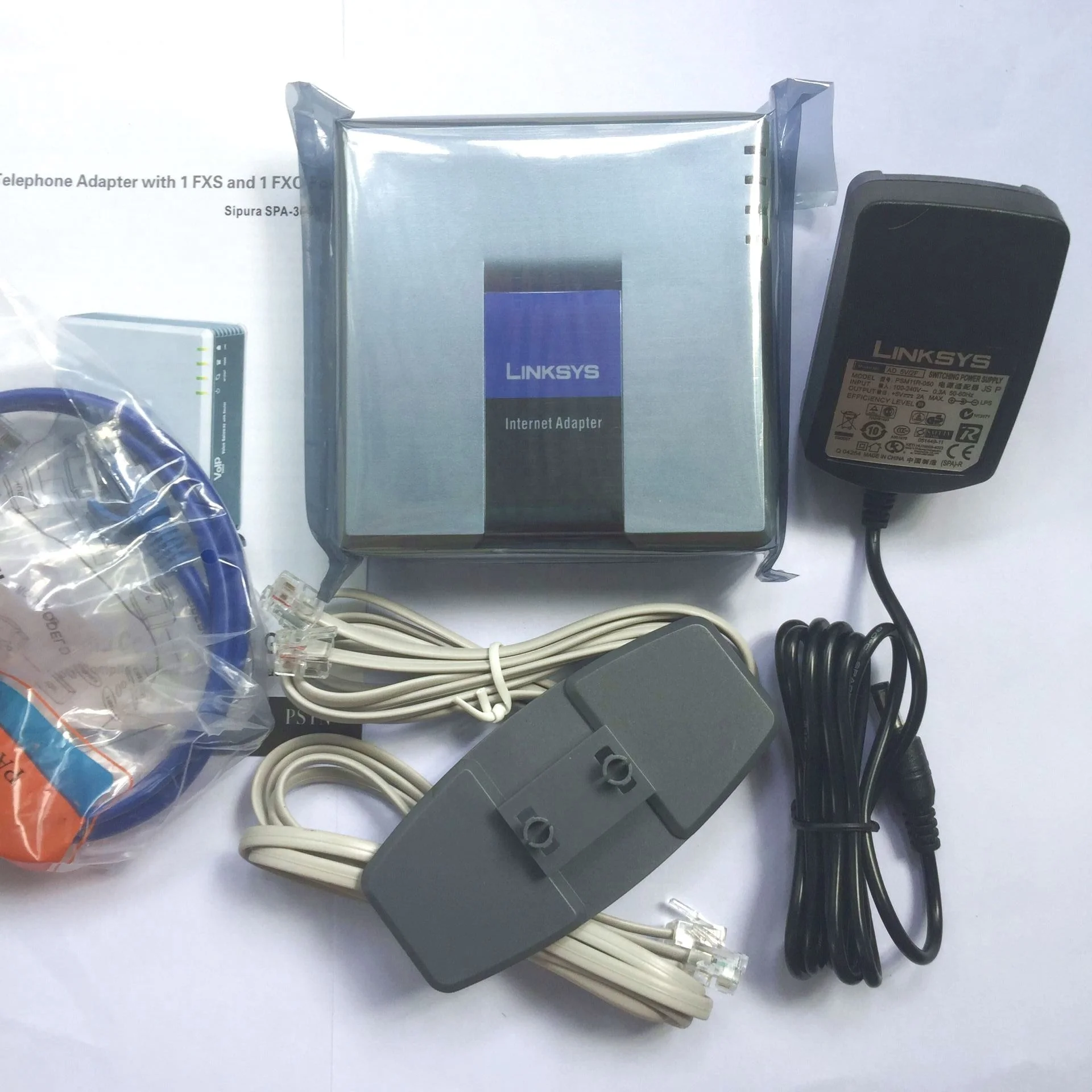

Package Contents

• 1 x SPA-3000 ATA
• 1 x Power Adapter
• 1 x RJ-45 Ethernet Cable
• 2 x RJ-11 Telephone Cable
• 1 x Quick Installation Guide
