Настольный фильтр-пресс для тестового фильтрации и лабораторного анализа небольшой размер ручной работы пластины кадра фильтра
- Категория: Filter Press Equipment >>>
- Поставщик: Hangzhou,Chayo,Environmental&Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2832.79 $* | 2974.44 $* |
| Aug-18-2025 | 2808.43 $* | 2948.41 $* |
| Jul-18-2025 | 2356.40 $* | 2474.21 $* |
| Jun-18-2025 | 2761.73 $* | 2899.58 $* |
| May-18-2025 | 2404.13 $* | 2524.45 $* |
| Apr-18-2025 | 2713.1 $* | 2849.63 $* |
| Mar-18-2025 | 2689.15 $* | 2823.94 $* |
| Feb-18-2025 | 2666.82 $* | 2799.95 $* |
| Jan-18-2025 | 2642.61 $* | 2774.39 $* |
Характеристики
\t\t\t\t\t\t\t\t\tProduct description \t\t\t\t\t\t\t

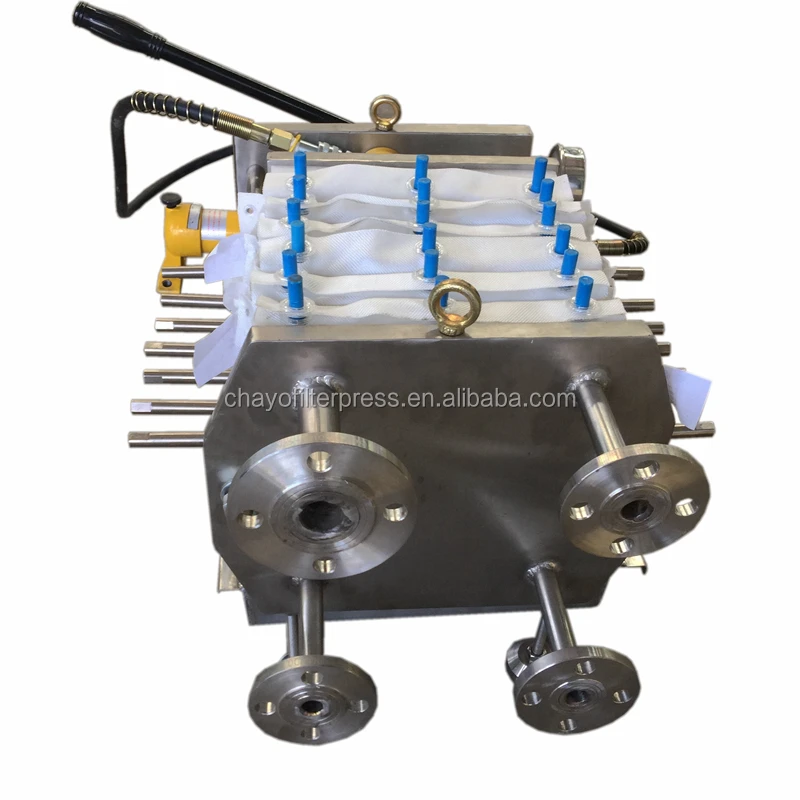

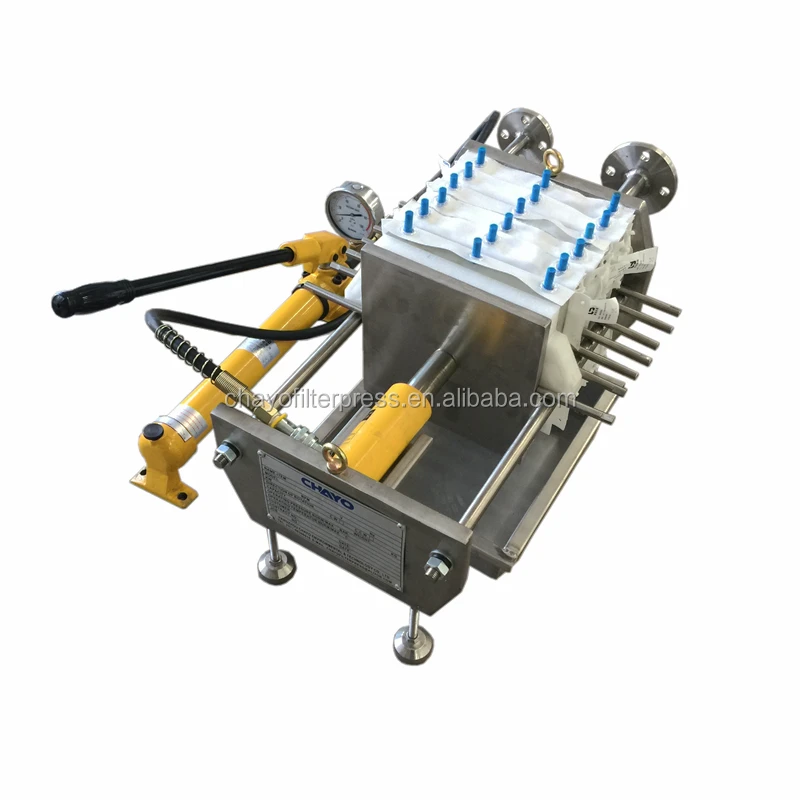

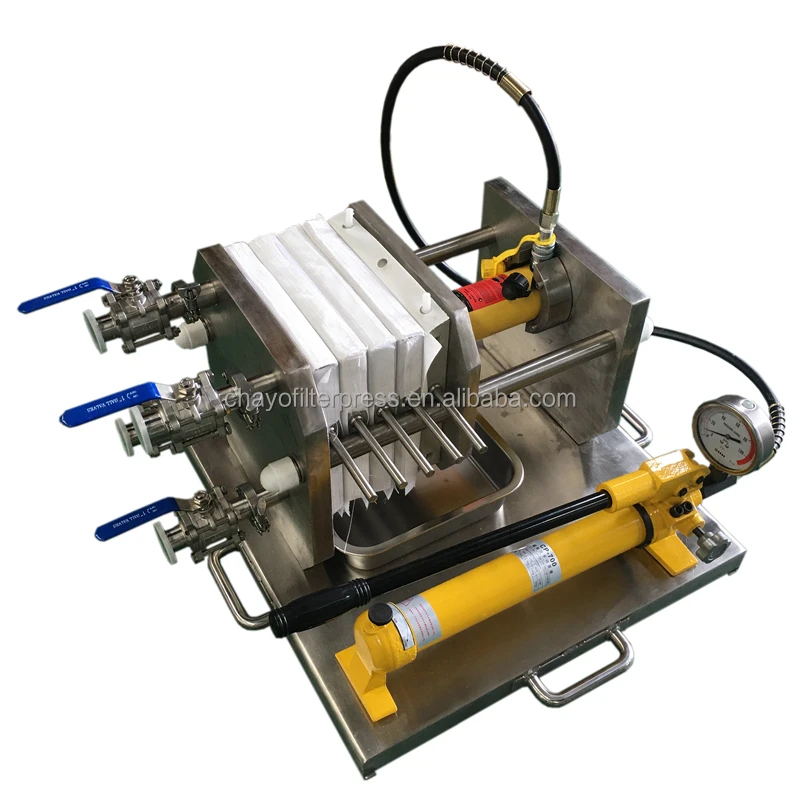

bench top filter press for test filtration and laboratory analyses, small size manual operation plate and frame filter press
Laboratory filter press data
ITEM | DATA |
plate and frame filter press filter plate size | 150*150 to 630*630 mm |
Cake thickness | 10 to 30 mm |
Filter Press Chamber volume capacity | 0.1 to 300 L |
Max. Filter pressure | 10 bar |
Max. Membrane Squeezing pressurer | 12 bar |
Max. Filter temprature | 90 ℃ |
Filter press plate type | chamber plate,CGR plate,membrane plate etc. |
Filter Press Filter plate feeding type | Center feeding,corner feeding etc. |
Filtrate discharge way | Open or Close type |
Cake washing type | washable or non-washable type |
Filter press Compressing type | Automatic hydraulic,hydraulic jack etc. |
Filter press plate shifting type | Manual operation,Automatic plate shifted one by one etc. |
Filter plate material | PP, FRPP |
Membrane material | PP,Rubber |
Filter Press Frame material | Carbon steel paint antisepsis, SS304/316 etc. |
Filter Feed/Liquid tube material | PP, SS304/316 etc. |
Motor brand of hydraulic pump | ABB |
reducer brand of plate shifting | SEW |
reducer brand of cloth washing | SEW |
Filter press cloth material | PP,PE,,Nylon etc. filter press cloth included for different testing purpose |
Filter press feed pump | different filter press feeding pump,such as Air diaphragm pump,small screw pump or other small capacity pump for feeding |
Characters Description of Chayo filter press
1,Mainly Frame
All parts of the frame are sandblasted by high-speed air blasting machine, which makes the paint adhesion stronger and not easy to fall off.
2, Hydraulic station
used carbon steel material, processed by pickling, phosphating, plastic spray treatment, clean inside, neat and generous appearance.
3,Filter plate
plate suface smooth,flat,no cracks,pores.the dimensional deviation between the two sealing surfaces of the machined filter plate is within the range of -0.5mm to+1.5mm, plate press pressure above 2.0MPa.
5,Automatic plate shifting
the plate shifting equipped with pause function, Using remote control or push-pull rod control method can be used to control the starting and stopping action in any time during plate shifing process to ensure personal safety and smooth discharge process.
Automatic drip tray device
it can automatically close to collect water when washing cloth and filtering, and it can can be avoid water falling into the mud cake or the ground under dehydrator,when filter press start to the process of cake discharge,the device will automatically open for
unloading.
unloading.
Automatic cloth washing device
it can realize automatic press cloth cleaning, The device adopts PLC automatic control,The press cloth automatic cleaning device consists of a high-pressure cleaning pump, a nozzle, a washing rack, a walking mechanism, etc.
Control system
electric control box, with the feature of one-key start and stop, which can realize the automatic control of all functions and actions of the filter press itself. main electrical components brands in the electronic control cabinet: schneider, Siemens, ABB, etc.
Filter cloth
we can supply more than one hundred materials and different specifications to meet customer’s requirement,workshop equipped special laser CNC cutting machine,which can be precisely locate of the processing size of the press cloth and ensure the size is of each press cloth is the same.
Automatic cloth inclining and cake discharging device
main function is to hang and tensify the press cloth, so that the press cloth is always in a state of tension when the filter plate is pulled or pressed, and make the press cloth shake and easy to be unloaded in the process of pulling the plate to unload the cake.
\t\t\t\t\t\t\t\t\tworkshop \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tApplication Industry \t\t\t\t\t\t\t
Food Industries: | yellow rice wine, liquor, fruit juice, beverage, beer, yeast, citric acid, plant protein, plant secretin, glucose, maltose, fixe d powder, rice flour, ban rice milk, gelatin, carrageenan, monosodium glutamate, spices, sauce, oral liquid, soy milk, seaweed | ||||||
Metallurgy Industries: | gold, silver, copper, iron, zinc) concentrate/tailings, acid leaching/anode mud, etc. | ||||||
Oil Industries: | white oil, sesame oil, sesame oil, cottonseed oil, lubricating oil, palm oil, a variety of animal oil, light oil,glycerin, machinery oil, vegetable oil. | ||||||
Non-metallic ore Industries: | kaolin, bentonite, active soil, porcelain, electronic ceramic soil, phosphate rock, calcium carbonat | ||||||
Sewage treatment : | chemical sewage, smelting sewage, electroplating sewage, leather sewage, printing and dyeing sewage, brewing sewage, pharmaceutical sewage, environmental sewage, etc. | ||||||
Packing pictures
\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCustomers \t\t\t\t\t\t\t
About us
Hangzhou Chayo Environmenal Technology Co.,Ltd is a comprehensive high-tech enterprise who supply a complete set of service of press filter including, manufacture,design,install,debugging&EPC. Chayo has more than 10 year experience in field of solid and liquid separation technology,mainly engaged in design &develop of deep dewater treatment of sludge /sewage treatment process and equipment, Chayo has provided more than 1000sets of various equipment and service for numerous deomestic and foreign enterprises, and its products and service have been widely used and won a good reputation.
Chayo offers different series, such as filter press cloth, chamber filter presses, membrane filter presses, plate and frame filter presses,lime dosing device,flocculant dosing device,screw conveyor,antomatic system and sludgeand dewatering equipments and specially designed filter presses according to different filtration materials. our fully automatic palm oil membrane filter presses are for oil fractionation, our automatic carrageenan membrane filter presses have automatic filter cloth washing system, our automatic medicine filter presses comply with GMP requirements, etc. we offer special filter press design services to meet special industrial filtering requirements.
Owning to our rich experience in solid-liquid separation, we optimize the filtration of your plants to meet your special needs. If you need detailed information, please send emails to us.
Ms.Alice long
Hangzhou Chayo Environmental Technology Co.,Ltd
add: 62-2F Yangchen road,pinyao town,hangzhou.zhejiang.
Tel:0086-0571-86306016
Mob,whats app:0086-13750800179
www:chayofilterpress.com
