Product Description
XXG-1605 NDT Industrial Portable X-ray Machine with Directional Ceramic X-ray Tube
Model | XXG-1605 | XXG-2005 | XXG-2505 | XXG-3005 | XXG-3505 | ||||
Max.Penetration | 18mm | 29mm | 39mm | 50mm | 60mm | ||||
Input Voltage | AC 198-242V / 50-60Hz | ||||||||
Input Capacity | 2.5KW | 2.5KW | 3.5KW | 3.5KW | 3.5KW | ||||
Output Tube Voltage | 60-160KV | 100-200KV | 150-250KV | 170-300KV | 200-350KV | ||||
Output Tube Current | 5mA | ||||||||
Focal Spot Size | 0.8×0.8mm | 1.5×1.5mm | 2.0×2.0mm | 2.5×2.5mm | 2.5×2.5mm | ||||
Radiation Coverage | 40° | ||||||||
Sensitivity | ≤1.8% | ||||||||
Cooling | Force Air | ||||||||
Insulation | SF6 Gas | ||||||||
Pressure | 0.34MPa-0.45MPa（20℃） | ||||||||
Working Temp. & Humidity | －30℃～+40℃ ≤85% | ||||||||
Company Profile
Our company was founded in 1988,which is one of the well known companies specialized in Non-dectructive testing(NDT)equipments. After 20 years' development,we have accumulated abundant technical force and established a wealth of design and practical experience.We are a manufacturer and trading company.
Our main products are industrial X-ray machines. We have portable X-ray machines and stationary X-ray machines.
Our portable X-ray machines have the specifications from 100kV, 120kV, 160kV, 200kV, 220kV, 250kV, 300kV, 320kV to 350kV.
Our portable machines have smaller size and lighter weight, and are more convenient for users to operate.
Our stationary X-ray machines have the specifications from 100kV, 160kV, 225kV, 300kV, 320kV, 350kV, 400kV, 420kV to 450kV.
Our stationary machines have stronger penetrating power and also are more suitable for the online non-destructive testing.
Our products are finely developed and manufactured by adopting high technologies of many countries and manufacturers.They can be widely used in many fields such as mechanism,electron,petroleum,chemical industry,electric power,bridges,boats and ships,vehicles.aviation,heating power,boilers,pressure vessels and war industries.
Our sales network covers the whole world and we maintain good business relationship with more than 200 customers. We will serve the first-class technology,first-class products and first-class service for you.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
After-Sales Service
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
Packing & Delivery
XXG-1605 NDT Industrial Portable X-ray Machine with Directional Ceramic X-ray Tube
No | Item & Description | Model | Qty |

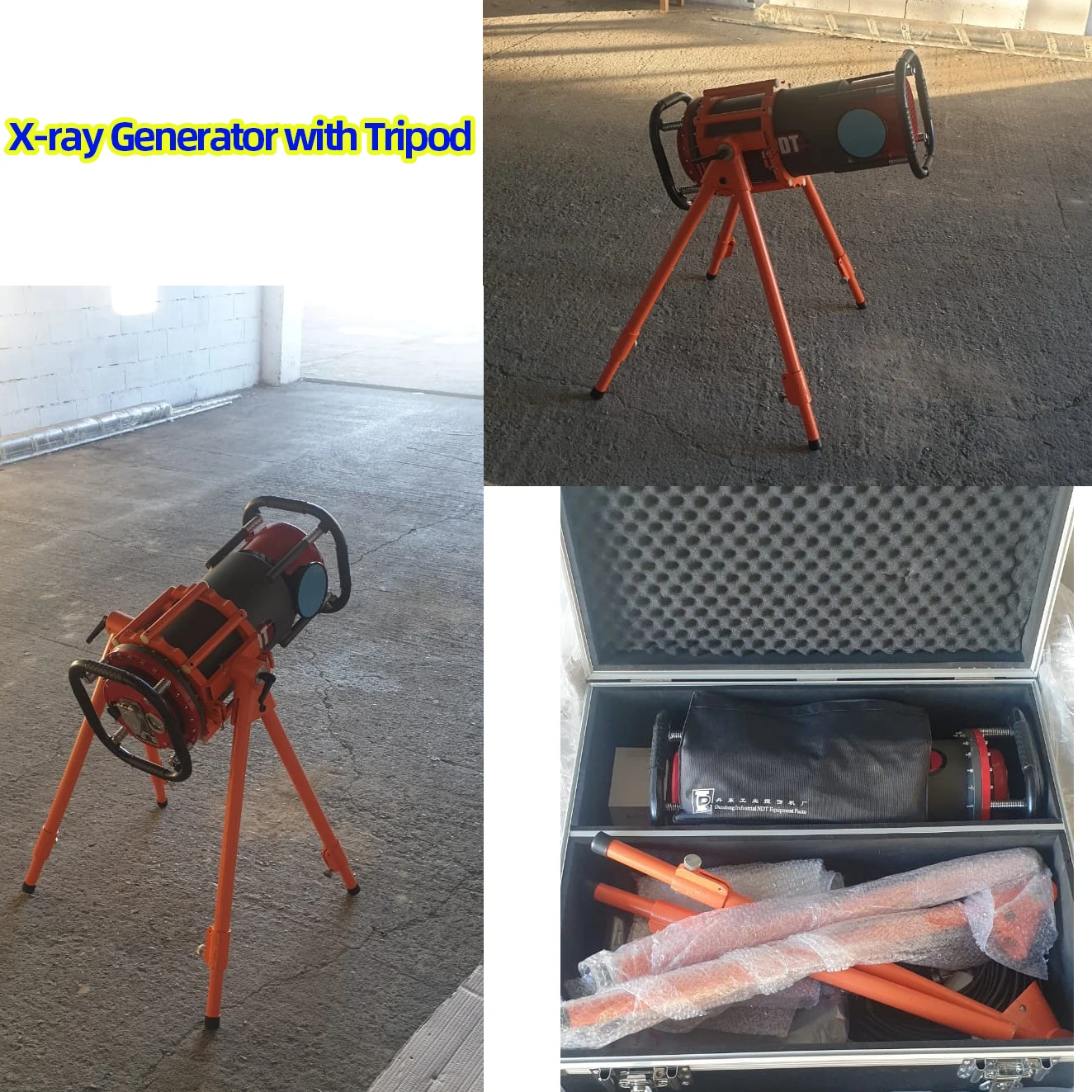

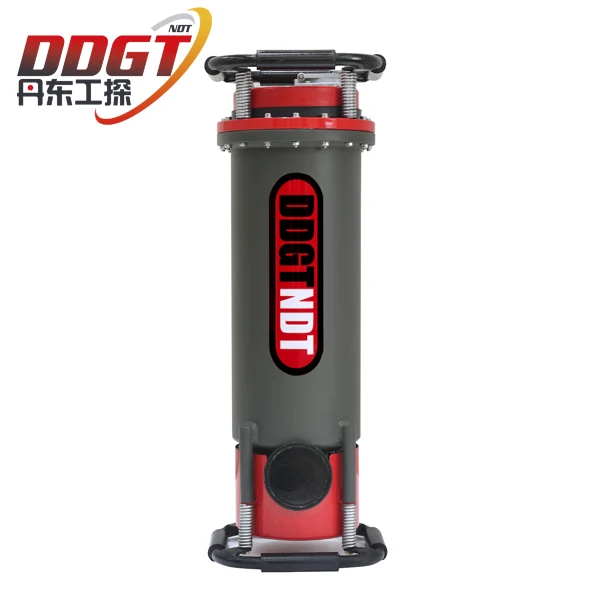

1 | X-ray Generator | 1 | |

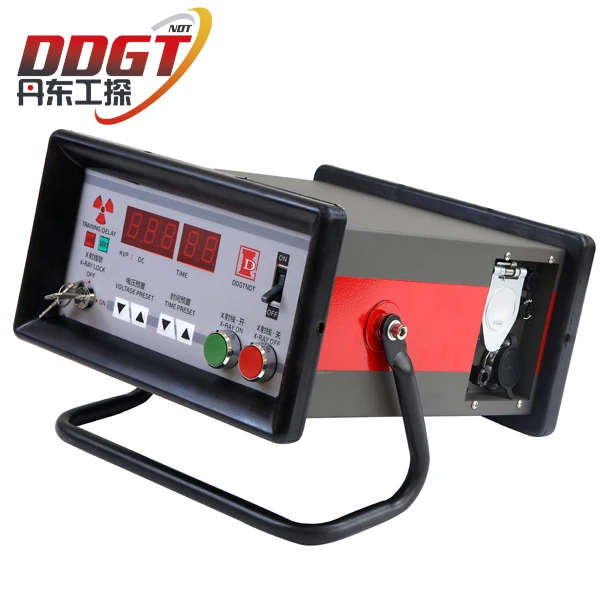

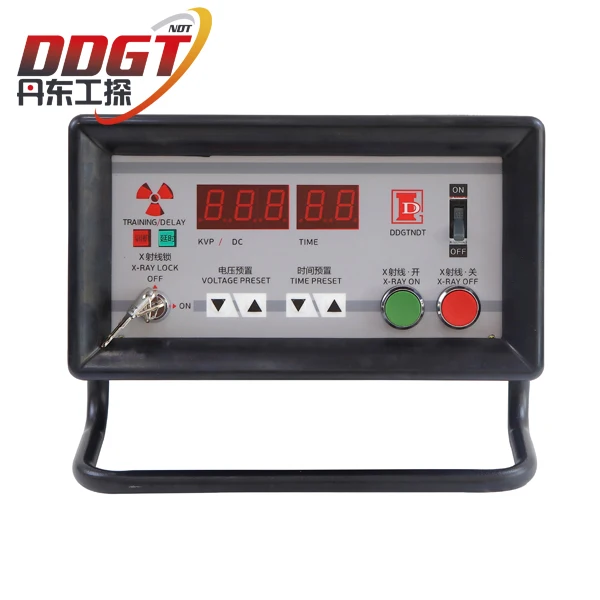

2 | Controller | 1 | |

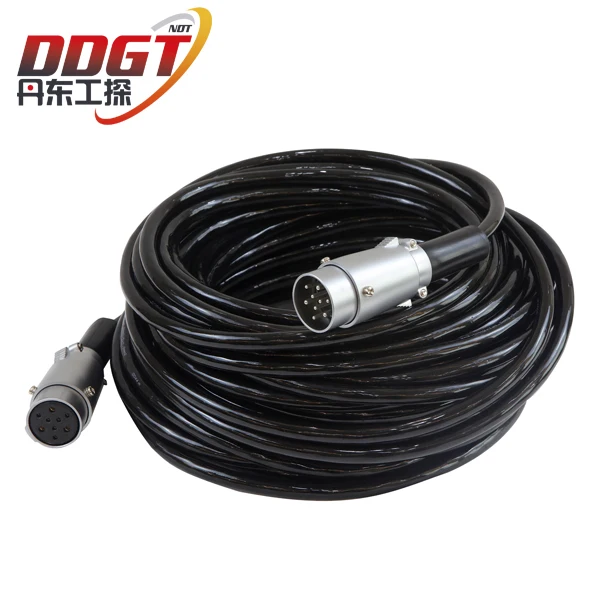

3 | Connecting Cable | 25m | 1 |
4 | Power Cable | 10m | 1 |
5 | Earth Wire | 5m | 1 |
6 | Fuse | 2A/5A | 10 |
7 | Fuse | 10A/20A/25A/30A | 20 |
8 | Film Bag | 80*360mm | 5 |
9 | Lead Marker | 1 | |
10 | Varistor | 390V | 4 |

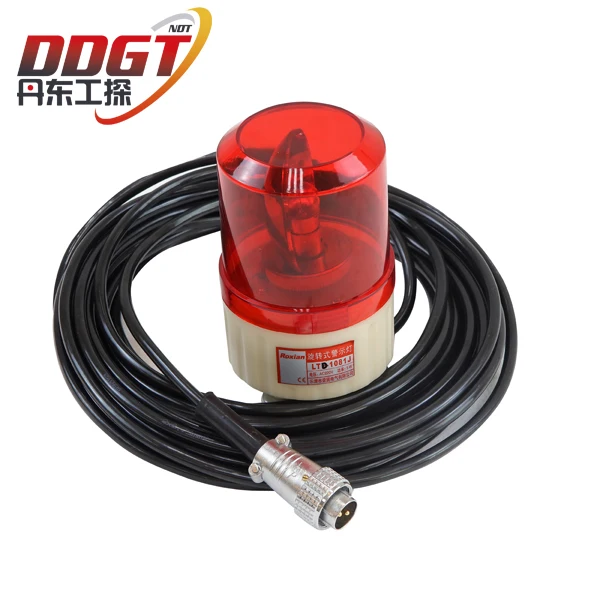

11 | Warning Light | 1 | |
12 | Fuse Seat | 2 | |
13 | Accessory Bag | 1 | |
14 | Calibration Certificate | 1 | |
15 | Quality Certificate | 1 | |
16 | Warranty Card | 1 | |
17 | Instruction Manual | 1 |
