HMWD Double-Tuning Adjustable Air Gap Electromagnet
Product Description

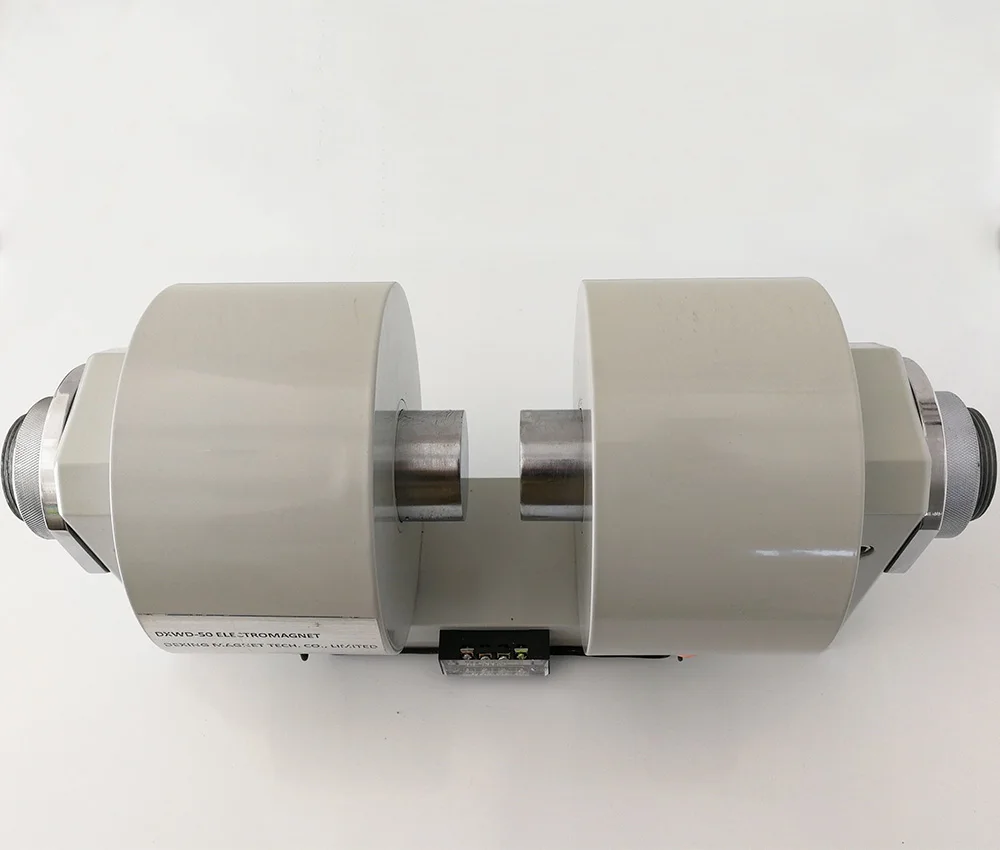

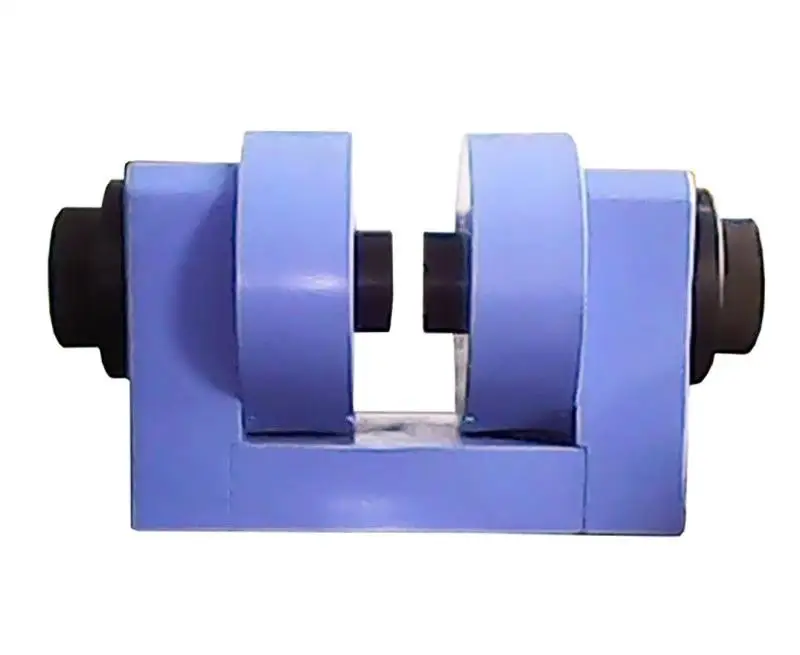

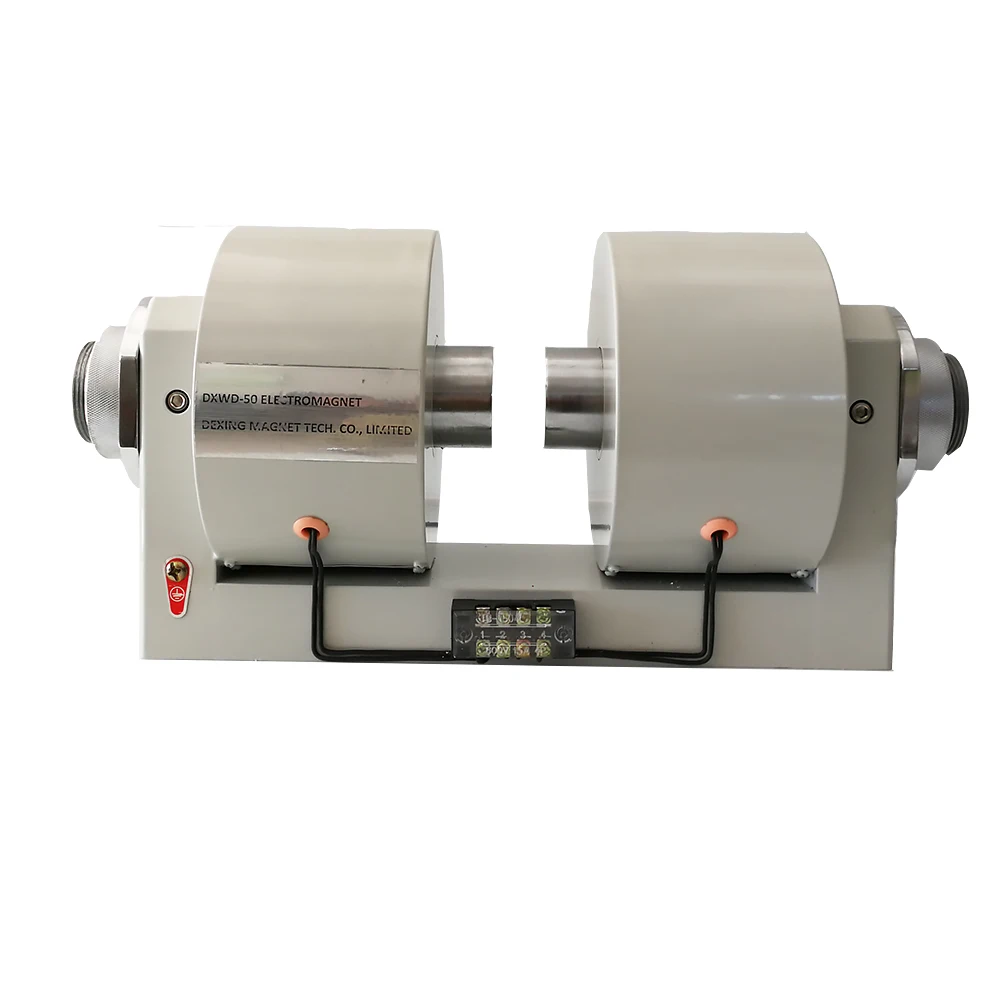

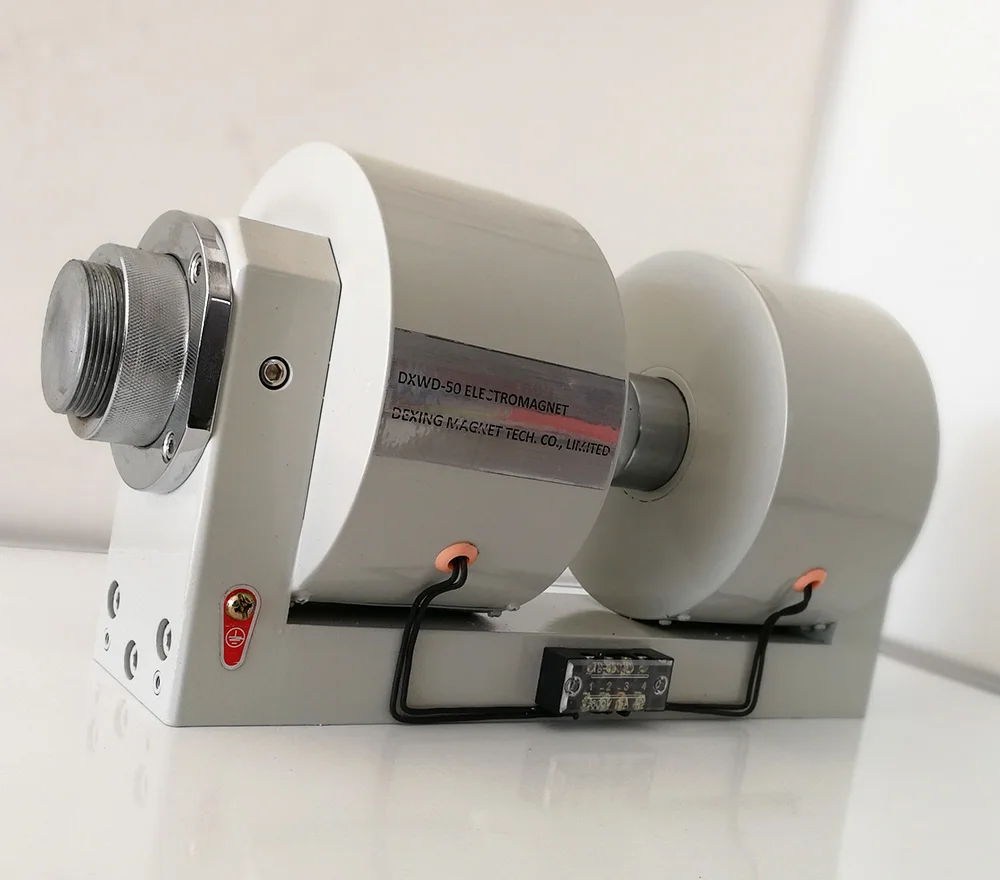

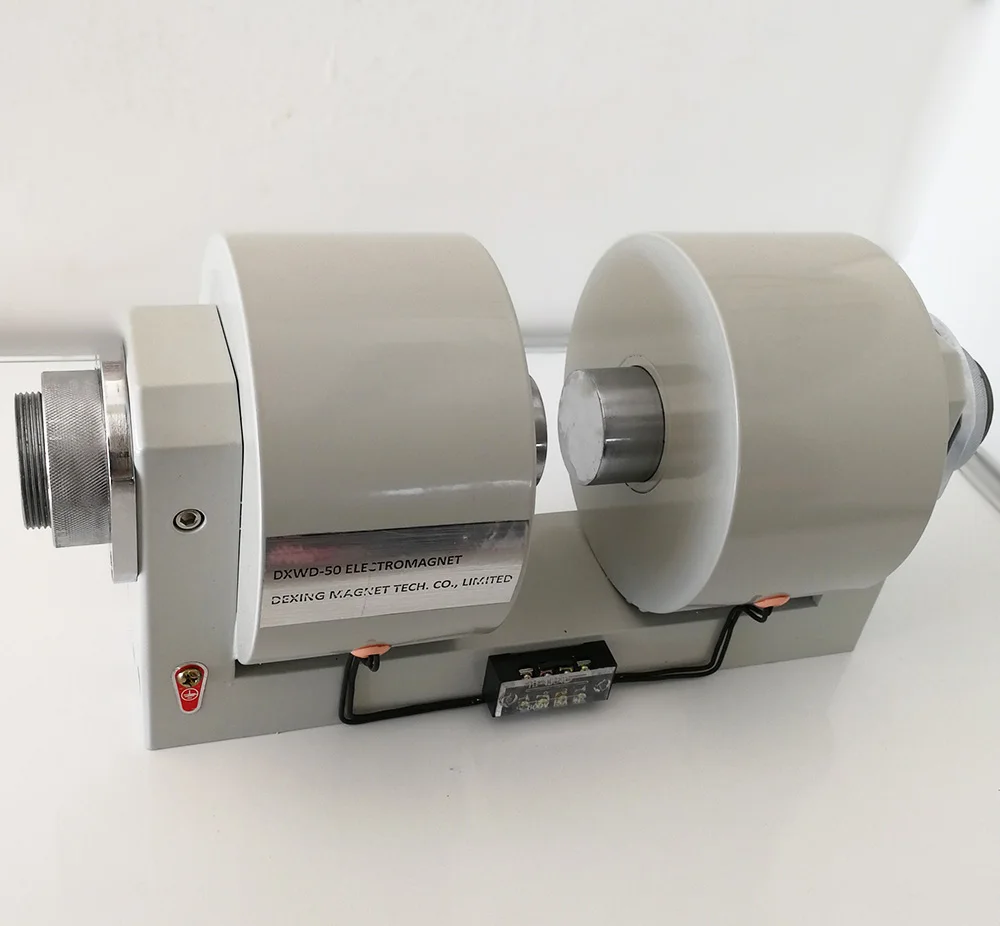

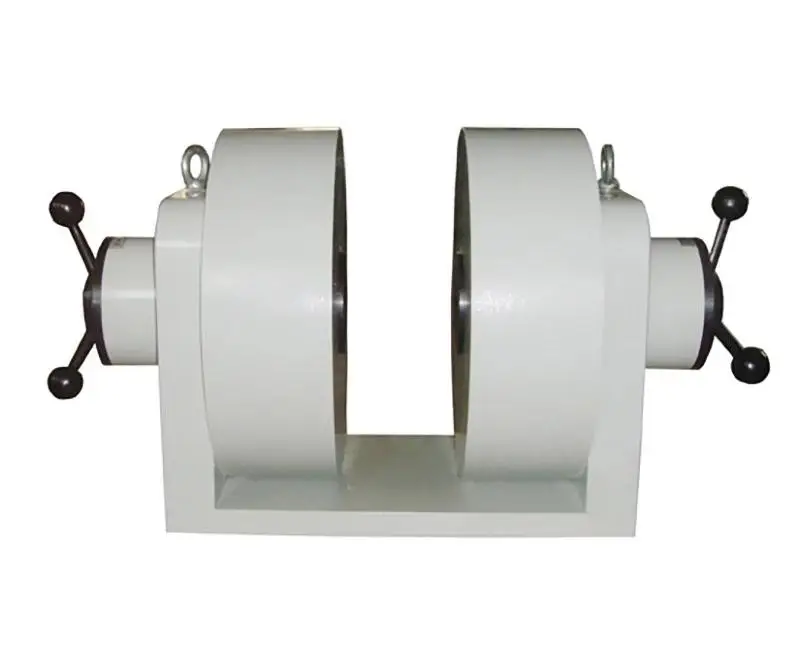

The magnetic field is both-way adjustable, it is a one yoke design, magnetic field direction is horizontal, Product up-right seat so that have a very wide working place to operation or connect with other equipment. so it is a very common design. Apply to Hall effect studies, magnetoresistance effect studies, magnetostriction studies, torque magnetometer, force method magnetometer, VSM, magnetisability measuring equipment, magnetic materials measuring equipment etc.
Name of parts | ||||
1: Horizontal yoke | 2: Vertical yoke | 3: coil | 4: Pole Cap Surface | 5: Pole Cap |
6: Handle | 7: Pole Sleeve |
|
|
|
A: Coil Gap | B: Pole Gap | C: Center Height | D: Horizontal distance of Diameter | E: Coil Diameter |
Specification
HMWD Single Yoke Double-tuned Air Gap Alterable Electromagnet | ||||||
Model | Pole Diameter (mm) | Air Gap Range | Pole Face | Magnetic field index | Power | |
Air Gap | Maxium Magnetic Field(T) | |||||
HMWD-50 | Φ50 | 0-80 | Φ50 | 10 | 0.9 | 0.3KW |
HMWD-100 | Φ100 | 0-80 | Φ60 | 10 | 1.8 | 1.6KW |
Φ100 | 20 | 1.0 | ||||
HMWD-130 | Φ130 | 0-100 | Φ60 | 10 | 2.3 | 3.0KW |
Φ120 | 30 | 1.2 | ||||
HMWD-175 | Φ175 | 0-120 | Φ60 | 10 | 2.3 | 5.0KW |
Φ100 | 50 | 1.25 | ||||
Φ150 | 100 | 0.6 | ||||
HMWD-200 | Φ200 | 0-140 | Φ60 | 10 | 2.6 | 8.0KW |
Φ80 | 30 | 1.6 | ||||
Φ140 | 70 | 0.9 | ||||
HMWD-250 | Φ250 | 0-140 | Φ60 | 10 | 2.9 | 12.0KW |
Φ80 | 40 | 1.9 | ||||
Φ120 | 80 | 1.1 | ||||
HMWD-280 | Φ280 | 0-150 | Φ70 | 10 | 3.1 | 16.0KW |
Φ120 | 70 | 1.5 | ||||
HMWD-380 | Φ380 | 0-180 | Φ100 | 40 | 2.2 | 20.0KW |
