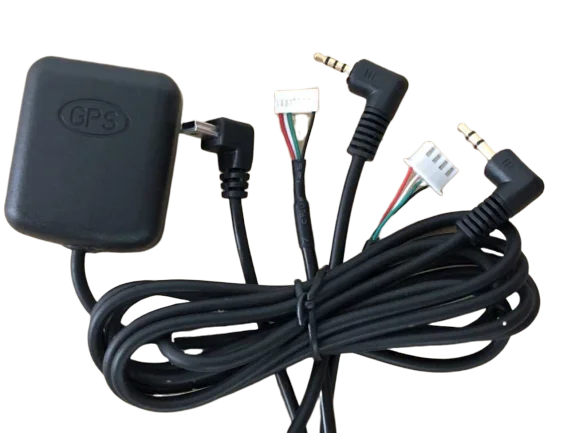

This product GPS receiver GPS module GPS antenna BGU728T can be customized according to customer requirements, we can make it straight head, elbow style, 4PIN connector.
Please contact sales befor order! Thank you!
Parameters of BGU728T antenna module:
The BGU-728T module series is a family of stand alone GPS receivers featuring the high performance u- blox 7 positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature 45x38x13.5mm package.Their compact architecture and power and memory options make BGU-728T modules ideal for battery operated mobile devices with very strict cost and space constraints.
The 56-channel u-blox 7 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated acquisition engine,with over 1 million correlators is capable of massive parallel time/frequency space searches,enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving BGU-728T GPS receivers excellent navigation performance even in the most challenging environments.
BGU-728T modules are not designed for life saving or supporting devices or for aviation and should not be used in products that could in any way negatively impact the security or health of the user or third parties or that could cause damage to goods.
Applications
LBS (Location Based Service) PND (Portable Navigation Device) Vehicle navigation system Mobile phone
Features
Build on high performance, low-power u-blox UBX-G7020-KT chip set Ultra high sensitivity: -165dBm Extremely fast TTFF at low signal level Built in high gain LNA Low power consumption:Max25mA 3.3V NMEA-0183 compliant protocol or custom protocol Operating voltage: 3.0V--5.0V Operating temperature range:-40to85℃ Patch Antenna Size: 25x25x4mm Small form factor: 45x38x13.5mm Communication type: UART/TTL Wire interface type: Audio head 3Pin, L=150cm RoHS compliant (Lead-free)
With 10 years of gps industry experience along with excellent quality, advanced services and competitive prices, Bainianxing has won numerous customers' trust and support.
3000㎡ dust-free workshop, brand new high-precision equipment, fully automated production line, ISO9001, ISO14001 environmental management system certification.
With the most advanced Fuji NXT3 machine and JUKI K-RS1/3010/3020vam SMT high-speed module patch production line, each line can support 70,000 points per hour.
GPS PCB Assembly
Professional Quality Checking
Support OEM GPS Receiver
Advanced High Precision Machine
Related Products
Products Name with link
Products Name with link
Products Name with link
Our Company
Founded in 2009, Newstar is a professional PCBA manufacturer with over 10 years experience, specializing in GPS Products, PCBA R&D, SMT and DIP. With 3000㎡ dust-free own workshop, experienced engineers and advanced precisionmachine FUJI/JUKI, Newstar is confident providing high quality service and products.
Certifications
Packing & Delivery
Packing
*Common Packing
*Can be custom according to request
Delivery
*DHL/Fedex/TNT/SF Express and other express company
*For small orders, lead time is 3-5days
FAQ
*Are your a trading company or manufacturer?
-------We are manufacturer of gps related product, and we offer pcb assembly service.
