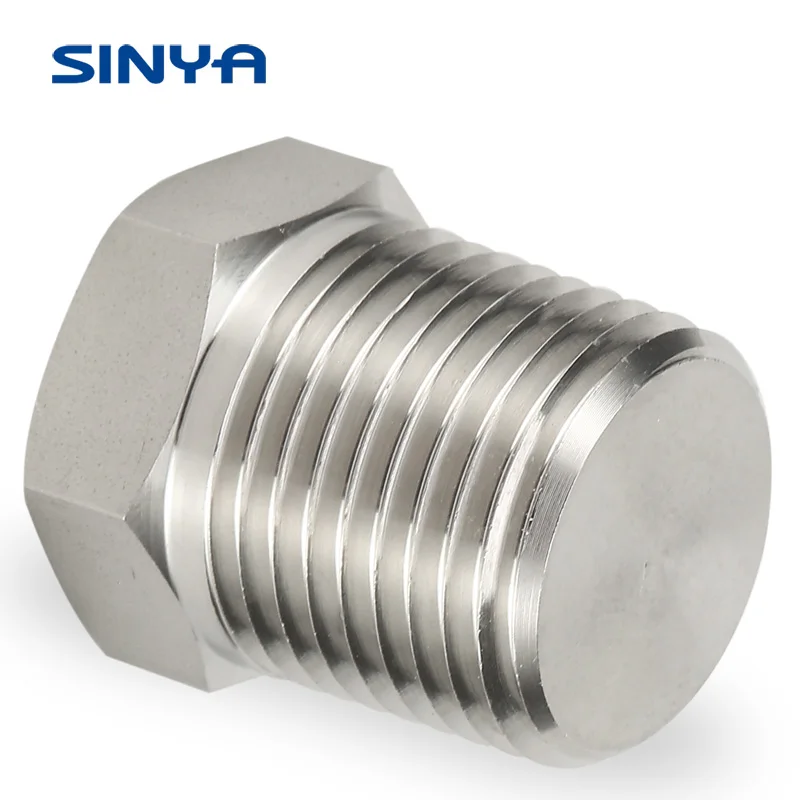

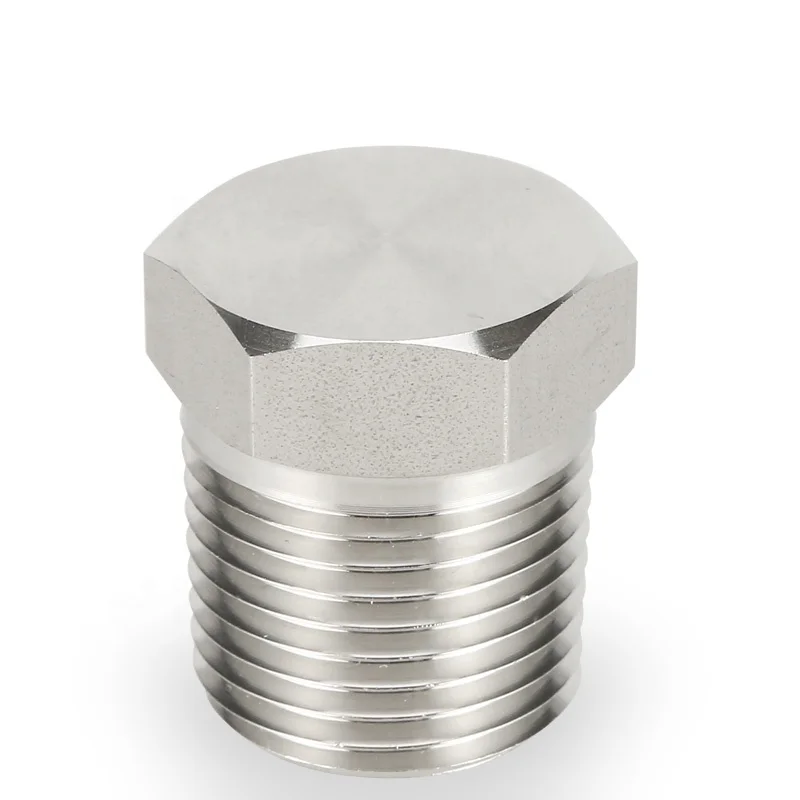

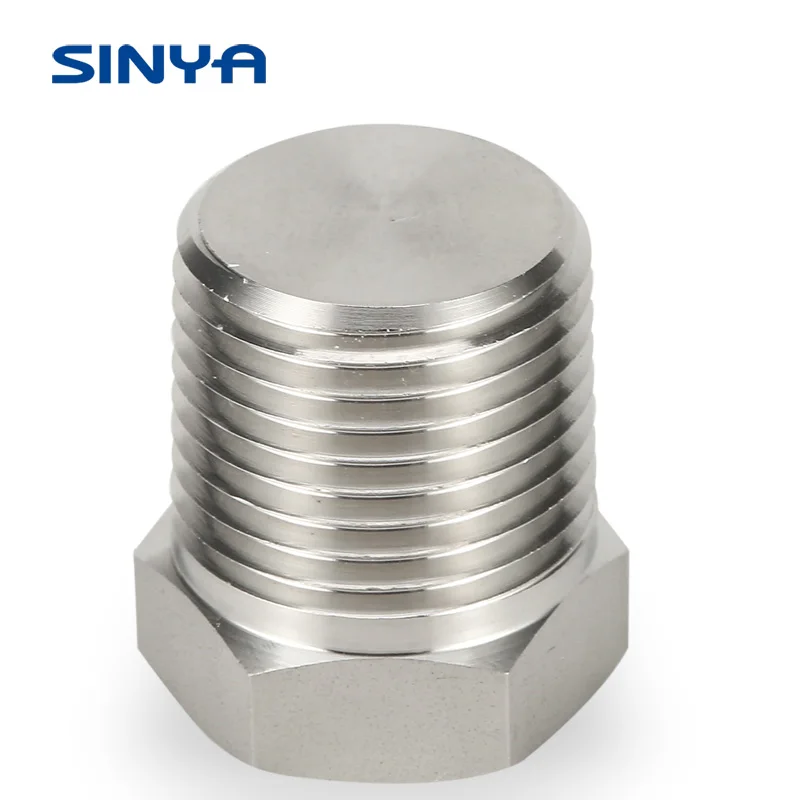

Глухой 1/4 3/8 1/2 1 дюйм NPT BSPT штекер из нержавеющей стали 316 Monel дуплексный 6Mo контрольно-измерительные Трубопроводные фитинги с шестигранным штекером твердой
- Категория: Pipe Fittings >>>
- Поставщик: Yangzhong,Xinya,Automatic,Control,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.6 $* | 0.84 $* |
| Aug-15-2025 | 0.99 $* | 0.29 $* |
| Jul-15-2025 | 0.31 $* | 0.82 $* |
| Jun-15-2025 | 0.16 $* | 0.29 $* |
| May-15-2025 | 0.35 $* | 0.30 $* |
| Apr-15-2025 | 0.81 $* | 0.55 $* |
| Mar-15-2025 | 0.49 $* | 0.42 $* |
| Feb-15-2025 | 0.16 $* | 0.5 $* |
| Jan-15-2025 | 0.46 $* | 0.80 $* |
Характеристики
Product Description
1.Size range from 1/8" to 2". | ||||||
2.Working temperature:-325℉~800℉ (-198℃~426℃). | ||||||
3.Material grades: SS 304/304L ,SS 316/316S. | ||||||
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc. | ||||||
5.Zero leakage even under tough working conditions. | ||||||
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT). | ||||||
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code. | ||||||
8.Available in wide variety of configurations. | ||||||
-LWP Pipe Plug | ||||||||||

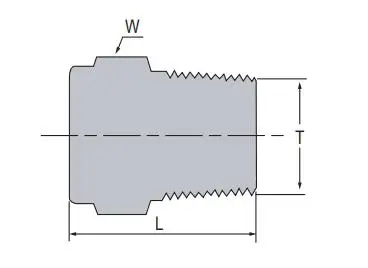

Order information | T | L | W （HEX） | |||||||
(NPT) | (in) | (mm) | (in) | (mm) | ||||||
-LWP-1 | 1/16 | 0.75 | 19.0 | 0.31 | 7.9 | |||||
-LWP-2 | 1/8 | 0.75 | 19.0 | 0.43 | 11.1 | |||||
-LWP-4 | 1/4 | 0.96 | 24.4 | 0.56 | 14.2 | |||||
-LWP-6 | 3/8 | 0.99 | 25.2 | 0.68 | 17.4 | |||||
-LWP-8 | 1/2 | 1.21 | 30.7 | 0.87 | 22.2 | |||||
-LWP-12 | 3/4 | 1.21 | 30.7 | 1.06 | 27.0 | |||||
-LWP-16 | 1 | 1.50 | 38.1 | 1.38 | 35.1 | |||||
Our Services
Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery. Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability | ||||||
1.Custom design, CAD drawing | ||||||
2.P&ID | ||||||
3.Component selection | ||||||
4.Bill of material | ||||||
5.Professional services such as bending and welding | ||||||
6.Testing to guarantee the system | ||||||
7.Professional packaging and delivery | ||||||

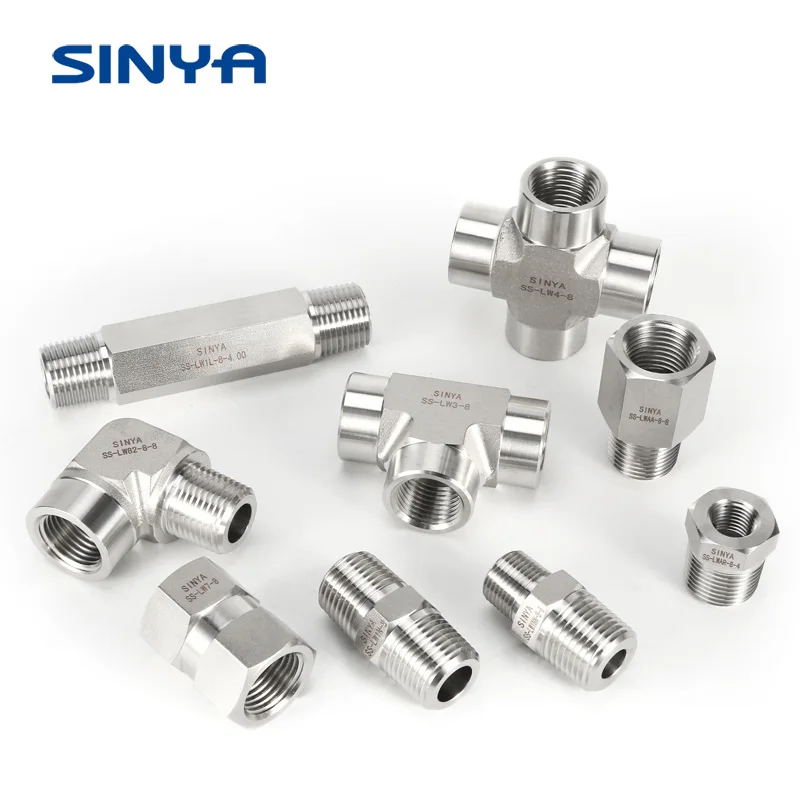

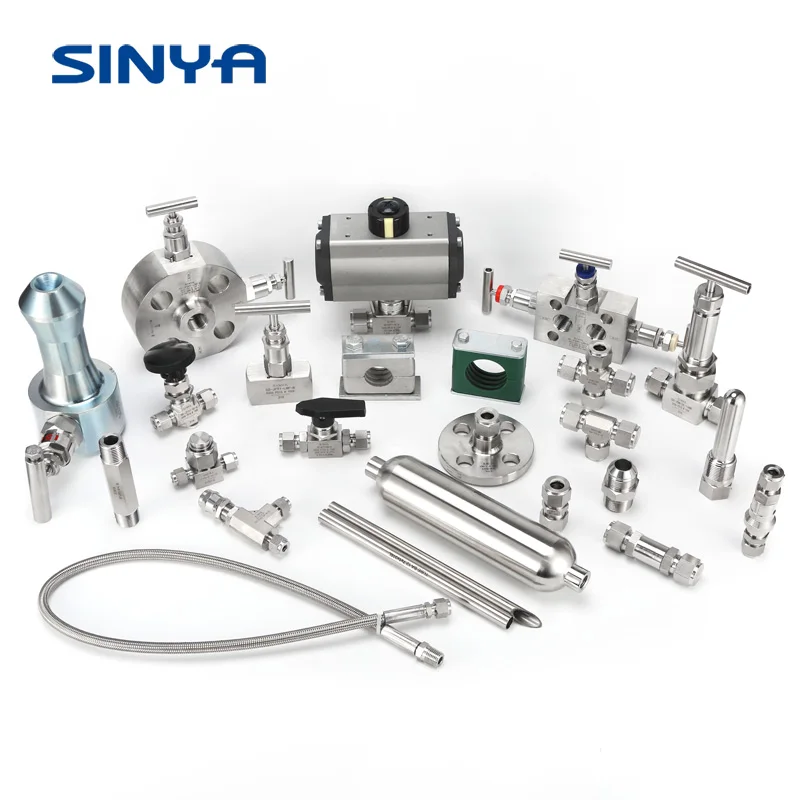

Products Display
Contact us to get more information : | ||||||||
Tube Fittings | Check Valves | Manifolds Valves | In-line Filters | Thermowells | ||||
Pipe Fittings | Relief Valves | Distribution Manifolds | Instrumentation Tubing | Syphons | ||||
Needle Valves | Air Headers | Bleed & Purge valves | Sample Cylinders | Tube Clamps | ||||
Ball valves | Gauge Valves | T-type Filters | Pots and Vessels | |||||
Packing & Delivery
Mode of packing: Export standard package or as your detail request. | ||||||
Delivery time: 2 weeks after receipt of payment | ||||||
Mode of shipment: By Express like DHL,Fedex,TNT Ups. | ||||||
Our Company
1.Established in 1995. | ||||||
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories. | ||||||
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium. | ||||||
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide. | ||||||
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding. | ||||||
6.Always available to discuss your requirements and ensure full customer satisfaction. | ||||||
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc. | ||||||
8.We have obtained ISO9001 certificate, CE Certificate | ||||||
9 Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.. | ||||||
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us. | ||||||
