BLE 4 0/5 0 Акселерометр Датчик iBeacon E7 для рекламы 100 метров водонепроницаемый


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.13 $* 0.10 $*
Aug-18-2025 0.87 $* 0.98 $*
Jul-18-2025 0.8 $* 0.74 $*
Jun-18-2025 0.79 $* 0.89 $*
May-18-2025 0.93 $* 0.59 $*
Apr-18-2025 0.39 $* 0.57 $*
Mar-18-2025 0.95 $* 0.15 $*
Feb-18-2025 0.51 $* 0.38 $*
Jan-18-2025 0.30 $* 0.83 $*

Характеристики


——E7  BeaconPlus——

BLE 4.0/5.0 Accelerometer Sensor iBeacon E7 for Advertising 100 Meters Waterproof IP67

Product Description

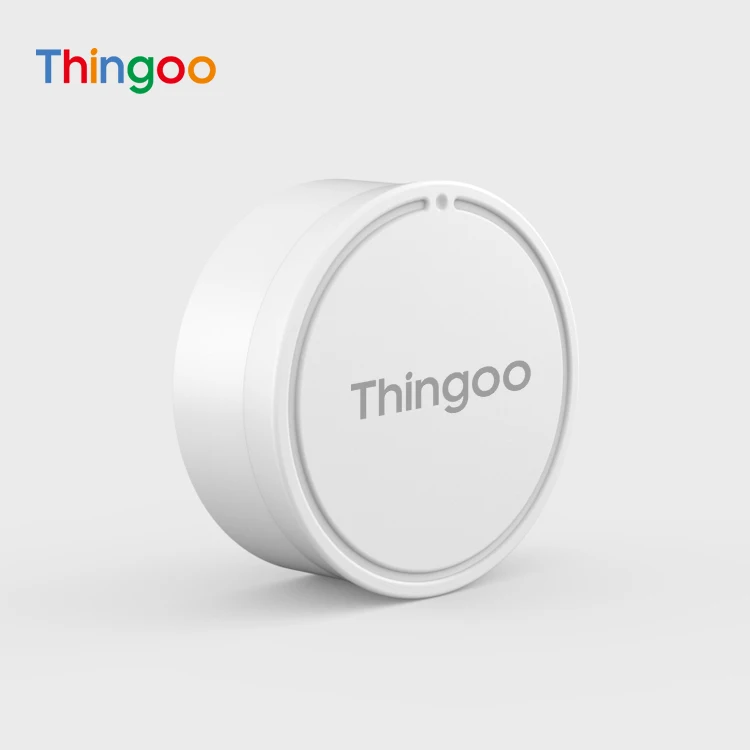

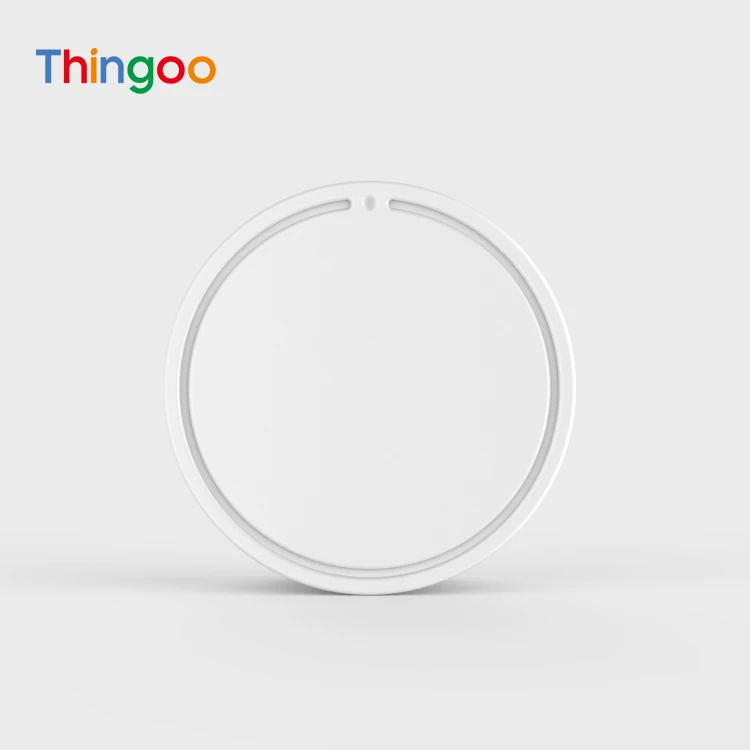

 Beacon E7 Description

The BeaconPlus E7 is a new generation beacon that loaded Bluetooth 5.0 hardware platform and
MiniBeacon Plus intelligence software.

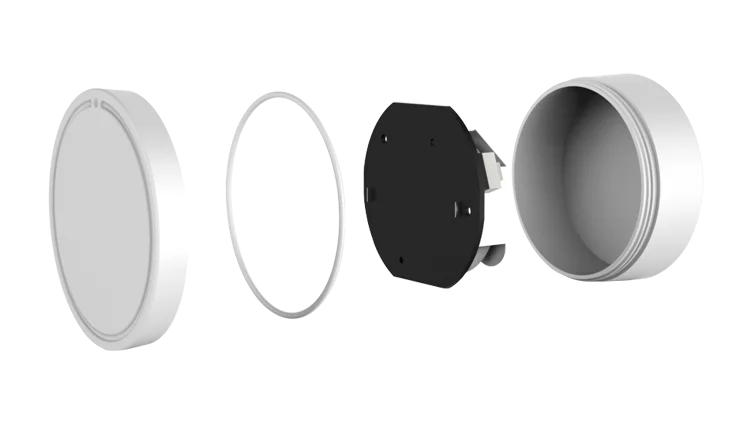

E7 has a smart rotatable mechanical design for the housing that makes the coin battery replaceable and IP67 waterproof grade combination perfectly.
E7 BeaconPlus advertises standard iBeacon, Eddystone (UID,URL,TLM) and accelerometer sensor data simultaneously.

beacon sensor ble 5.0 ibeacon asset management warehouse

Beacon feature:
- IP67 waterproof;
- Replaceable coin battery 1000mAh
- Advertising iBeacon & Eddystone & Sensor data
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset
- The max. 100 meters advertising distance
- Internal power ON/OFF push button

Beacon Specification

ItemValueRemarks
Case Color whiteOther colors can be customized
Battery Model1 x CR24773.0V 1000m
Operation Voltage1.8-3.9DC
Transmission Current5.3mA (peak current)Tested at 0dBm transmission power
Transmission Range100 metersMaximum
Waterproof level IP67Tested at 1 meter water
Antenna50ohmOn board / PCB Antenna
SizeΦ39 x 15.5mm39mm diameter, 15.5mm height

Museums use Beacons to Enhance Visitor Experiences

beacon in museums_

Our Services

Minew only focus on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop services.

              ♦ ODM/OEM for PCBA, Schematic design;

              ♦  PCB Layout, Prototyping, Assembly;

              ♦  Firmware / Software Custom;

           ♦ 48 Patents, 50+ R&D Experts;

           ♦ Two Factories in SZ & DG;
Application

Application

- Indoor location  - Retail promotion  - Activity monitoring - Inventory tracking

banner-

Company information

Company Information


Thingoo,a trademark of Minew, is focused on the BLE technoloy for low-cost location tracking into an existing application.



Founded in 2007, Minew was specialized in IoT field for more than a decade and keeping up with customer demands all the time,By providing smart devices and IoT solutions, we serve to optimize people's lives, works and businesses to make life easier.



We have already served clients from more than 100 countries and regions with 12 million sales volume sold so far. Today, we have collaborated with a lot of top-class corporations including ARM, Ericsson, Google, Huawei, ect.factory

Certifications

Certifications

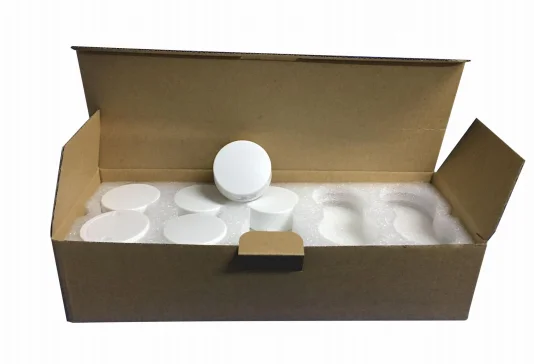

Packaging & Shipping

Delivery


FAQ

FAQ



1. Do you provide the technical support to the developers?

Re: SURE. The following technical data and documents will be provided to developers.

1. SDK  2. API   3. Configuration APP  4. Instructions



2. Can I change the password?

Re: Yes,you can change what you want to set.



3. Do you have SDK or API?

Re: Yes,we will provide you after sample was arrived.



4. Does Thingoo provide service after sale?
Re: Yes, our sales team will provide technical support within 24h on working day.
