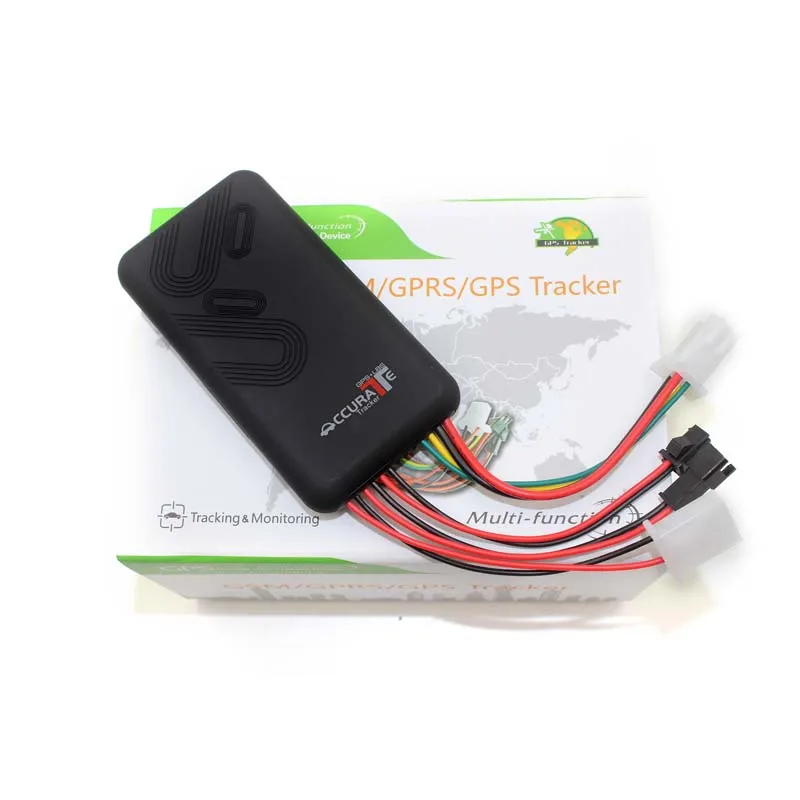

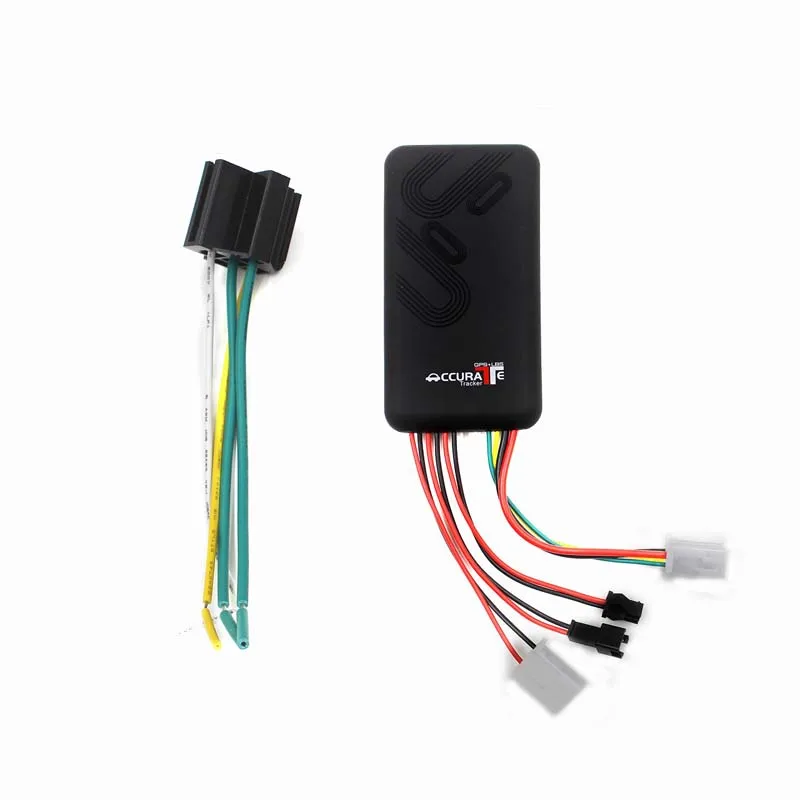

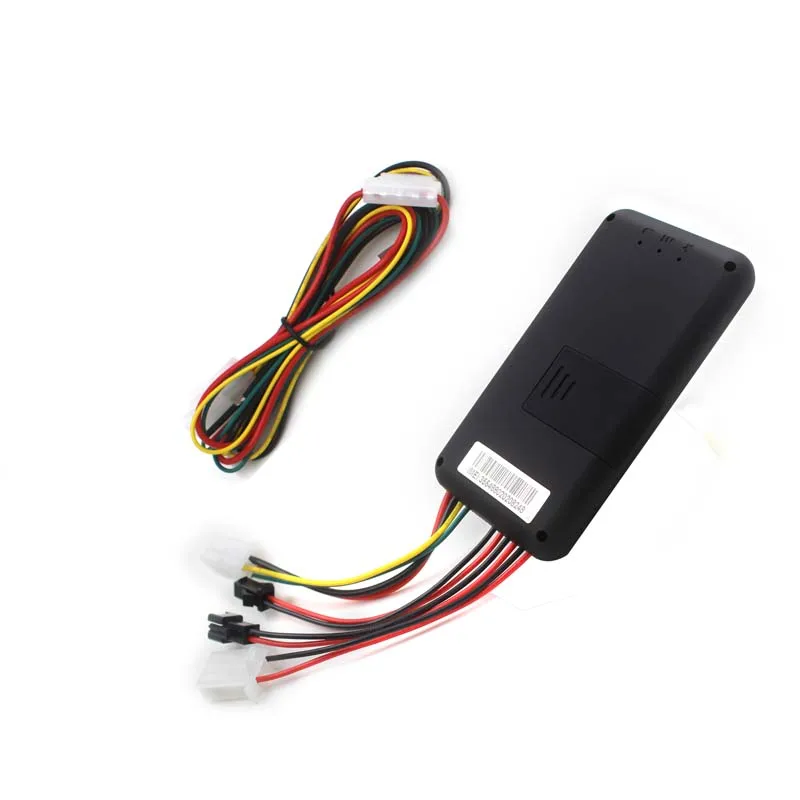

Высококачественное устройство отслеживания в режиме реального времени GT06 автомобильный GSM GPRS GPS трекер недорогой

Content

Specs.

Dim.

97 mm x 51 mm x 15 mm

Weight

80g

Network

GSM/GPRS/GPS

Band

850/900/1800/1900 Mhz

GPS chip

MT3336

GSM module

MTK6260D

GPS sensitivity

-159dBm

GPS accuracy

10m

Time To First Fix

Cold status  45s-90s

Warm status  50s

 Hot status  15s

Work voltage

12V-24V

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

15%--95%

Function

SMS Command

Example

Default password:123456, each command must get a reply represents configure OK

Step1 IP and Port setting

#IP#password#ip address#port#

#IP# 123456#121.201.109.14#696

9#

Step2 Setting APN

#apn#password#APN content#APN

user name#APN password#

#apn#123456#cmnet#

Step3 Single Locating

#smslink#password#

#smslink#123456#

More Features Below (Not necessary)

Check device parameters

TCP

Cut fuel or electricity

#stopoil#password#

#stopoil#123456#

#stopelec#123456#

#stopelec#password#

Recover fuel or

electricity

#supplyoil#password#

#supplyelec#password#

#supplyoil#123456# #supplyelec#123456#

Set Timezone

#timezone#password#direction#time zone value in hours#time zone in

munites#

#timezone#123456#E#5#30#

Set password

#password#old password#new

password#

#password#123456#666888#

Set ACC ON alarm

Cancel ACC ON alarm

#ACC#ON##

#ACC#OFF#

Set overspeed alarm

#speed#password#speed number#

#speed#123456#080#

Cancel overspeed alarm

#nospeed#password#

#nospeed#123456#

Set time Interval

#at#time interval#sum#0#

#at#10#sum#0#

Resume password

#resume#

#resume#

Set admin number

#admin#password#cell phone

number#

#admin#123456#1381234567 8#

Cancel admin number

#noadmin#password#number#

#noadmin#123456#13812345

678#

Initialization

#begin#password#

#begin#123456#

Voice Surveillance

#monitor#password#

#monitor#123456#

Recover Tracker Mode

#tracker#password#

#tracker#123456#

Two-way calling

#call#password#

#call#123456#

Two-way call Mode: use phone to dial the device number, car horn or speaker rings, press

SOS button to pickup the call so it can realize two-way talking function.
