Двойные экструдеры ABA трехслойная машина для совместной экструзии HDPE LLDPE биоразлагаемая пластиковая
- Категория: Рукавных пленок производственная линия >>>
- Поставщик: Wenzhou,Dayu,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.45 $* | 0.48 $* |
| Aug-19-2025 | 0.99 $* | 0.63 $* |
| Jul-19-2025 | 0.21 $* | 0.67 $* |
| Jun-19-2025 | 0.24 $* | 0.10 $* |
| May-19-2025 | 0.78 $* | 0.37 $* |
| Apr-19-2025 | 0.14 $* | 0.72 $* |
| Mar-19-2025 | 0.10 $* | 0.11 $* |
| Feb-19-2025 | 0.23 $* | 0.75 $* |
| Jan-19-2025 | 0.76 $* | 0.24 $* |
Характеристики

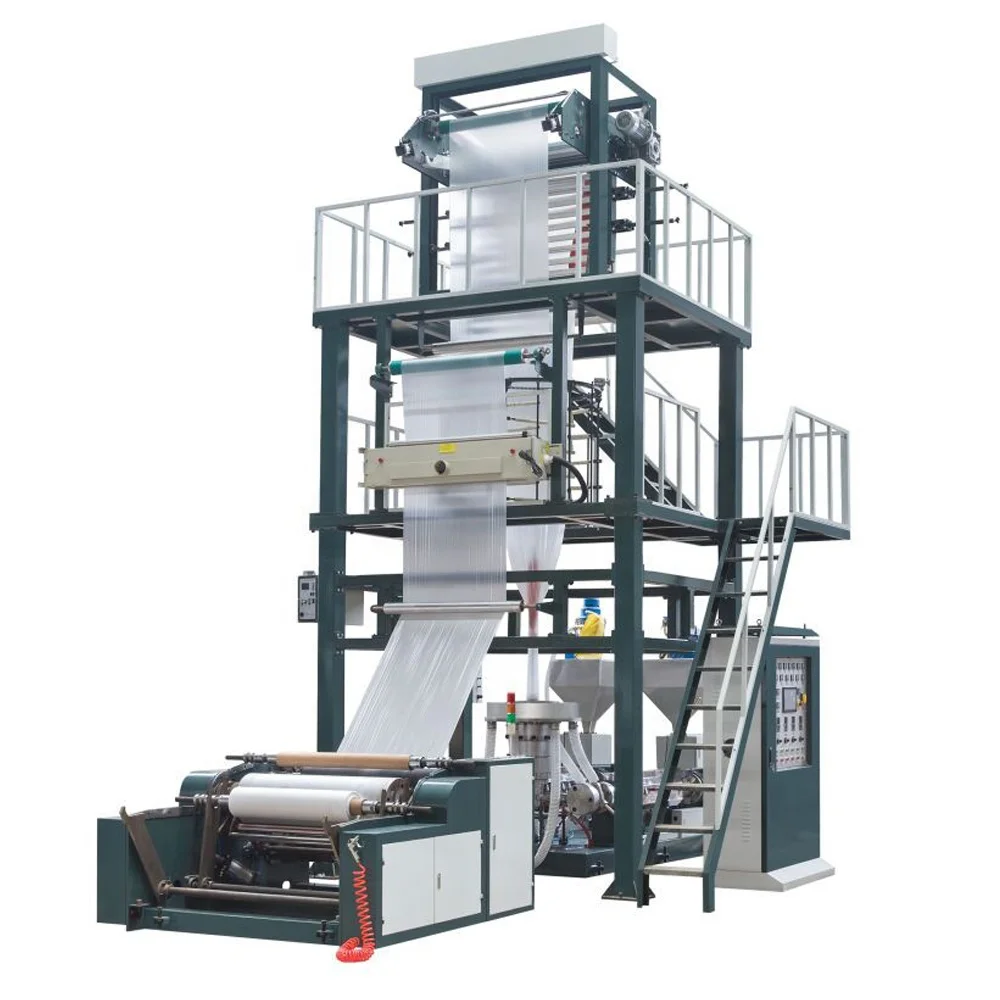

Double Extruders ABA Three-layer Co-extrusion LDPE HDPE LLDPE Biodegradable Plastic Film Blowing Machine Price
Why Choose Us
(1) Efficient and satisfied service
(2) Complete machines solution for the whole production line
(3) Various and multi solutions for different requirement
(4) More than 18-year professional experience
(5) Qualified product and strict quality control
(6) ODM,OEM is welcome
We had the honor to serve many customers from all over the world to help them to start from “0” to big factories and companies.
Welcome to be one of our top “VIP” customers.
We believe that “The quality is the soul of an enterprise”.
“With us your MONEY in SAFE; Your BUSINESS in SAFE”.
Main Features
Main Advantage
Well-Tech Machinery production of ABA three-layer co-extrusion blown film machine has a unique advantage in the production of HDPE, LDPE and LLDPE materials. Through the multi-layer co-extrusion, the physical strength of the film is improved. The two main motors supply three-layer extrusion. One provides internal and external coating, while the other provides internal filled layer. It can reach the purpose of host configuration reduction, cost reduction, energy conservation and low consumption. Meanwhile, the internal filling layer can be added recycled material and calcium carbonate, whose proportion can be 50% of total. The raw material cost in the process of production can be greatly reduced to provide clients with a strong market competitiveness.
Film Application
The applicable range of ABA film blowing machine is wide, mostly for vest bag, flat bag, biodegradable plastic film and fruit packaging.
The Best Way to Reuse Recycled Material and Calcium Carbonate
The price of oil and new material is going up. To use recycled material and filling calcium carbonate can greatly reduce the cost than buying new material. Our ABA blown film machine, using A layer of output both inside and outside two layers of coating layer, can make the production of the film surface smoothly and brightly with strong tension resistance, which meets the industrial and civil standard. Then the inner coating layer uses more than 4 times the amount of renewable raw material and calcium carbonate filler. Its production of the film quality is absolutely better than single-layer equipment and less cost than three-layer machine. By this way, customers will save raw material cost in the process of production and improve the quality advantage as well as promote enterprise’s market competitiveness.

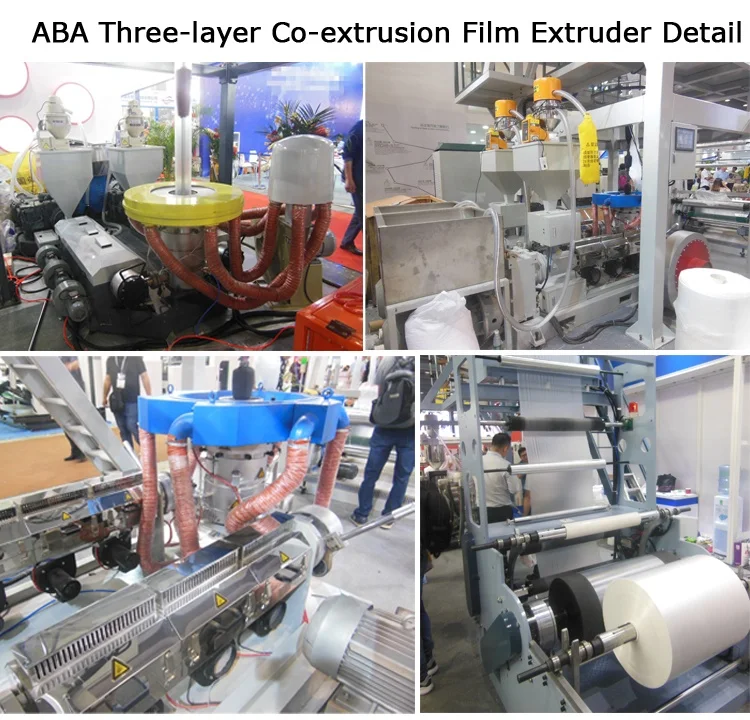

Extruder Structure

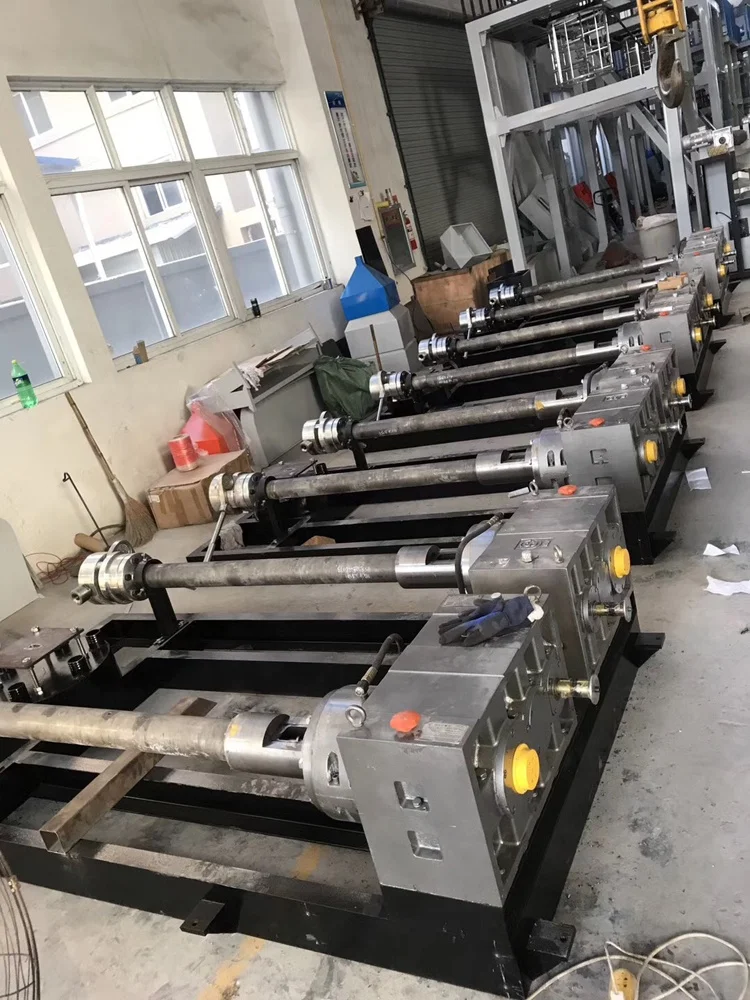

ABA three-layer co-extrusion blown film machine, using a three-layer co-extrusion die head, whose main part has only two screws feeding three layers. This feeding way will save a extrusion machine all cost, which can reduce wear, electric power, artificial, covers an area of space and etc.
Machine Photos
Product Paramenters
Model | WT-50/ABA800 | WT-55/ABA1000 |
Screw Diameter (mm) | Φ50/55 | Φ55/60 |
Screw Length (L/D) | 30:1/32:1 | 30:1/32:1 |
Film Width(mm) | 800 | 1000 |
Film Thickness(mm) | 0.02-0.10 | 0.02-0.10 |
Max.Extrusion Output (kg/h) | 90 | 100 |
Die Size(mm) | Φ80/150 | Φ120/200 |
Driving Motor(kw) | 11&18.5 | 15&22 |
Total power(kw) | 60 | 70 |
Overall Dimension(m) | 4.2*3.3*4.5 | 4.6*3.5*4.8 |
Weight of Machine(kg) | 2500 | 3000 |
Other Related Machines
Plastic Bag Line
The Complete Plastic Polythene Bags Production Line Machines including Film Blowing Machine, Printing Machine, Plastic Bag Making Machine, and Plastic Recycling Machines can be supplied. Multi solutions for the project of plastic bags production!

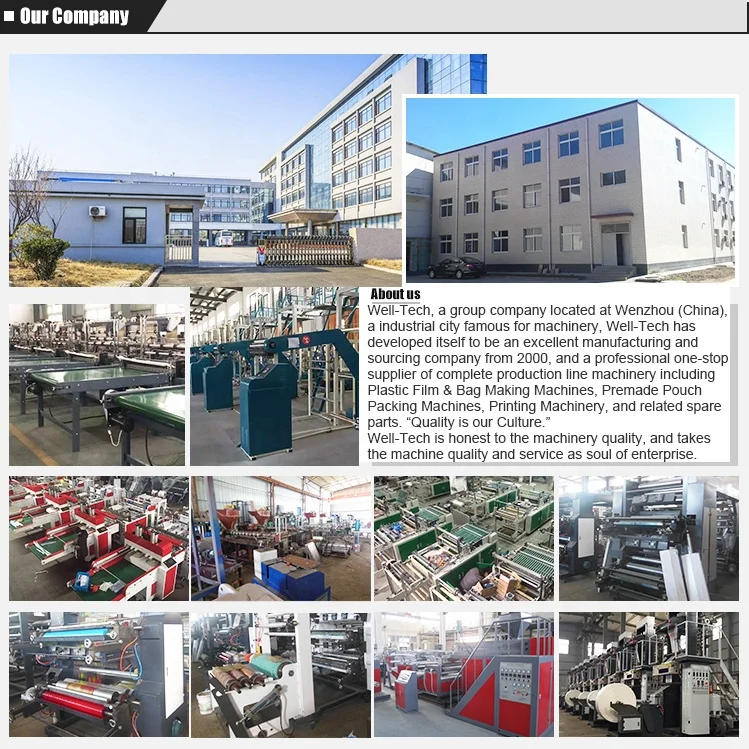

Company Profile
