Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный
Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный
Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный
Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный
Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный
Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный
Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный

Компрессионные трубчатые фитинги 3/8 дюйма OD мкм 2 7 15 60 90 микрон прибор для газовой жидкости прямой линейный


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.33 $* 0.79 $*
Aug-15-2025 0.66 $* 0.56 $*
Jul-15-2025 0.62 $* 0.14 $*
Jun-15-2025 0.38 $* 0.0 $*
May-15-2025 0.22 $* 0.24 $*
Apr-15-2025 0.73 $* 0.5 $*
Mar-15-2025 0.62 $* 0.59 $*
Feb-15-2025 0.41 $* 0.57 $*
Jan-15-2025 0.2 $* 0.65 $*

Характеристики







Products Description




1.316 stainless steel and brass.
2.There are two kinds of filtering elements: sintered & strainer type.
3.The filtering accuracy of the filtering element would be six classes: 0.5, 2, 7, 15, 60 & 90 μm.
4.Some other kinds of filtering elements can be supplied according to the customer's requirement.
5.Pressure g rade: 6000 psi for 316 stainless steel and 2000 psi for brass.
 6.Variety of end connections.
7. Each and every filters are tested at the factory.




-THC In-line Filter

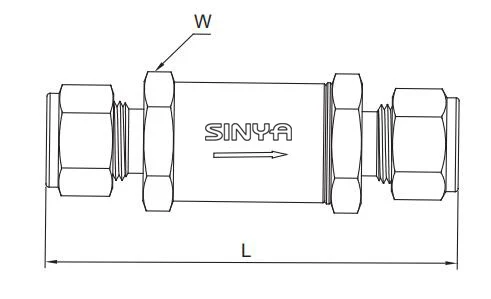

Order information
End Connection Size
L
W
in
mm
in
mm
in
mm
-THC-SK-2
1/8
3.2
2.26
57.5
0.55
14
-THC-SK-4
1/4
6.4
2.76
70.0
0.75
16
-THC-SK-6
3/8
9.5
3.2 1
81.5
1.0 2
26
-THC-SK-8
1/2
12.7
3.4 8
88.5
1.0 2
26
-THC-SK-3mm
0.1 2
3
2.2 6
57.5
0.5 5
14
-THC-SK-6mm
0.2 4
6
2.9 5
75.0
0.7 5
19
-THC-SK-10mm
0.3 9
10
3.2 1
81.5
1.0 2
26
-THC-SK-12mm
0.4 7
12
3.4 8
88.5
1.0 2
26
-THC-LWF-2
NPT1/8
2.1 7
55.0
0.5 5
14
-THC-LWF-4
NPT1/4
2.4 8
63.0
0.7 5
19
-THC-LWM-4
NPT1/4
2.6 8
68.0
0.7 5
19
-THC-LWM-6
NPT3/8
2.8 3
72.0
0.8 7
22


Our Services




Sinya tries to get the satisfaction of all users by providing Premium Quality products and services in the field of Instrumentation tube fitting & valves ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.

Its products are provided based on three fundamental factors: 1) Quality 2) Variety 3) Reliability
1.Custom design, CAD drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery

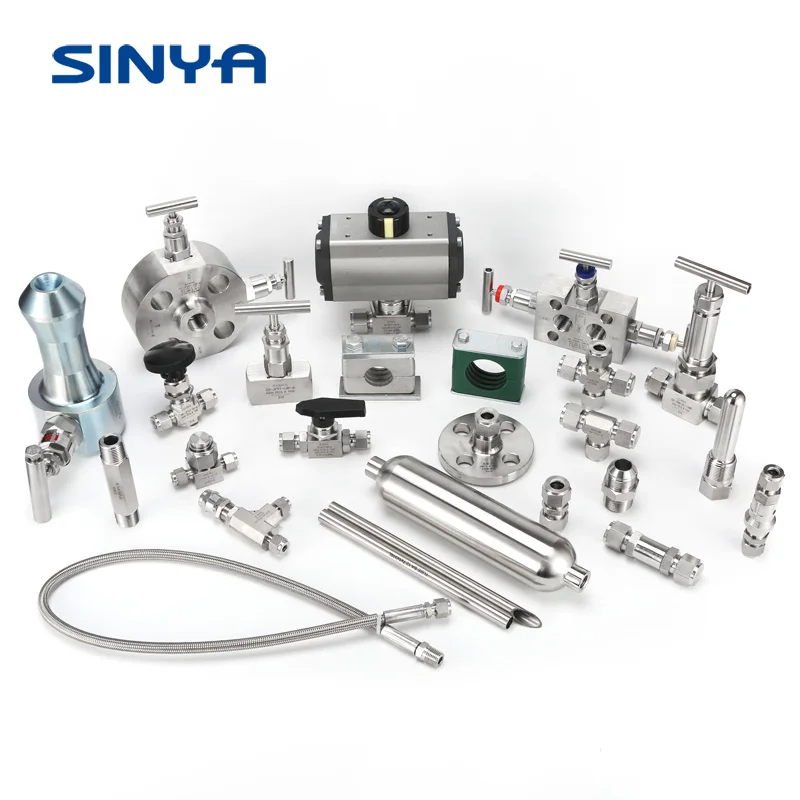

Products Display




Contact us to get more information :
Tube Fittings
Check Valves
Manifolds Valves
In-line Filters
Thermowells
Pipe Fittings
Relief Valves
Distribution Manifolds
Instrumentation Tubing
Syphons
Needle Valves
Air Headers
Bleed & Purge valves
Sample Cylinders
Tube Clamps

Ball valves
Gauge Valves
T-type Filters
Pots and Vessels



Our Company




1.Established in 1995.
2.We are professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
3.Products are available in the variety of different materials, such as Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
4.We located in Zhenjiang City, near shanghai port with convenient transportation access worldwide.
5.Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
6.Always available to discuss your requirements and ensure full customer satisfaction.
7.We have Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
8.We have obtained ISO9001 certificate, CE Certificate.
9.Our products are exported to Middle east, North America, South America, South East Asia, Europe and other countries.
10.We also welcome OEM and ODM orders. Please feel free to contact and visit us.


Certifications




Compression Tube Fittings 3/8"OD 0.5um 2um 7um 15um 60um 90um Micron Gas Liquid Instrumentation Straight In-Line Filter instrumentation stainless steel filteInstrumentation Filter for Liquid and Gas 3/8" 6M-F6L-1-SS Stainless Steel 1/2 in A-Lok Stainless Steel Water Filter 19.64L/min 3/8" 316 Stainless Steel Filter 3/8" Compression Type 6000 Max psi 1/8" Pipe Stainless Steel Instrumentation Filter
