1.What is Air Shaft

It is a kind of special-made shaft  for winding or unwinding , when it inflated by  high-pressure, the surface of it can be raised up and after deflating the air,the surface will quickly retract .It is widely  used in the manufacturing process and light metal industry.The advantage of using an air shaft  is that it can greatly improve the workingeffeciency .

2.What can an air shaft be used for?

Printing machine;

Cutting machine;

Slitting machine;

Coating machine;

Laminating machine;

Bag making machine;

And so on

3. Specifications of air shaft

Type:Key type air shaft(steel-made or aluminum made) ,Lath type air shaft,Differential air shaft

Material: No.45 steel/ Aluminum

Length:0.2m-3.8m

4.Why choose us?

(1)Adopting high power press machine to realize interference fit

We are using a high power press machine which can produce 80T thrust to realize all the combination of spindle head and steel tube for the air shafts. Light type air shaft is with 0.03mm interference fit.Heavy type air shaft is with 0.06mm interference fit.While many factories knock it in with a big hammer,no quality and accuracy.

(2)Adopting hi-precision cold-drawn steel tube as the shaft body

We adopt  hi-precision cold-drawn steel tube as the shaft body.The thickness of this kind of tube is uniform so when the rubber balloon inside is inflated ,all key strips will stick out at same height .And it will  greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.

(3) Adopting whole long key bar and pagoda springs for key type air shafts

We use the whole long key bar to form a good protective ring around the air shaft air chamber ,and we adopt the pagoda springs which can bear 300000 compression.The key bar is made of aluminum alloy.

(4)Adopting special equipment to connect air chamber and shaft head

The connection mode between the air chamber and the shaft head is very important process,our company are using special equipment to realize it.Outside is buckled by siderosphere directly which can ensure good sealing performance and stability. Many air shafts produced by other suppliers,both ends are fastened by iron wire,this is easy to leak and is with unstable sealing performance.

Structure of air shaft

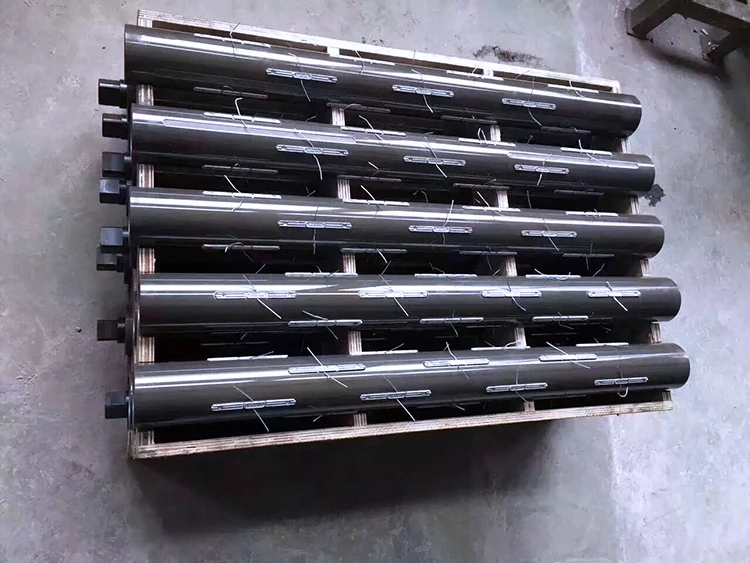

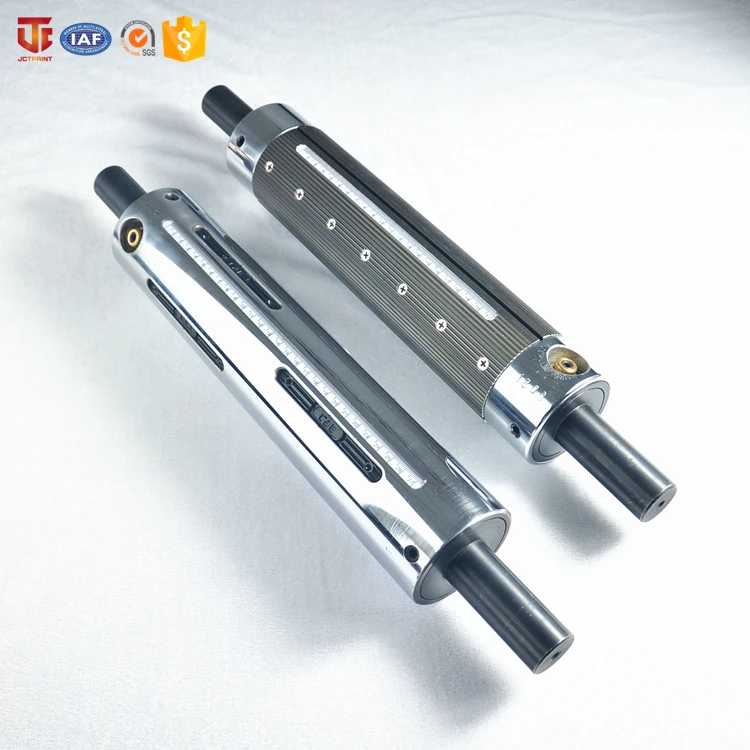

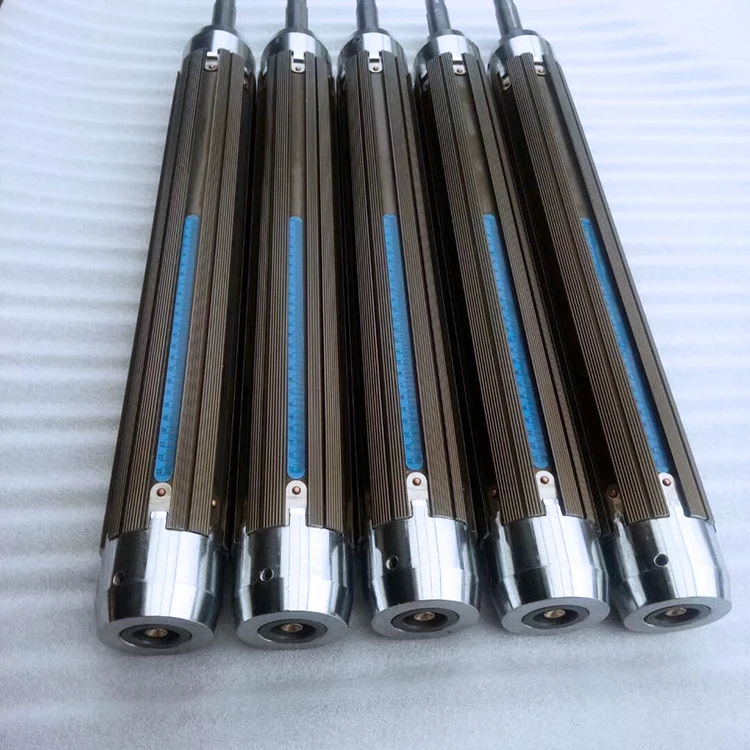

  Pictures for air shaft:

 Adapter for air shaft(Air cover)

Air valve and Air gun(air inflatable handle):

Safety chuck:

1.How should I place the order?

For air shaft , please send us your drawing, or let us know your request.

2.What is your MOQ?

1 Piece.

3.What material of your shaft is made of?

45# steel ,aluminum.

4.Can you produce relative product,like adapter,hand shank?

Yes,Sure.
