TUF B360M-PLUS игровой S 64 Гб DDR4 гнездо 1151

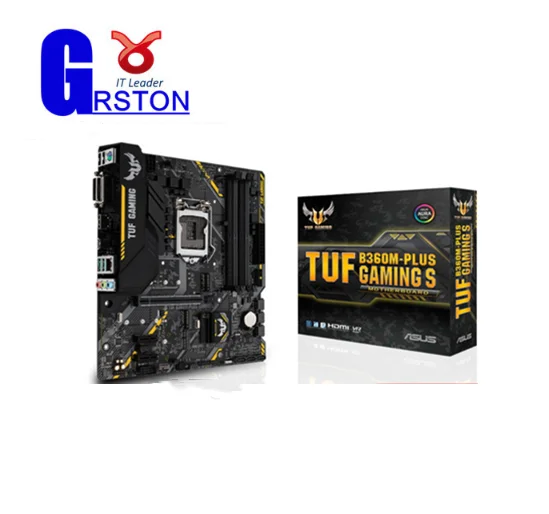

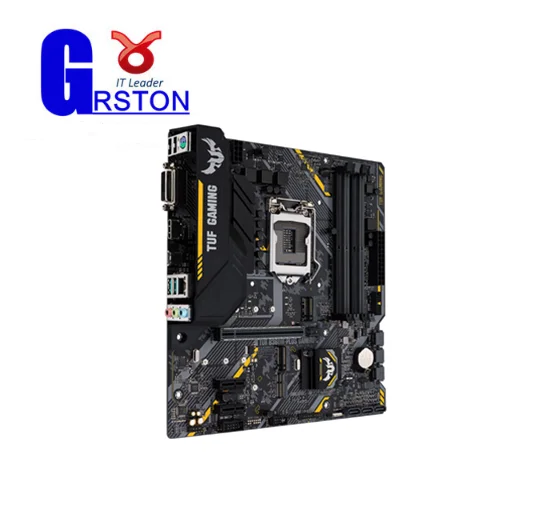

 TUF B360M-PLUS GAMING S  64GB DDR4 Socket 1151 mATX Motherboard

 LGA 1151 mATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 2666MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.

TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability

Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability

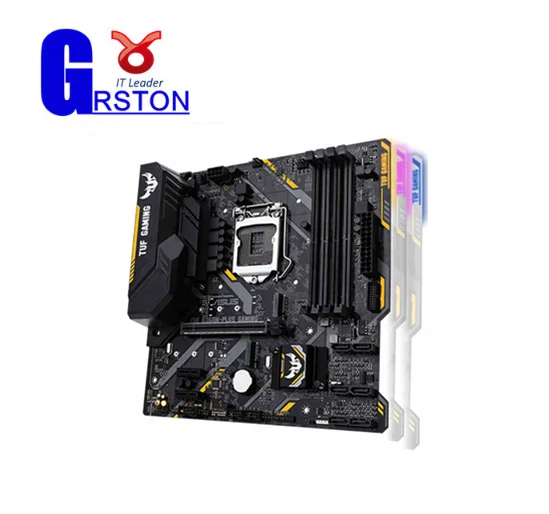

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

 memory ready: Exploit the latest high-speed storage technology

Native M.2: Lightning-fast storage speeds

CPU

Socket 1151 for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports 14 nm CPU

Supports Turbo Boost Technology 2.0

* The Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Memory

B360 Chipset

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor

** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on 8th Gen. 6-core or higher processors.

Expansion Slots

1 x PCIe 3.0 x16 (x16 mode)

2 x PCIe 3.0/2.0 x1

1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and CNVi (Integrated Wi-Fi/BT) module*

* The Wi-Fi/BT module is purchased separately

Storage

B360 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s), gray

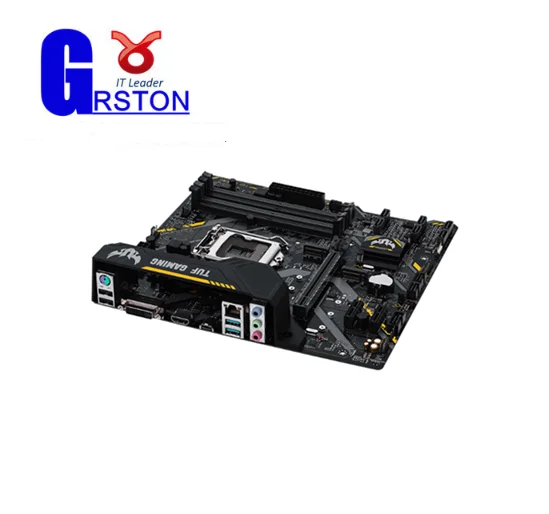

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x High Definition Multimedia Interface

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps

1 x USB 3.1 Gen 1 () USB Type-CTM, up to 5Gbps

2 x USB 2.0

1 x 8-channel Audio I/O

Internal I/O Ports

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)

2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector
