Introduction of Waste bin lift machine Waste bin elevator

This type trash can lift machine is chain type elevator.The lift height from 1-3m,can be customed.
Application:Simple structure,reasonable design,mainly used for lift household garbage,kitchen waste,lift transfer basket,use in food factory,Environmental sanitation,medicine factor,chemical factory,etc.

Application of Waste bin lift machine /Waste bin elevator

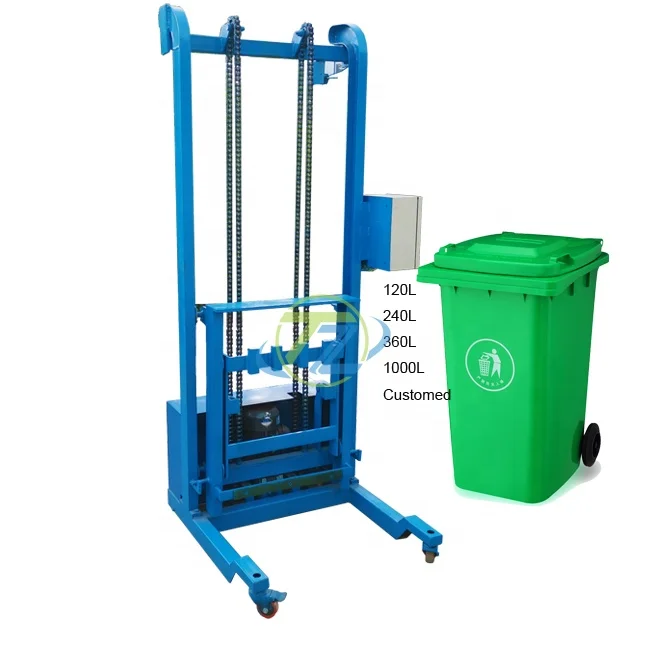

The trash can lift machine adapt to different size plastic trash can 120L,240L,360L,660L,1000L plastic and metal box,case,etc.
The lift weight range from 50-1000kg,can be customed,Turn over angle for trash can is 135-145degree,trash can elevator adopts chain and motor linkage device, and some equipment adopts hydraulic lifting to realize lifting and turning of the garbage bin, and the garbage in multiple garbage bins is automatically collected into the garbage bin.

Feature and structure of Waste bin lift machine /Waste bin elevator

The trash can lifting and overturning and dumping device is characterized in that it comprises a trash can bracket and a lifting mechanism, the trash can bracket is installed at the movable end of the lifting mechanism, and the lifting mechanism is fixedly installed at the rear of the frame; the trash can bracket can be The trash can is fixed, and the trash can can be inverted and dumped out of the trash; the lifting mechanism can raise the trash can bracket and the trash can together.

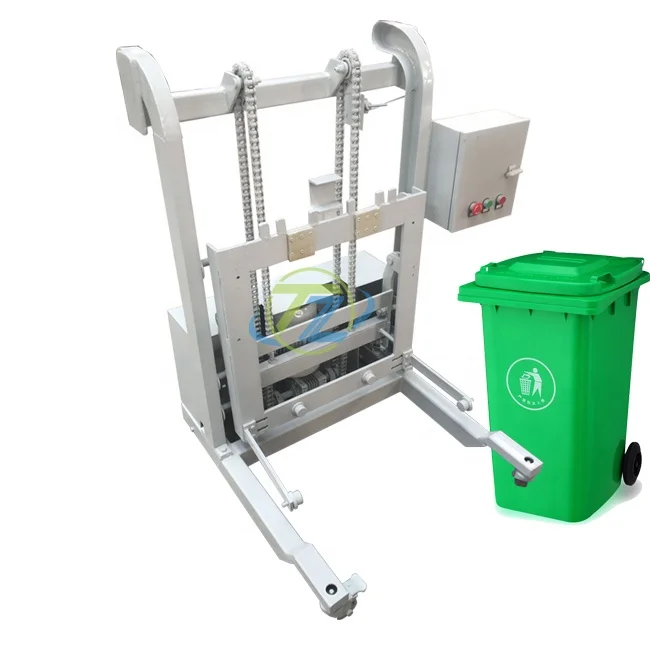

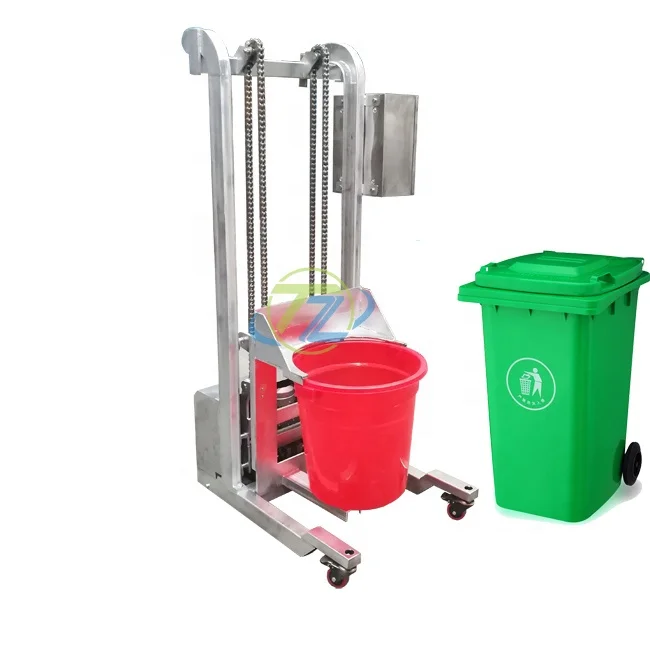

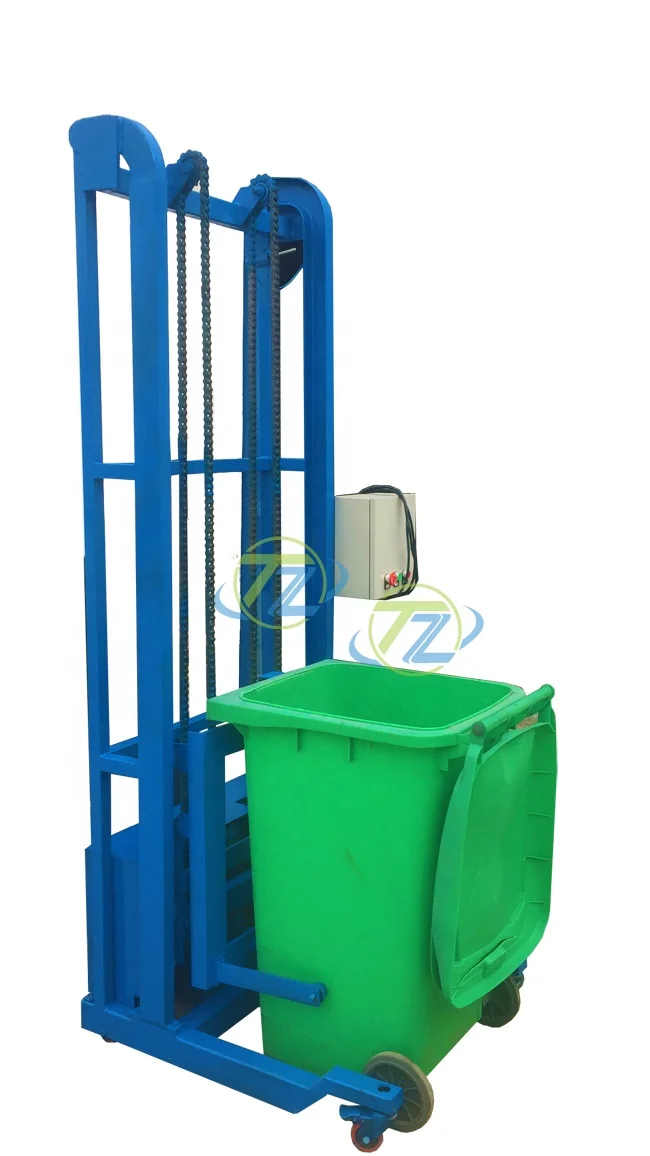

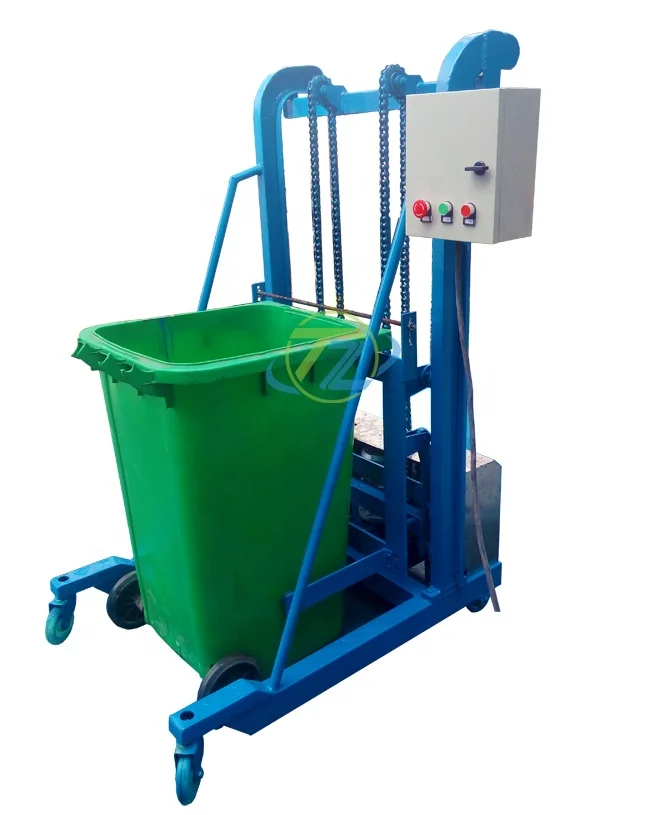

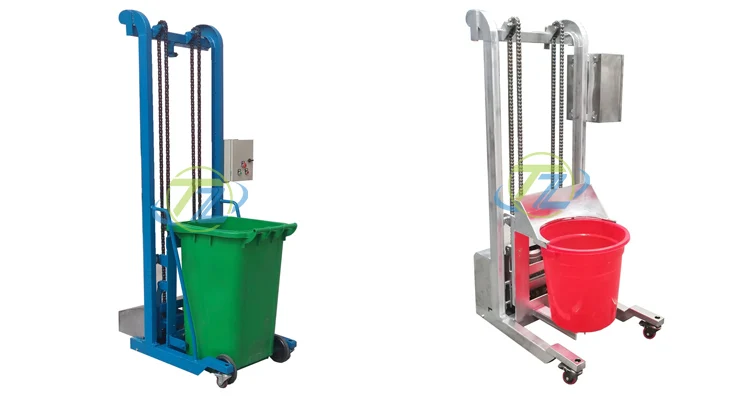

Images of Waste bin lift machine /Waste bin elevator

Details image

Other related machine We have:Click photos

Contact me to know more about trash can lift machine.
